Plan 430031LY

Exclusive

3-Bed Modern Hill Country House Plan with Dramatic Arched Interior
Heated S.F.
3,259
Beds
3
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 430031LY

Main Level
slide image 0

Plan 430031LY

1-800-854-7852

1-262-521-4596

Main Level

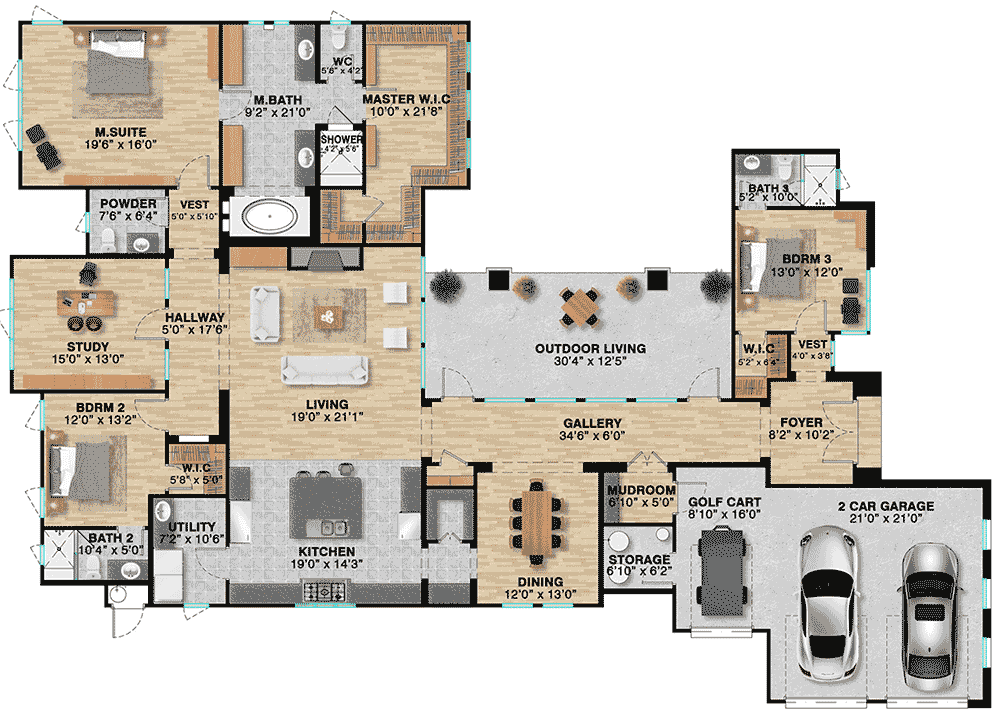

floor plan image Main Level
Plan Details

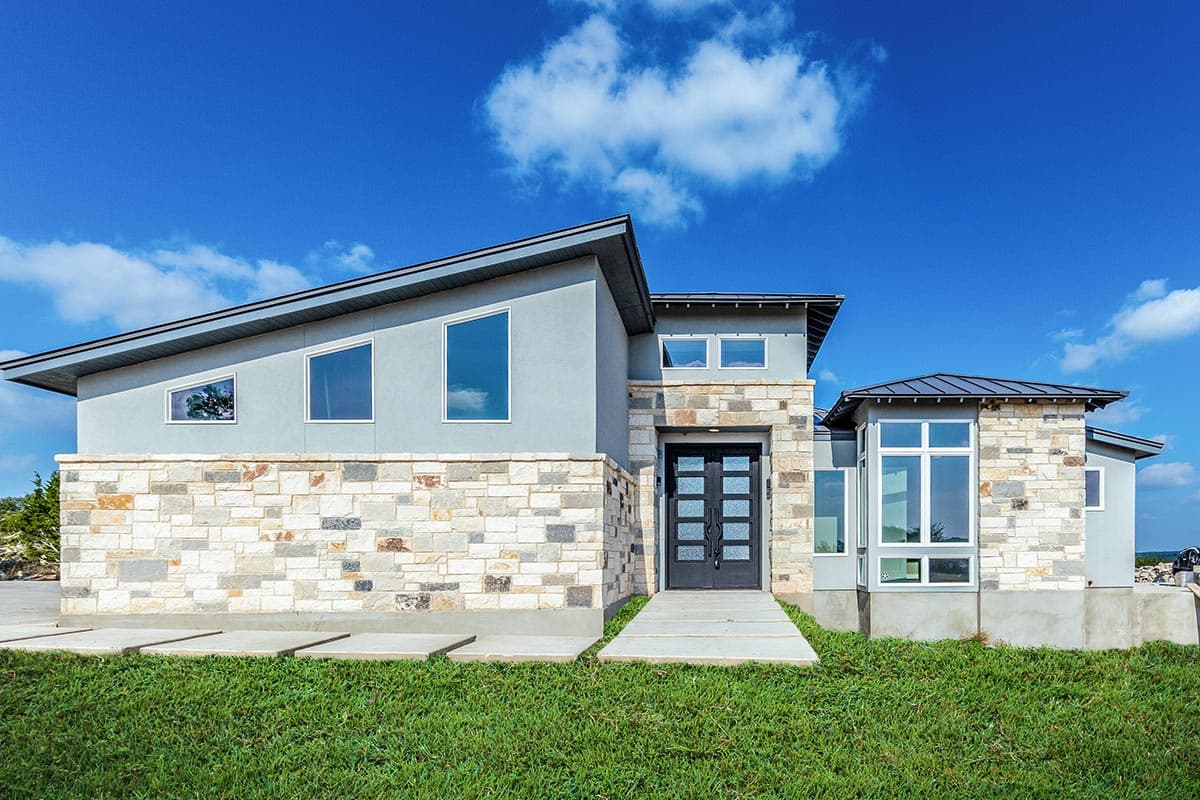

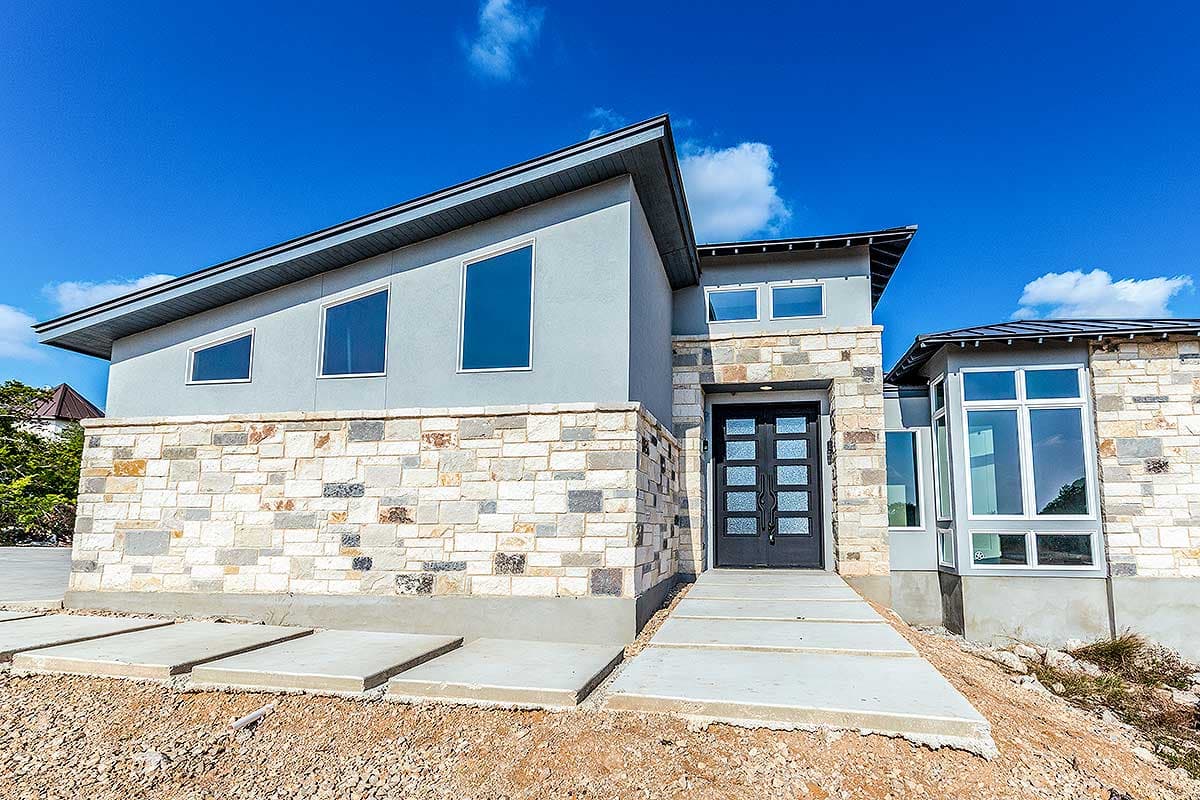

  • Stone and stucco, glass and a standing seam metal roof combine to great effect on this 3-bed modern Hill Country House Plan.

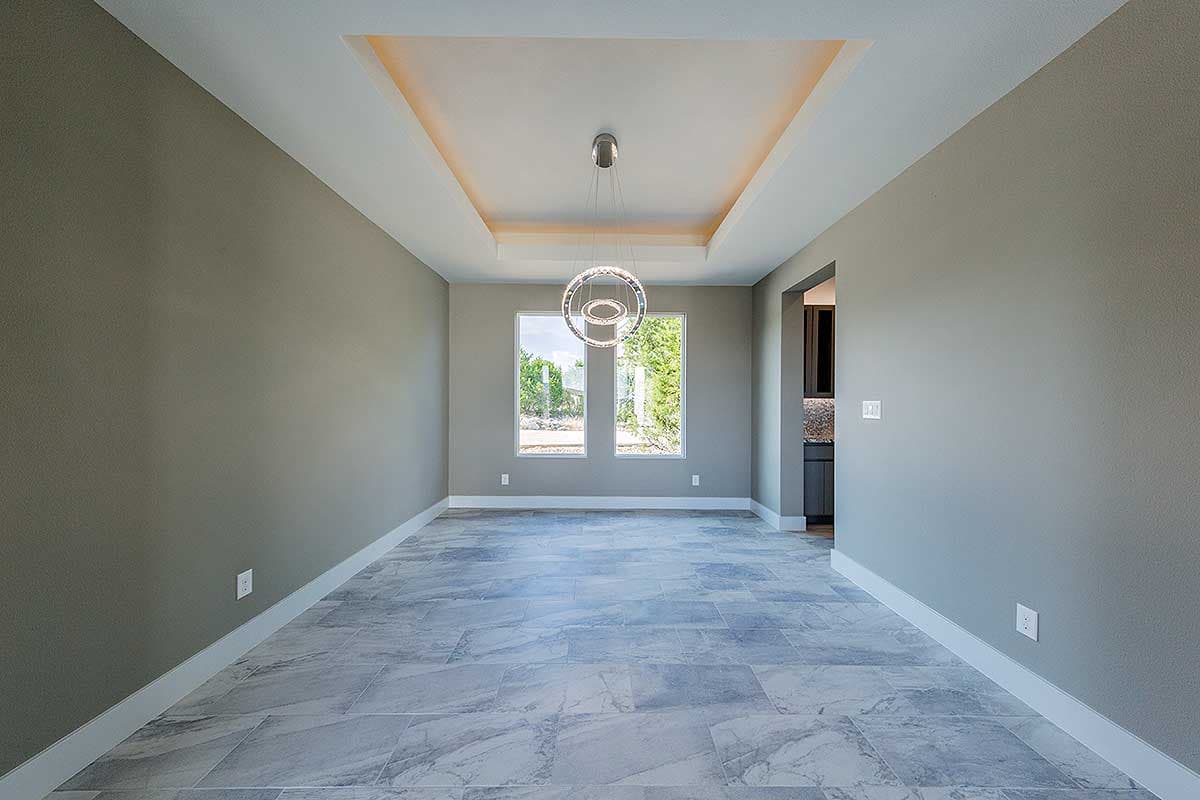

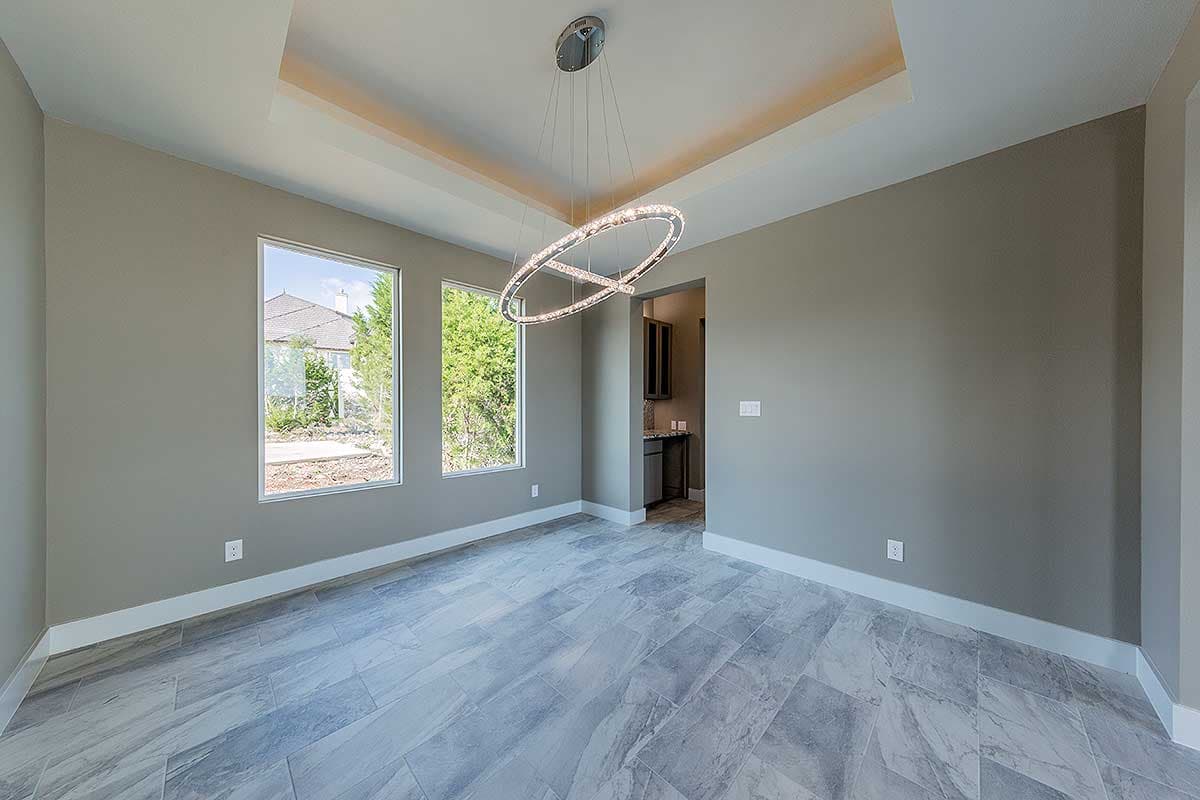

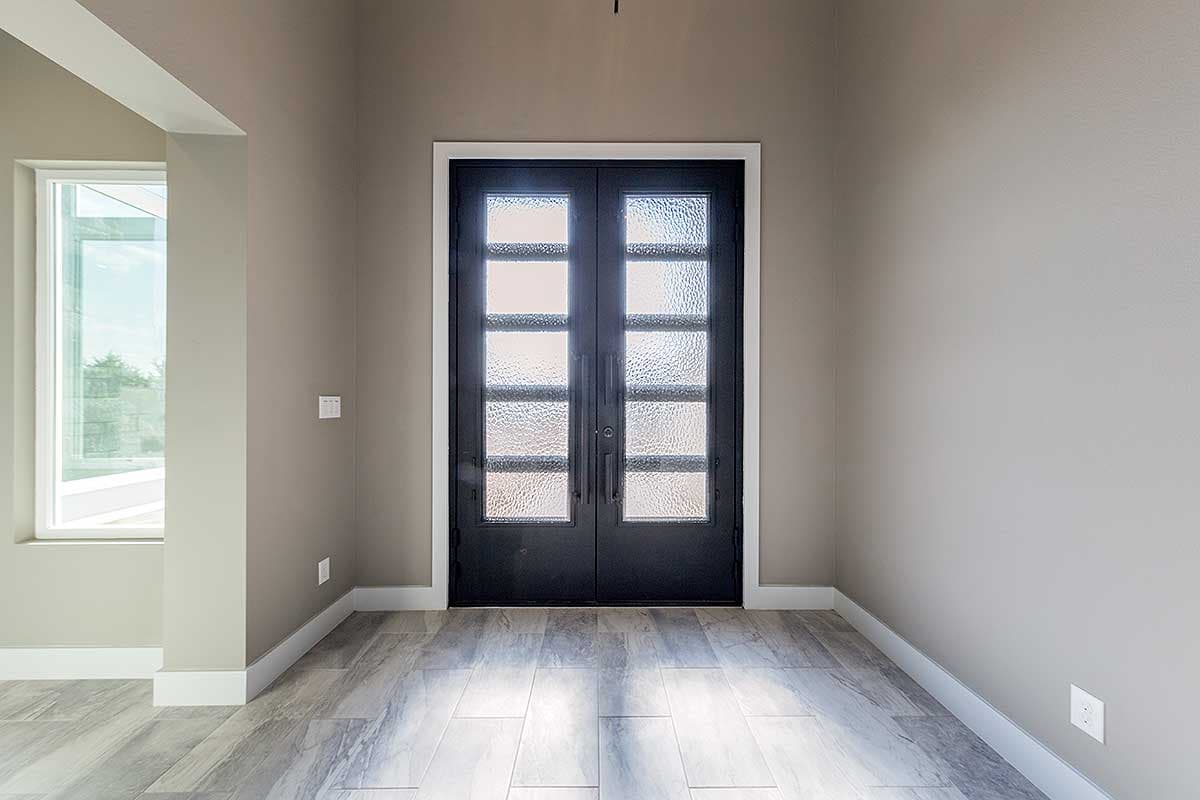

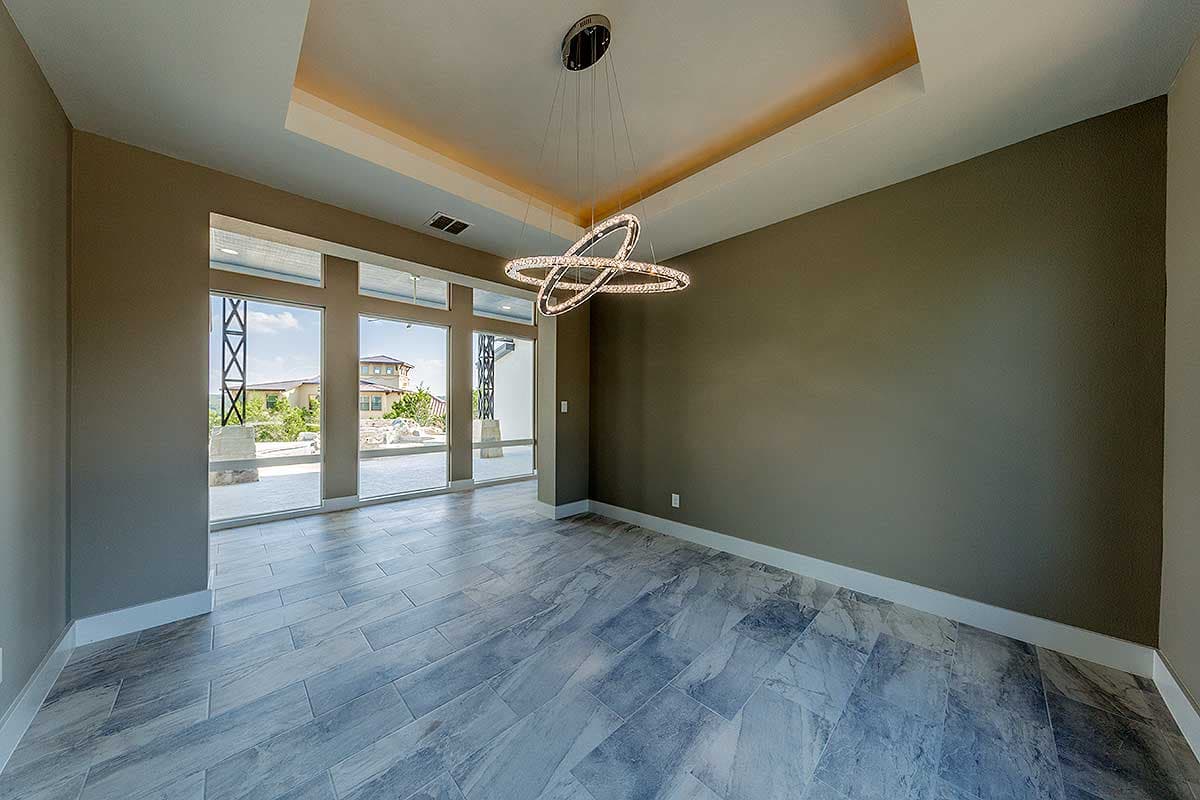

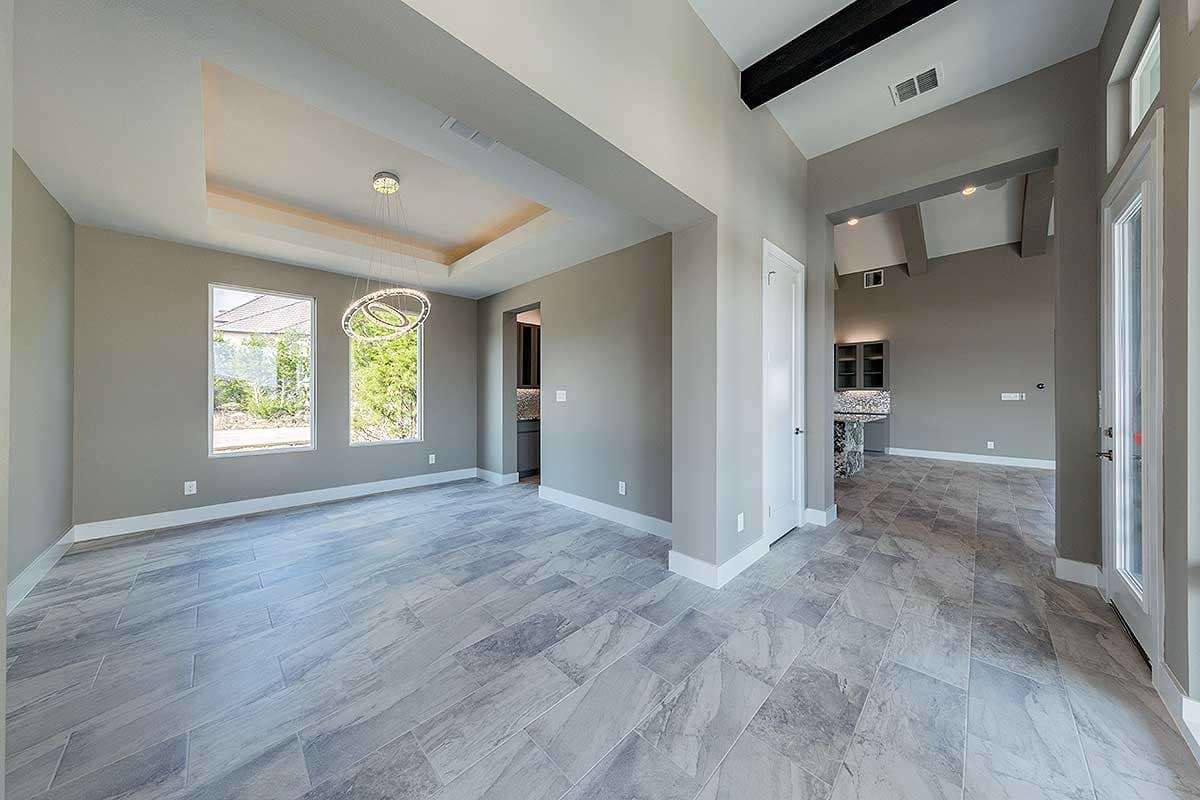

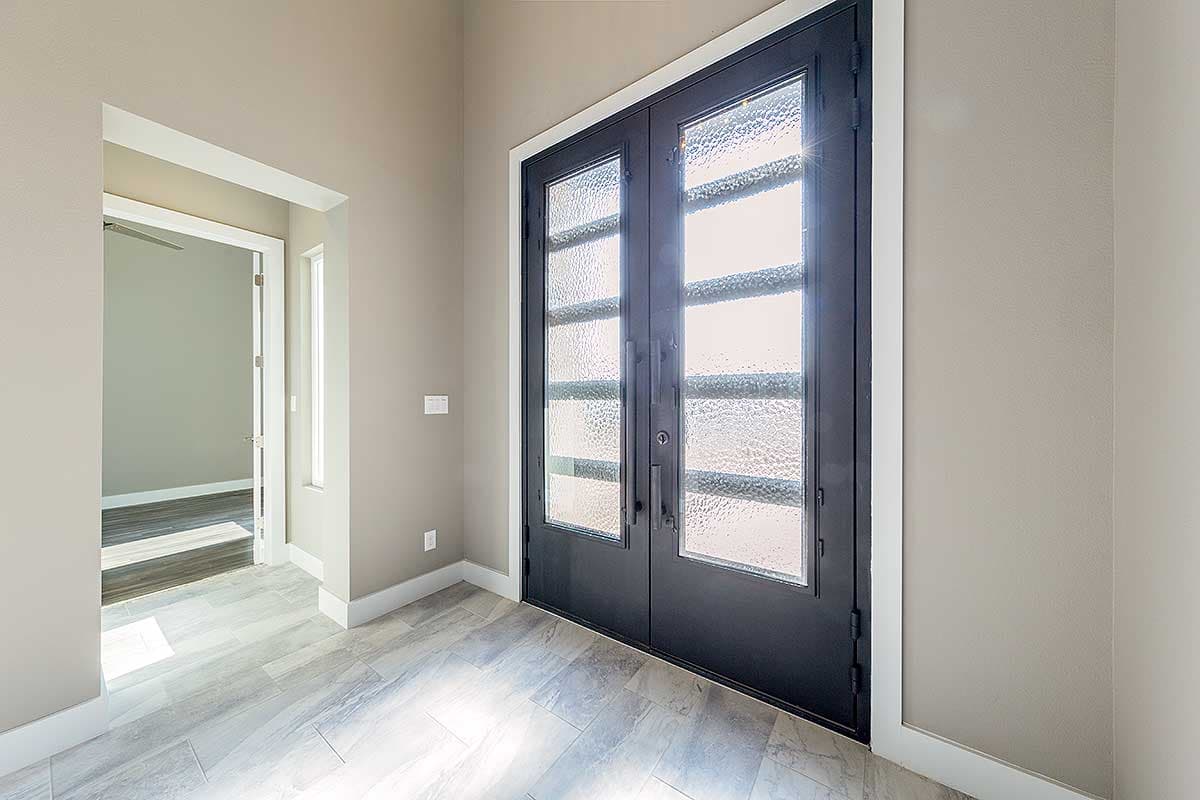

  • French doors open to the foyer where  a long gallery leads you to the dramatic vaulted interior. As you approach the living room, you pass the outdoor living room on your right and the dining room on your left.

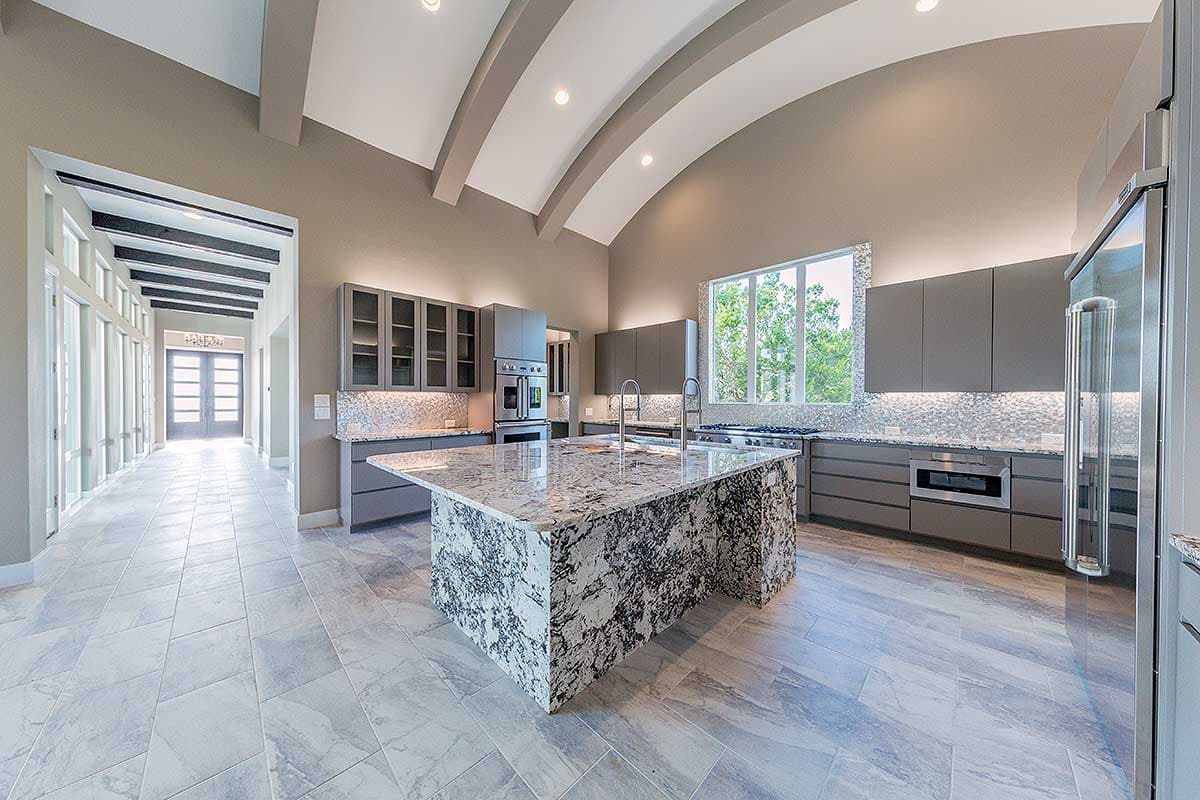

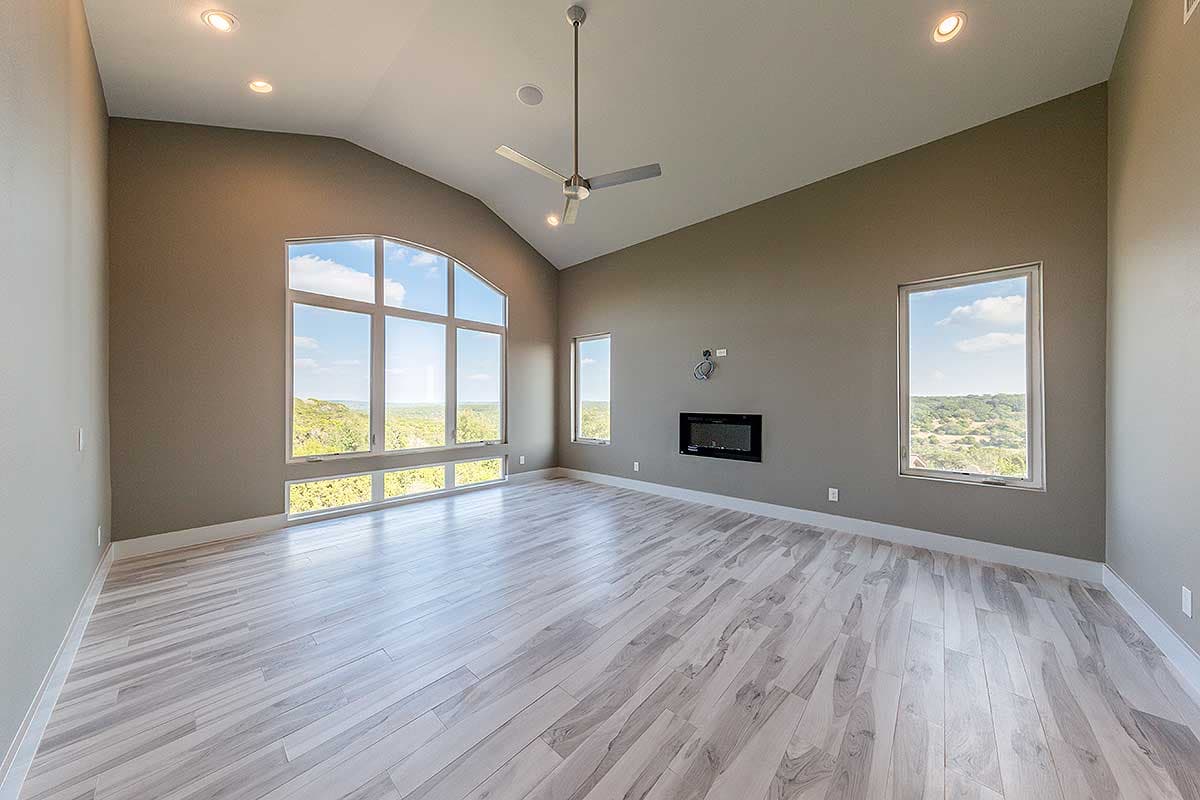

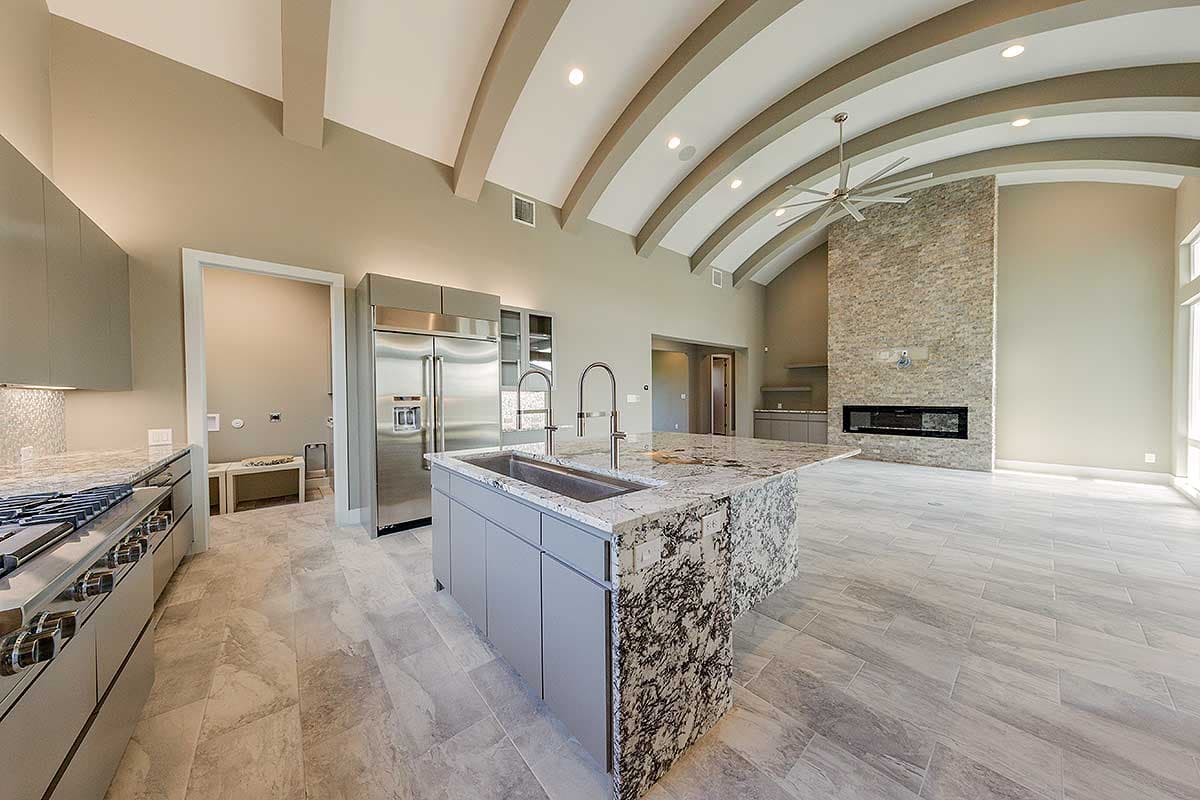

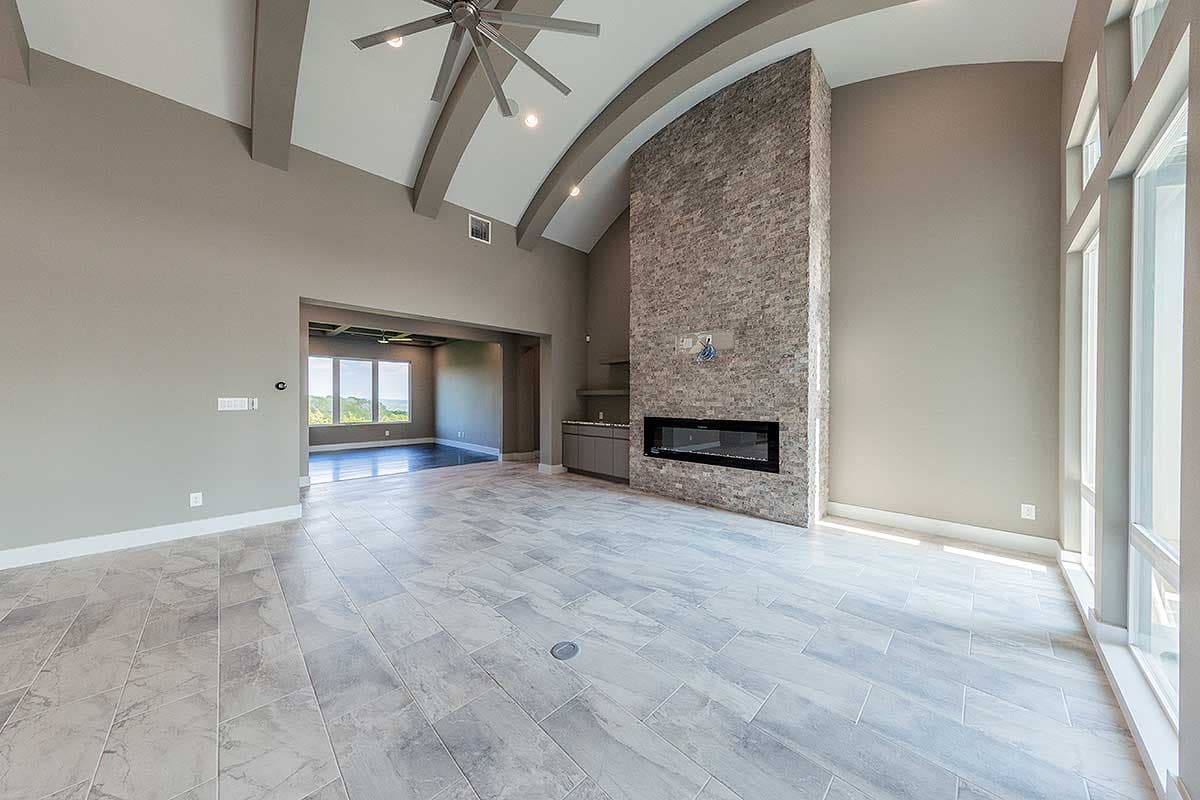

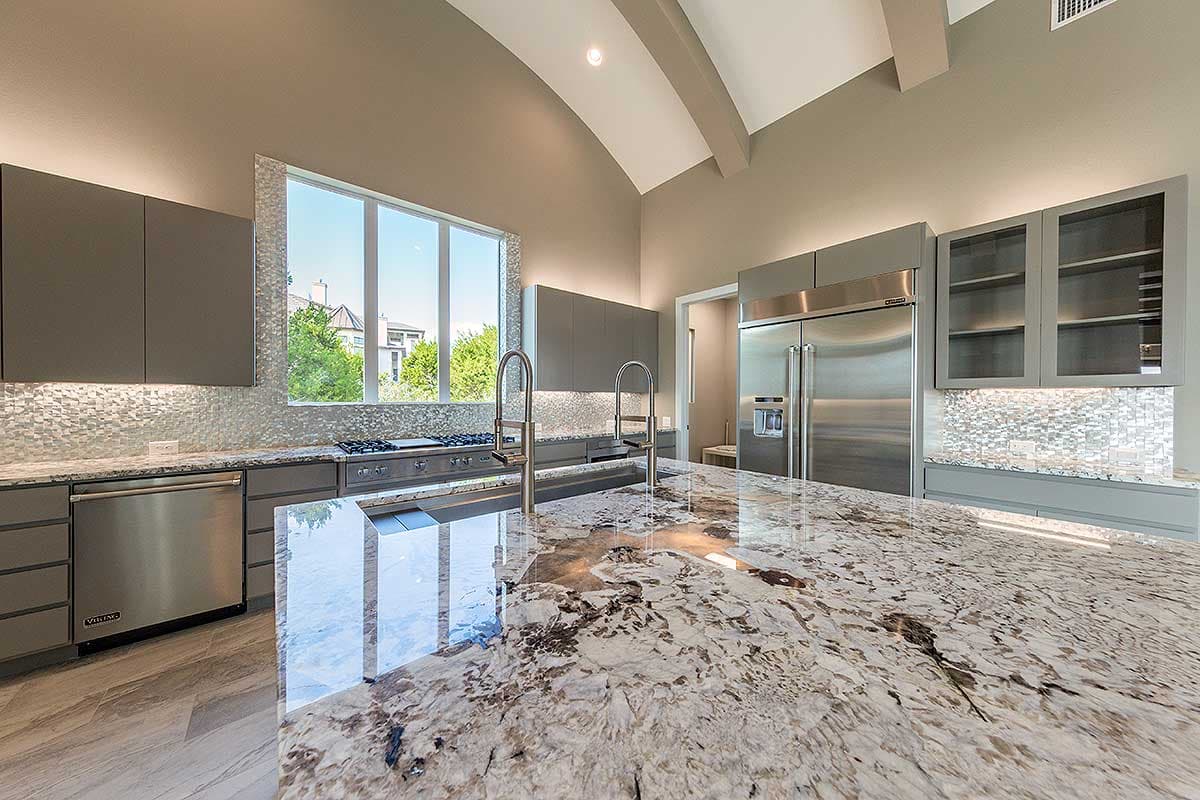

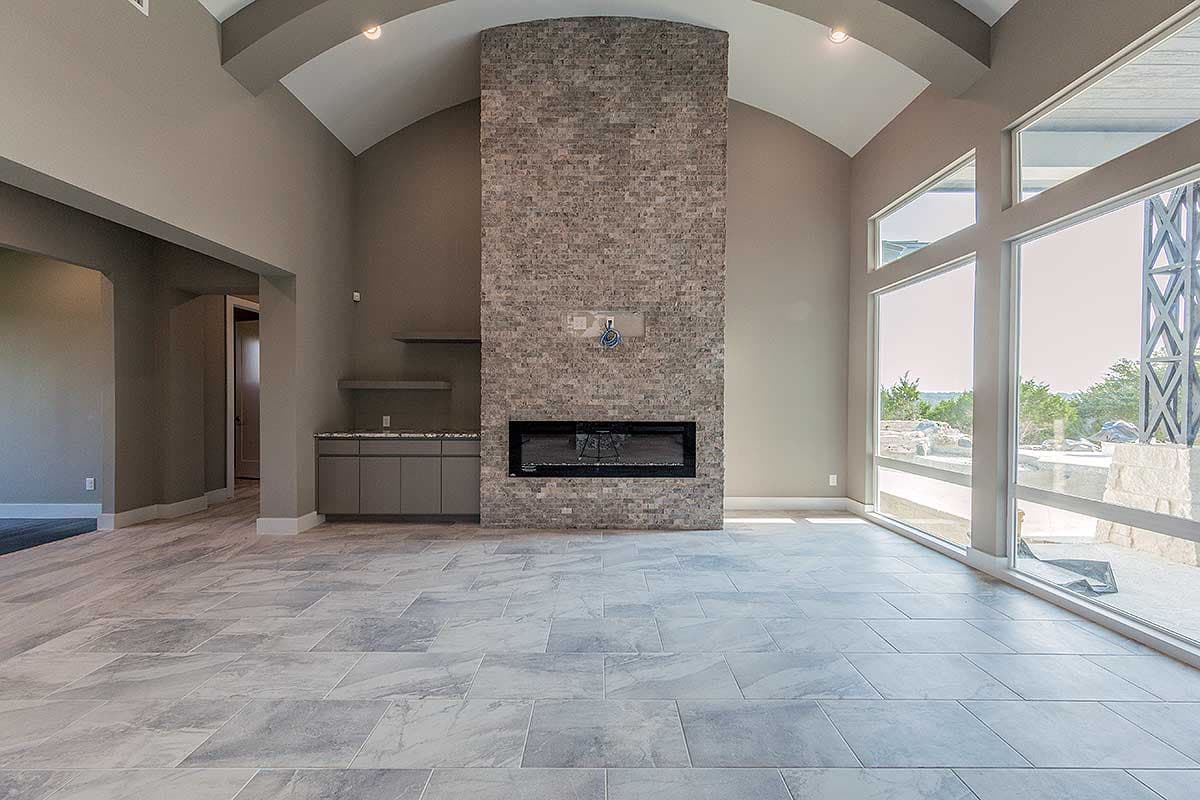

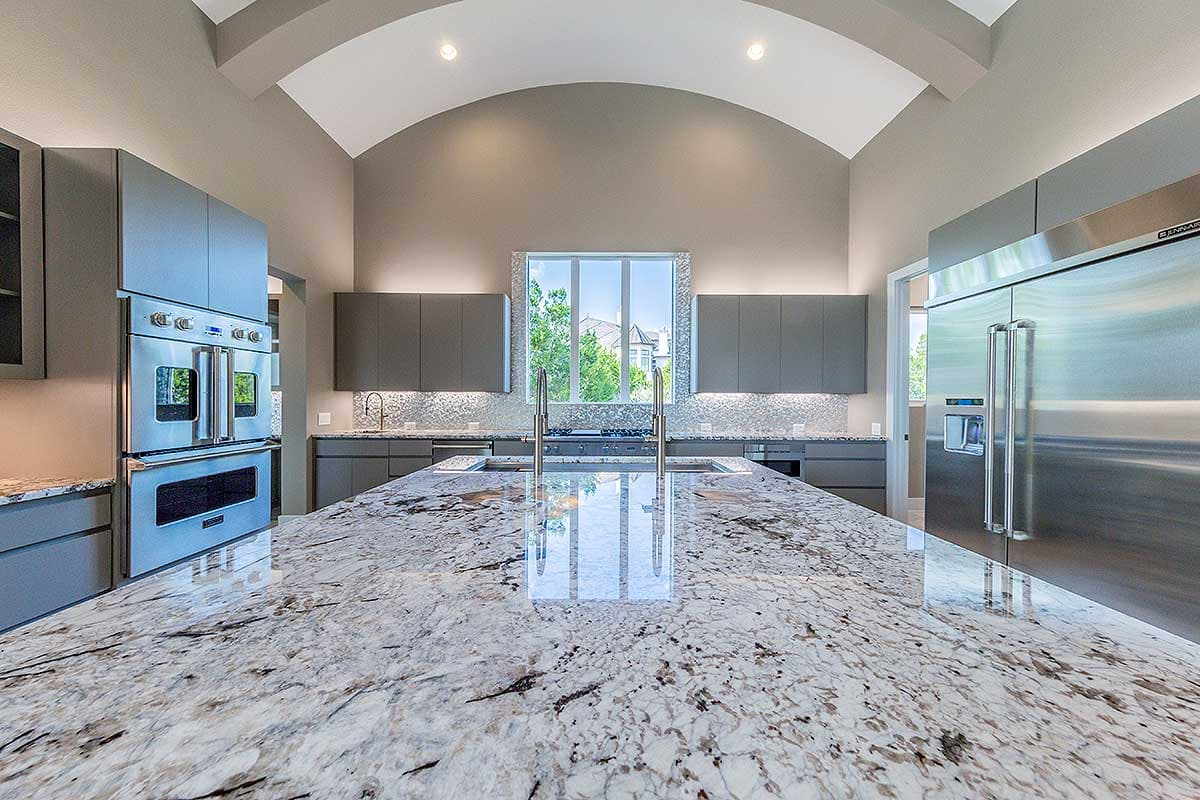

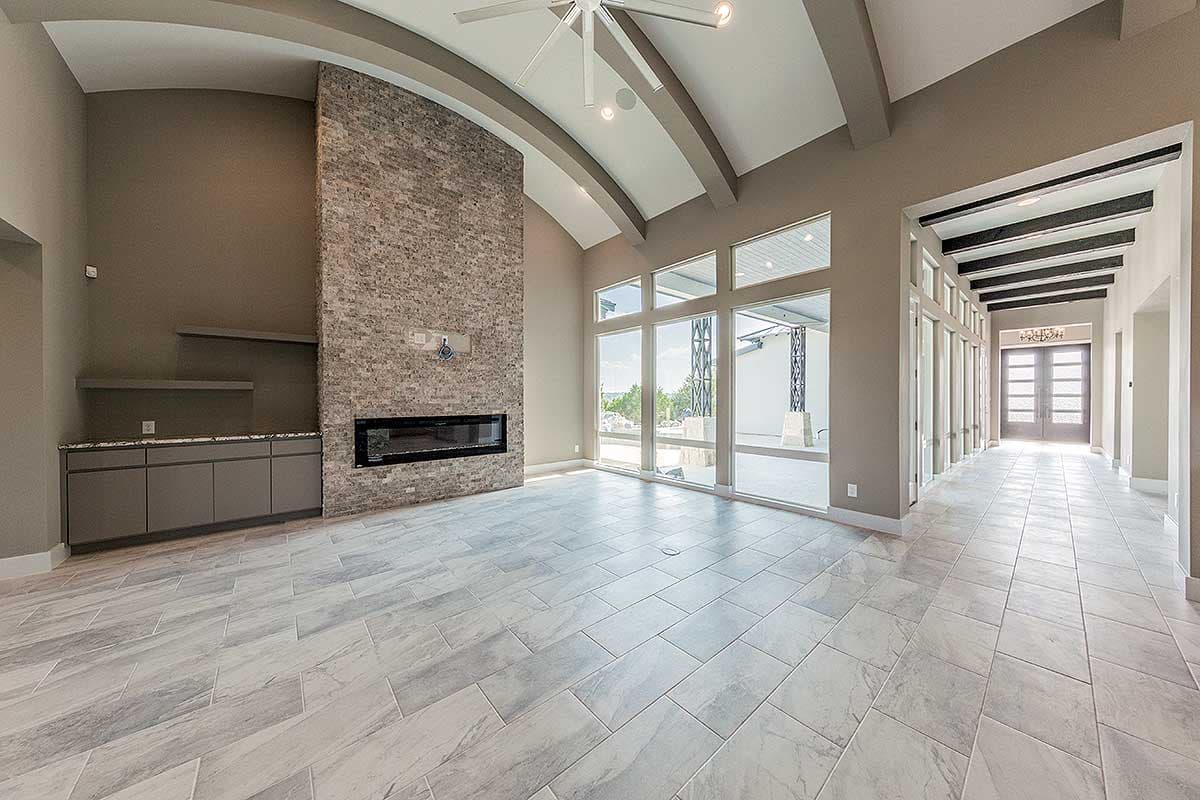

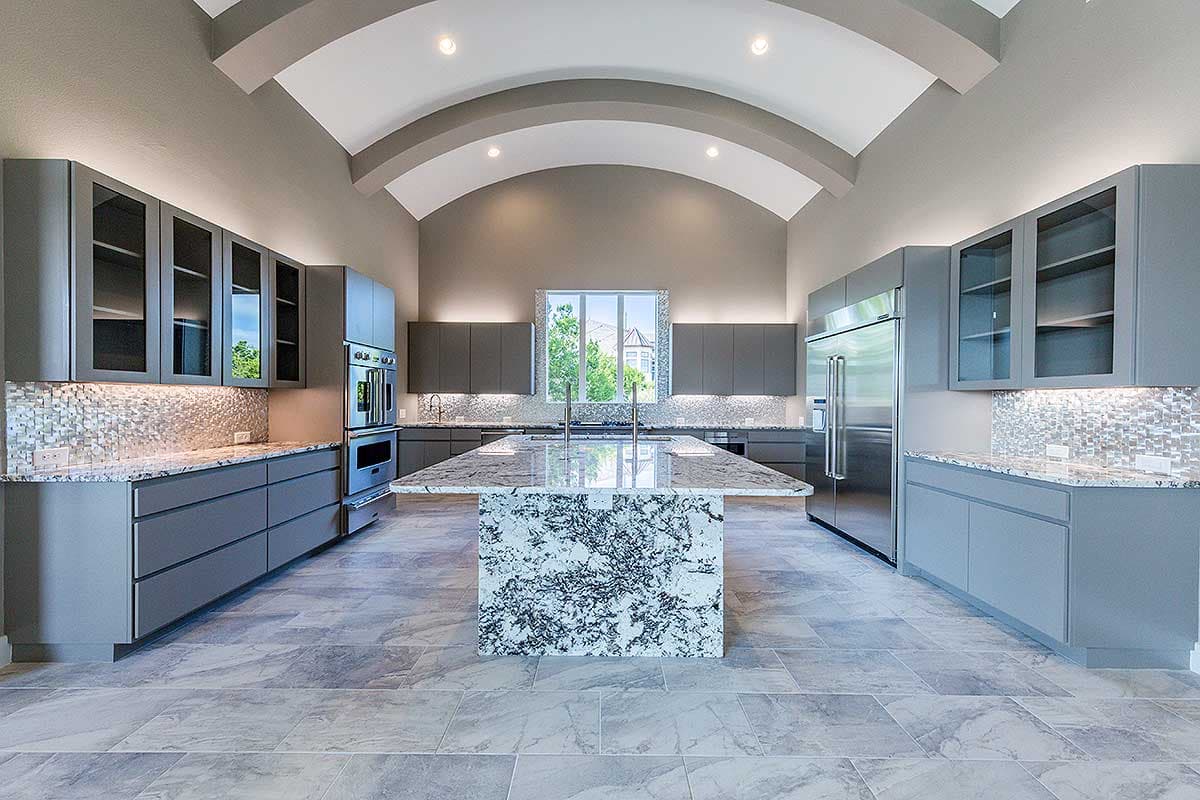

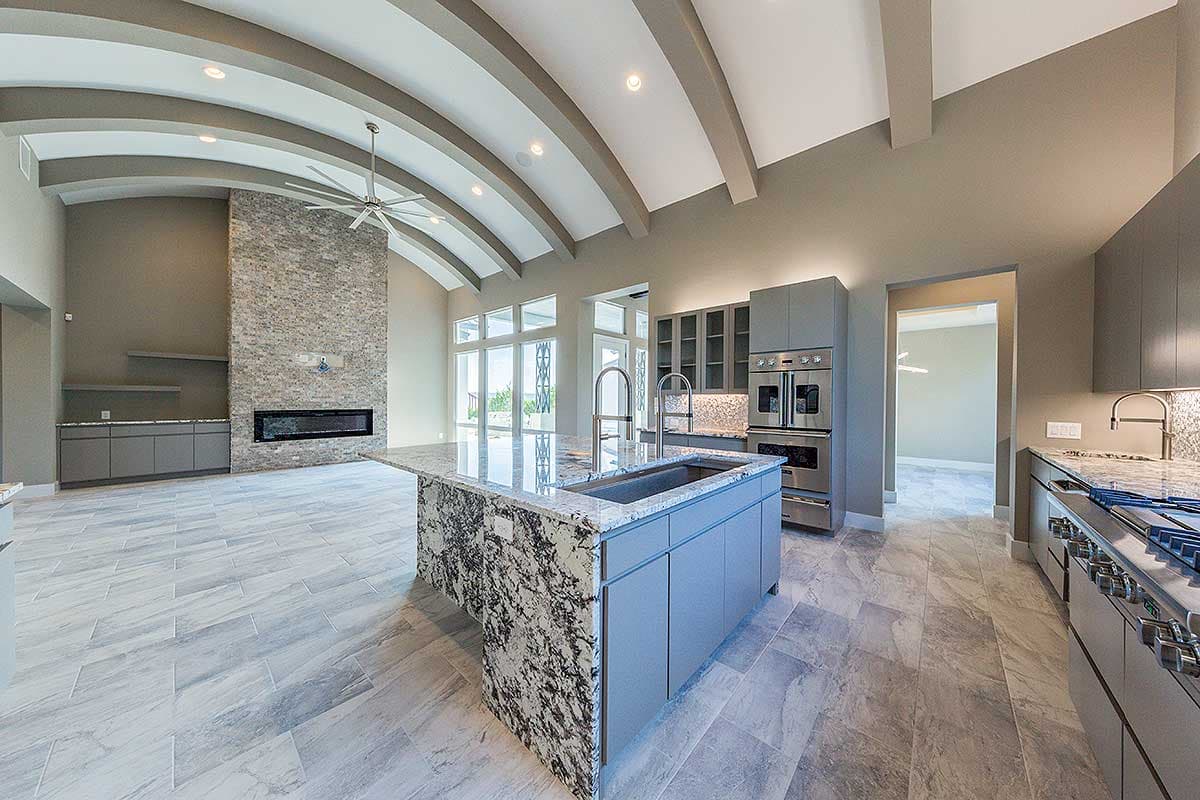

  • The living room and kitchen share a dramatic barrel-arched ceiling.

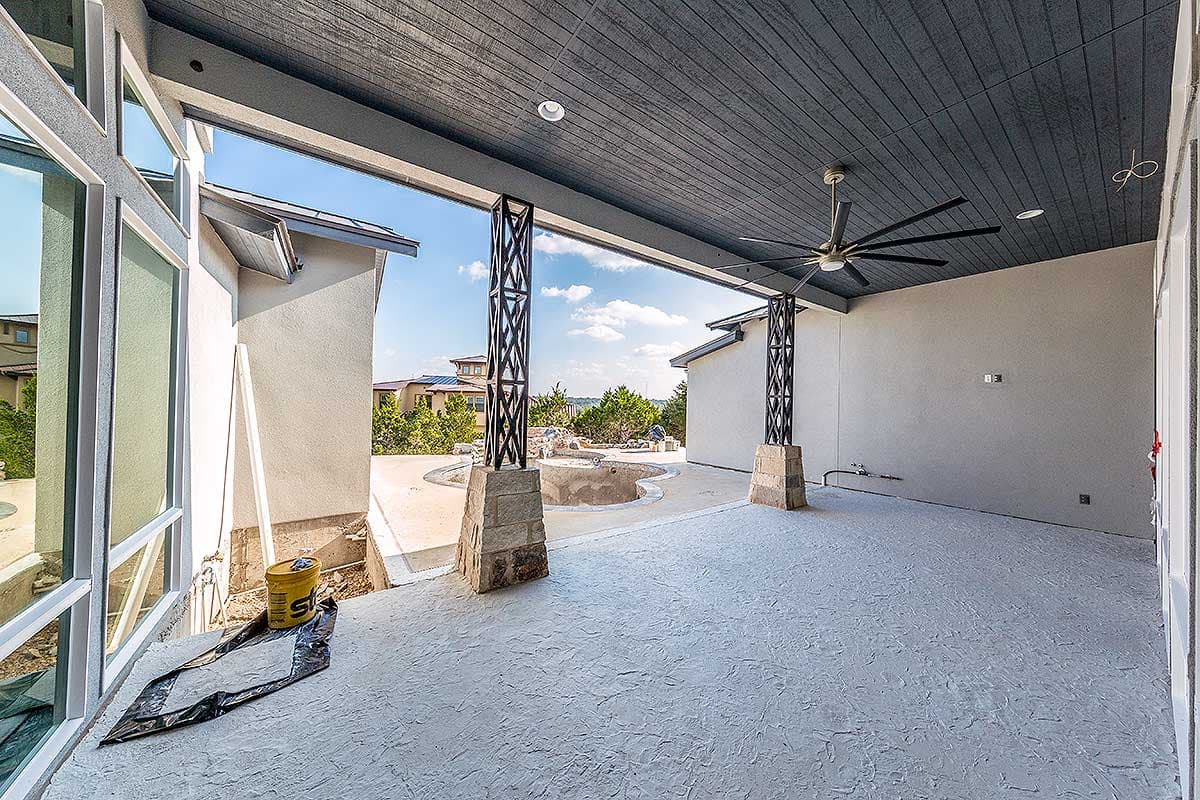

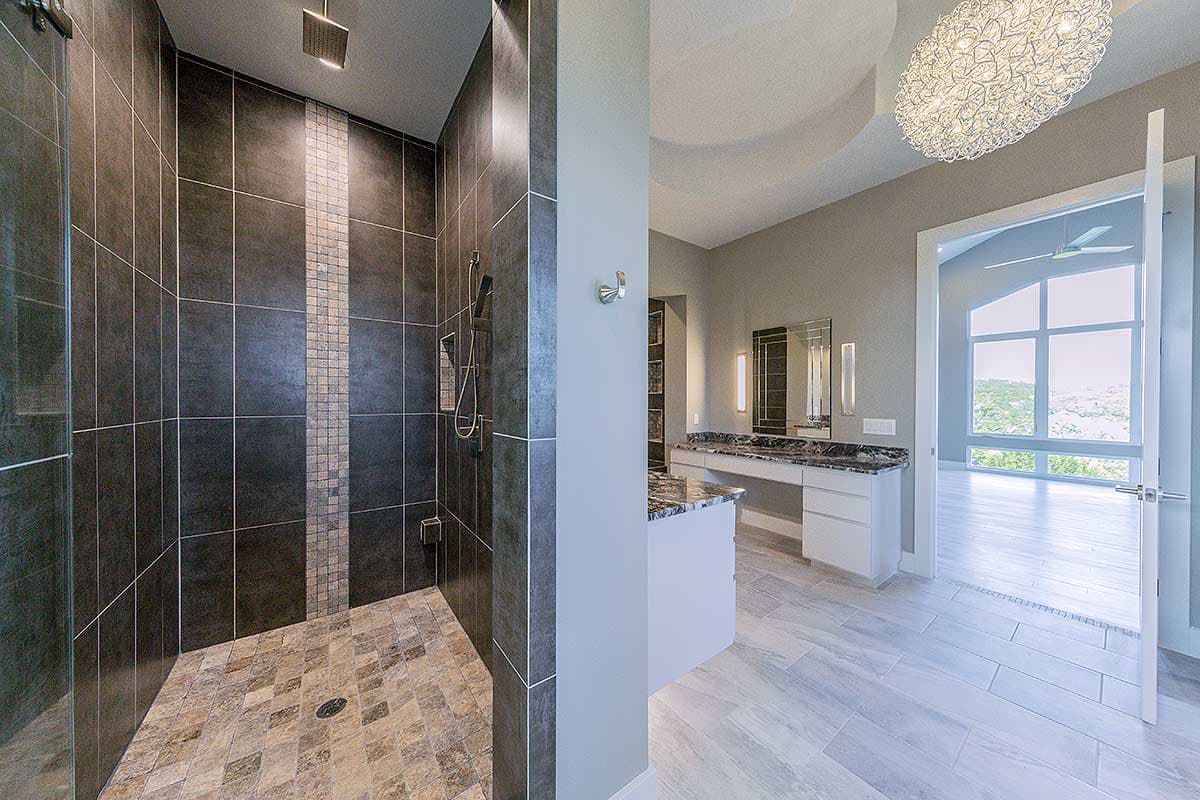

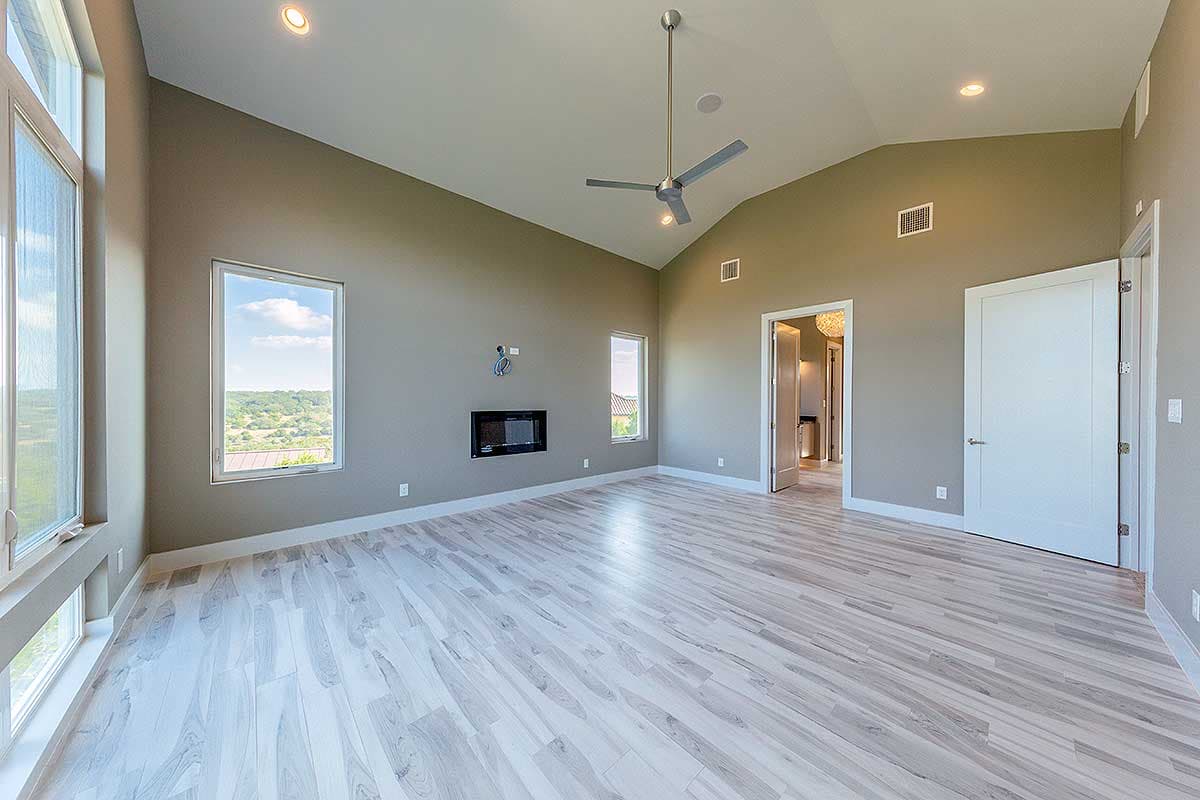

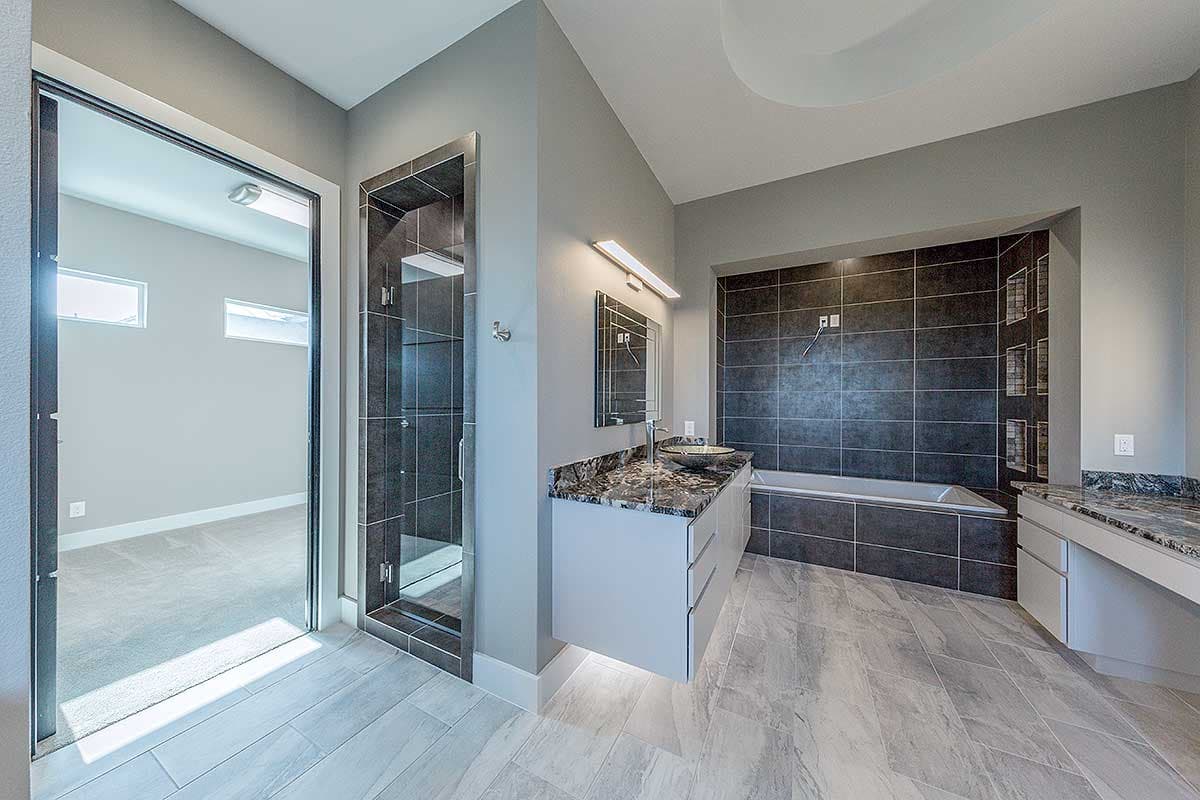

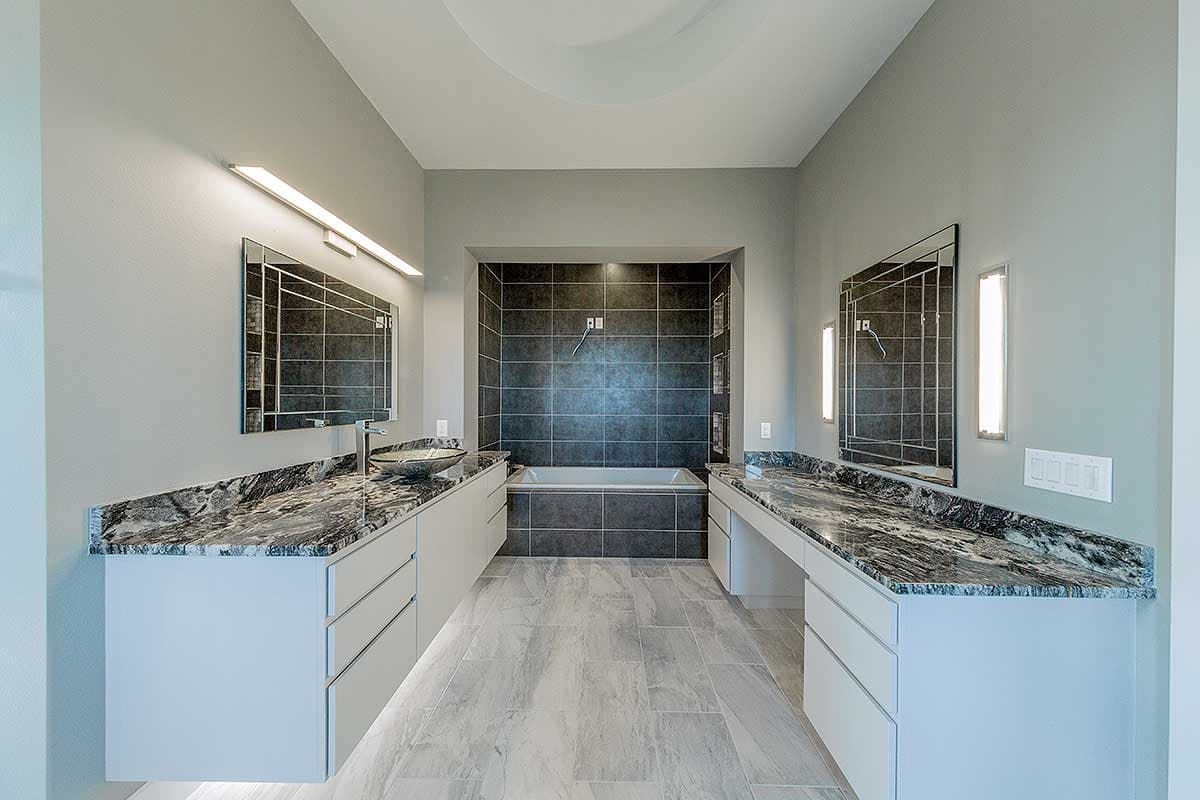

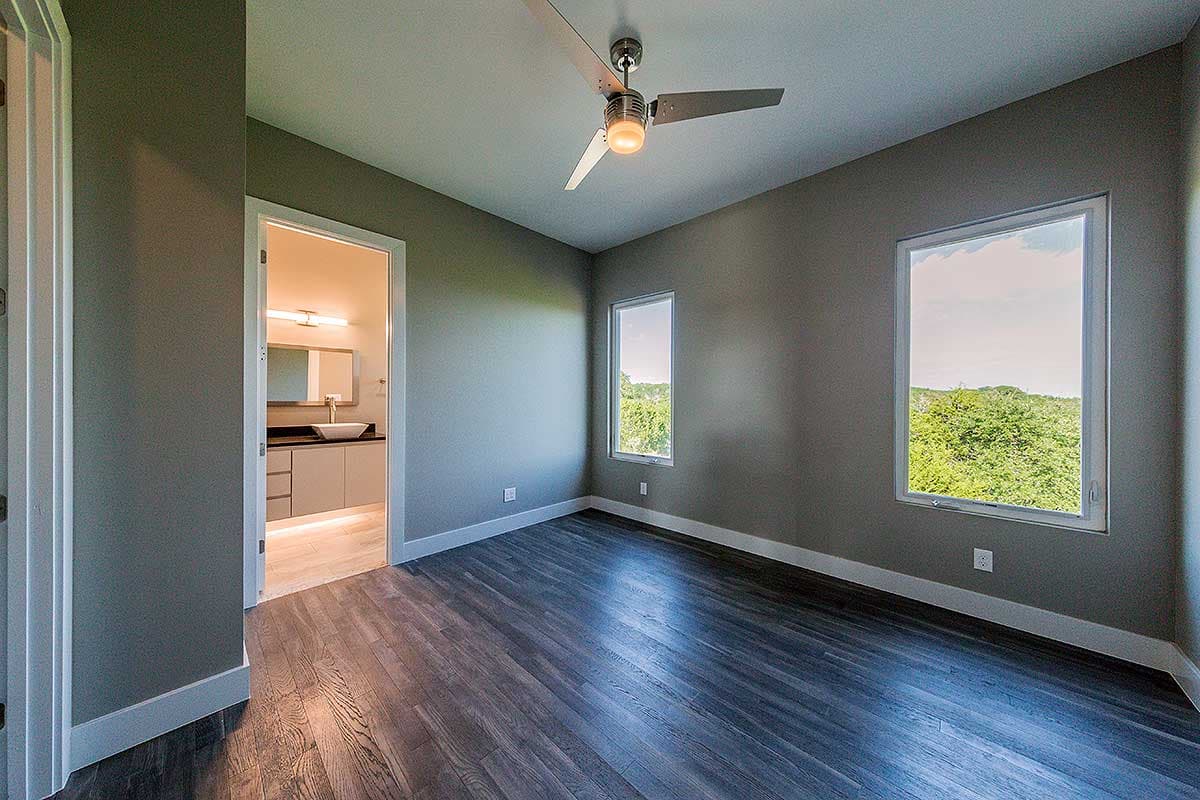

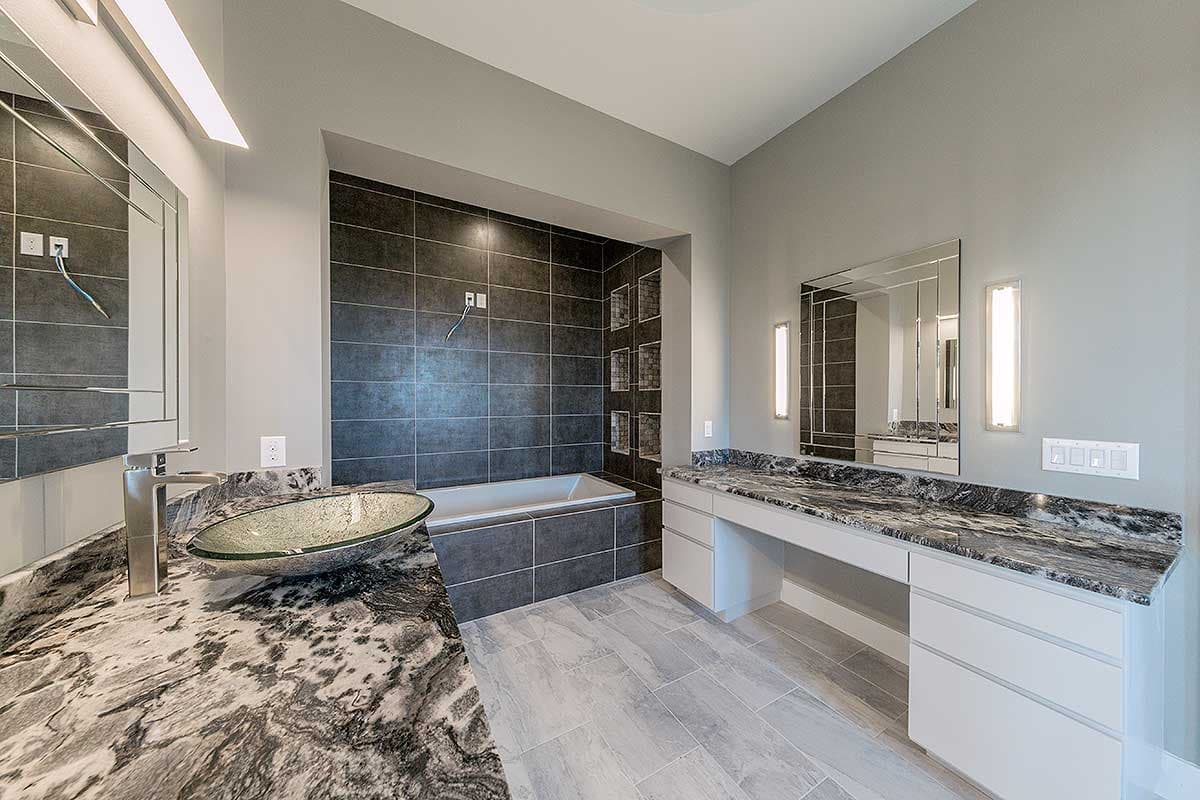

  • The master suite has access to the back and side yards. Bed 2 also has outdoor access as does the shower making it perfect for use before or after a swim in your pool. The bedrooms are separated by a private study.
What's Included
  • Cover sheet
  • Roof plan
  • Floor plan

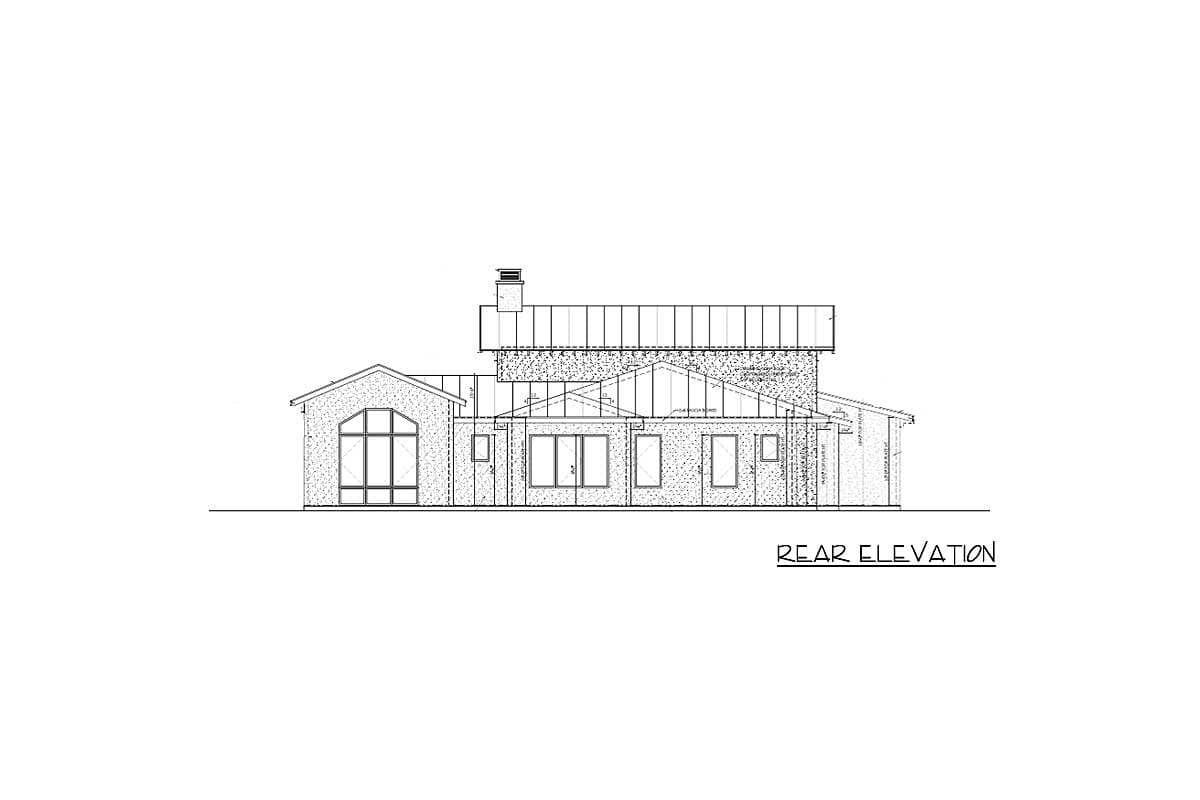

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
