Plan 80802PM
3 Bed Modern Home Plan
Heated S.F.
1,113
Beds
3
Baths
1
Stories
1
Floor Plan

Plan 80802PM

Main Level
slide image 0

Plan 80802PM

1-800-854-7852

1-262-521-4596

Main Level

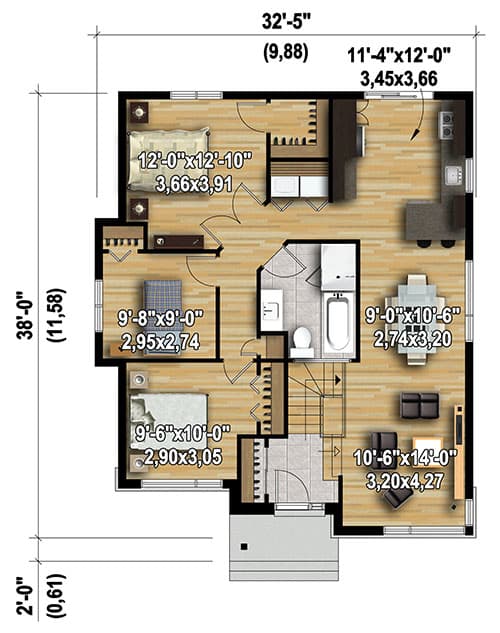

floor plan image Main Level
Plan Details

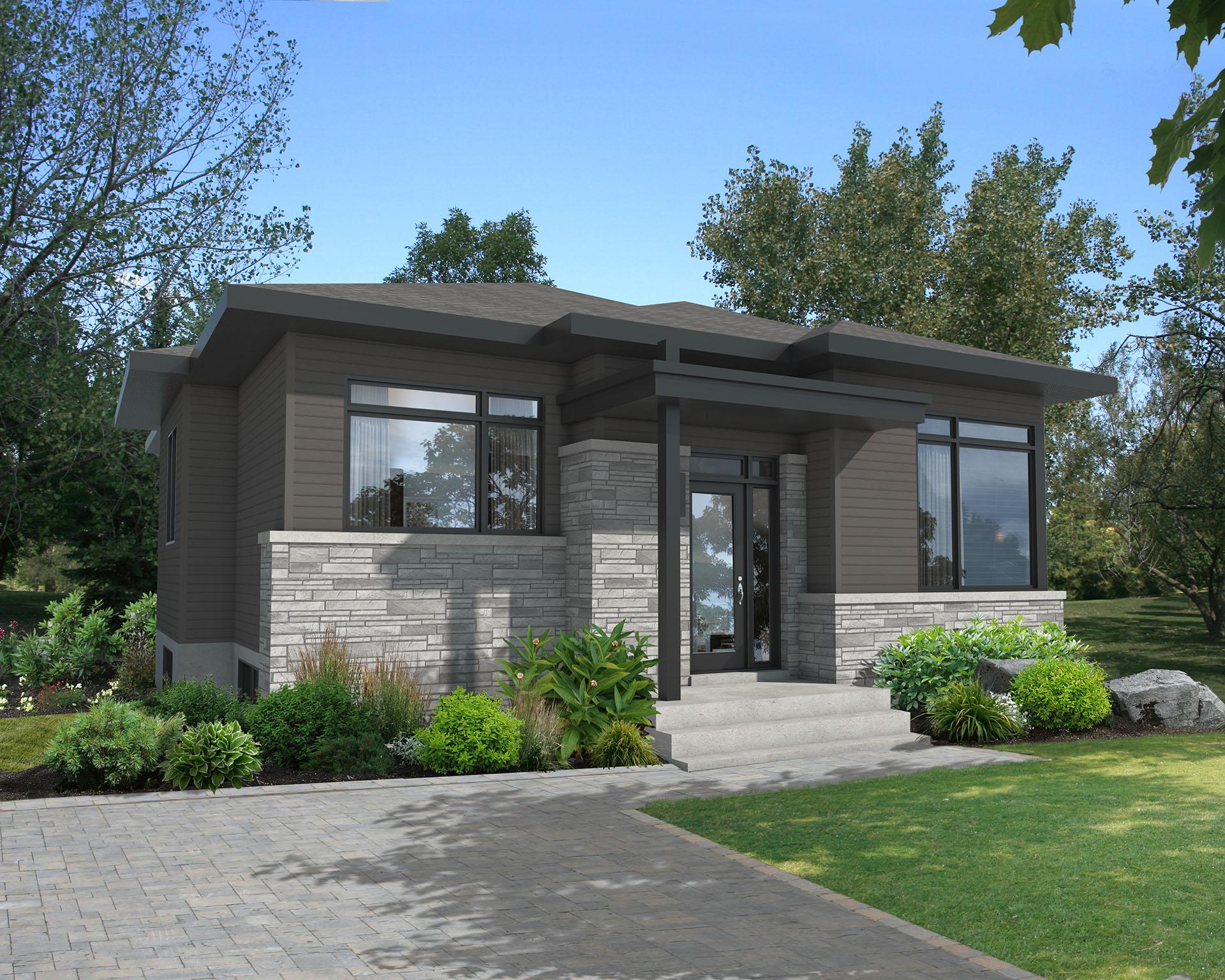

  • This 3 bed modern home plan has a clean exterior of stone and wood.
  • There is an air-lock type entry with a linear closet for storage. This entry helps keep the cold out and controls clutter.
  • The right side of the home is open from front to back with a living area flowing to a dining space and then to the kitchen.
  • The master bedroom is located in back. Two more bedrooms line the left side of the home. Laundry and the bath are conveniently located to all three bedrooms.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,113 sq. ft.

1st Floor

1,113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 5"

Depth

38' 0"

Max Ridge Height

21' 1"

Roof Details

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,113 sq. ft.

1st Floor

1,113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 5"

Depth

38' 0"

Max Ridge Height

21' 1"

Roof Details

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
