Plan 62748DJ
3-Bed Modern Prairie-Style Split-Level Home Plan - 1507 Sq Ft
Heated S.F.
1,507
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 62748DJ

Main Level
slide image 0
Lower Level
slide image 1

Plan 62748DJ

1-800-854-7852

1-262-521-4596

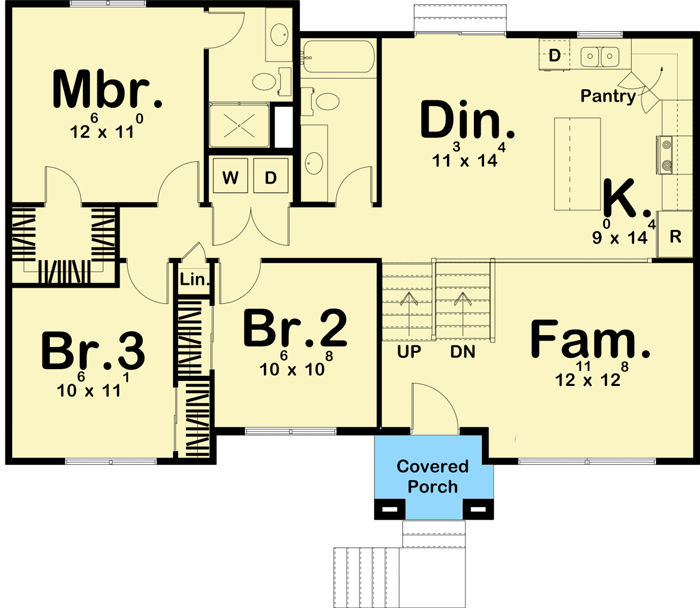

Main Level
floor plan image Main Level

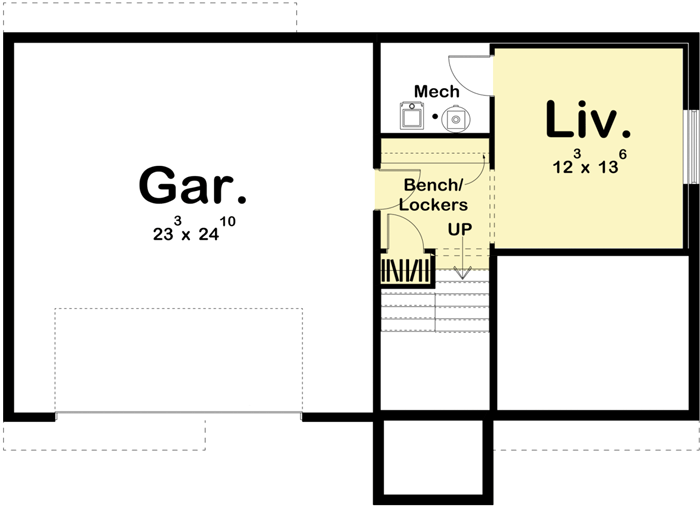

Lower Level
floor plan image Lower Level
Plan Details
  • This beautiful Modern Prairie-style split-level home plan gives you three beds on the main living level and a living room on the ground floor.
  • The home has a large cathedral ceiling that makes the living area feel larger. The kitchen and dining room overlook the family room on the entry level.
  • On the main level, the bedrooms are well appointed. The master bedroom includes a walk-in closet and master bathroom. Bedrooms 2 and 3 share a centrally located hall bathroom. There is a convenient main level laundry room.
  • On the lower level, the house is accessible from the 2-car garage through a practical mudroom with a bench and lockers. Downstairs you will also find a 2nd living area.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,507 sq. ft.

Lower Level

244 sq. ft.

1st Floor

1,263 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

34' 0"

Garage

Type

Drive Under

Area

580 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Architectural Style

Northwest

Prairie

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level

Square Footage Breakdown

Total Heated Area

1,507 sq. ft.

Lower Level

244 sq. ft.

1st Floor

1,263 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

34' 0"

Garage

Type

Drive Under

Area

580 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Architectural Style

Northwest

Prairie

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level
