Plan 311017RMZ

Exclusive

3-Bed Modern Ranch Home Plan with Central Shared Deck - 2320 Sq Ft
Heated S.F.
2,320
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 311017RMZ

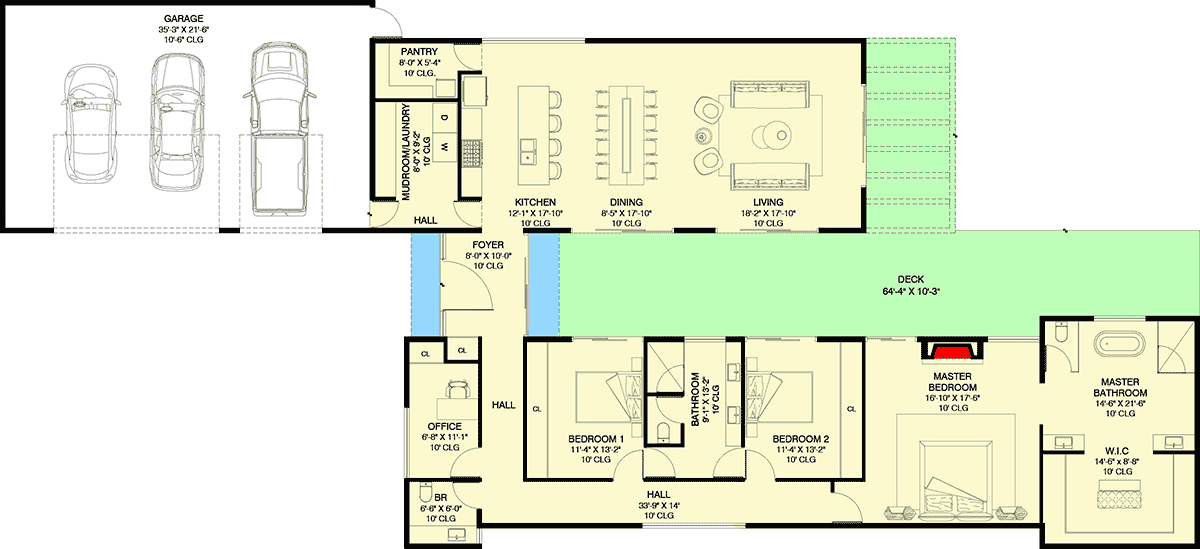

Main Level
slide image 0

Plan 311017RMZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

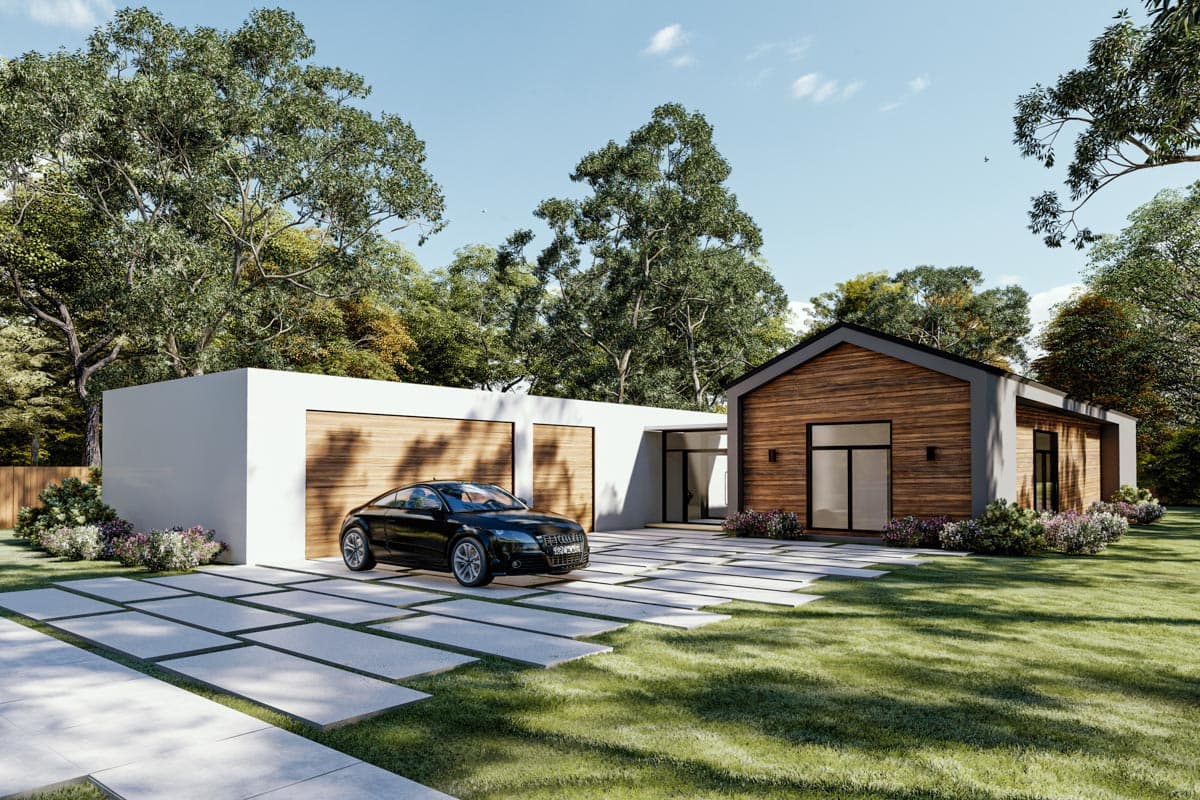

  • Sophisticated and sleek, this modern home plan features 2,320 square feet of living space split into two wings that is connected by a foyer and shared deck. This home plan is exclusive to Architectural Designs.
  • A flat roof rests atop the left wing, which includes a 3-car garage, combined mud / laundry room, and an open-concept living space.
  • In the great room, two sets of oversized sliding doors permit access to the deck for outdoor entertaining, while the gourmet kitchen includes a large island, walk-in pantry, and a 6-burner range.
  • Three bedrooms and a home office line the right side of the home, capped by a gable roof. Two of the bedrooms share a Jack-and-Jill bath.
  • The master bedroom is rear-facing and boasts a fireplace and deluxe ensuite. Sliding doors that lead to the deck are included in each of the bedroom suites.
What's Included

  • General notes
  • Floor plans
  • Roof plan
  • Sections
  • Framing detail
  • Foundation plan

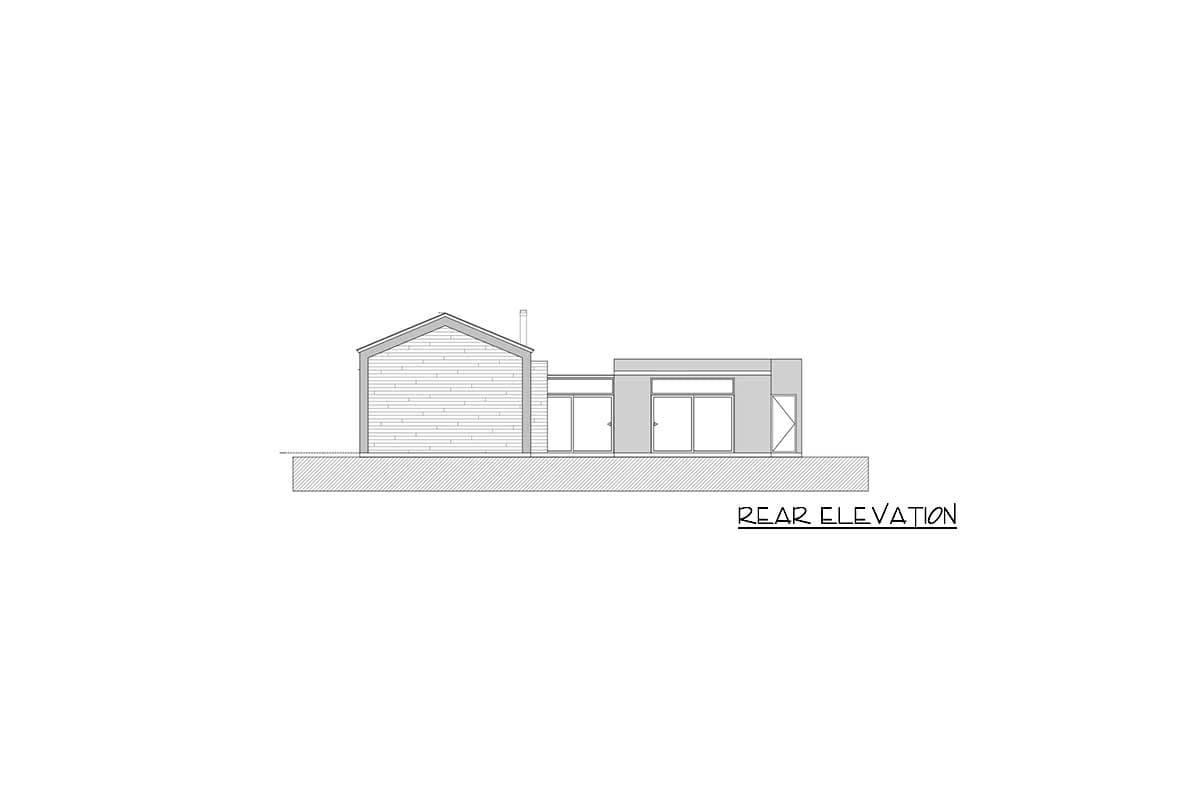

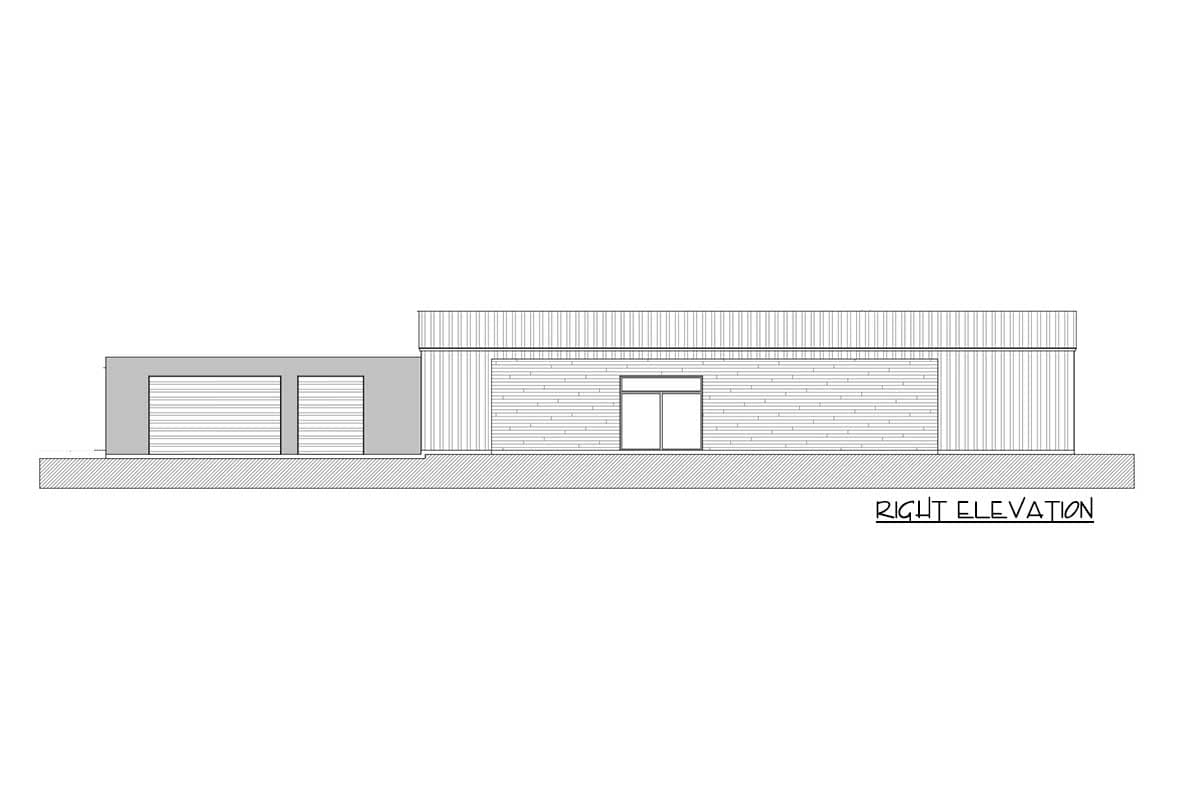

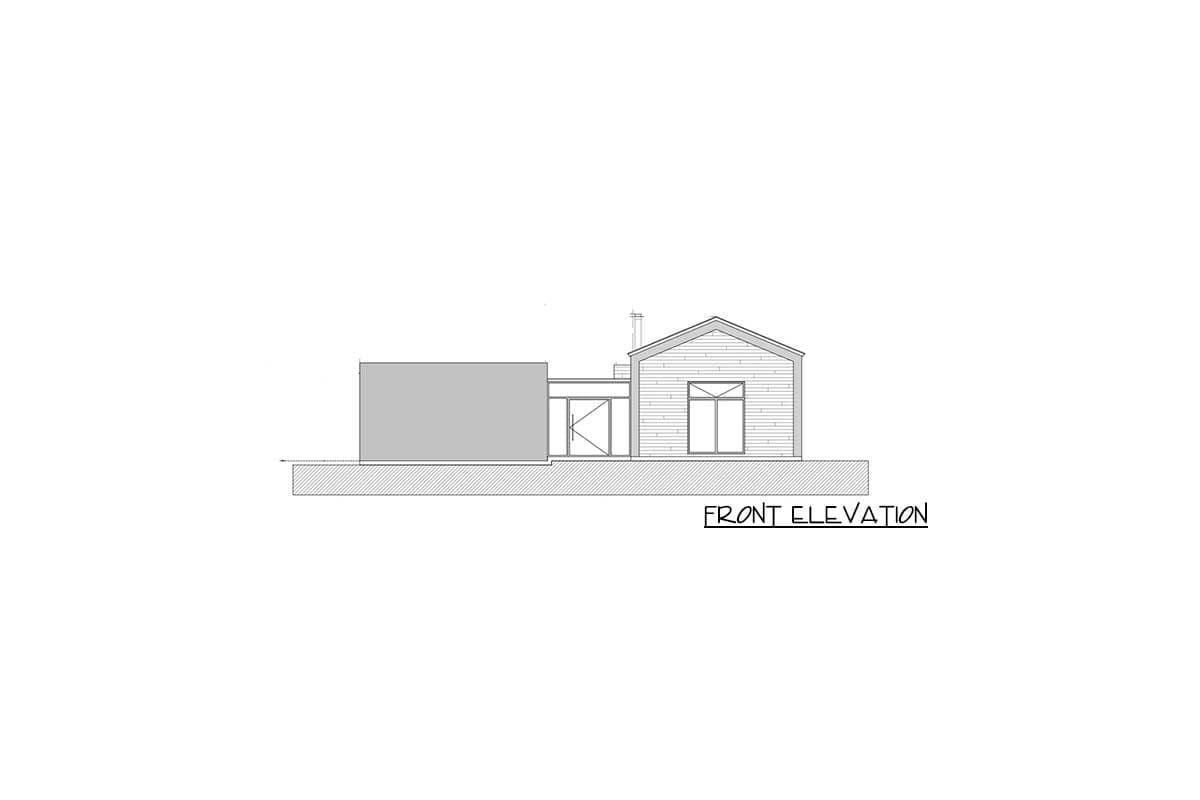

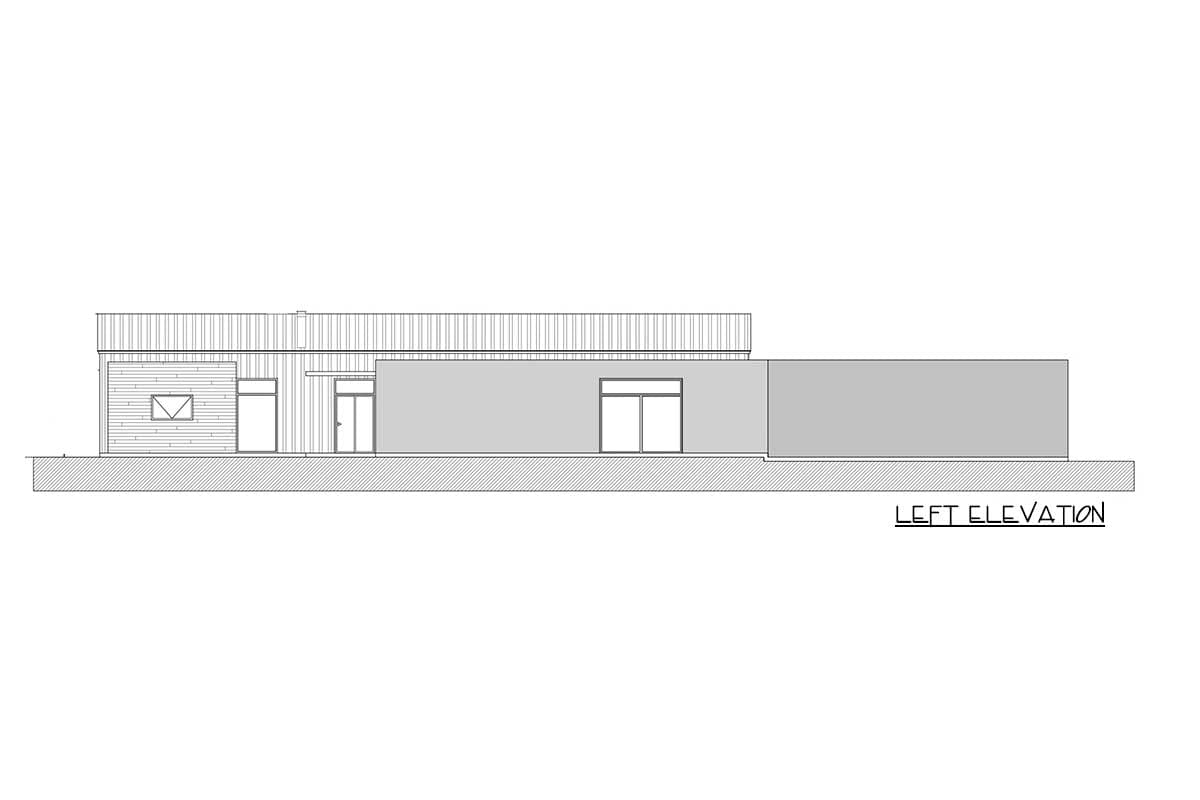

  • Elevations (all four sides)
  • Electrical plans
  • Window and door schedules

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,320 sq. ft.

1st Floor

2,320 sq. ft.

Deck

785 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

116' 0"

Max Ridge Height

16' 9"

Garage

Type

Attached

Area

767 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Mountain

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,320 sq. ft.

1st Floor

2,320 sq. ft.

Deck

785 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

116' 0"

Max Ridge Height

16' 9"

Garage

Type

Attached

Area

767 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Mountain

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
