Plan 680502VR
3-Bed Mountain House Plan with Two-Story Great Room - 1770 sq Ft
Heated S.F.
1,770
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Floor Plan

Plan 680502VR

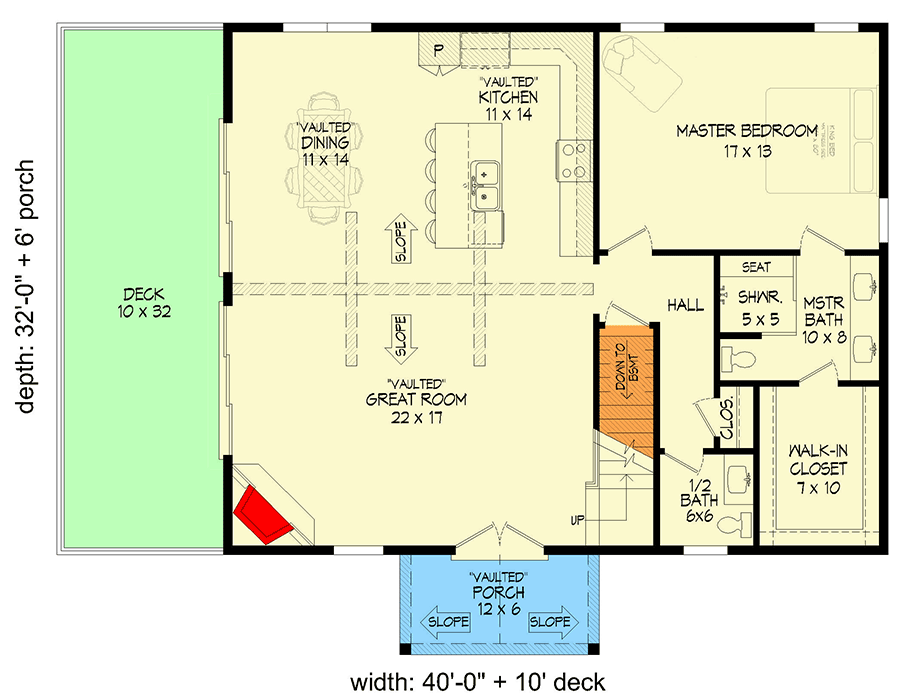

Main Level
slide image 0

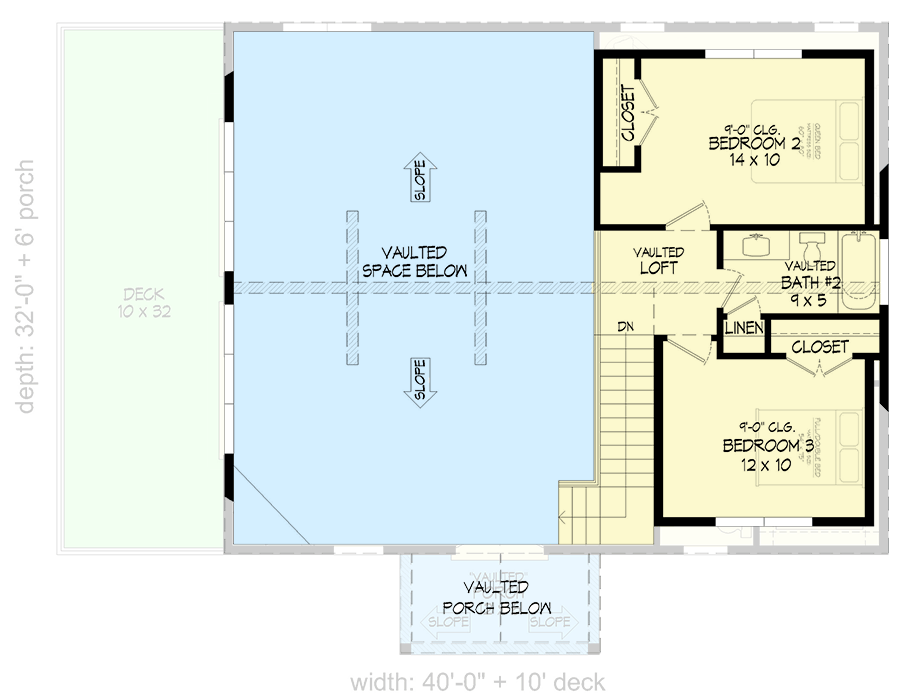

2nd Floor
slide image 1

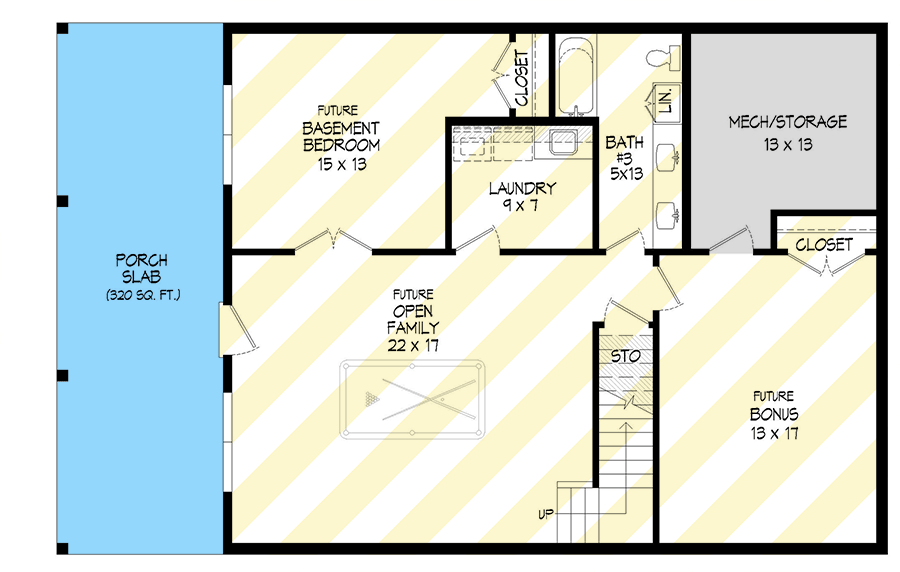

Optional Lower Level
slide image 2

Plan 680502VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This mountain house plan offers you 1,770 square feet of heated living space with 3 beds, 2.5 baths and a 1,112 square foot unfinished lower level.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,770 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

490 sq. ft.

Basement Unfinished

168 sq. ft.

Optional Lower Level

1,112 sq. ft.

Porch, Rear

320 sq. ft.

Deck & Porch

392 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

25' 10"

Ceiling Heights

Lower Level

9'

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

New American

Rustic

Special Features

Bedrooms - Split

Bonus Room

Flex Room

Game/Rec Room

Laundry - Lower Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,770 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

490 sq. ft.

Basement Unfinished

168 sq. ft.

Optional Lower Level

1,112 sq. ft.

Porch, Rear

320 sq. ft.

Deck & Porch

392 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

25' 10"

Ceiling Heights

Lower Level

9'

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

New American

Rustic

Special Features

Bedrooms - Split

Bonus Room

Flex Room

Game/Rec Room

Laundry - Lower Level

Loft

Master Suite - 1st Floor

Two Story Great Room
