Plan 770512JME

3-Bed Mountain Ranch Plan with Multiple Gathering Spaces

Heated S.F.

2,695

Beds

3

Baths

2.5

Stories

1

Cars

2

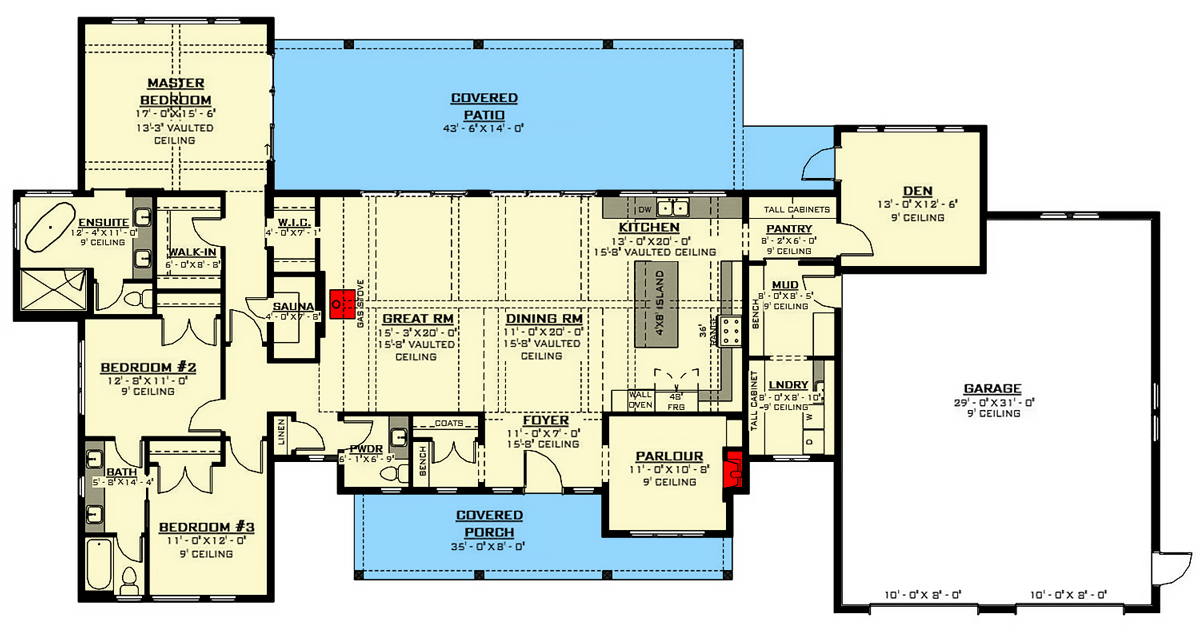

Floor Plan

Main Level

floor plan image Main Level

Plan Details

Natural wood elements add a warm touch to the exterior of this 3-bedroom Mountain Ranch home plan that features elongated front and rear porches for ample outdoor living space.
A parlour with a fireplace greets guests near the foyer, while a vaulted ceiling soars above the combined great room, dining area, and kitchen.
Upper and lower cabinets surround the kitchen's island, and a pass-through pantry leads to a quiet den with patio access.
Discover a mudroom just inside from the garage to store bags, shoes, and outerwear. The extra garage space is perfect for storage or a hobby shop.
Three bedrooms occupy the left side of the home with the master bedroom featuring a vaulted ceiling, patio access, and a sauna. Bedrooms 2 and 3 share a Jack-and-Jill bathroom.

What's Included

Cover sheet
Foundation plan
Floor plans
Floor joist layout
Roof truss layout
Sections

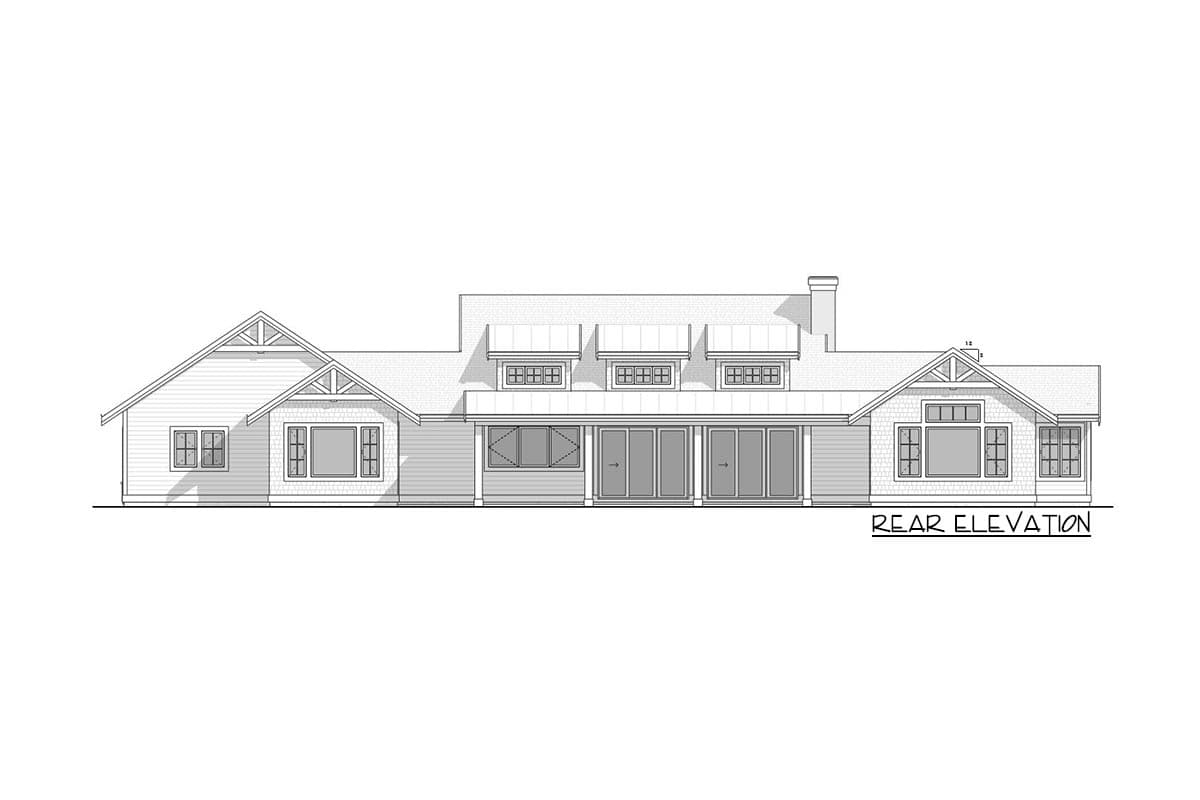

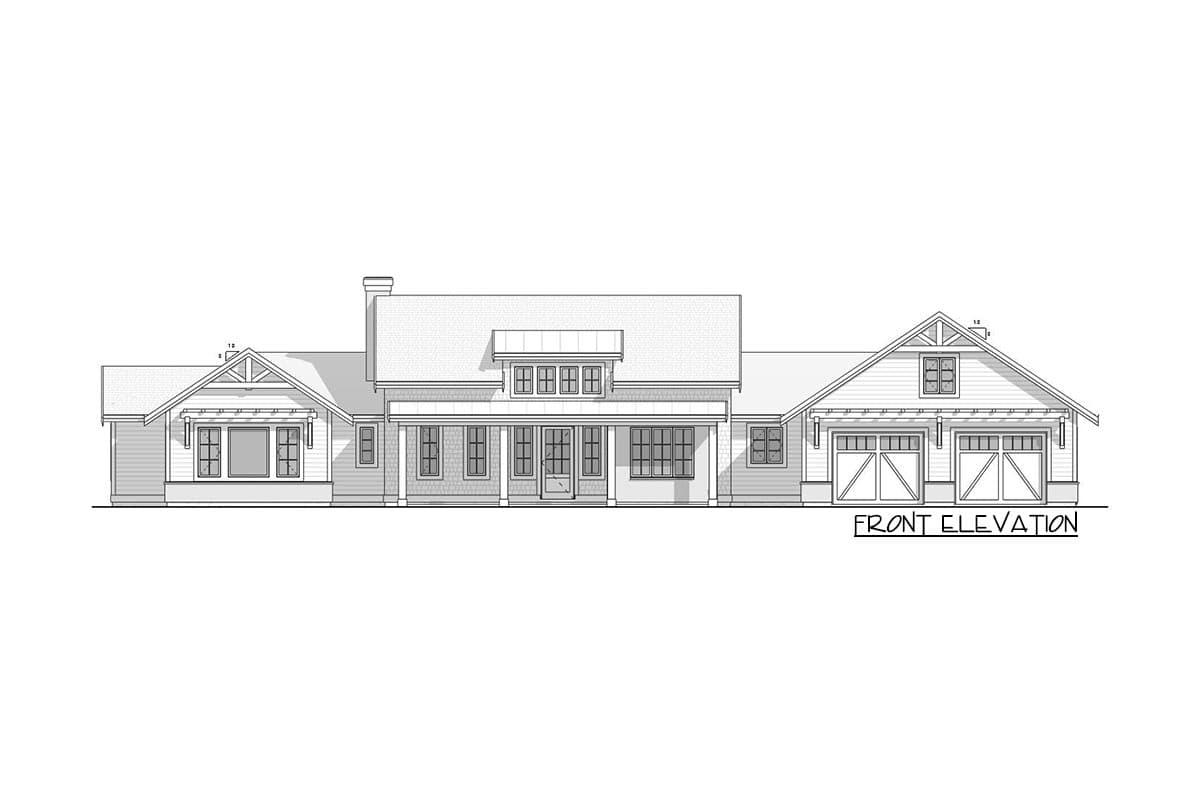

Elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required.
Electrical (lighting) plan
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,695 sq. ft.

1st Floor

2,695 sq. ft.

Porch, Front

232 sq. ft.

Covered Patio

660 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

106' 0"

Depth

54' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

1033 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,695 sq. ft.

1st Floor

2,695 sq. ft.

Porch, Front

232 sq. ft.

Covered Patio

660 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

106' 0"

Depth

54' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

1033 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans
