Plan 911053JVD
3-Bed Mountain Vacation House Plan with Sloping Lot Under 2000 Sq Ft
Heated S.F.
1,966
Beds
3
Baths
2.5
Stories
1
Cars
1
Tour
Floor Plan

Plan 911053JVD

Main Level
slide image 0
Lower Level
slide image 1

Plan 911053JVD

1-800-854-7852

1-262-521-4596

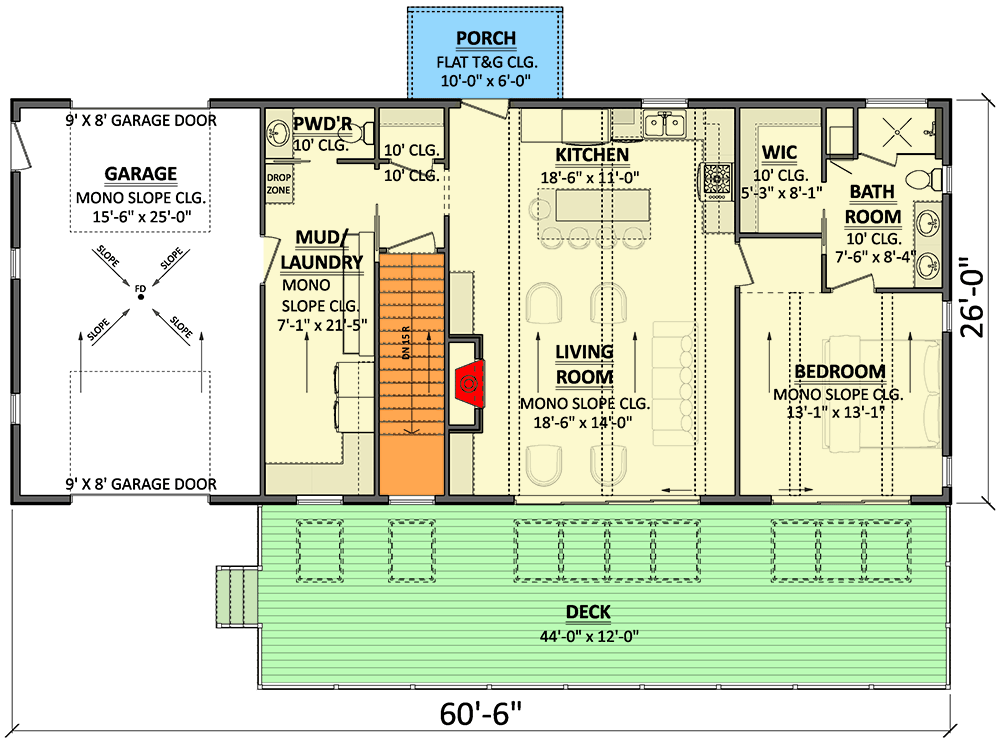

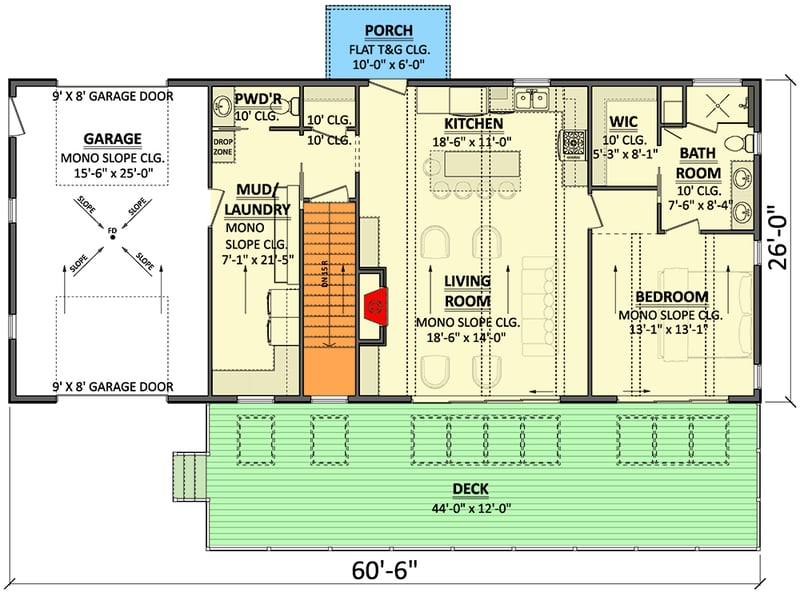

Main Level
floor plan image Main Level

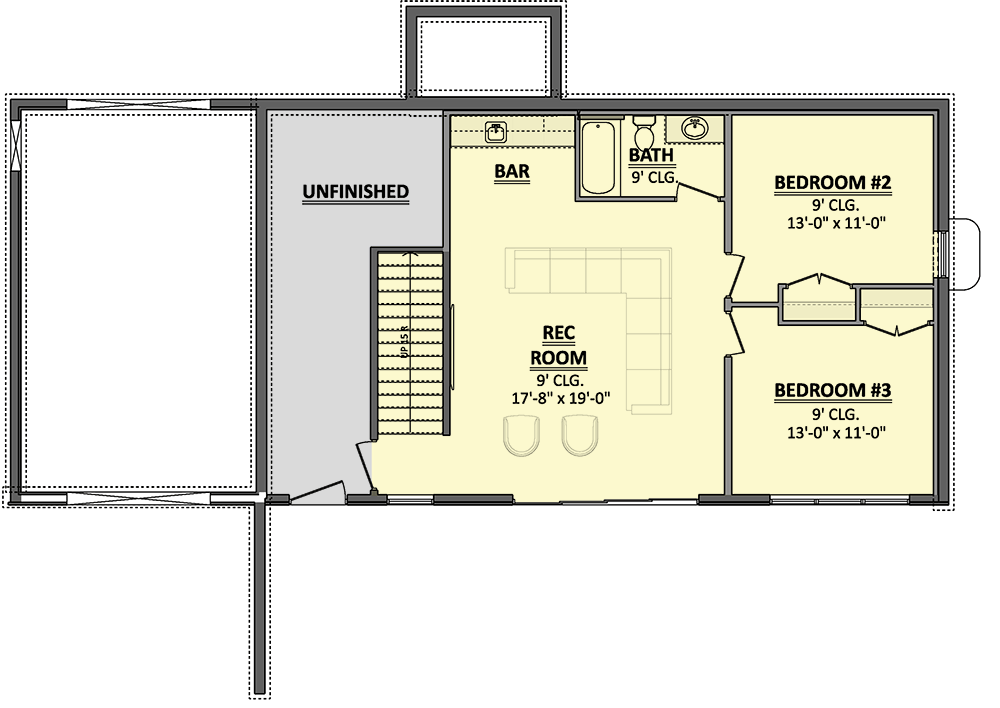

Lower Level
floor plan image Lower Level
Plan Details
  • This mountain vacation house plan offers you 1,966 square feet of heated living space with 3 beds, 2.5 baths and a 537 square foot 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

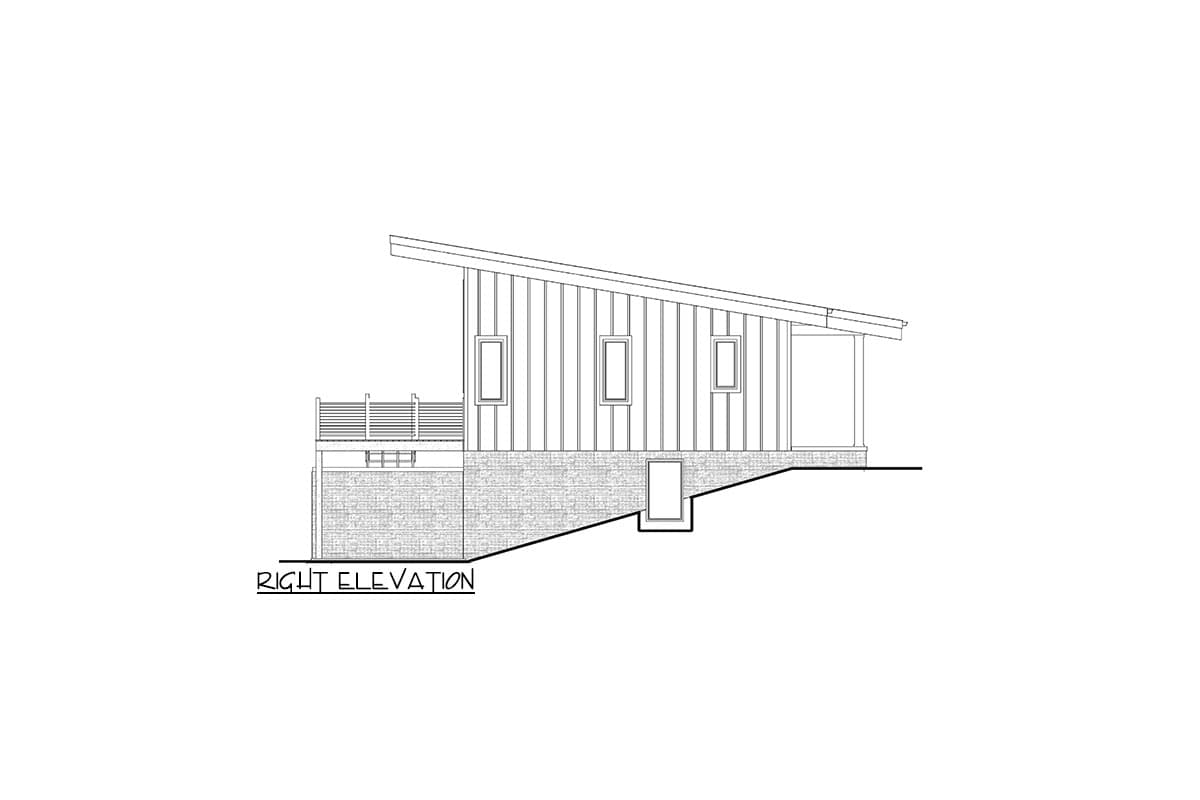

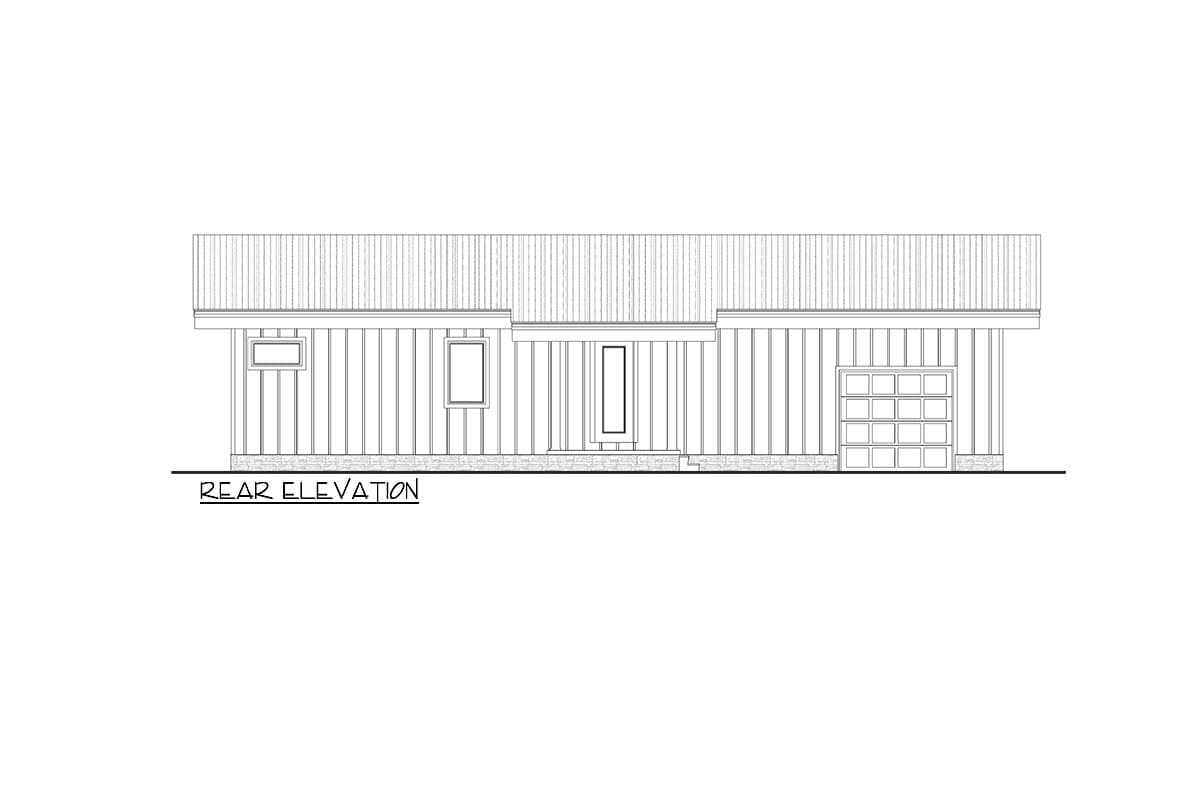

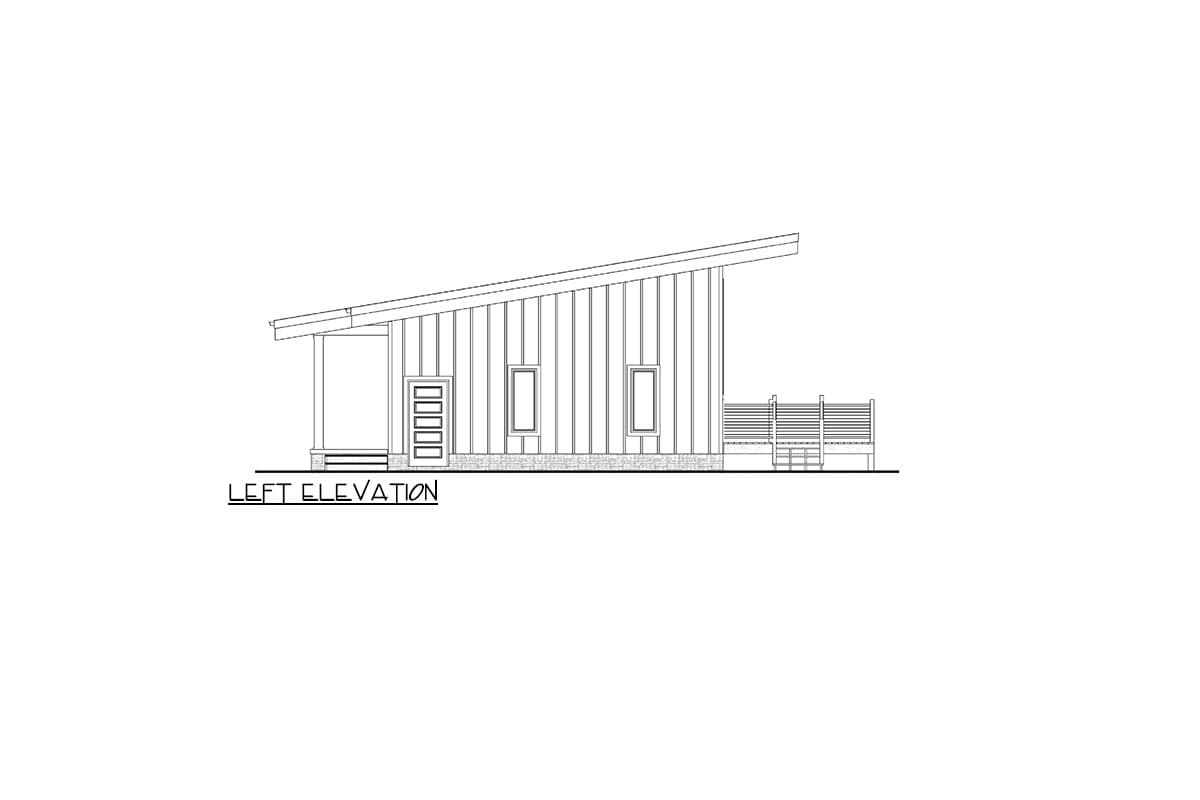

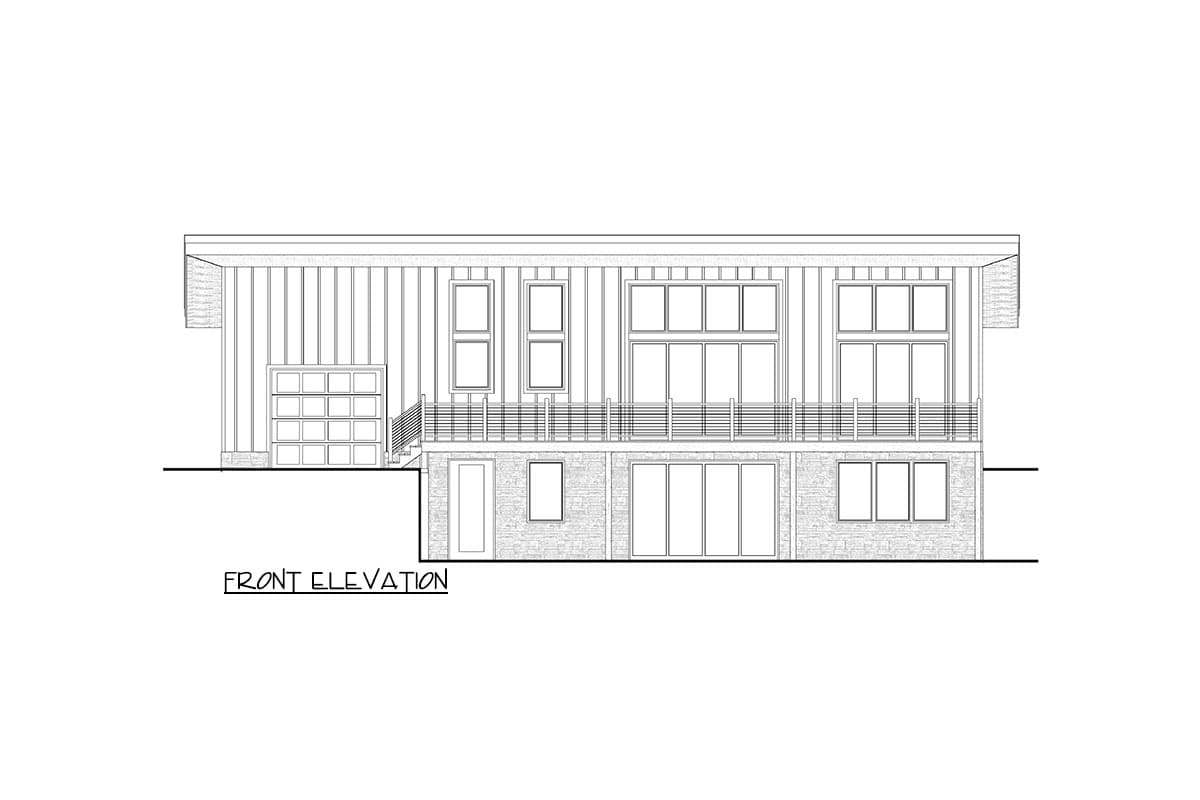

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,966 sq. ft.

Lower Level

809 sq. ft.

1st Floor

1,157 sq. ft.

Basement Unfinished

264 sq. ft.

Porch, Front

60 sq. ft.

Deck

537 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 6"

Depth

38' 0"

Max Ridge Height

17' 1"

Garage

Type

Attached

Area

537 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Lake House

Mid Century Modern

Modern

Mountain

Vacation

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

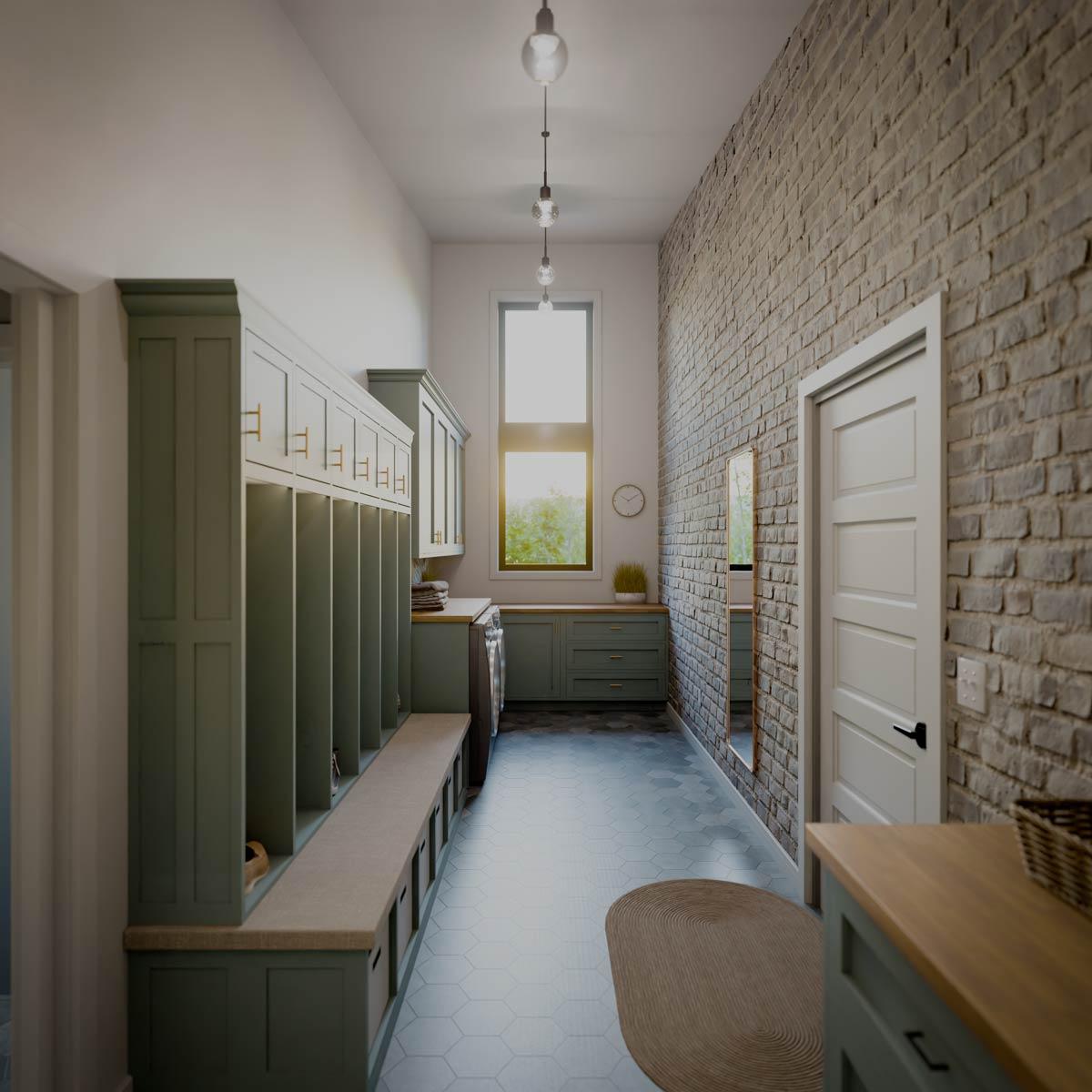

Mudroom

Wet Bar

Plan Collections

Lake House Plans
