Plan 100346GHR

Exclusive

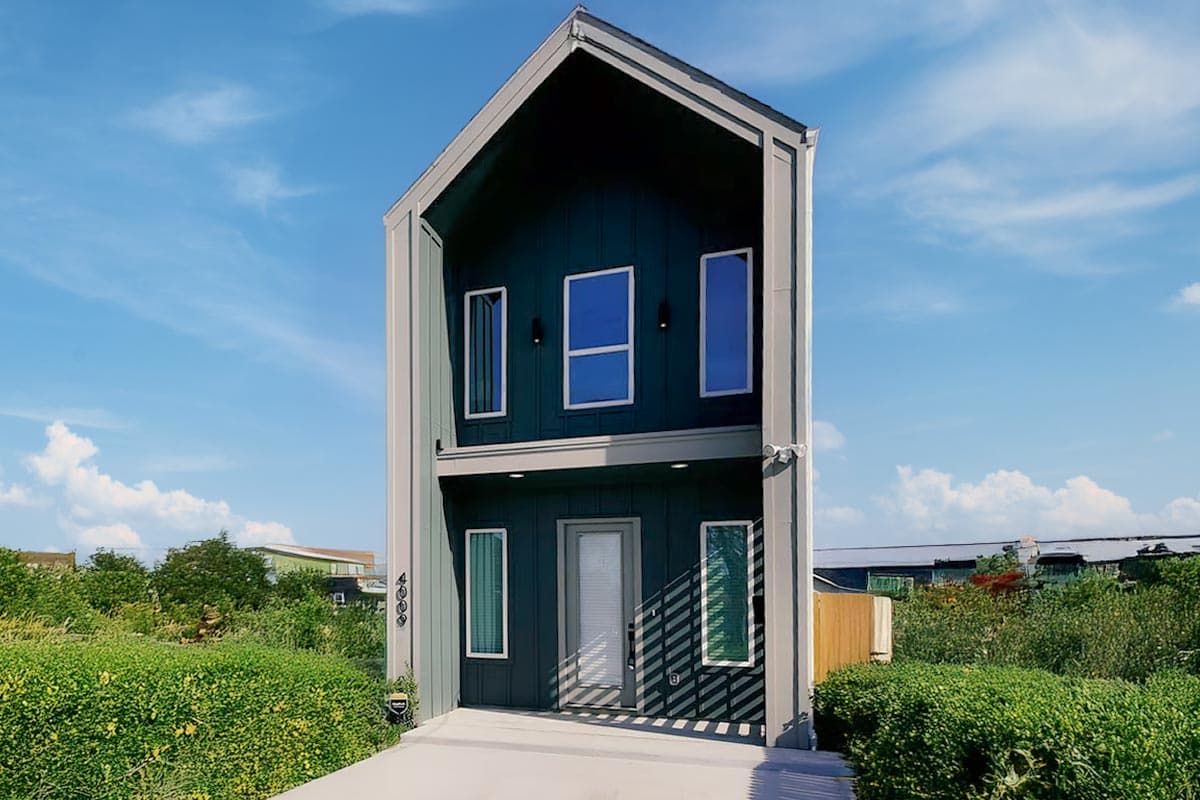

3-Bed Narrow Contemporary House Plan Under 1500 Sq Ft
Heated S.F.
1,455
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 100346GHR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 100346GHR

1-800-854-7852

1-262-521-4596

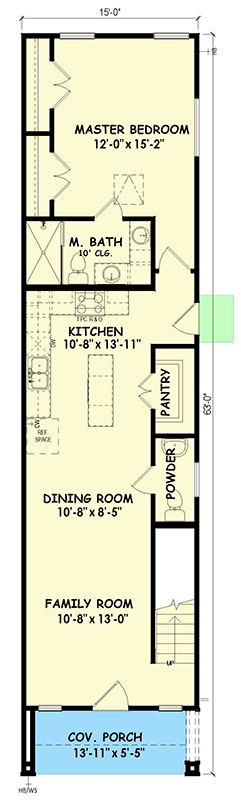

Main Level
floor plan image Main Level

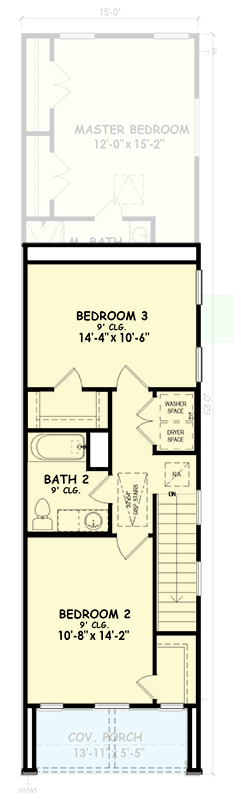

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This narrow contemporary house plan offers you 1,455 square feet of heated living space with 3 beds, 2.5 baths and a 82 square foot front porch.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

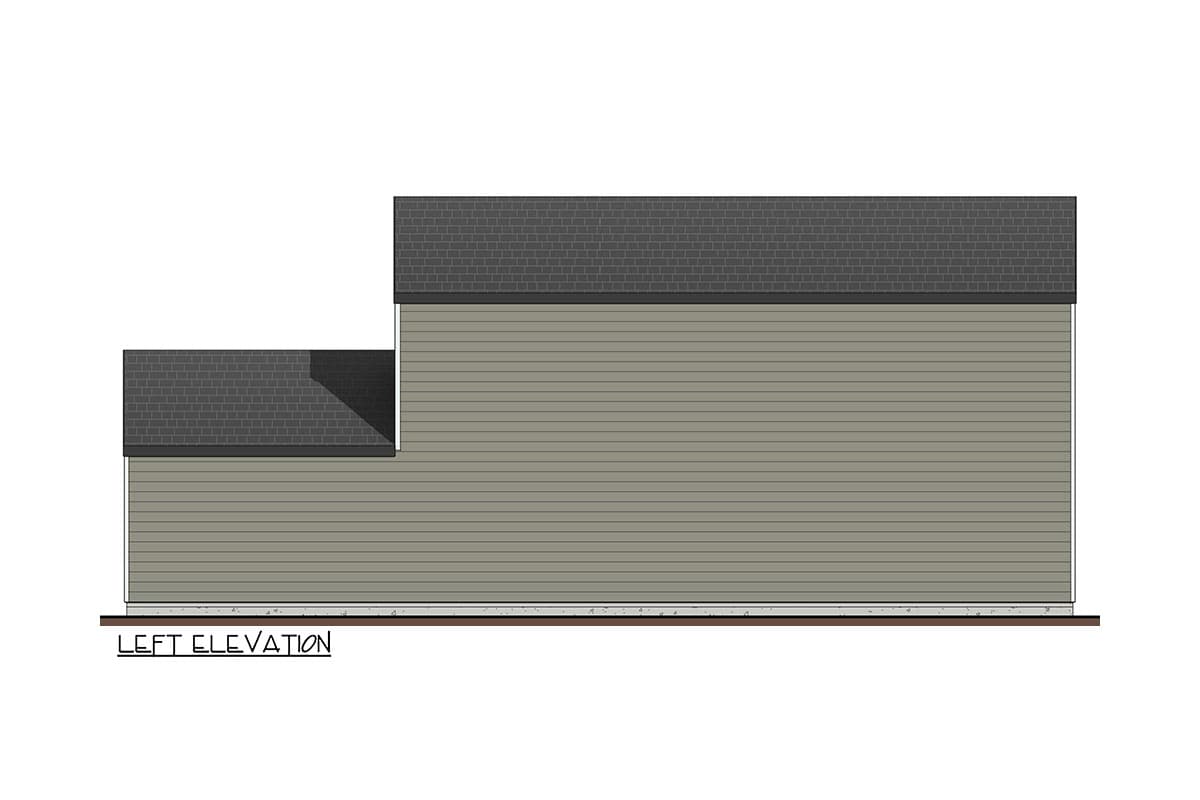

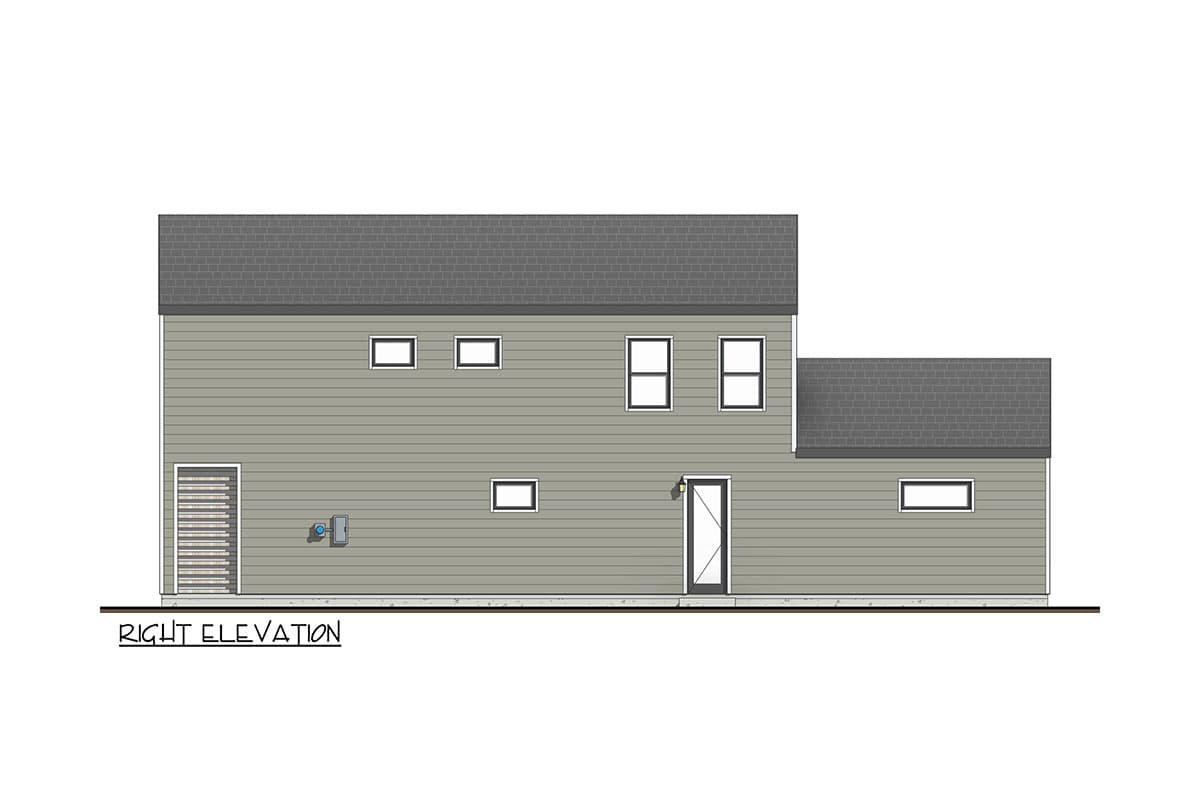

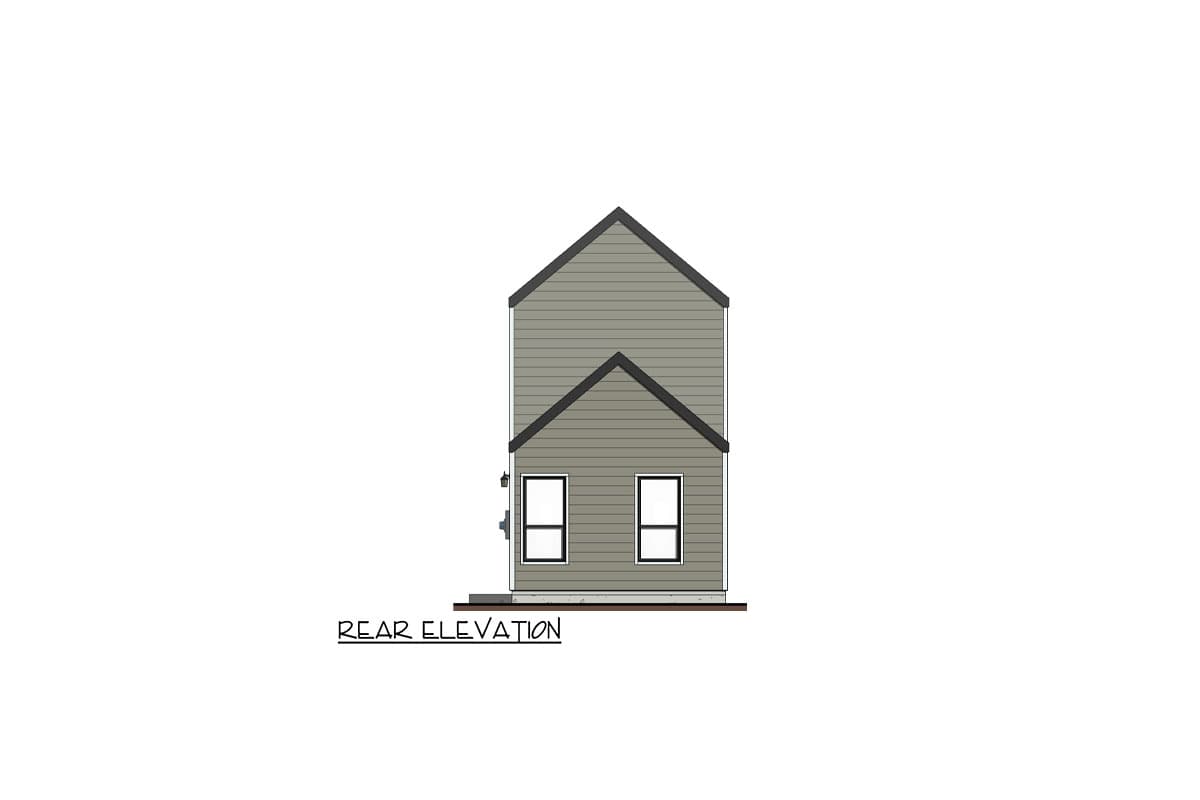

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,455 sq. ft.

1st Floor

863 sq. ft.

2nd Floor

593 sq. ft.

Porch, Front

82 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

15' 0"

Depth

63' 0"

Max Ridge Height

26' 6"

Ceiling Heights

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive

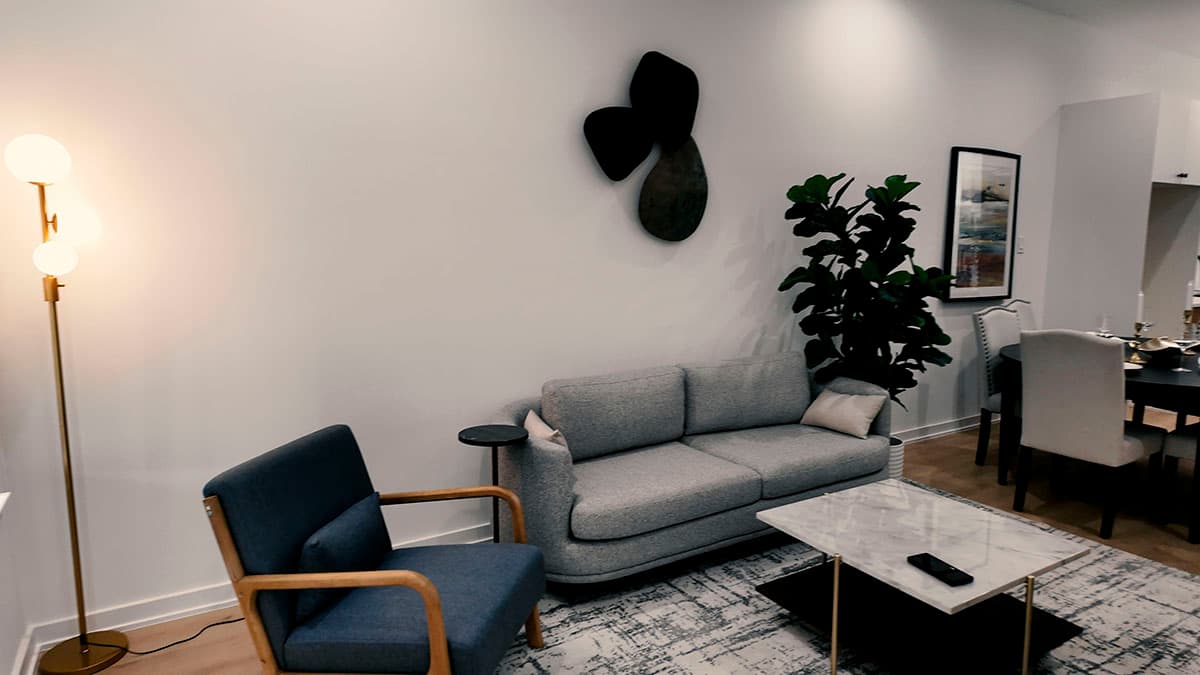

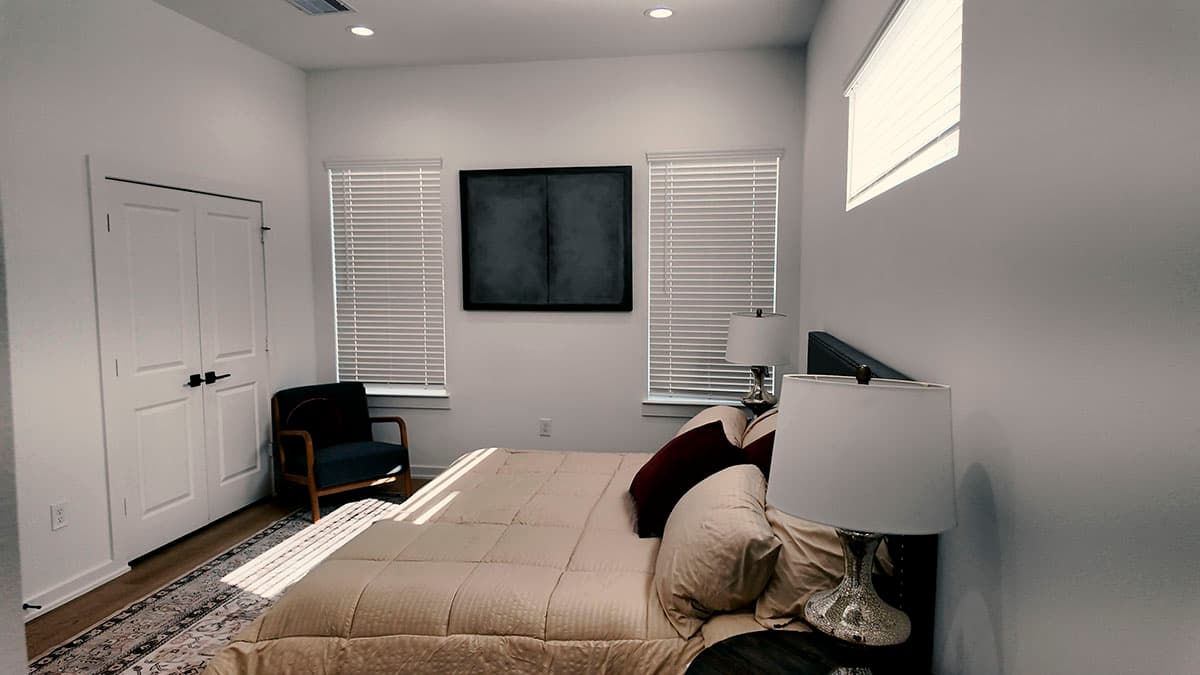

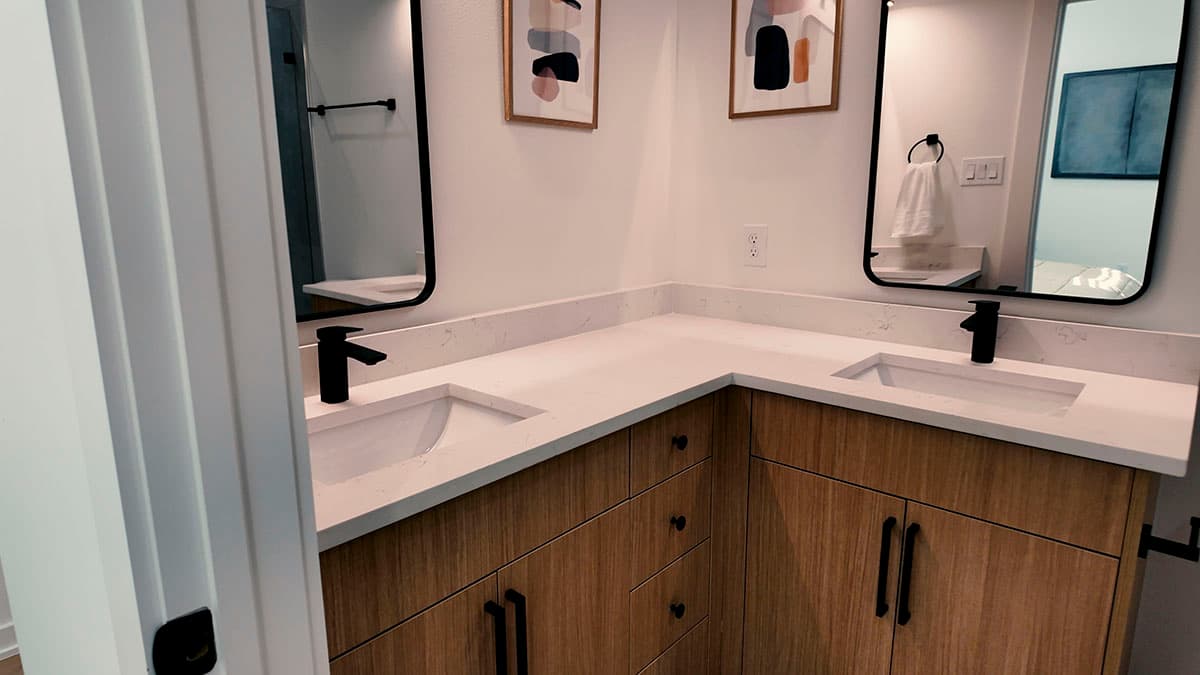

Photo Gallery
