3-Bed New American Cottage House Plan with Carport and Bonus - 1302 Sq Ft - 16920WG

Plan 16920WG

3-Bed New American Cottage House Plan with Carport and Bonus - 1302 Sq Ft

Heated S.F.

1,302

Beds

Baths

Stories

Cars

Floor Plan

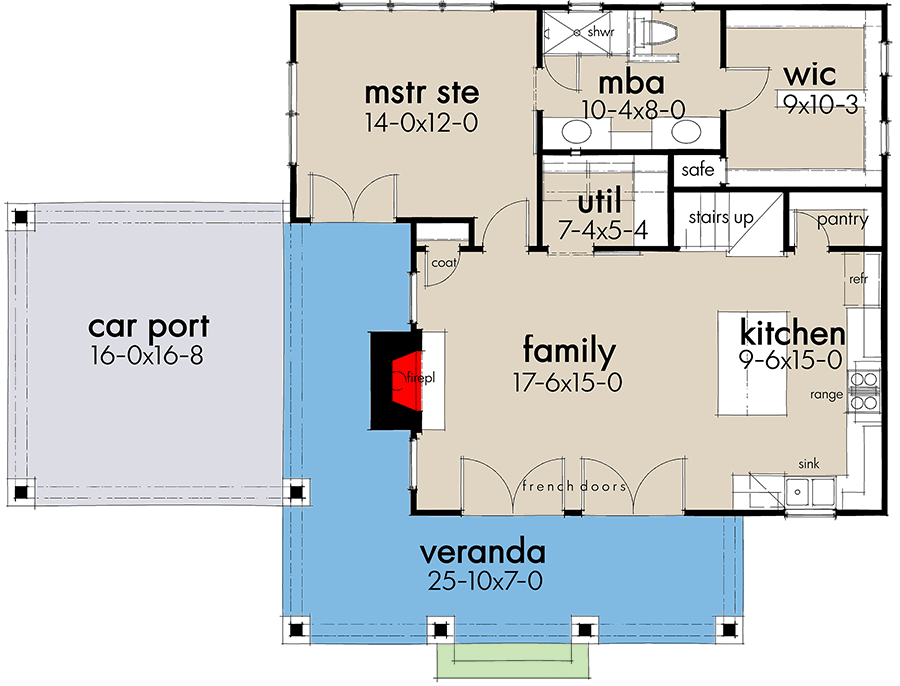

Main Level

2nd Floor

Plan Details

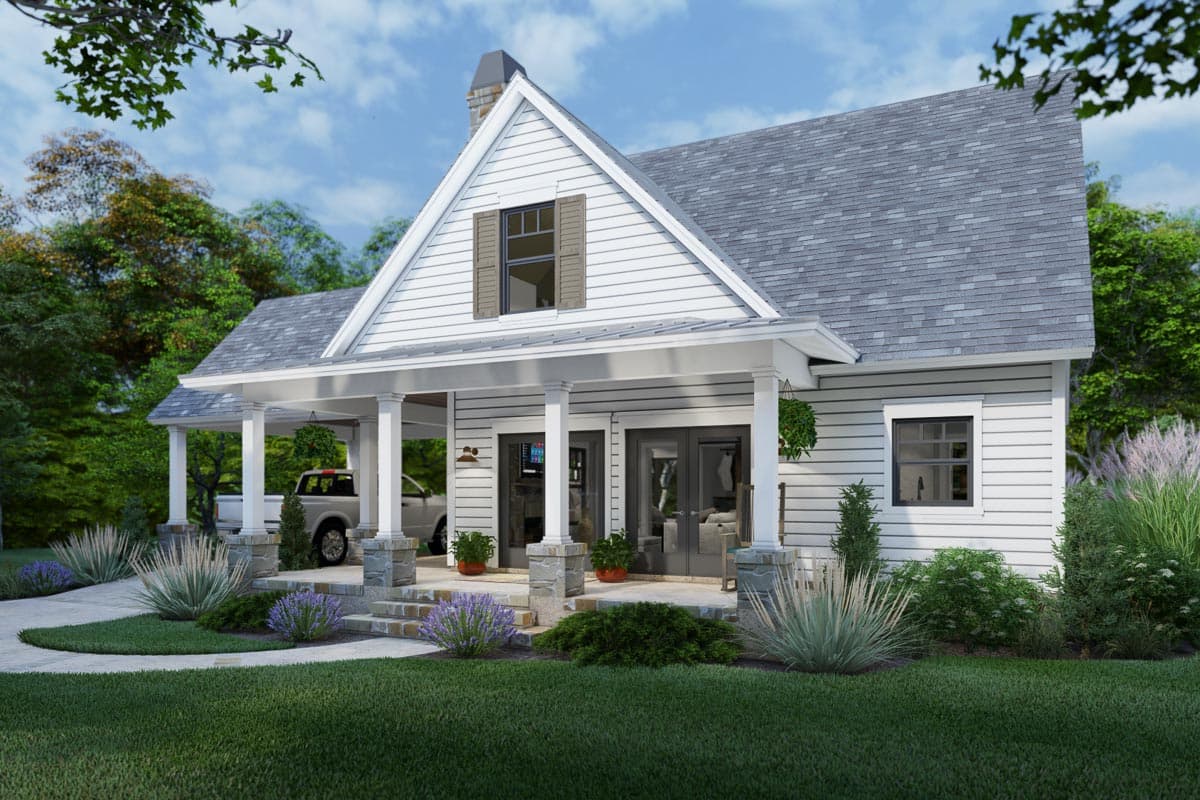

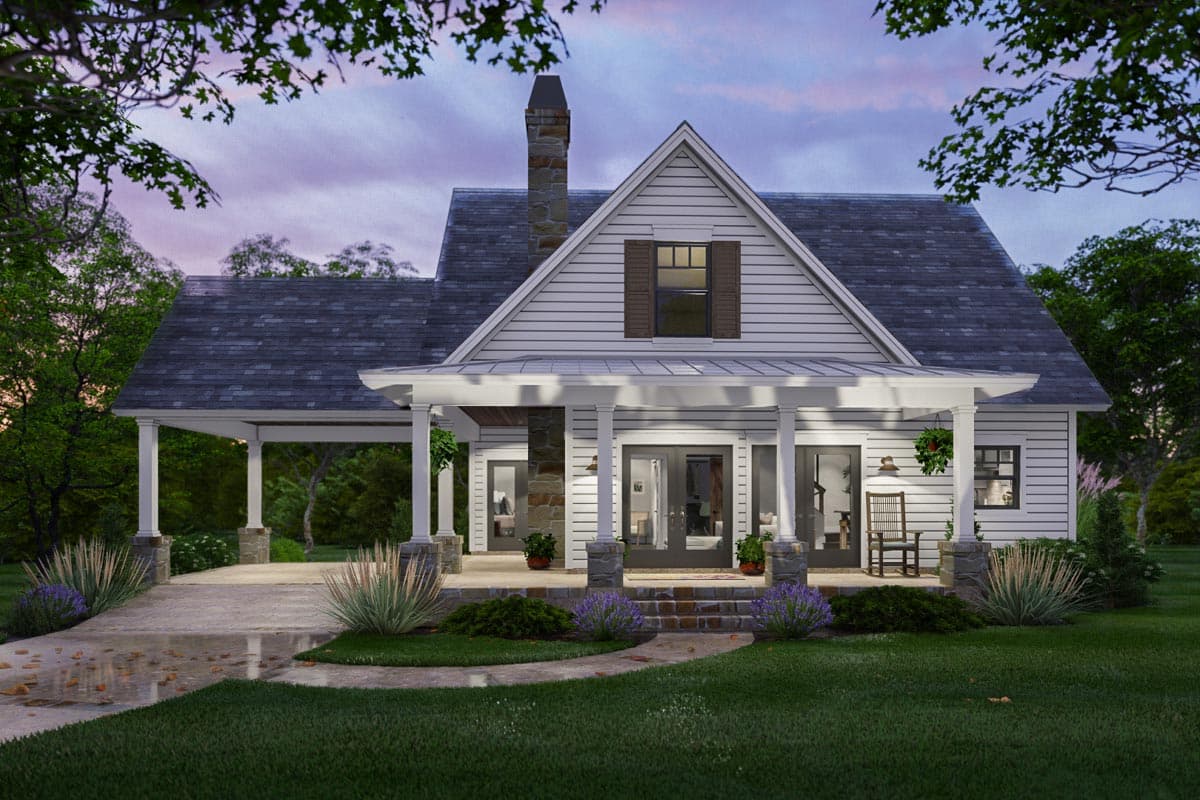

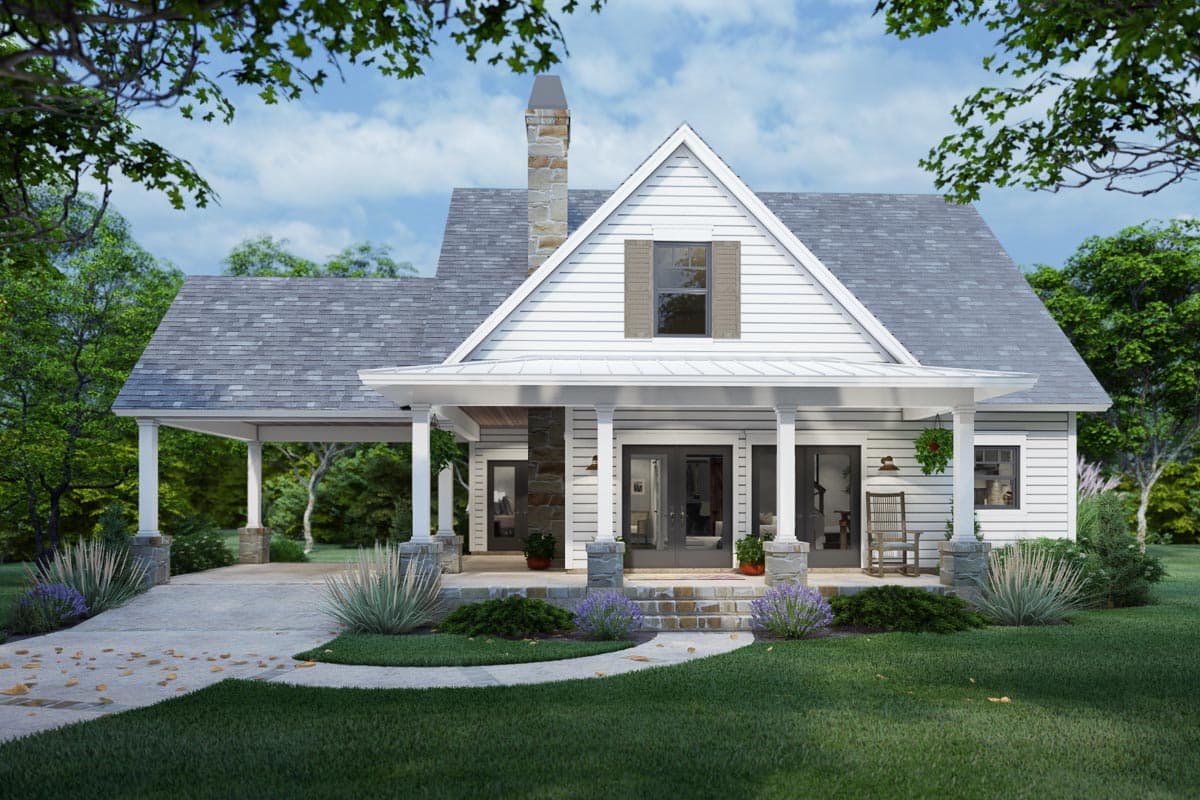

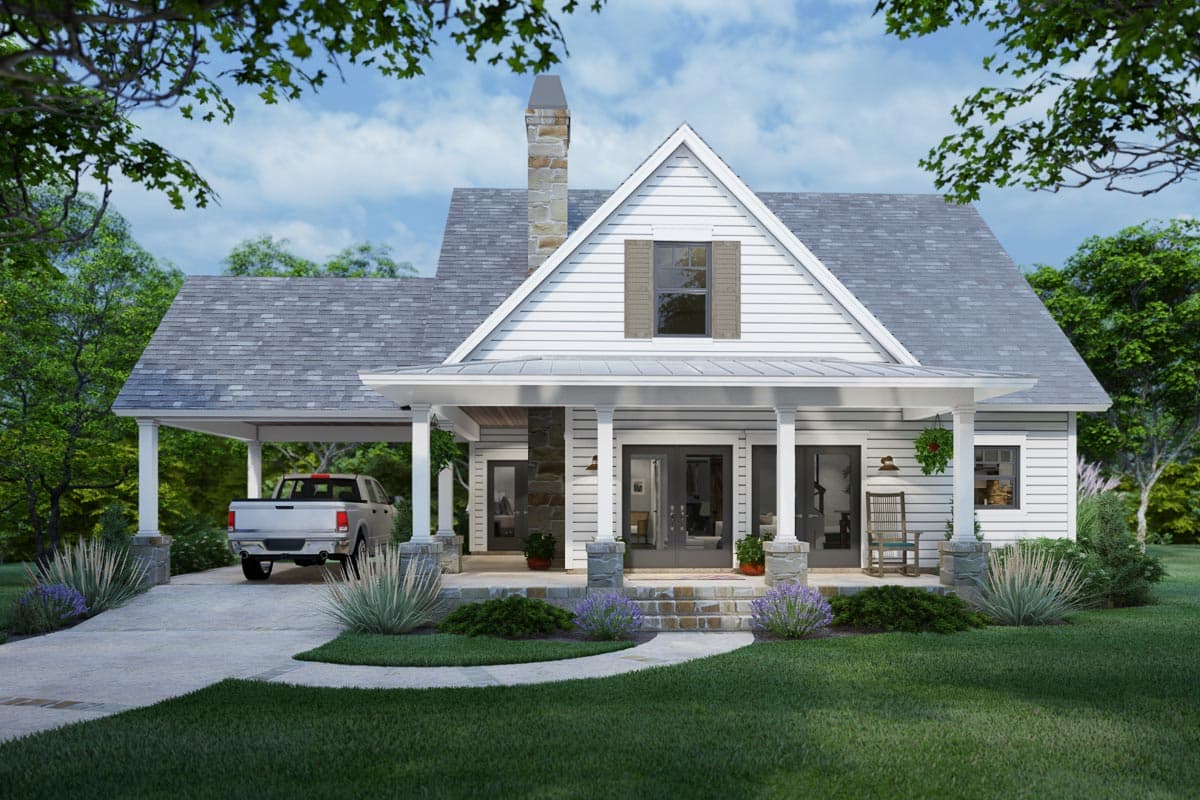

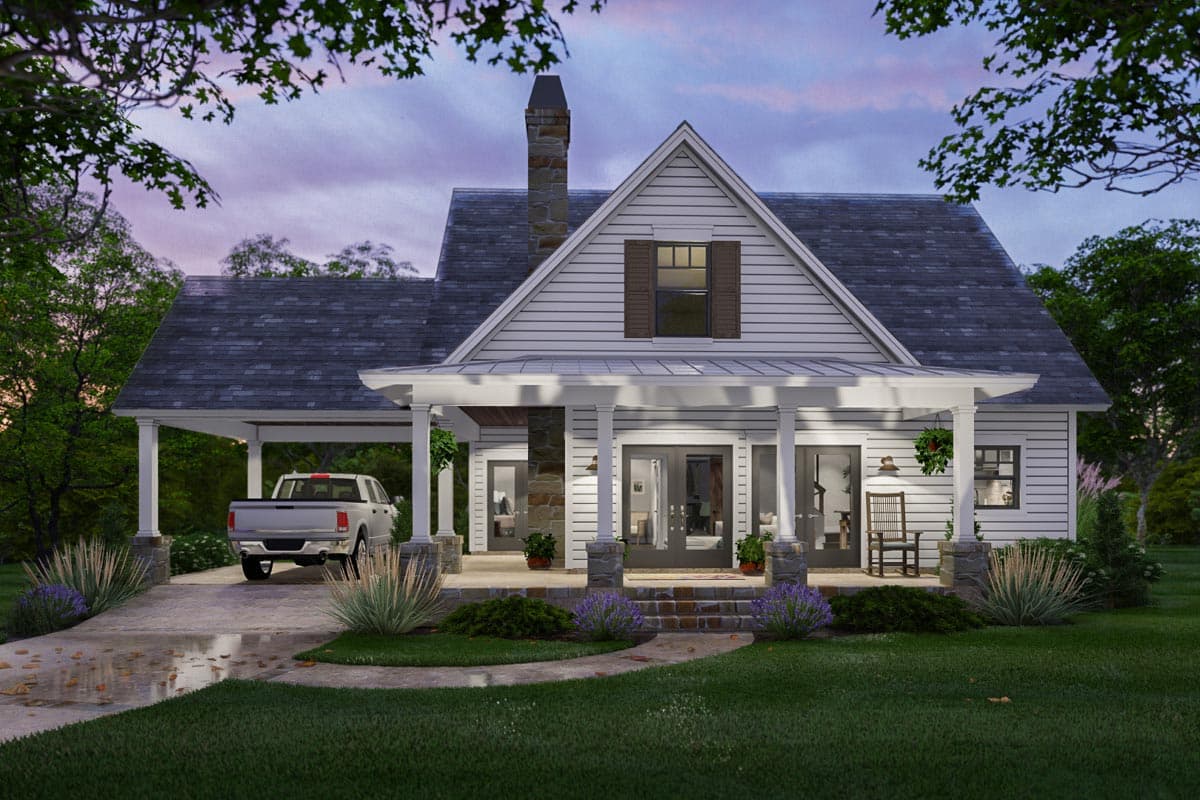

Stone accents add a natural element to the simple and stunning exterior of this 3-bedroom, New American cottage house plan.

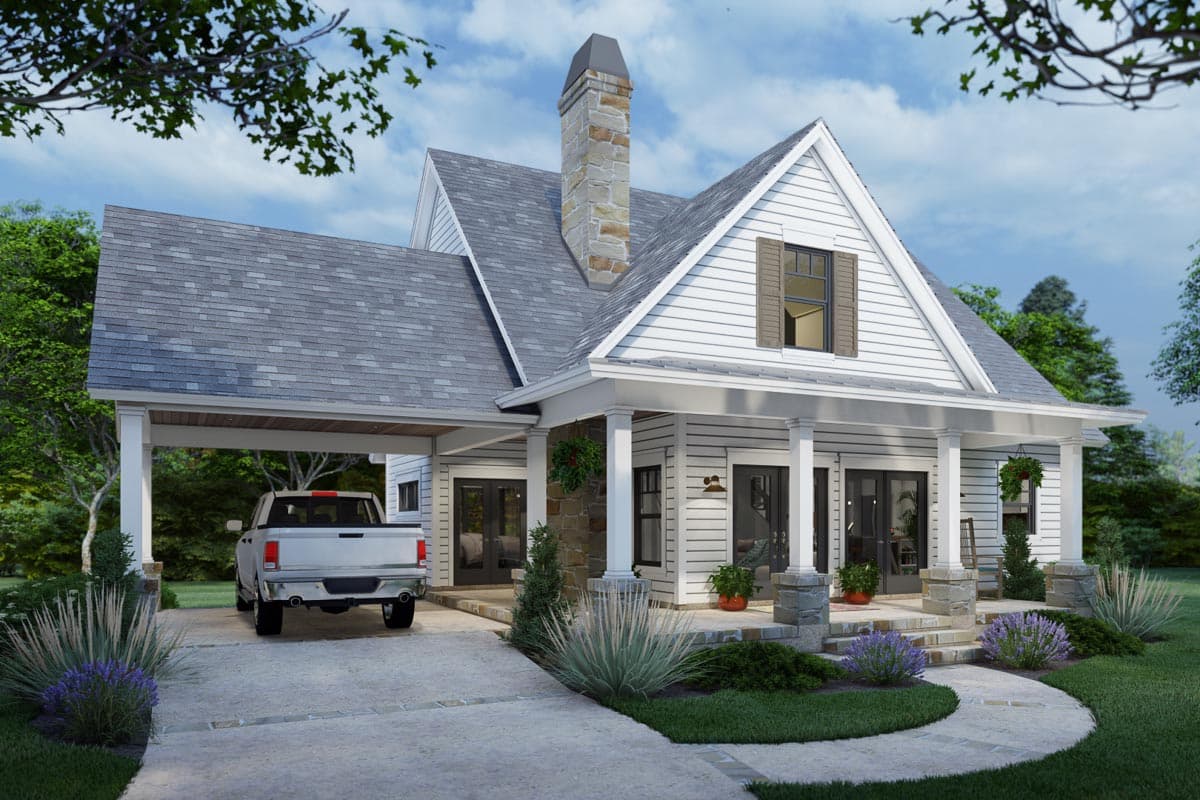

The wrap-around veranda provides a covered walkway from the attached carport to the French doors in front.

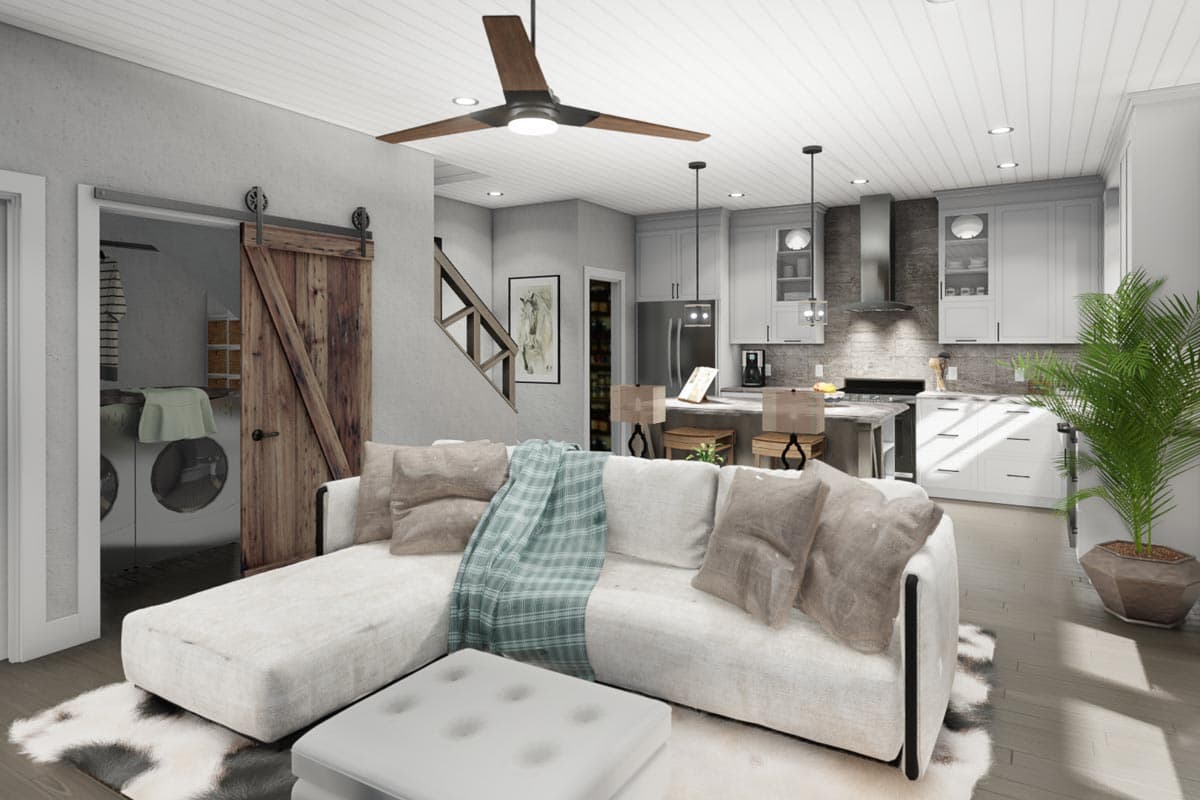

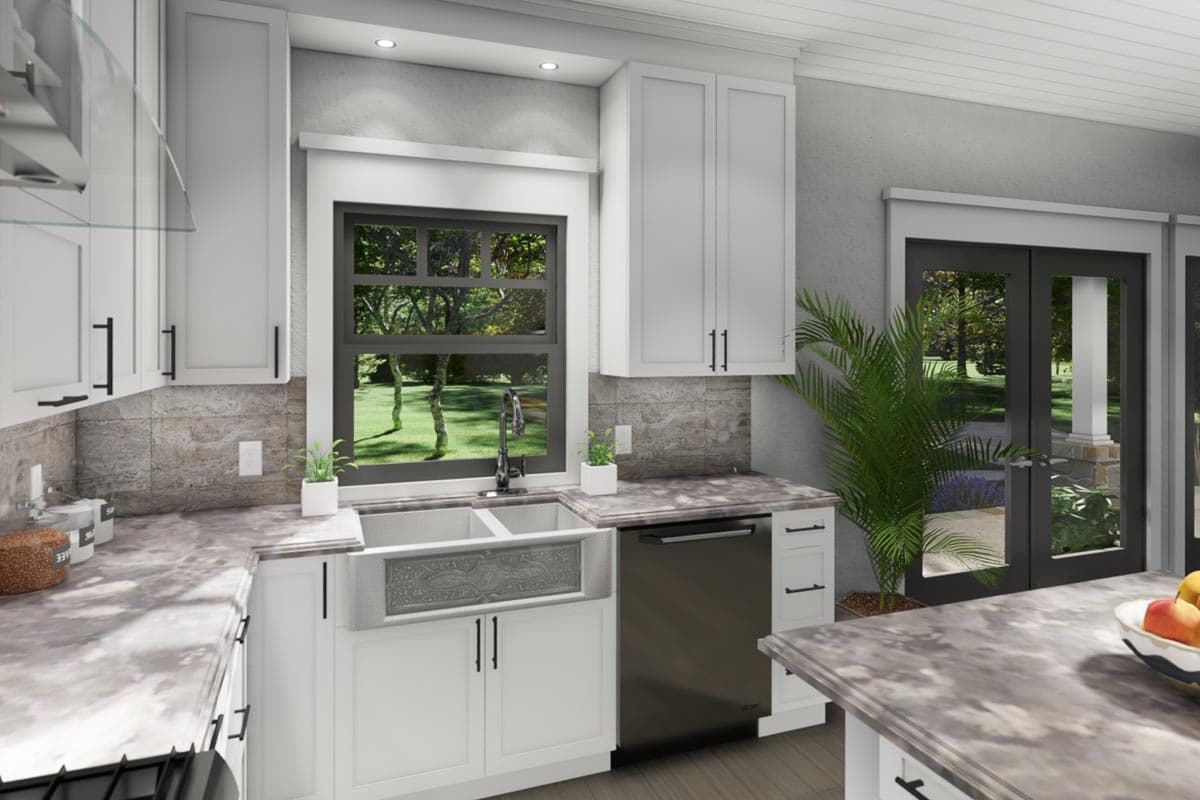

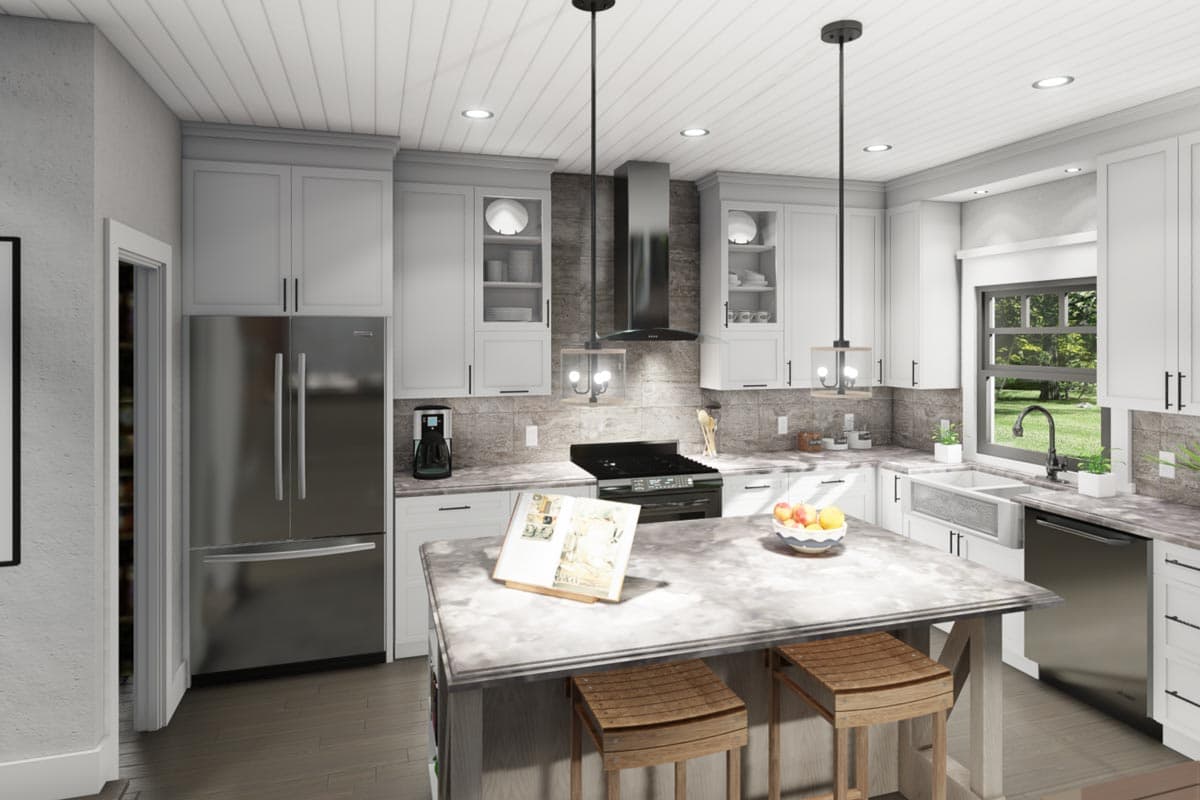

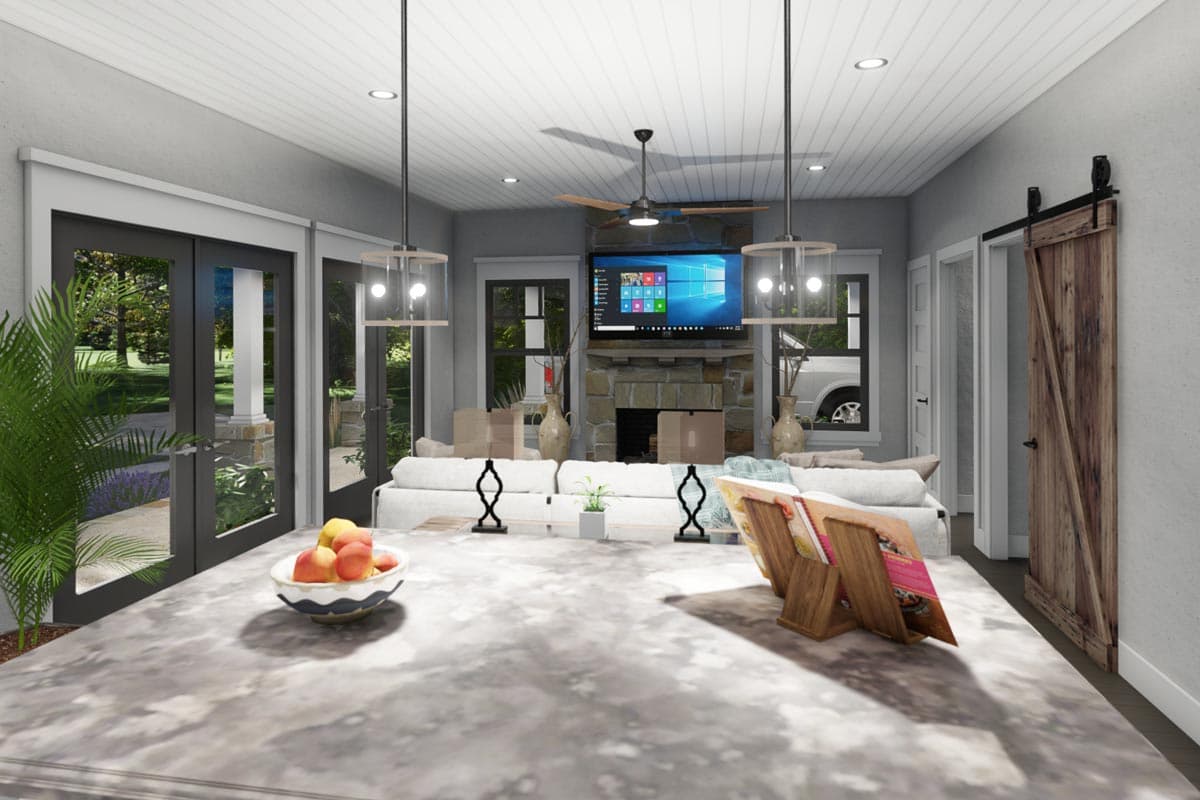

The family room includes a fireplace and flows into the kitchen to create the open concept design. A large island in the center of the kitchen provides ample workspace, and a walk-in pantry resides within arm's reach.

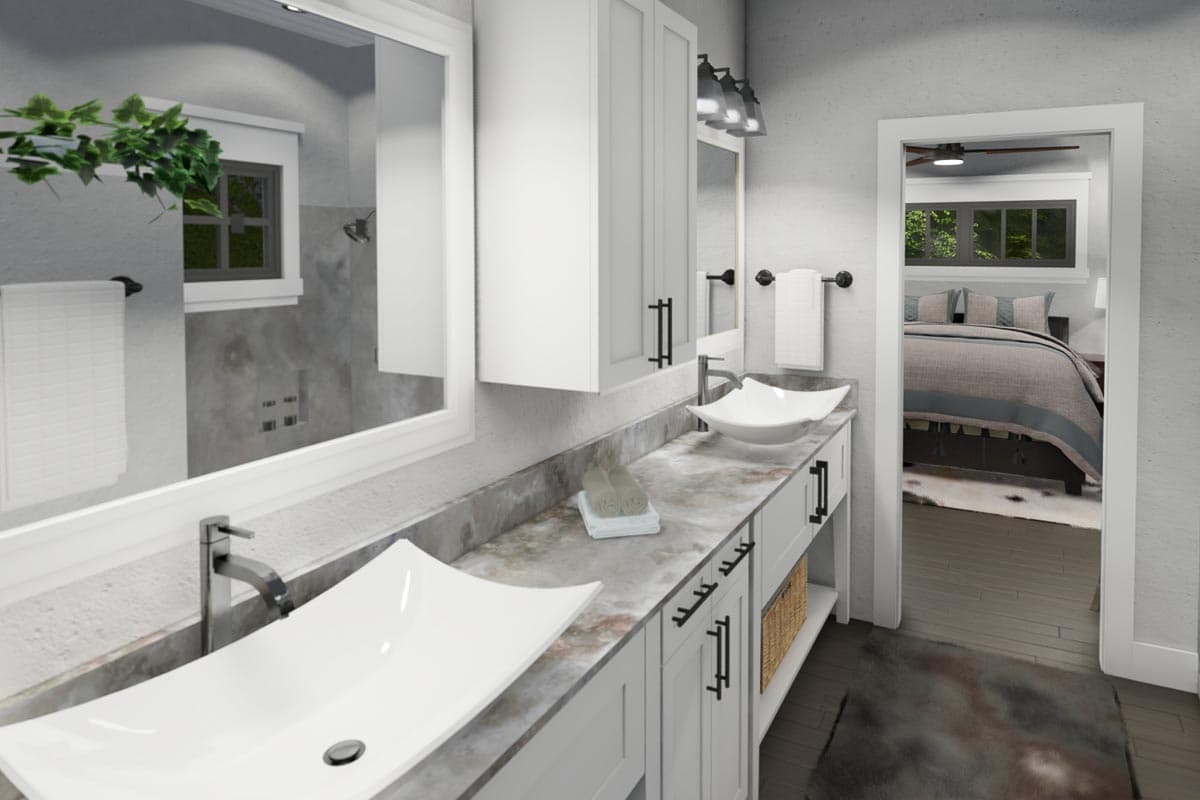

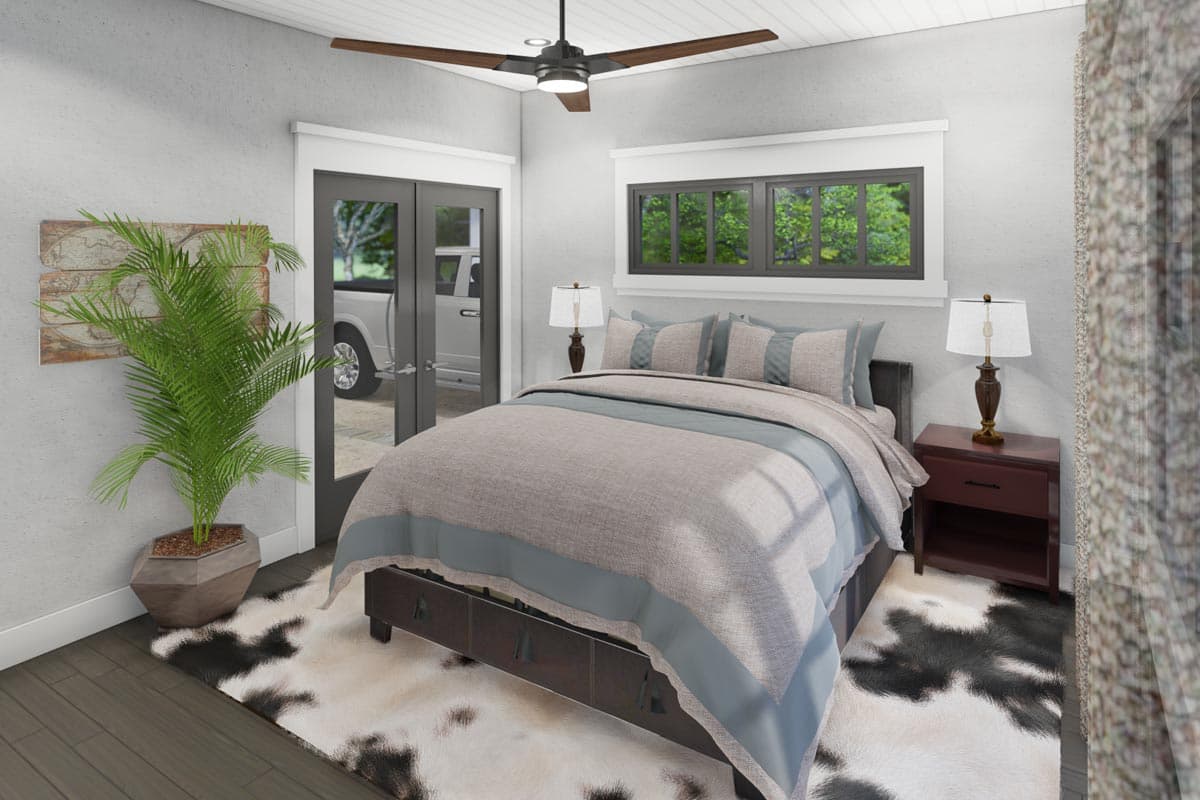

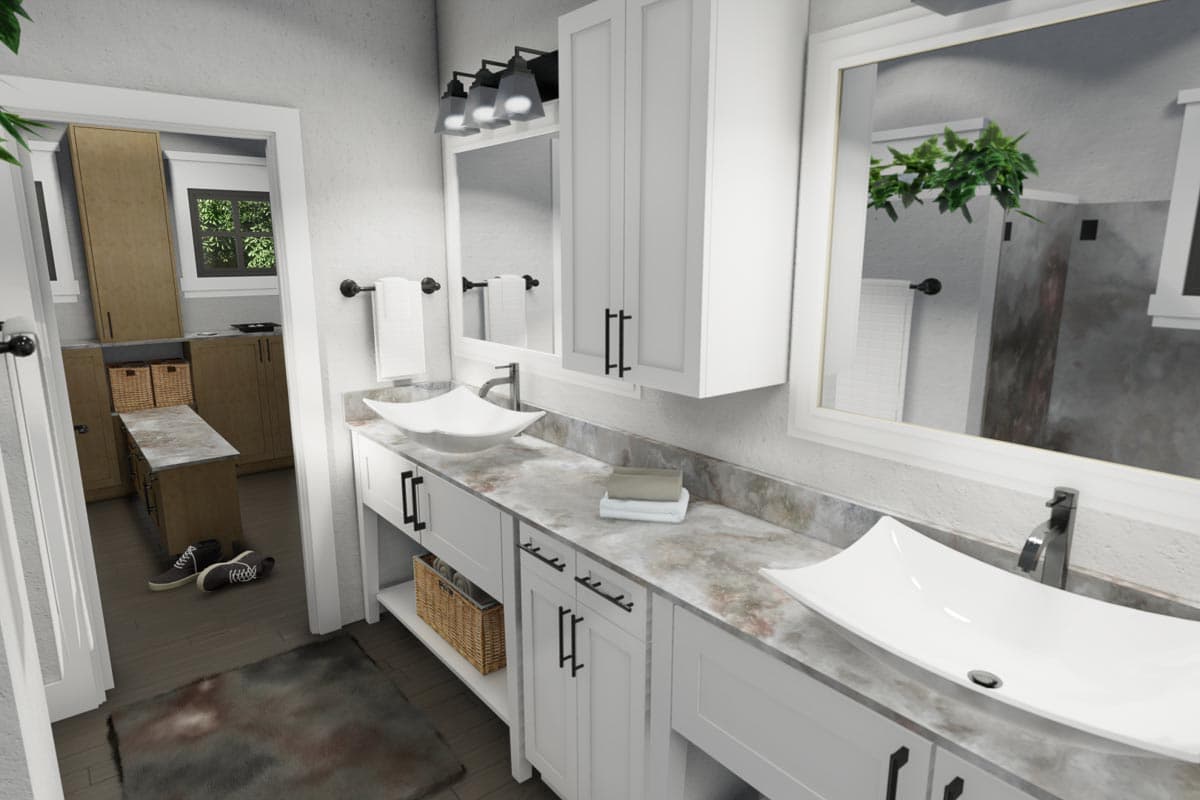

Enjoy the convenience of a main-level master bedroom, which includes a 4-fixture bath and a sizable walk-in closet. The laundry room completes this level and can be found in the center of the floor plan.

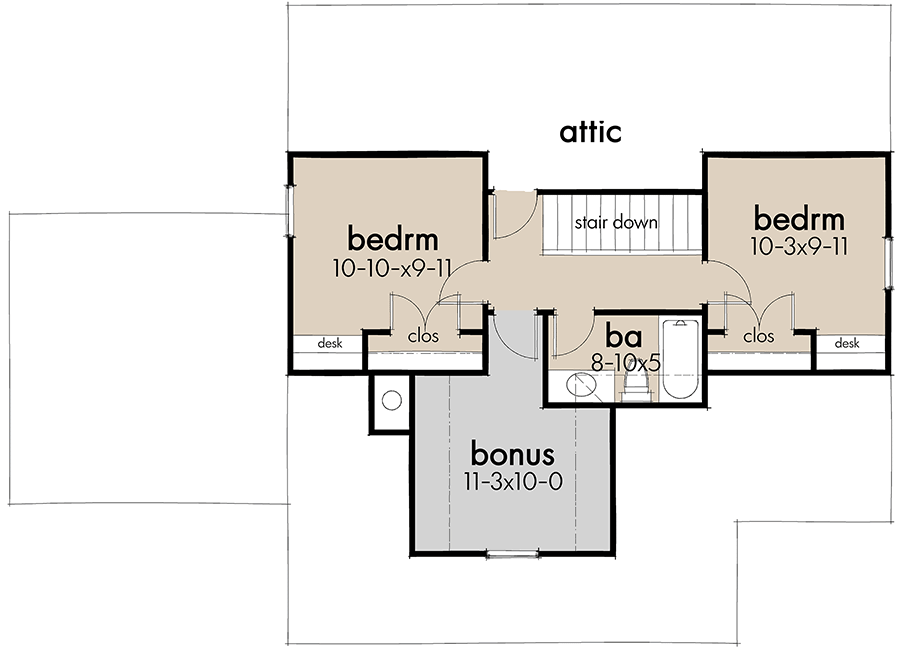

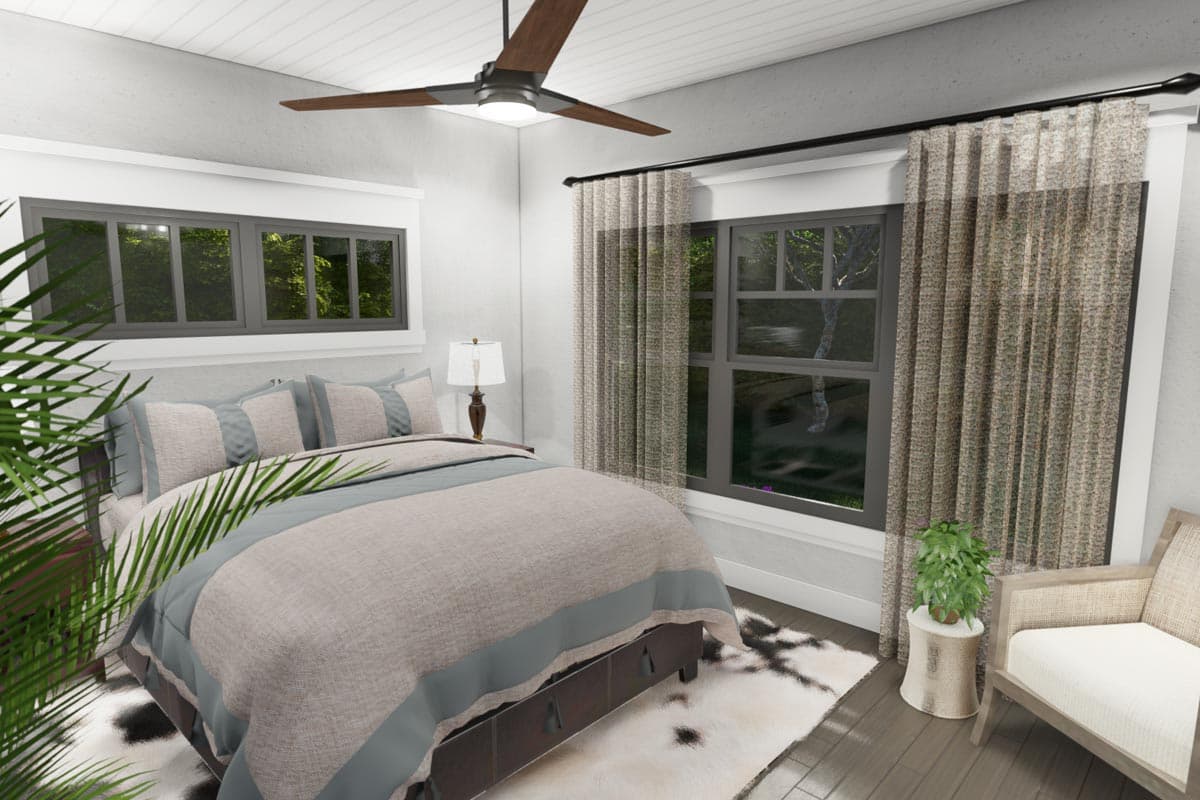

Upstairs, the bedrooms are mirror images and include built-in desks. A full bath is situated in the center of the second level, and a bonus room adds 126 square feet of living space.

What's Included

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
