Plan 420108WNT

Exclusive

3 Bed New American Cottage Under 2000 Square Feet with Large Rear Porch
Heated S.F.
1,936
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 420108WNT

Main Level
slide image 0

Plan 420108WNT

1-800-854-7852

1-262-521-4596

Main Level

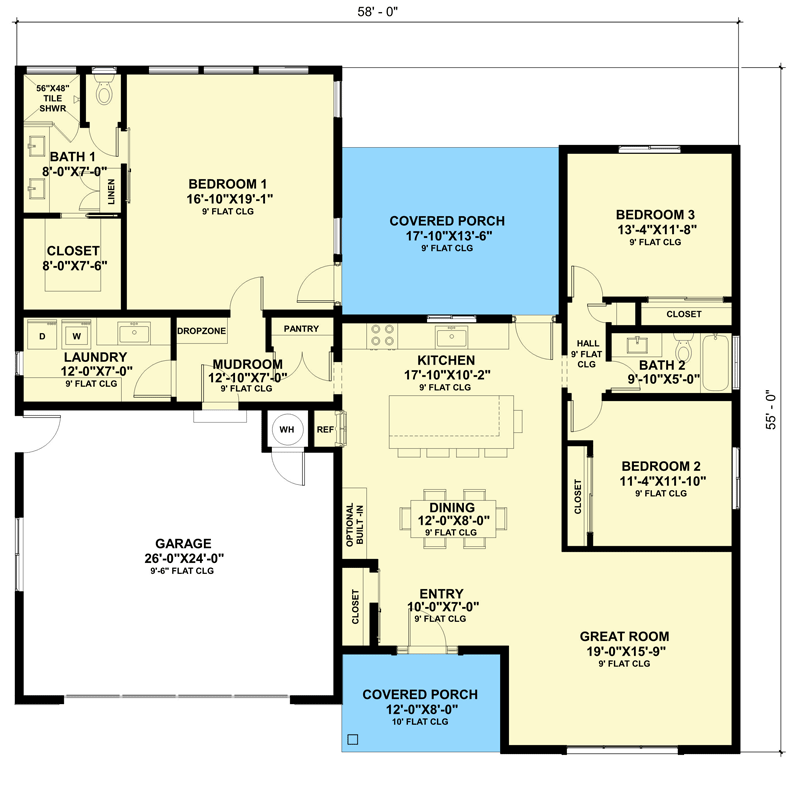

floor plan image Main Level
Plan Details
  • This 3 bed, 2 bath house plan gives you 1,936 square feet of heated living and a 2-car 596 square foot garage. In back, a 244 square foot porch extends your livability to the outdoors.
  • A split bedroom layout places the master suite on the left with a four-fixture bath, a walk-in closet with a pocket door and direct access to the rear porch. Laundry is conveniently located nearby. Across the home, two beds share a hall bath.
  • The center of the home is open front to back with the great room on the right of the entry flowing to the dining room and that to the kitchen with large island and a sink centered below a window looking out across the covered porch.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

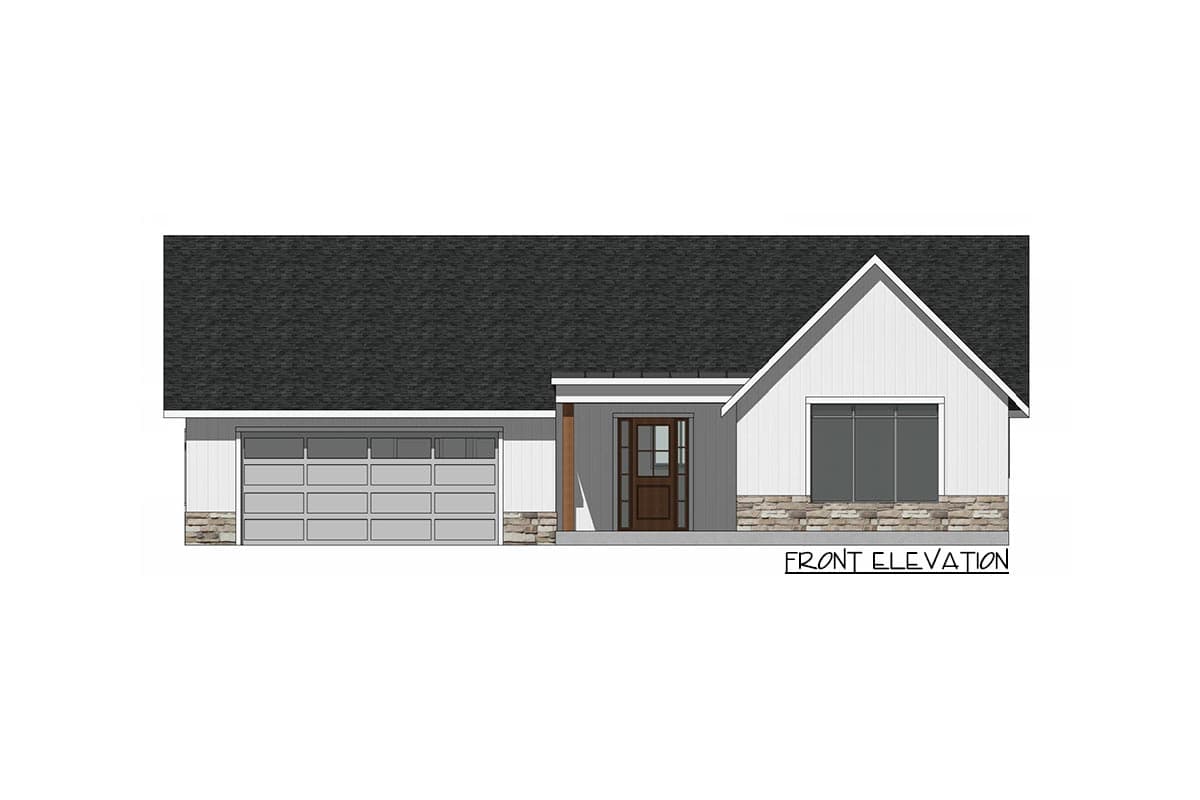

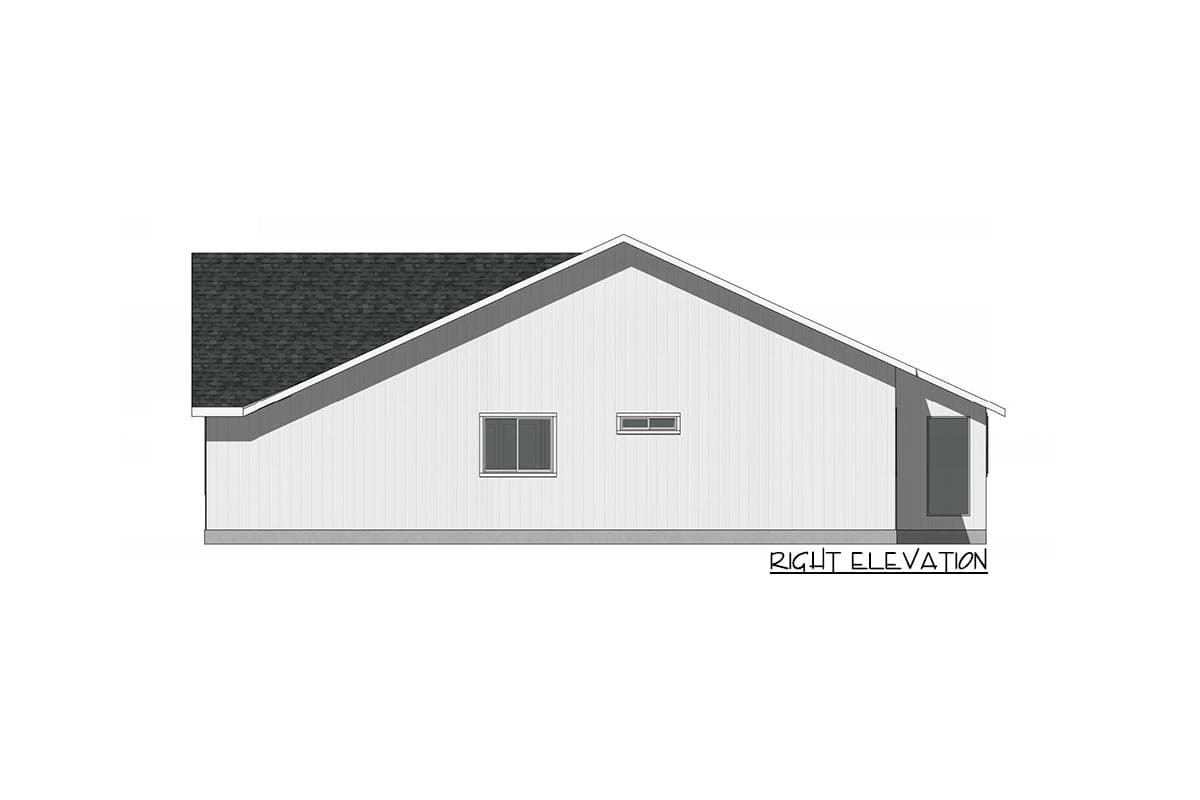

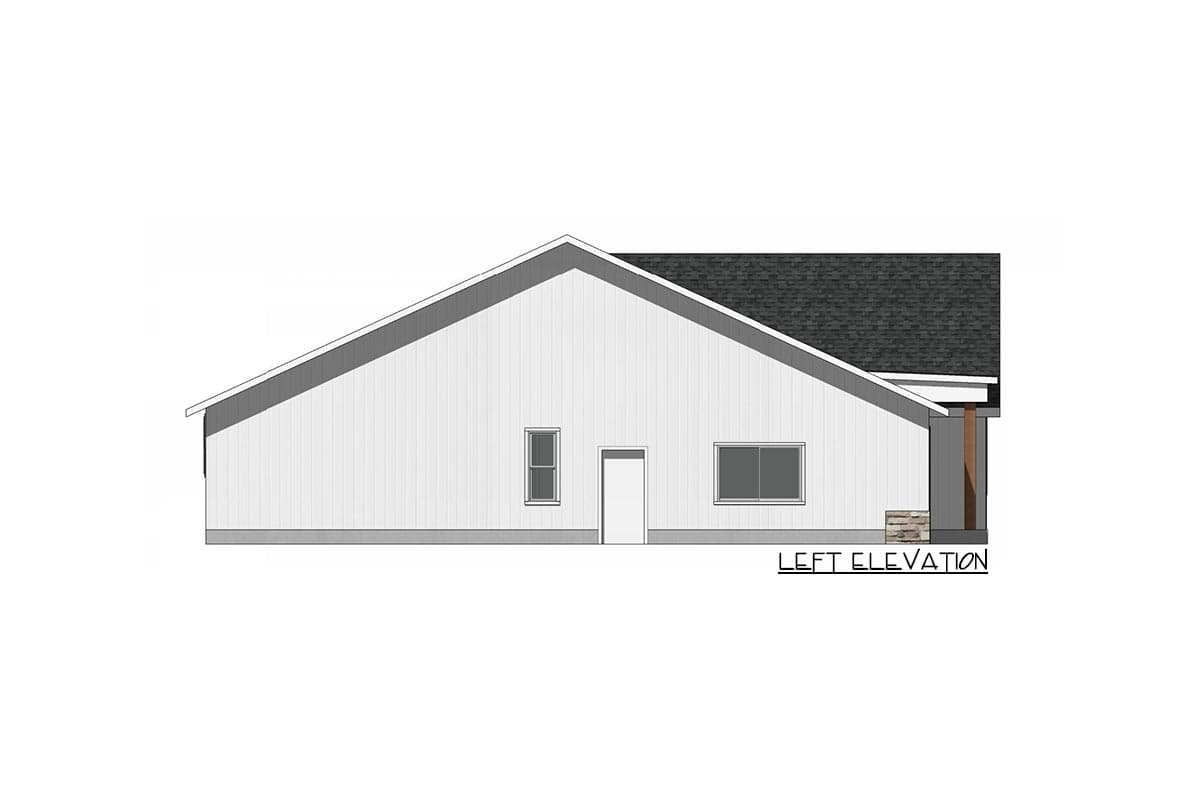

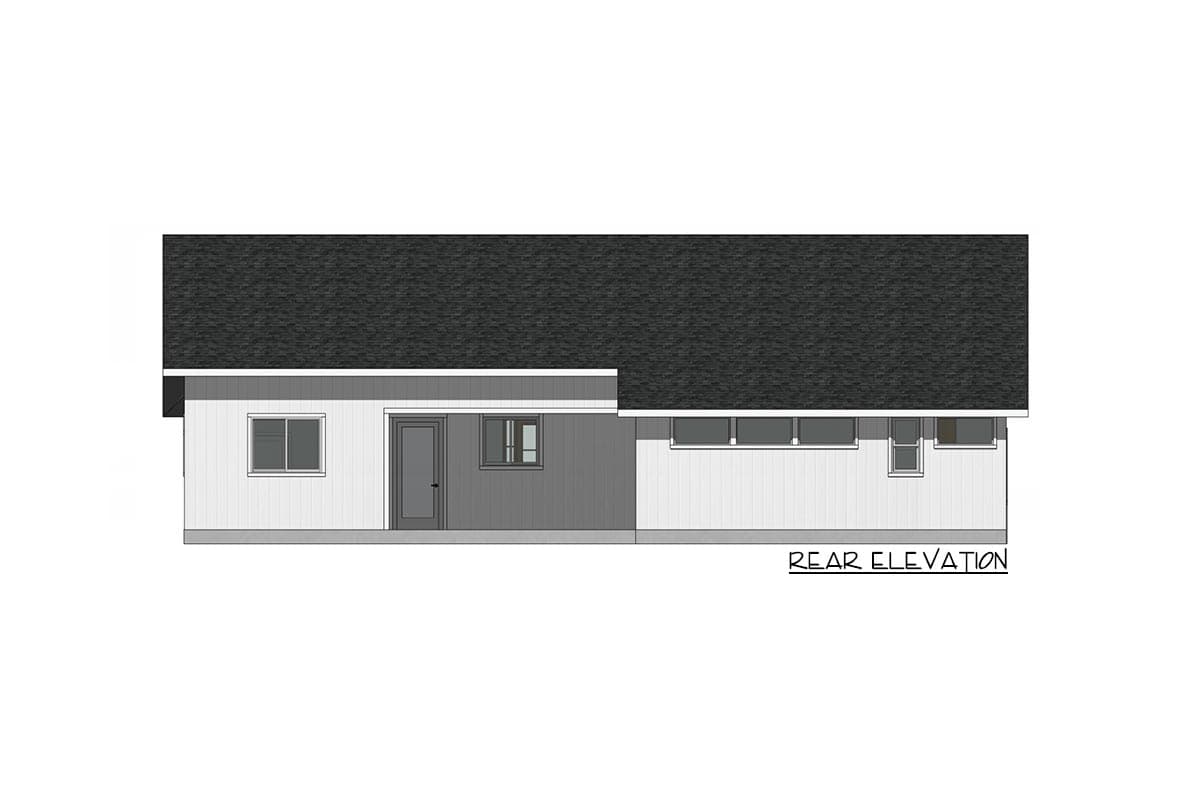

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,936 sq. ft.

1st Floor

1,936 sq. ft.

Porch, Front

96 sq. ft.

Porch, Rear

244 sq. ft.

Porch, Combined

340 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

55' 0"

Max Ridge Height

21' 11"

Garage

Type

Attached

Area

596 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Front Porch

Flat

10' 0''

Roof Details

Primary Pitch

5.5 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,936 sq. ft.

1st Floor

1,936 sq. ft.

Porch, Front

96 sq. ft.

Porch, Rear

244 sq. ft.

Porch, Combined

340 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

55' 0"

Max Ridge Height

21' 11"

Garage

Type

Attached

Area

596 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Front Porch

Flat

10' 0''

Roof Details

Primary Pitch

5.5 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery
