Plan 135038GRA
3-Bed New American Farmhouse with Wrap-around Porch and Optional Lower Level
Heated S.F.
2,813
Beds
3 - 4
Baths
2.5+ - 3.5+
Stories
2
Cars
3
Floor Plan

Plan 135038GRA

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 135038GRA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optional Lower Level
floor plan image Optional Lower Level
Plan Details

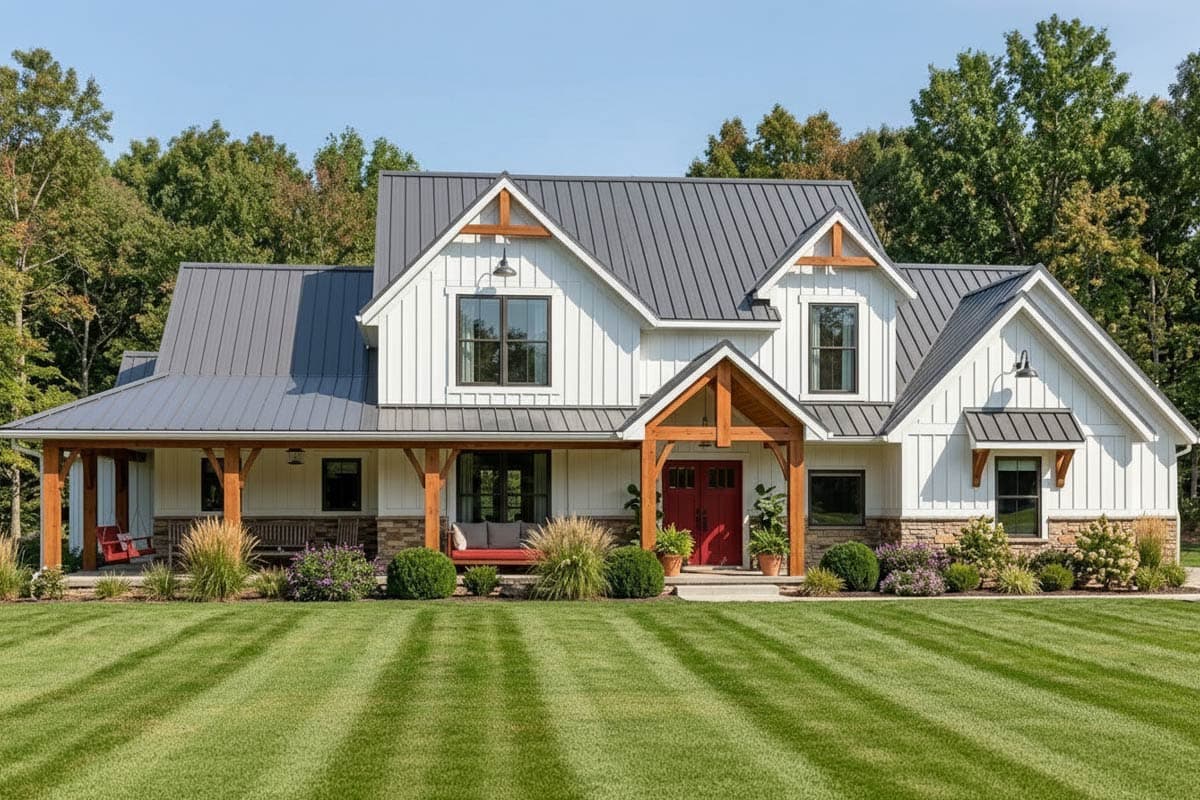

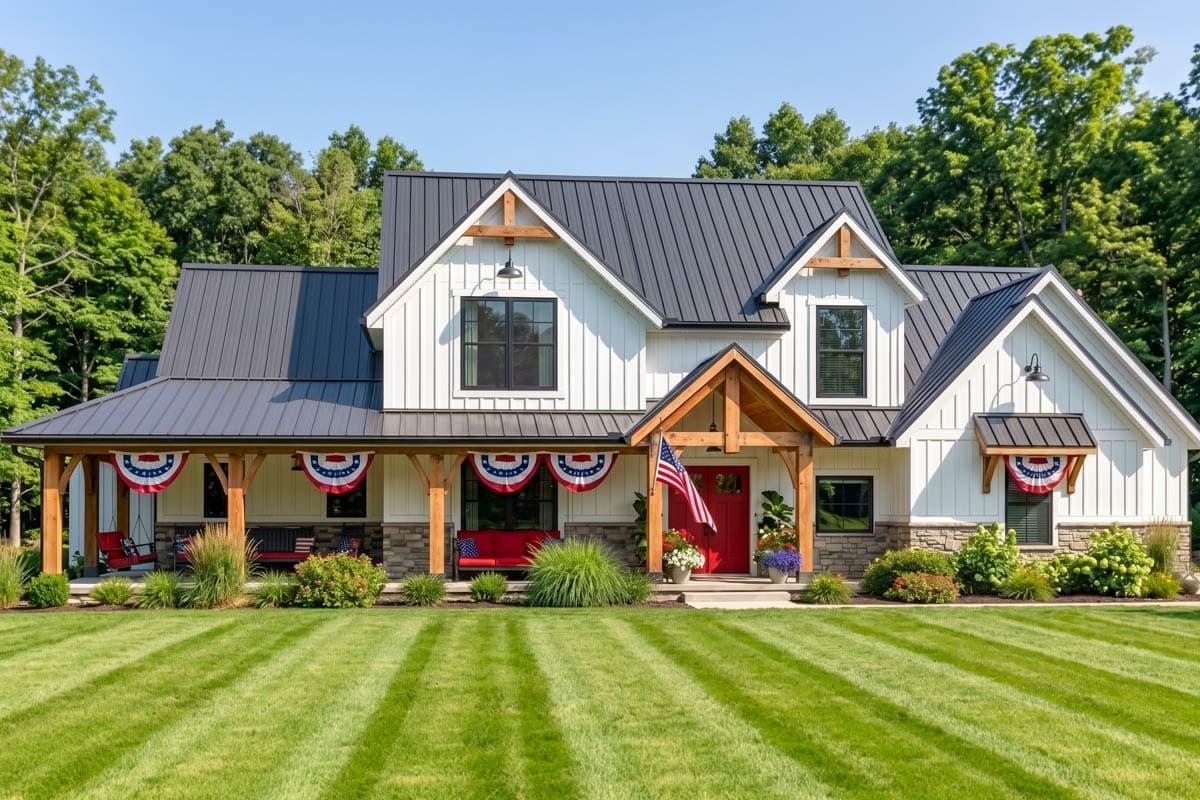

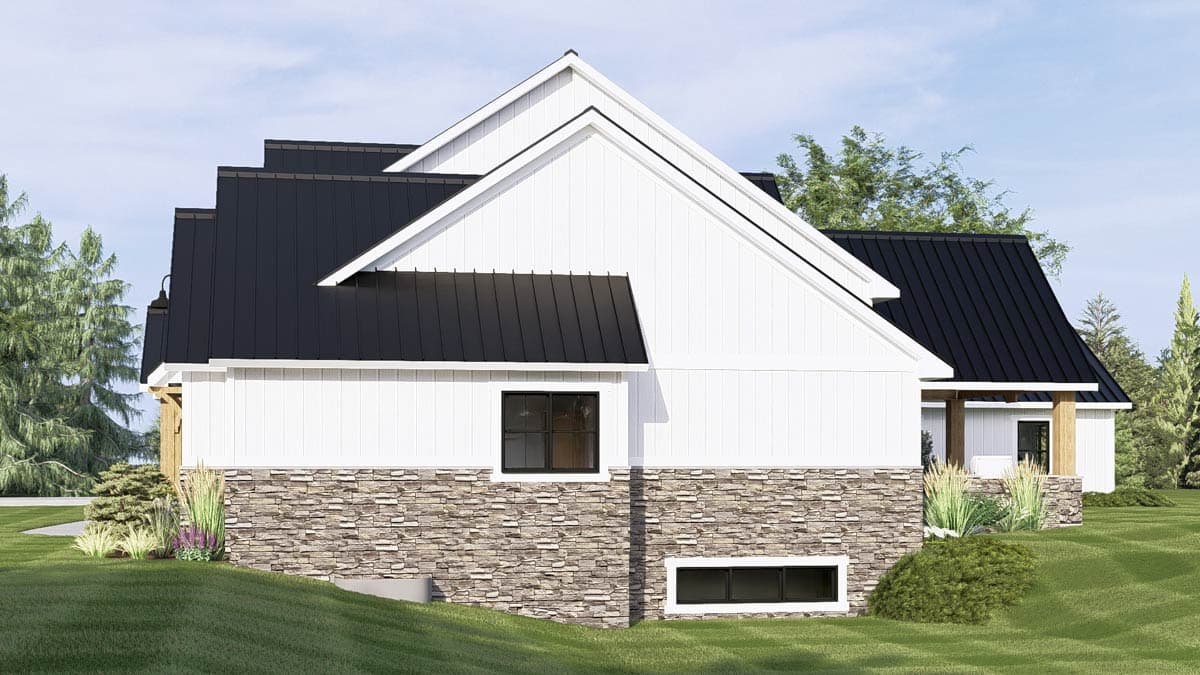

  • The wrap-around porch on the exterior of this 3-bedroom, New American farmhouse plan connects the front door with the friends and family entrance on the side of the home.

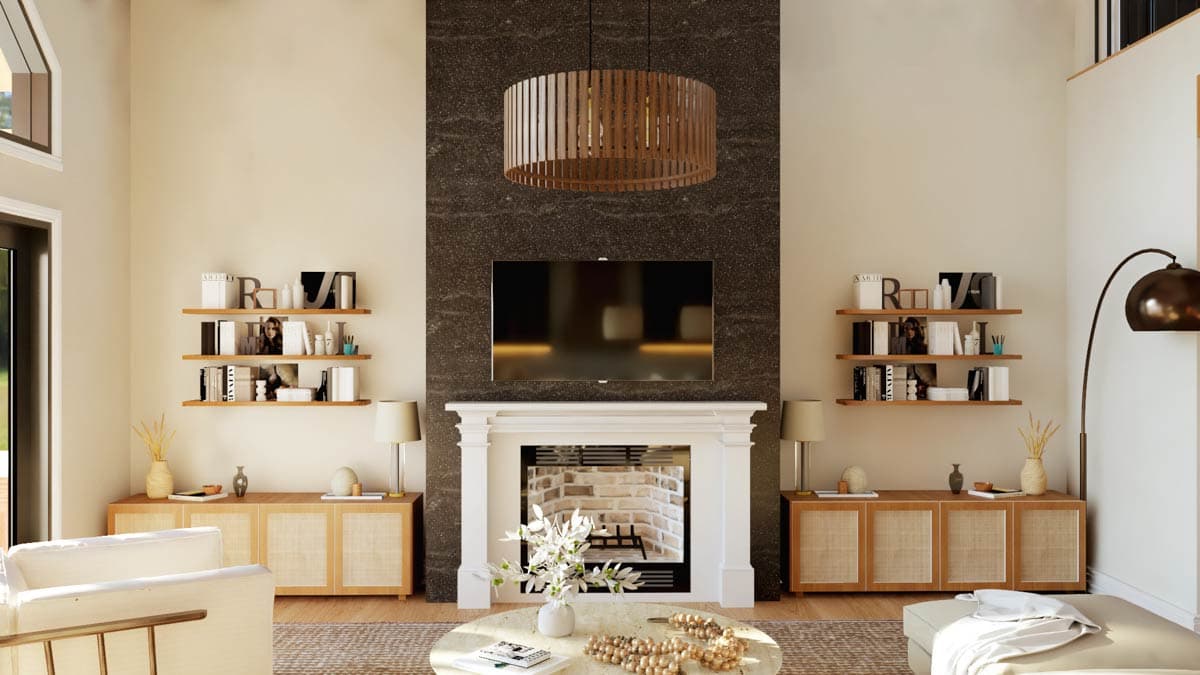

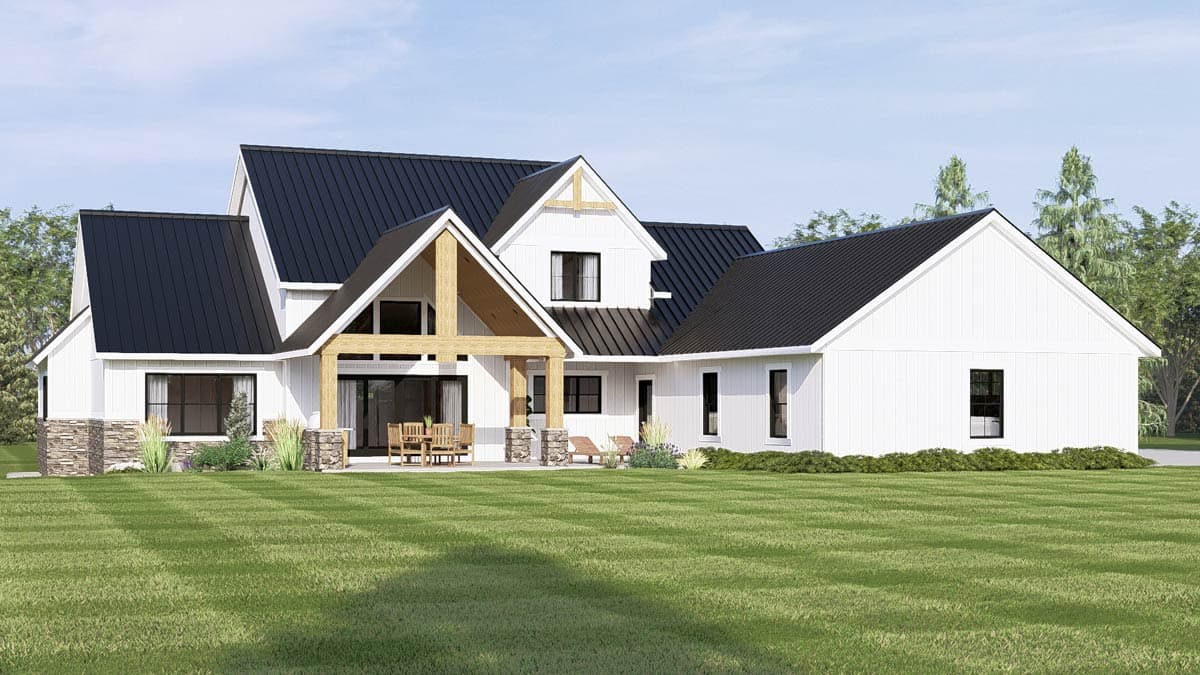

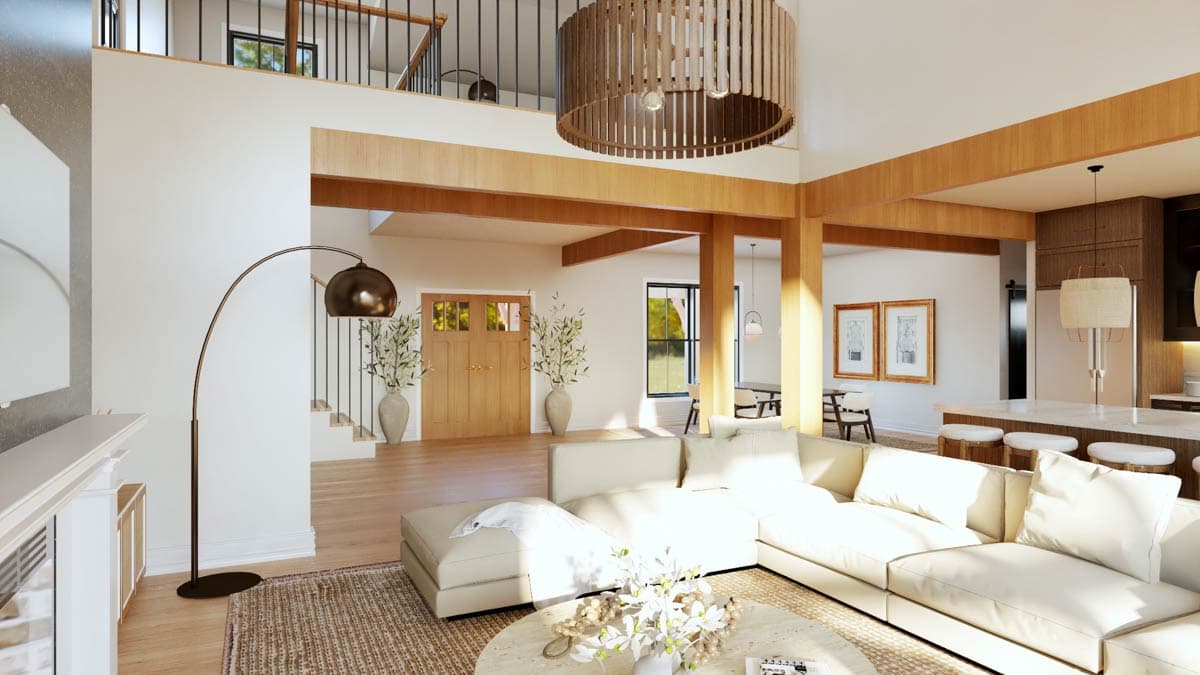

  • The center of the design is completely open except for a couple of supporting columns. The great room extends outdoors onto a covered porch with a cathedral ceiling and built-in grill.

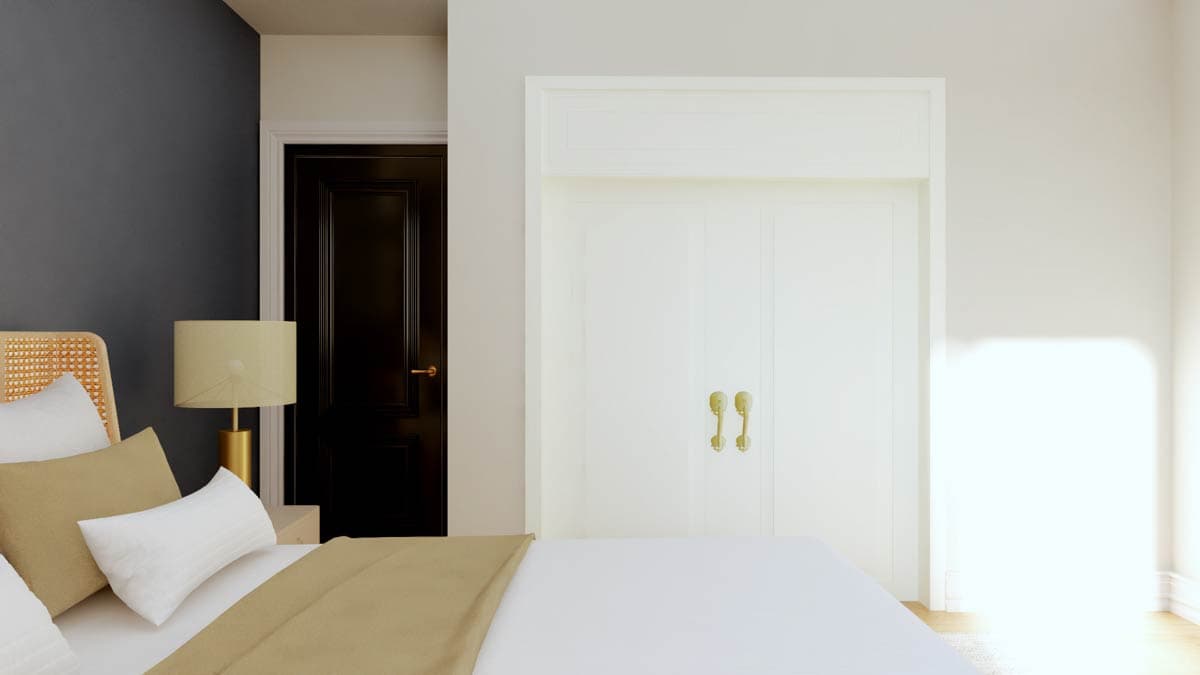

  • Enjoy the convenience of a main-floor master bedroom that was designed with privacy in mind, while upstairs, two family bedrooms share a compartmentalized bath and flexible loft.

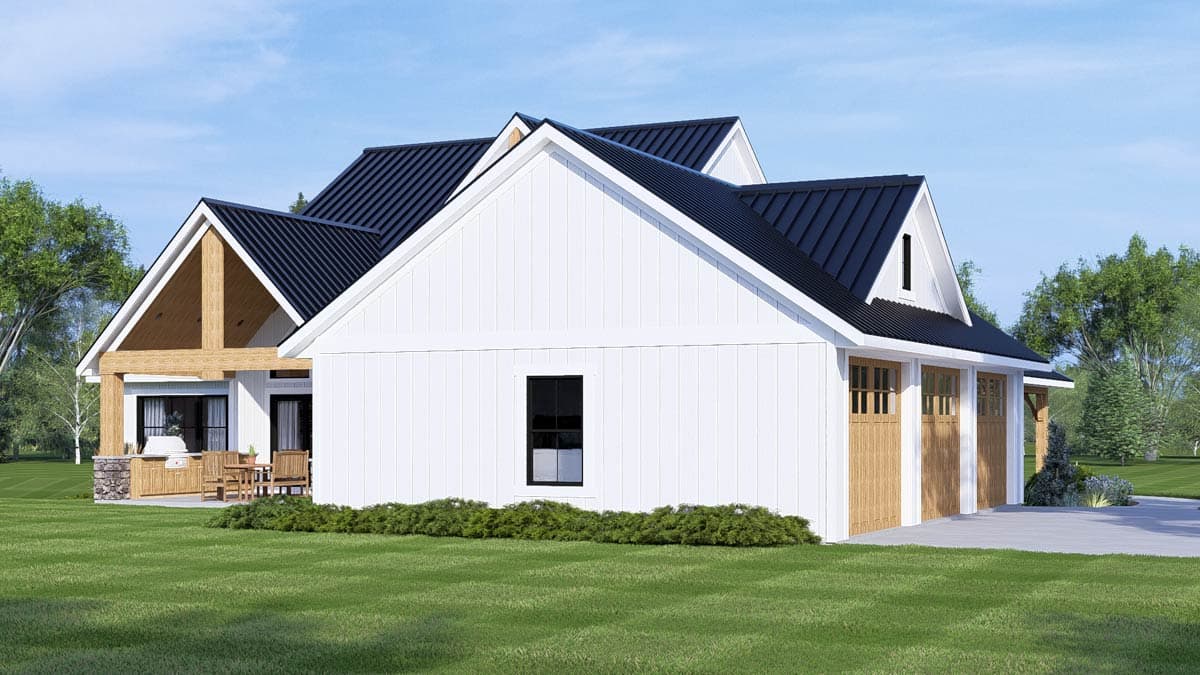

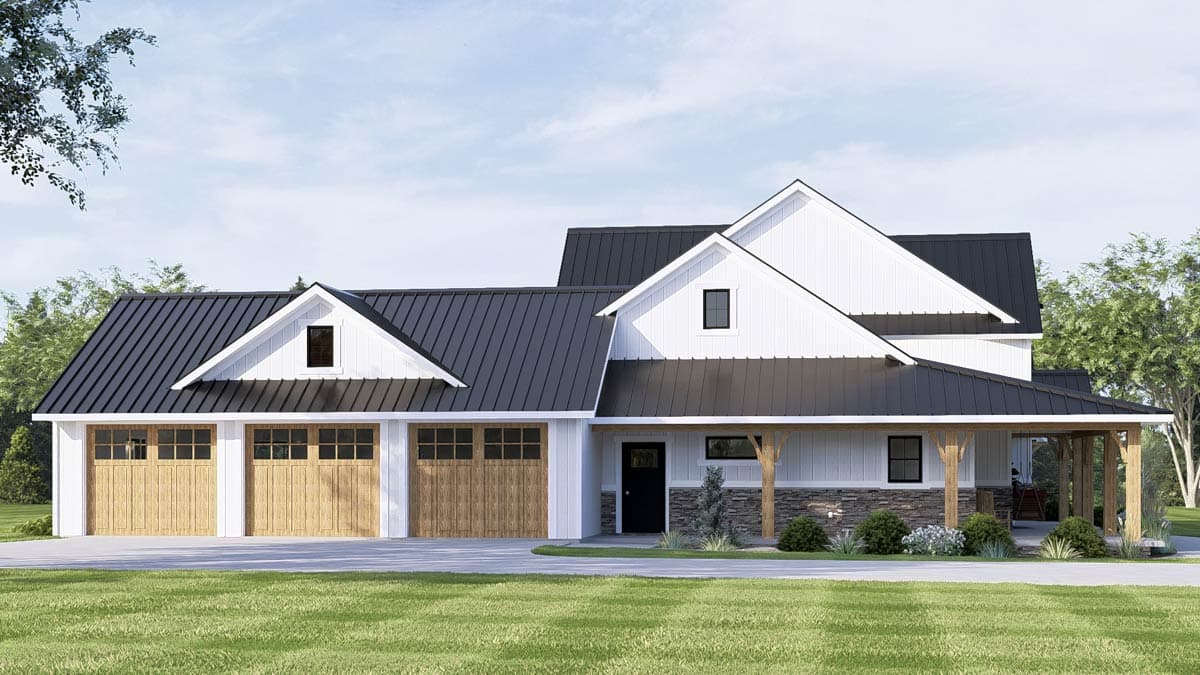

  • The 3-car garage occupies the left side of the home, and opens into a mudroom with built-in lockers, laundry room, and pocket office behind a barn door.
  • The optional lower level totals 1,285 square feet of living space, and includes a family room with a kitchenette, craft room, and fourth bedroom next to a full bath.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,813 sq. ft.

1st Floor

2,063 sq. ft.

2nd Floor

750 sq. ft.

Optional Lower Level

1,285 sq. ft.

Porch, Combined

615 sq. ft.

Covered Patio

349 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

77' 0"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

1072 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Craftsman

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wet Bar

Wrap Around Porch
