Plan 865013SHW
3-Bed New American Home Plan with First Floor Primary Bedroom - 2620 Sq Ft
Heated S.F.
2,620
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 865013SHW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 865013SHW

1-800-854-7852

1-262-521-4596

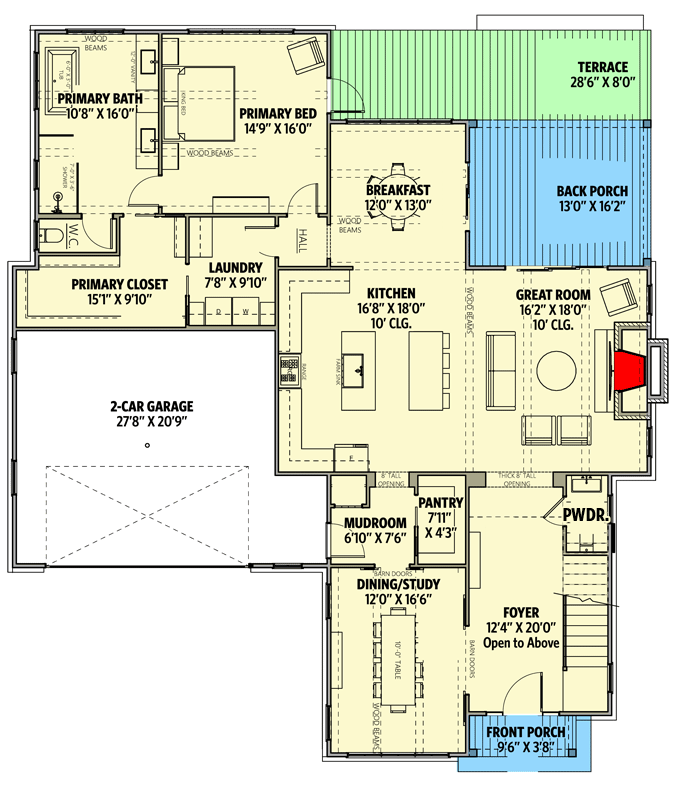

Main Level
floor plan image Main Level

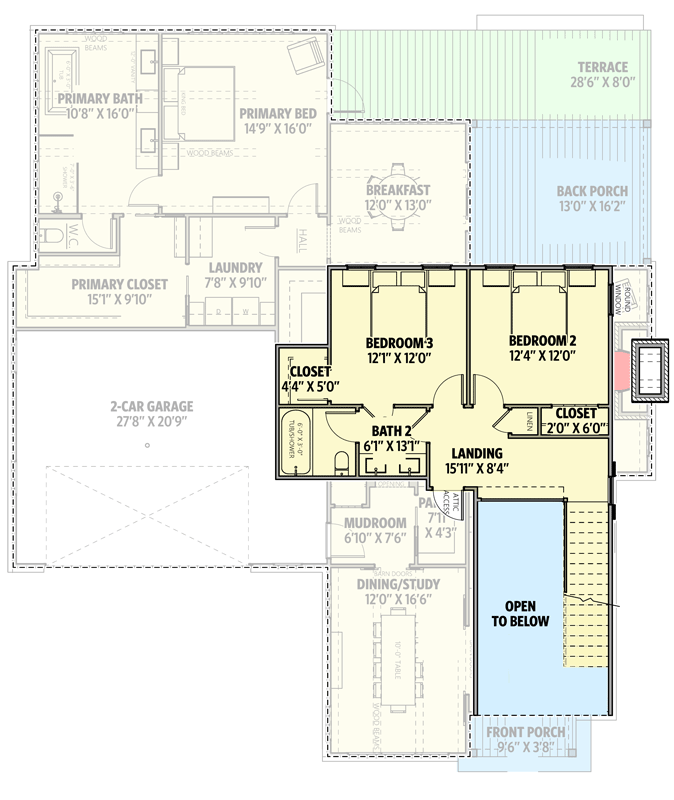

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The fresh exterior of this New American house plan showcases a ribbed metal roof and forward-facing, double garage.
  • Inside, exposed beams line the 10 ft ceiling of the great room and a multi-panel door retracts for easy access to the back porch / terrace.
  • Two islands help merge the kitchen with the living space, while offering plenty of workspace, and a breakfast nook and formal dining room lend a variety of options for meals.
  • The primary bedroom is conveniently located on the main level and boasts a spacious 5-fixture bath with a pass-thru closet that leads to the laundry room.
  • Upstairs, two bedrooms share a compartmentalized bath with a dual-sink vanity.
What's Included

  • Cover Sheet
  • 3D or Sketch Renderings
  • Foundation/Crawlspace Plan
  • Main Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Plan

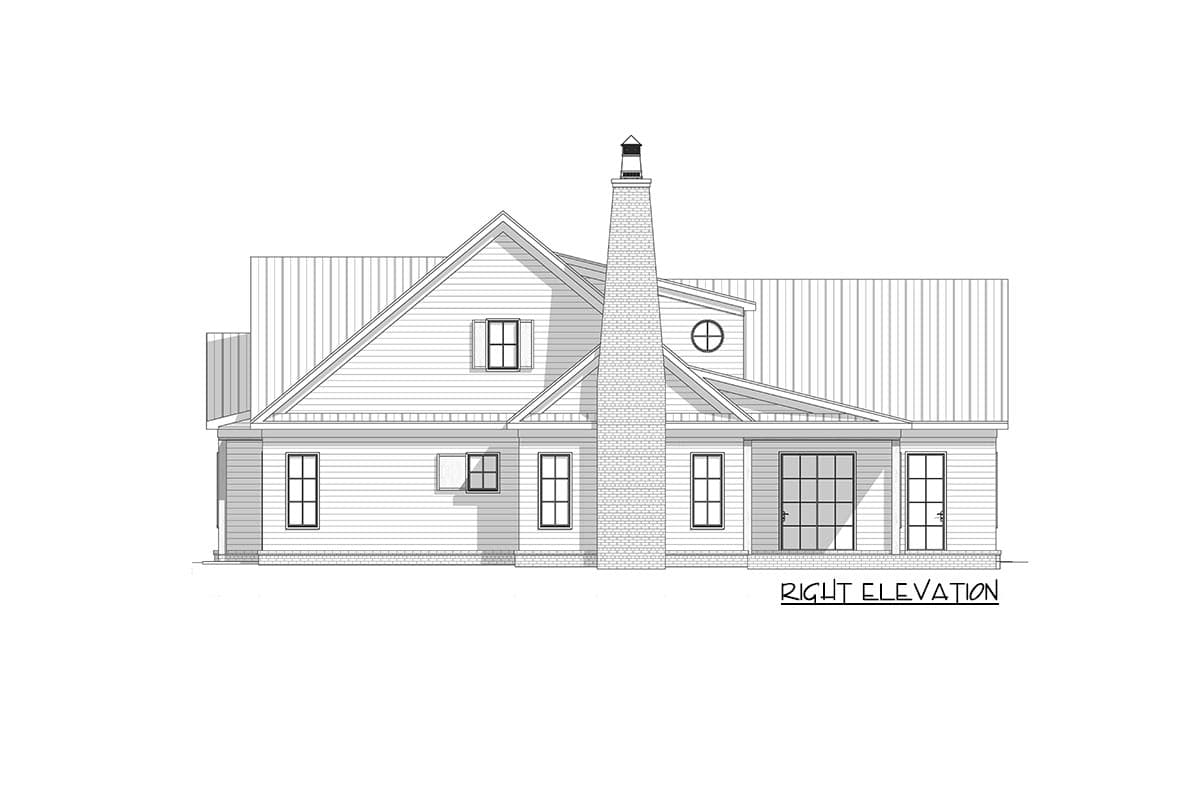

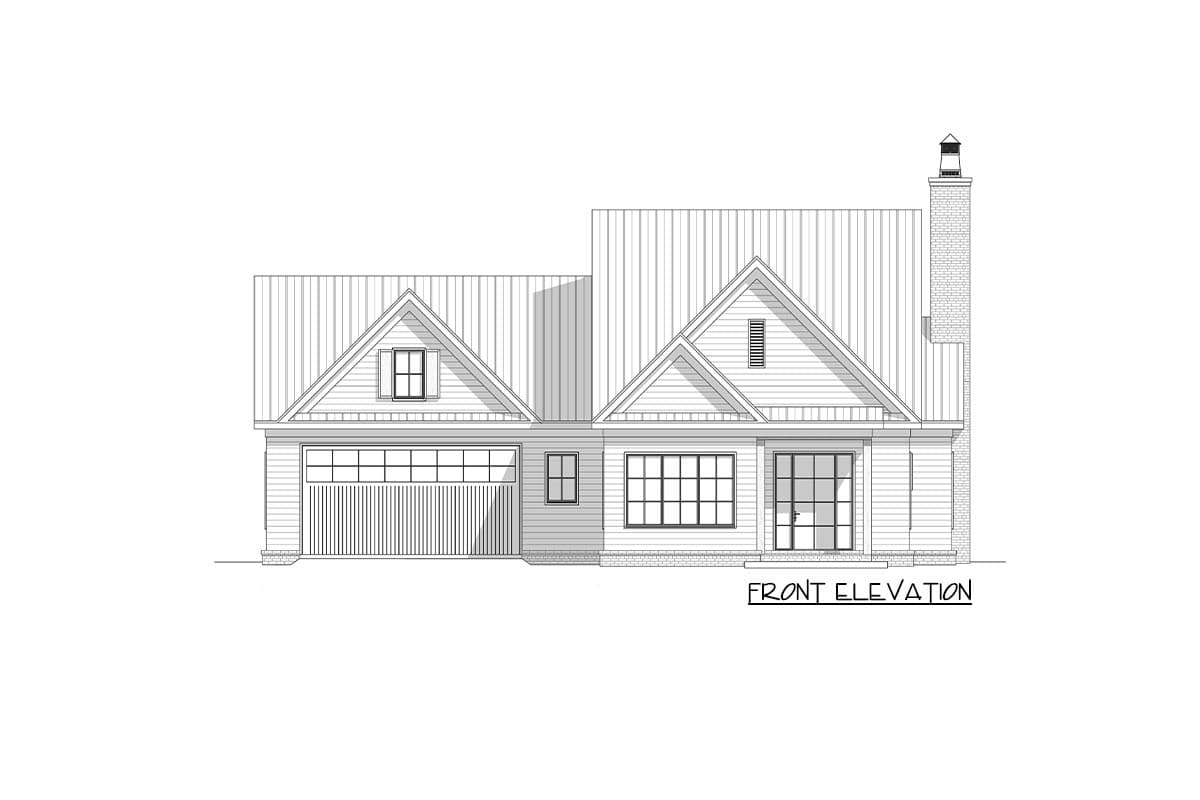

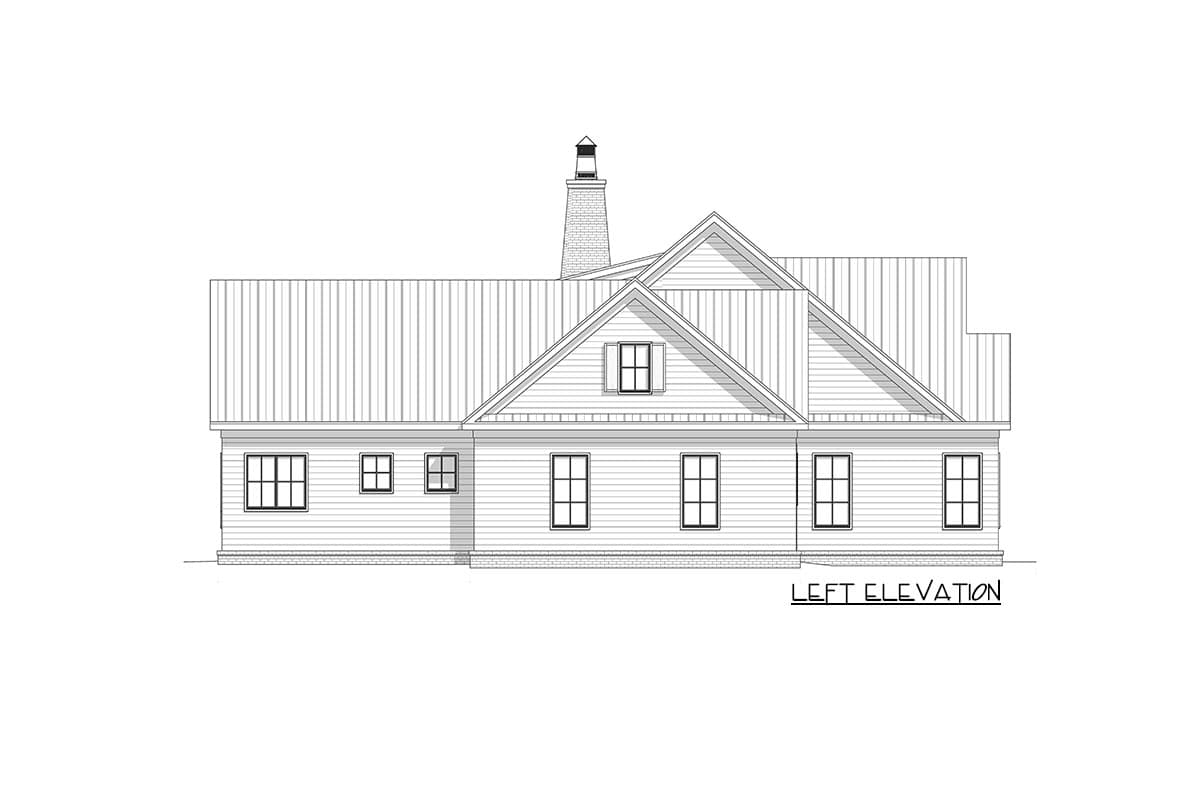

  • Elevations; all 4 of them
  • Building Sections
  • Interiors (cabinet elevations)
  • Suggested electrical/lighting Plan(s)
  • General Notes
  • General Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,620 sq. ft.

1st Floor

2,054 sq. ft.

2nd Floor

566 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

210 sq. ft.

Deck

228 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

64' 8"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

531 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

New American

Special Features

Breakfast Nook

Flex Room

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Kitchen Islands

Square Footage Breakdown

Total Heated Area

2,620 sq. ft.

1st Floor

2,054 sq. ft.

2nd Floor

566 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

210 sq. ft.

Deck

228 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

64' 8"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

531 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

New American

Special Features

Breakfast Nook

Flex Room

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Kitchen Islands
