Plan 280123JWD
3-Bed New American Home Plan with L-Shaped Front Porch
Heated S.F.
2,393
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 280123JWD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 280123JWD

1-800-854-7852

1-262-521-4596

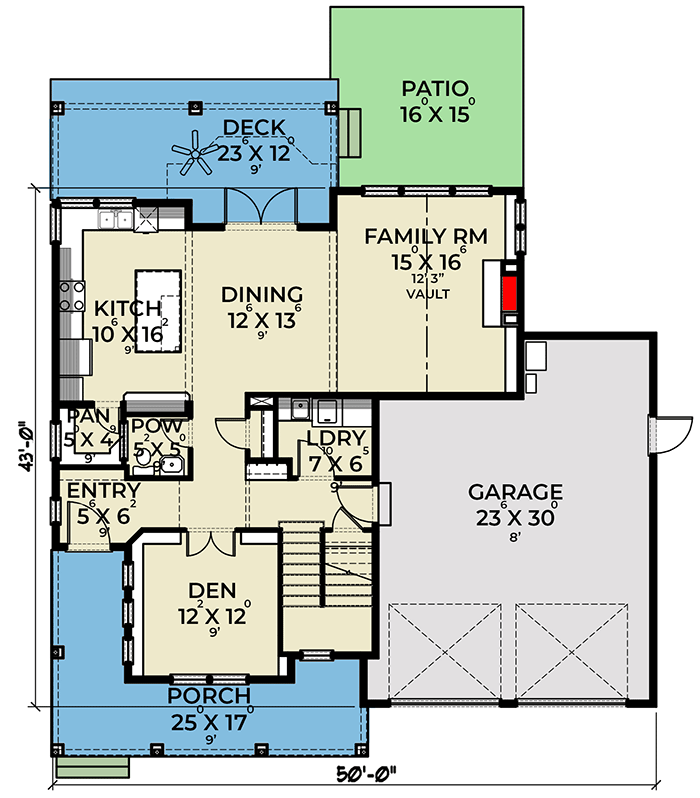

Main Level
floor plan image Main Level

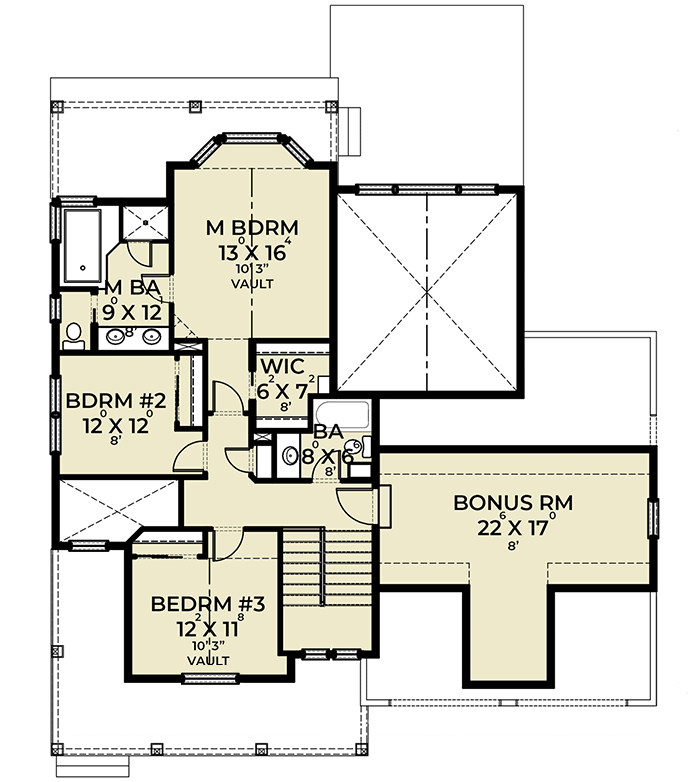

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3-bed New American home plan has an L-shaped front porch and a 2-car garage with a gable giving you light and space in the bonus room above.
  • A pair of French doors open to the den which has windows and views on two walls.
  • The back of the home has an open floor plan giving you unimpeded views from the vaulted family room to the kitchen.
  • French doors take you to the back porch which is connected to an open air patio giving you two great places where you can enjoy the fresh air.
  • You'll find all the bedrooms upstairs, including the vaulted master suite with a bay window. The bonus room - factored into the total living area - gives you a great space to use as a game, media or play room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,393 sq. ft.

1st Floor

1,191 sq. ft.

2nd Floor

866 sq. ft.

Bonus

336 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

43' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4.5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Square Footage Breakdown

Total Heated Area

2,393 sq. ft.

1st Floor

1,191 sq. ft.

2nd Floor

866 sq. ft.

Bonus

336 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

43' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4.5 on 12

Framing Type

Truss
