Plan 910005WHD

Exclusive

3-Bed New American Home Plan with Optional Lower Level

Heated S.F.

2,506

Beds

3

Baths

2.5

Stories

1

Cars

3

Floor Plan

Main Level

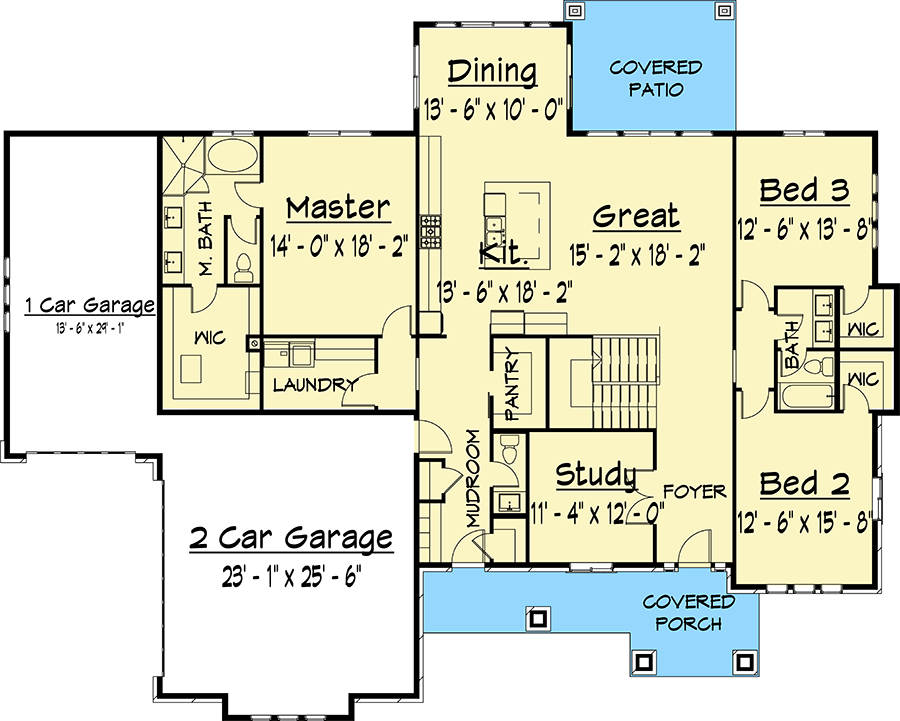

floor plan image Main Level

Optional Lower Level

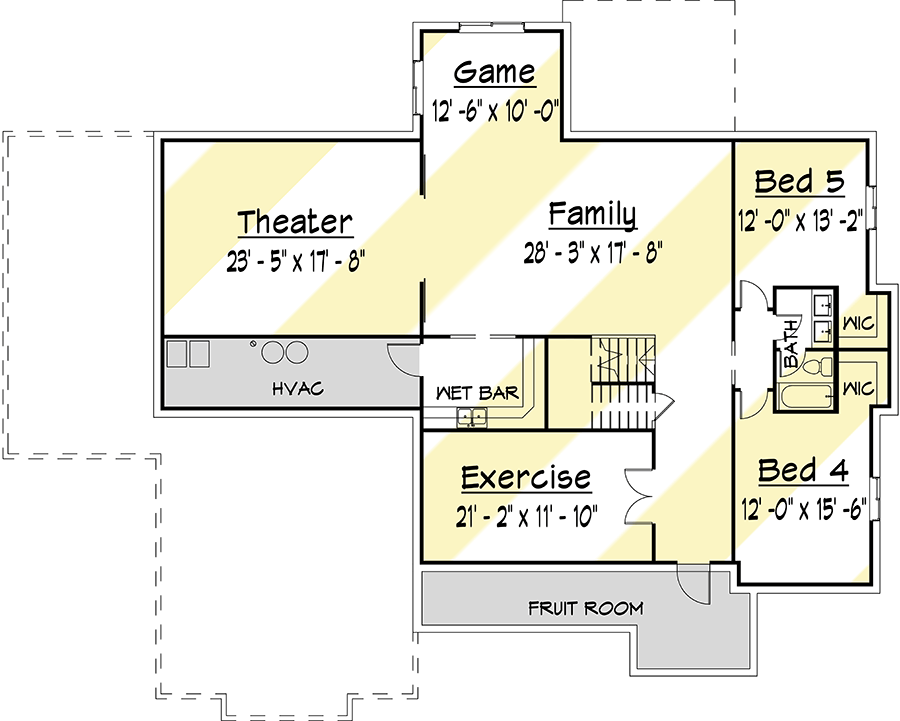

floor plan image Optional Lower Level

Plan Details

This 3-bedroom, New American home plan, exclusive to Architectural Designs, presents a steeply-pitched, cross-gable roof with two dormers rising from the center.
From the front porch, guests are welcome to enter through the formal entry, where a private study resides behind french doors. Family and friends may also enter through the family foyer, which leads into a mudroom with a powder bath.
The open layout is towards the back of the home, which takes advantage of the rearward views, and extends onto a covered patio for outdoor enjoyment.
The master suite is nestled next to the 3-car garage, and includes a 5-fixture bath and walk-in closet. Close proximity to the laundry room is an added bonus. Bedrooms 2 and 3, on the opposite side of the home, share the hall bath.
Finish the lower level as designed and increase living space by 2,377 sq. ft. Discover a spacious family / game room with a wet bar, exercise room, theater, and two bedrooms.
Related Plan: Get an alternate exterior with house plan 910007WHD.

What's Included

General notes
Detailed floor plans
Elevations
Roof plan
Cross section
Electrical plan
Window and door schedules
Architectural details
Structural notes
Foundation plan
Floor framing
Roof framing

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,506 sq. ft.

1st Floor

2,506 sq. ft.

Optional Lower Level

2,377 sq. ft.

Porch, Front

214 sq. ft.

Porch, Rear

182 sq. ft.

Storage

185 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

66' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

1062 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8' 8"

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

14 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,506 sq. ft.

1st Floor

2,506 sq. ft.

Optional Lower Level

2,377 sq. ft.

Porch, Front

214 sq. ft.

Porch, Rear

182 sq. ft.

Storage

185 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

66' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

1062 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8' 8"

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

14 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
