Plan 580089DFT
3-Bed New American Home Plan with Oversized Angled Garage - 3804 Sq Ft
Heated S.F.
3,804
Beds
3
Baths
3
Stories
1
Cars
4
Floor Plan

Plan 580089DFT

Main Level
slide image 0
Lower Level
slide image 1

Plan 580089DFT

1-800-854-7852

1-262-521-4596

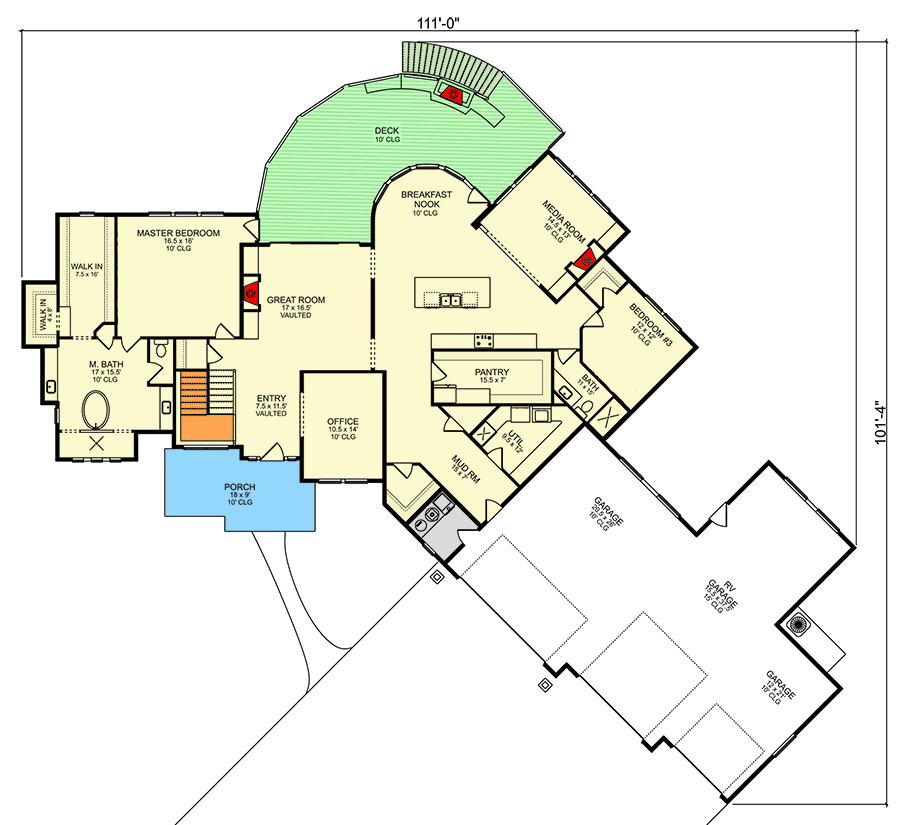

Main Level
floor plan image Main Level

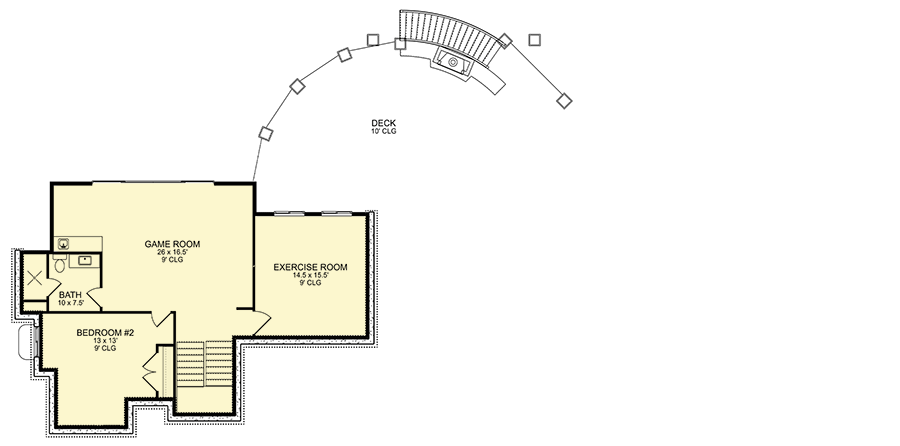

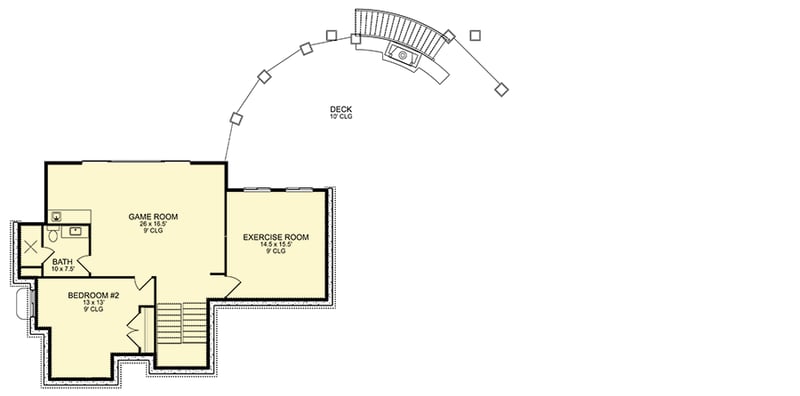

Lower Level
floor plan image Lower Level
Plan Details
  • This 3 bed, 3 bath craftsman new american style house plan gives you 3804 square feet of heated living and 4-car angled courtyard garage (1515 sq. ft.)
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

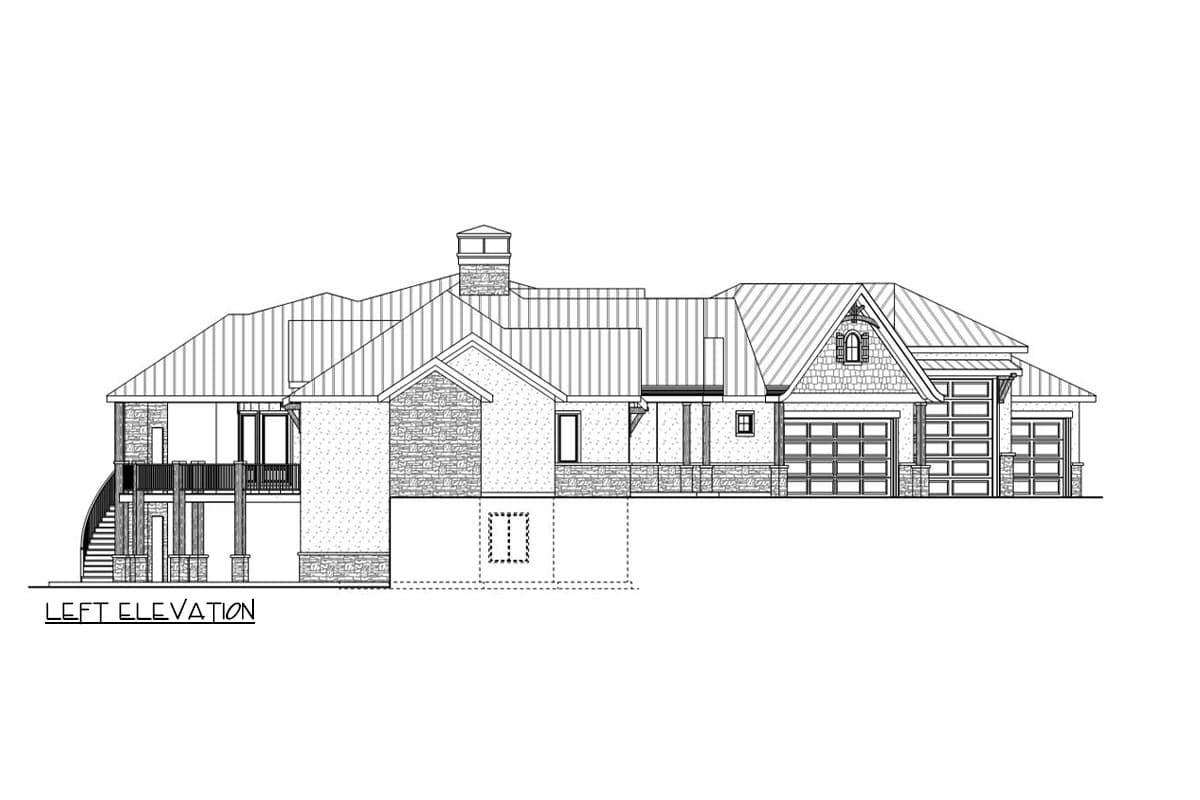

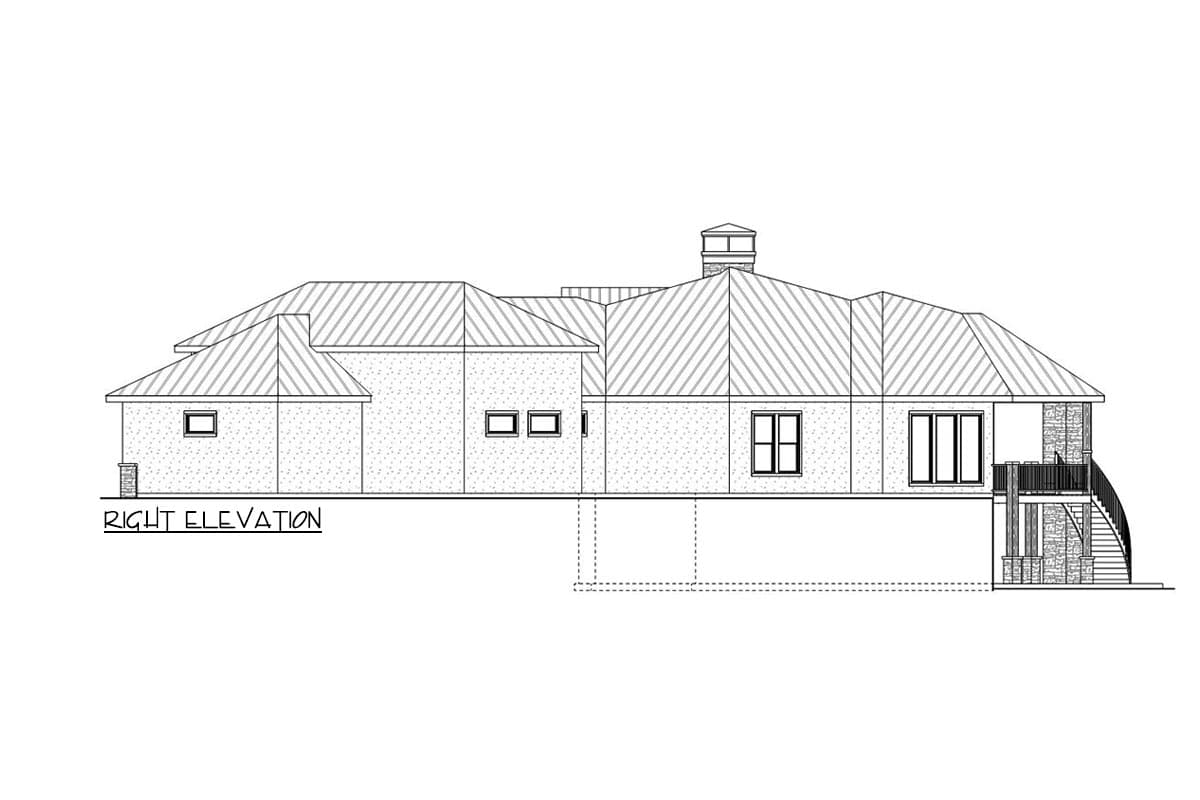

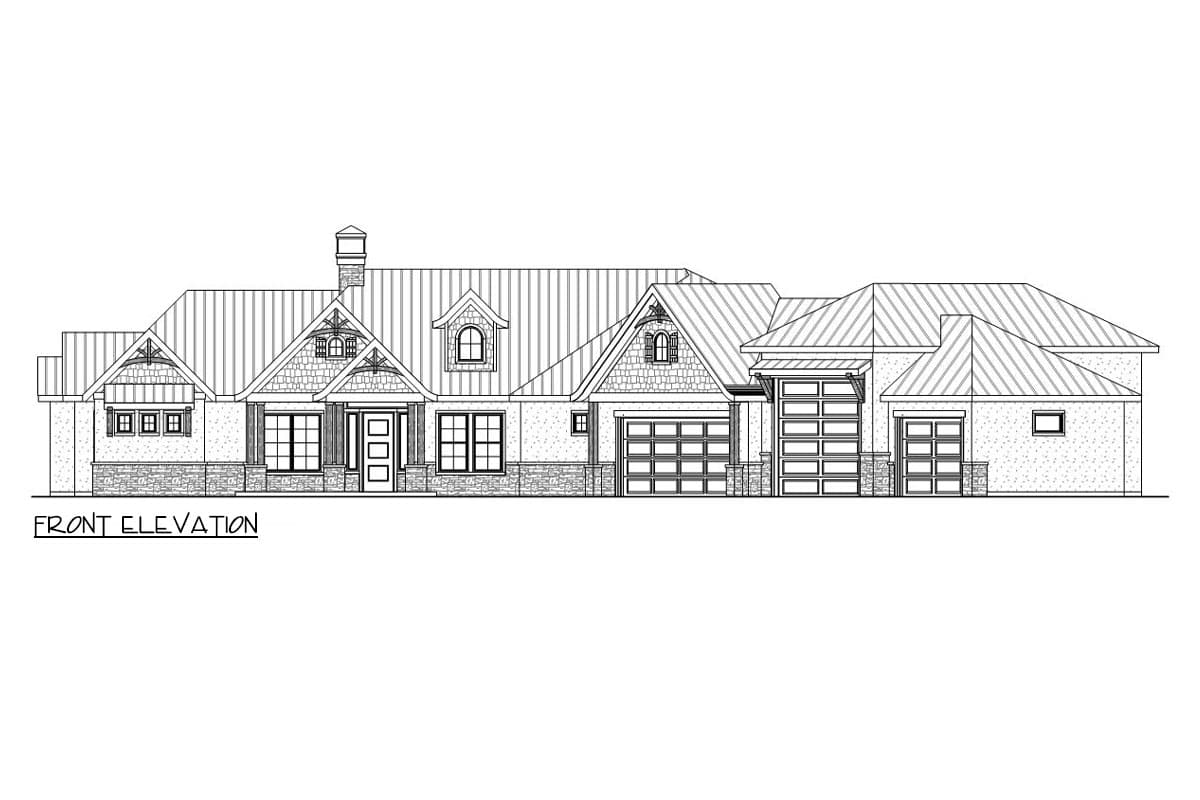

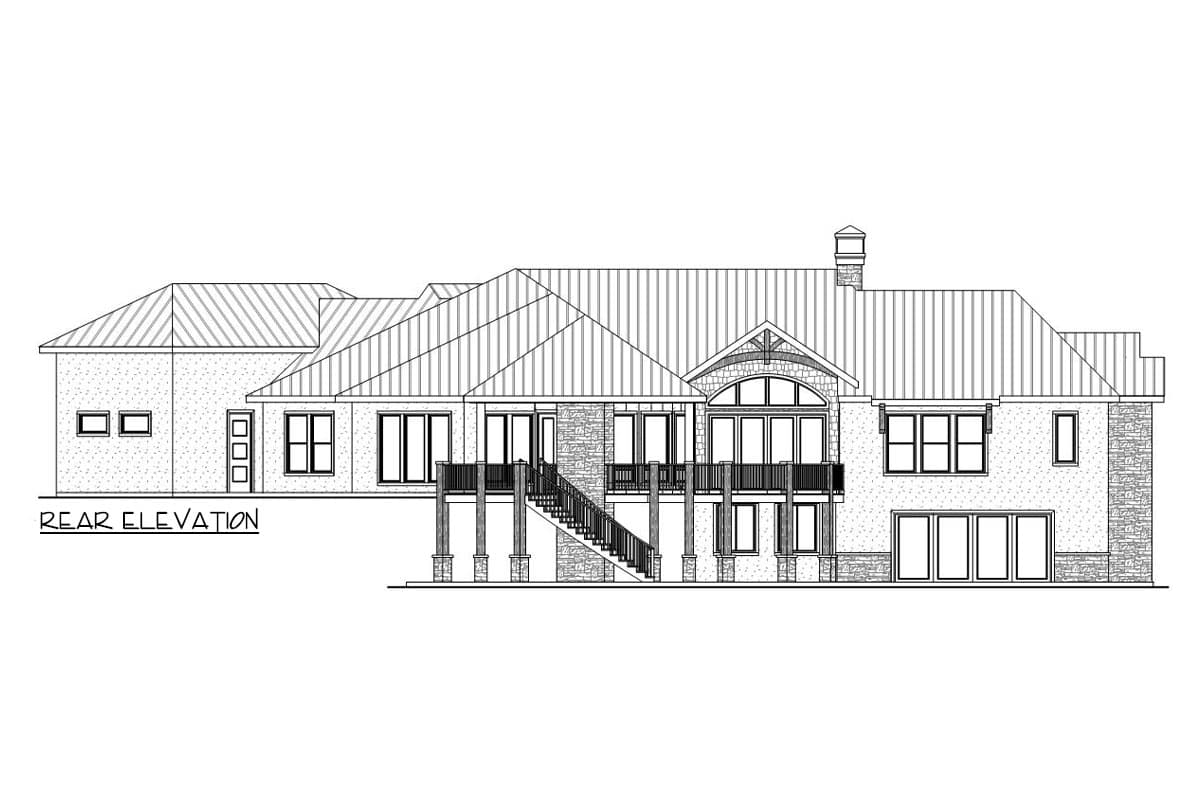

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,804 sq. ft.

Lower Level

998 sq. ft.

1st Floor

2,806 sq. ft.

Porch, Front

148 sq. ft.

Covered Patio

554 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

111' 0"

Depth

97' 7"

Garage

Type

Attached, RV Garage

Area

1515 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Fireplace

Wet Bar

Plan Collections

Home Office

Sloping Lot
