Plan 493004GNT
3-Bed New American House Plan Under 2900 Square Feet with 2-Car Garage
Heated S.F.
2,882
Beds
3 - 5
Baths
2.5 - 4.5
Stories
1
Cars
2
Floor Plan

Plan 493004GNT

Main Level
slide image 0
Optional Lower Level
slide image 1
Main Level - Basement Stairs
slide image 2

Plan 493004GNT

1-800-854-7852

1-262-521-4596

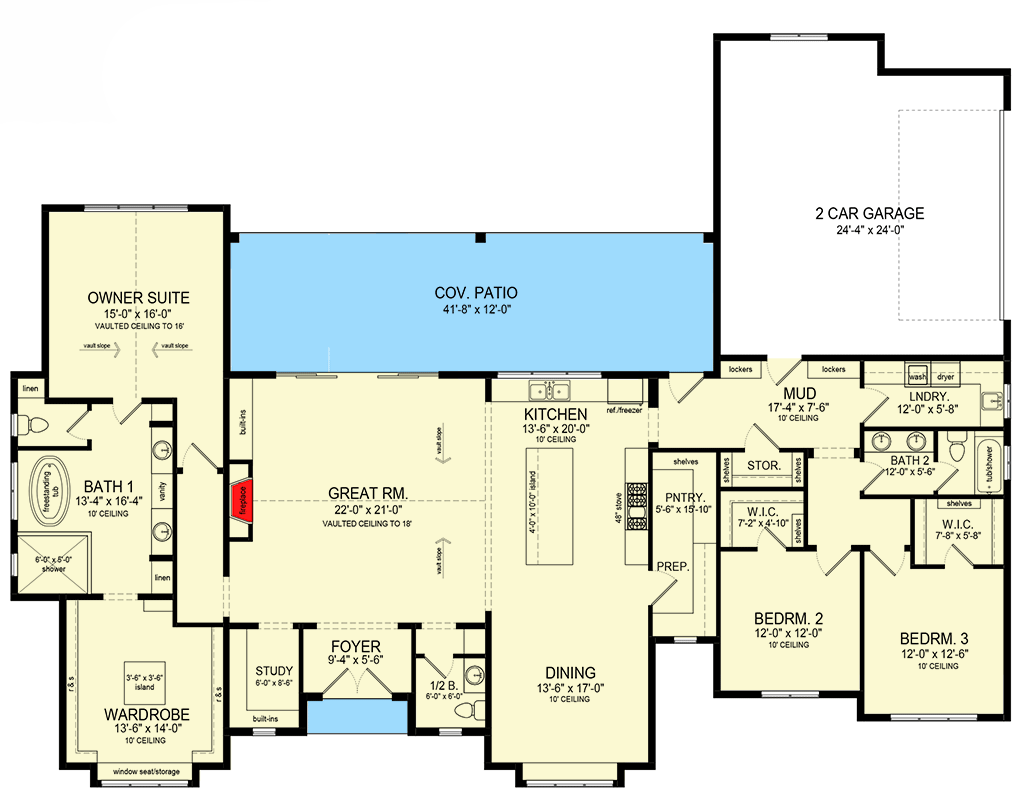

Main Level
floor plan image Main Level

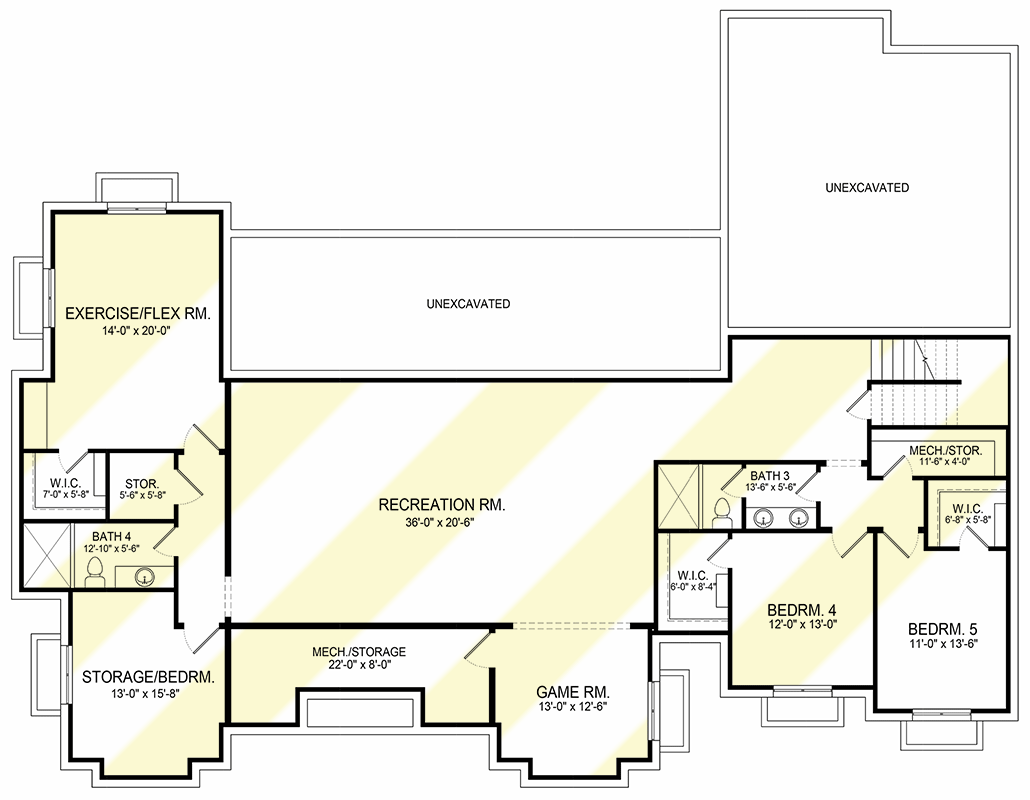

Optional Lower Level
floor plan image Optional Lower Level

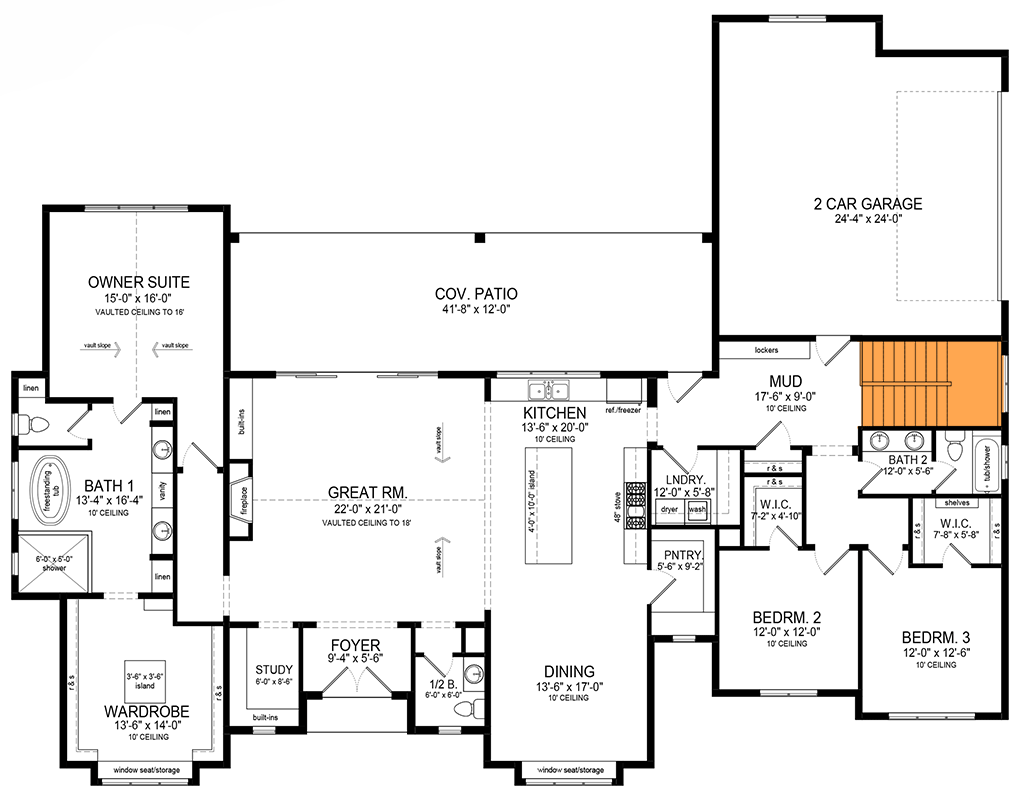

Main Level - Basement Stairs
floor plan image Main Level - Basement Stairs
Plan Details
  • This one-story New American house plan has an attractive exterior with three shed dormers above the entry of this 3 bed, 2.5 bath 2,882 square foot house plan with lower level expansion.
  • The kitchen has a large island (4' by 10') with great prep space and casual seating. It has views that extend to the vaulted great room with fireplace and more prep space - and storage - in the pantry.
  • Enjoy indoor/outdoor living by opening the back wall of the great room and connecting it to the 12'-deep covered patio in back.
  • The owner's suite occupies the entire left side of the home and enjoys great privacy. The walk-in closet is big enough to have a 3'6" by 3'6" island in the middle. Across the home, two bedrooms with walk-in closets share a bath.
  • The 2-car garage has a storage bumpout and accesses the home through a mud room with two sets of built-in lockers. The laundry room is tucked away in the back corner of the home.
  • Expand to the basement and get two more bedrooms, rec and game space, storage and flex space.
What's Included
  • Cover Sheet
  • General Notes
  • Foundation Plan
  • Main Level/Second Level (if applicable) door and window schedules
  • Fully Dimensioned Floor Plans
  • Elevations
  • Exterior Perspective Views
  • Building Section
  • Typical Construction Details
  • Bird's Eye Roof Plan
  • Suggested Electrical Layout (Outlets, Fixtures, Switches)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,882 sq. ft.

1st Floor

2,882 sq. ft.

Optional Lower Level

2,719 sq. ft.

Porch, Front

27 sq. ft.

Porch, Rear

500 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 8"

Depth

66' 2"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

664 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

4 on 12

Architectural Style

Acadian

Contemporary

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,882 sq. ft.

1st Floor

2,882 sq. ft.

Optional Lower Level

2,719 sq. ft.

Porch, Front

27 sq. ft.

Porch, Rear

500 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 8"

Depth

66' 2"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

664 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

4 on 12

Architectural Style

Acadian

Contemporary

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
