Plan 46512LA

Exclusive

3-Bed New American House Plan with Split Garage and Outdoor Kitchen - 3070 Sq. Ft.
Heated S.F.
3,070
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 46512LA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 46512LA

1-800-854-7852

1-262-521-4596

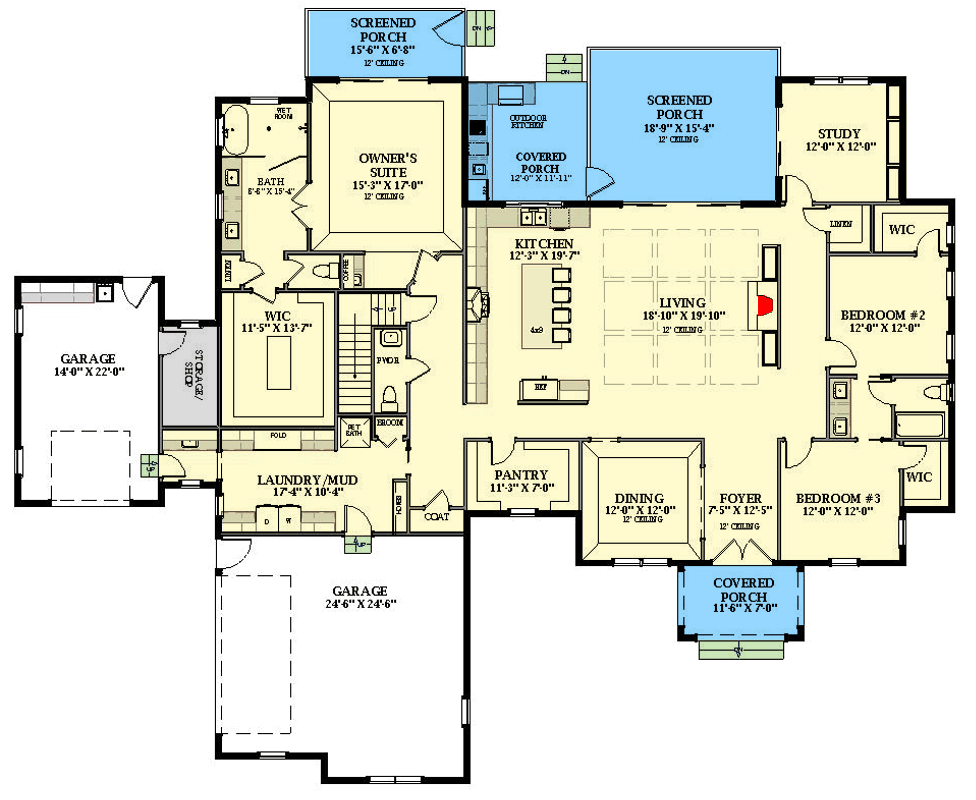

Main Level
floor plan image Main Level

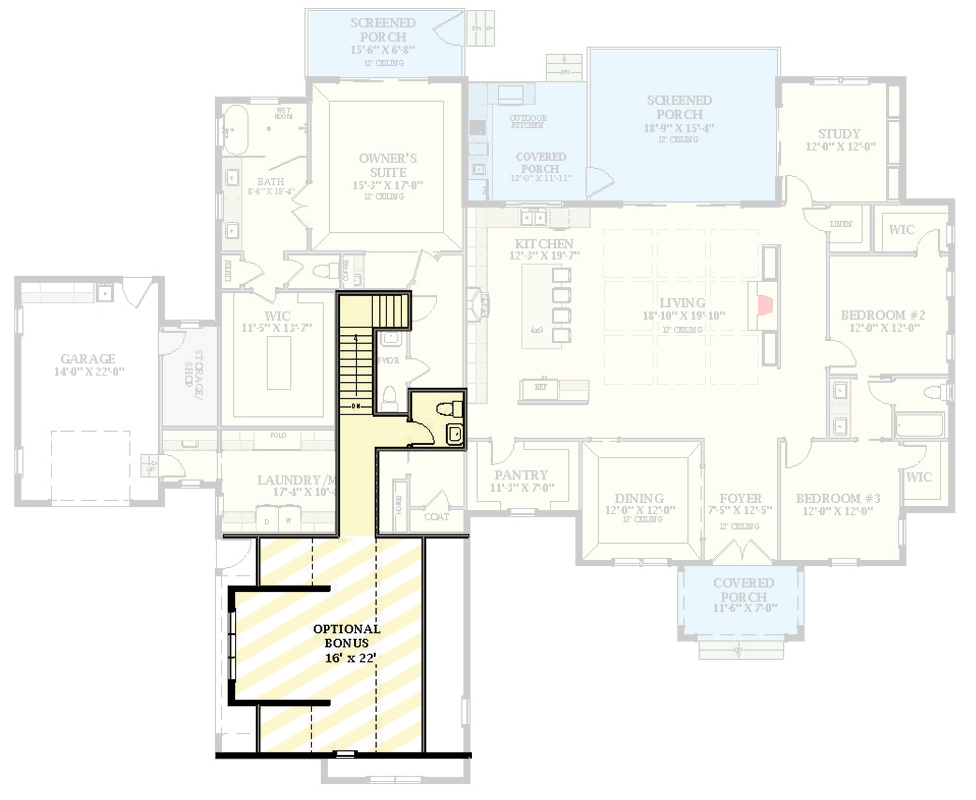

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3 bedroom, 2.5 bath New American House Plan, exclusively available at Architectural Designs, gives you 3,070 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • DELIVERY DELAY: Please allow 20 to 25 business days for delivery.
What's Included
  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,070 sq. ft.

1st Floor

3,070 sq. ft.

Bonus

519 sq. ft.

Porch, Front

89 sq. ft.

Screened Porch

419 sq. ft.

Workshop

64 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 9"

Depth

78' 7"

Max Ridge Height

31' 7"

Garage

Type

Attached

Area

954 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Split

Bonus Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Workshop

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,070 sq. ft.

1st Floor

3,070 sq. ft.

Bonus

519 sq. ft.

Porch, Front

89 sq. ft.

Screened Porch

419 sq. ft.

Workshop

64 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 9"

Depth

78' 7"

Max Ridge Height

31' 7"

Garage

Type

Attached

Area

954 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Split

Bonus Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Workshop

Plan Collections

Exclusive
