Plan 135252GRA
3 Bed New American House Plan with Timbered Covered Porch - 2010 Sq Ft
Heated S.F.
2,010
Beds
3
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 135252GRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 135252GRA

1-800-854-7852

1-262-521-4596

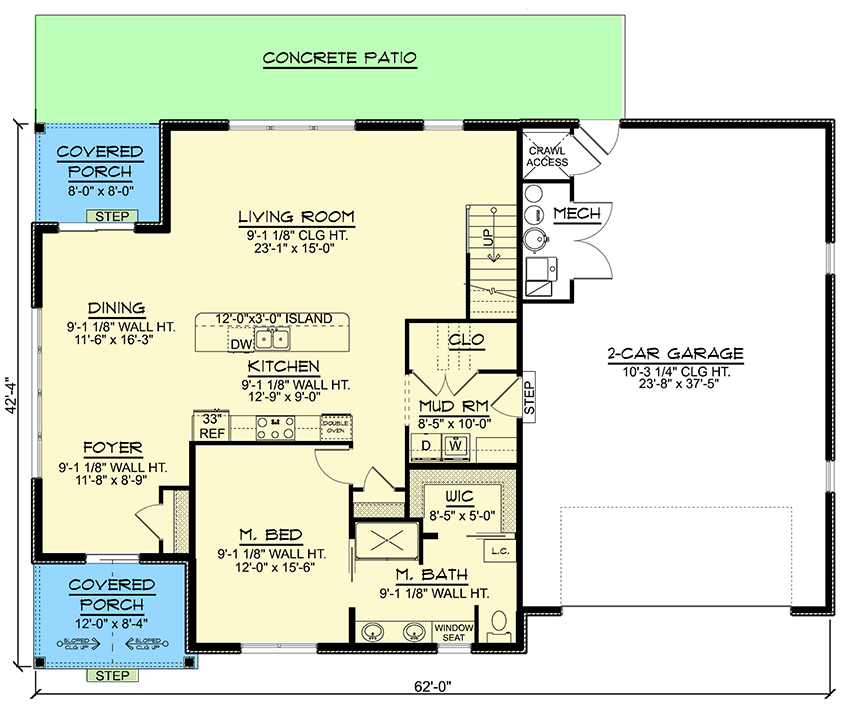

Main Level
floor plan image Main Level

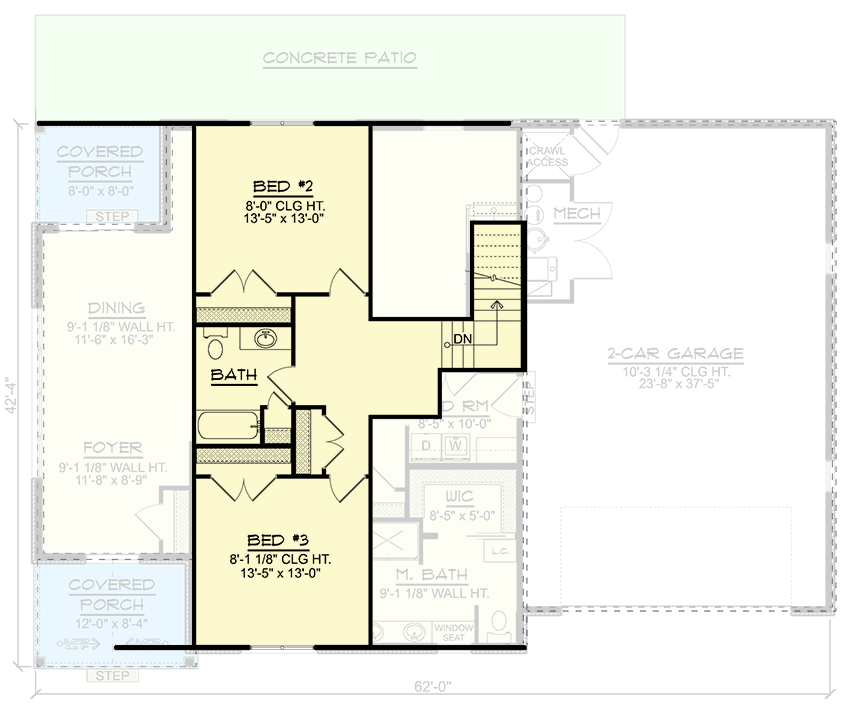

2nd Floor
floor plan image 2nd Floor
Plan Details

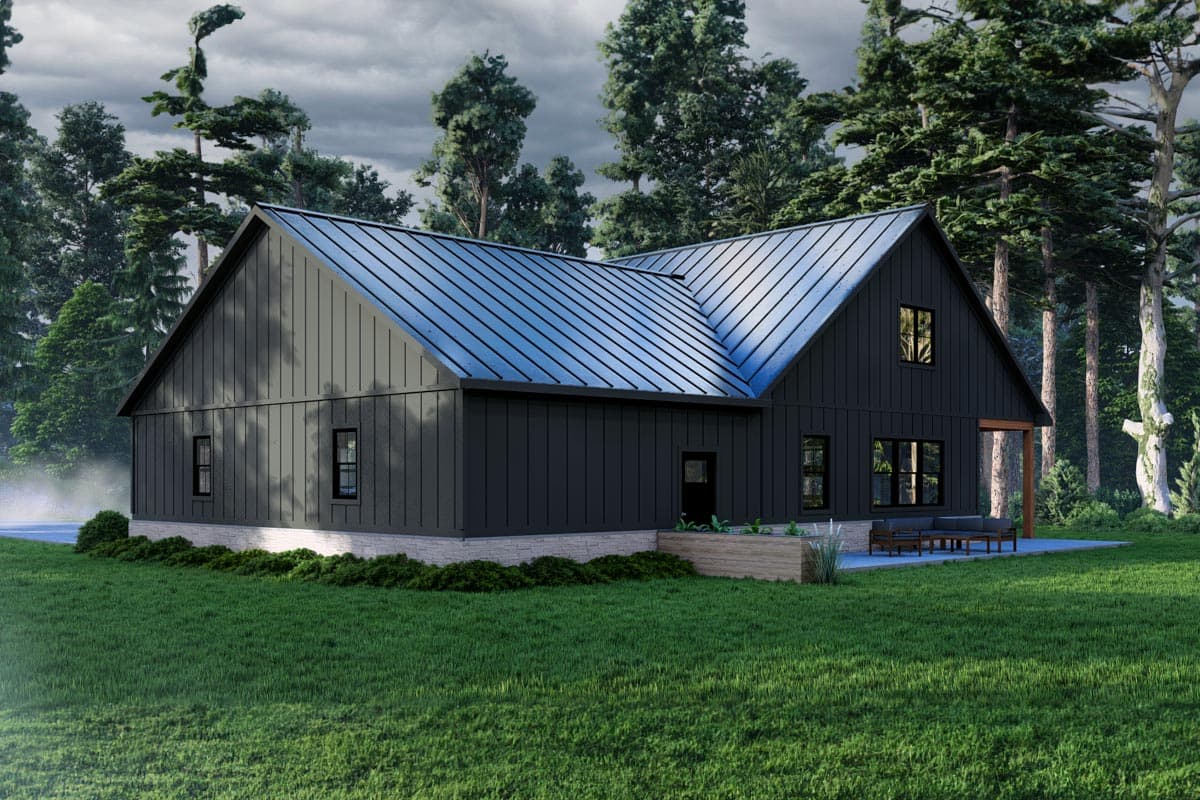

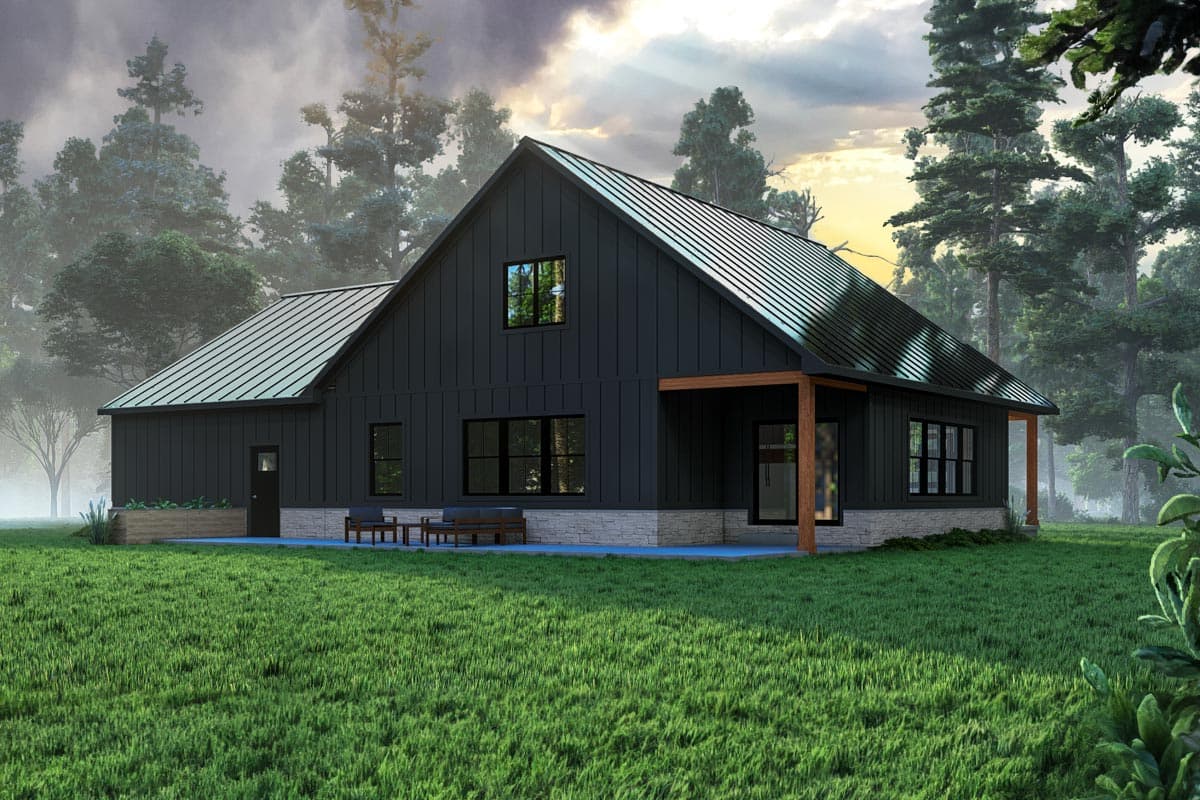

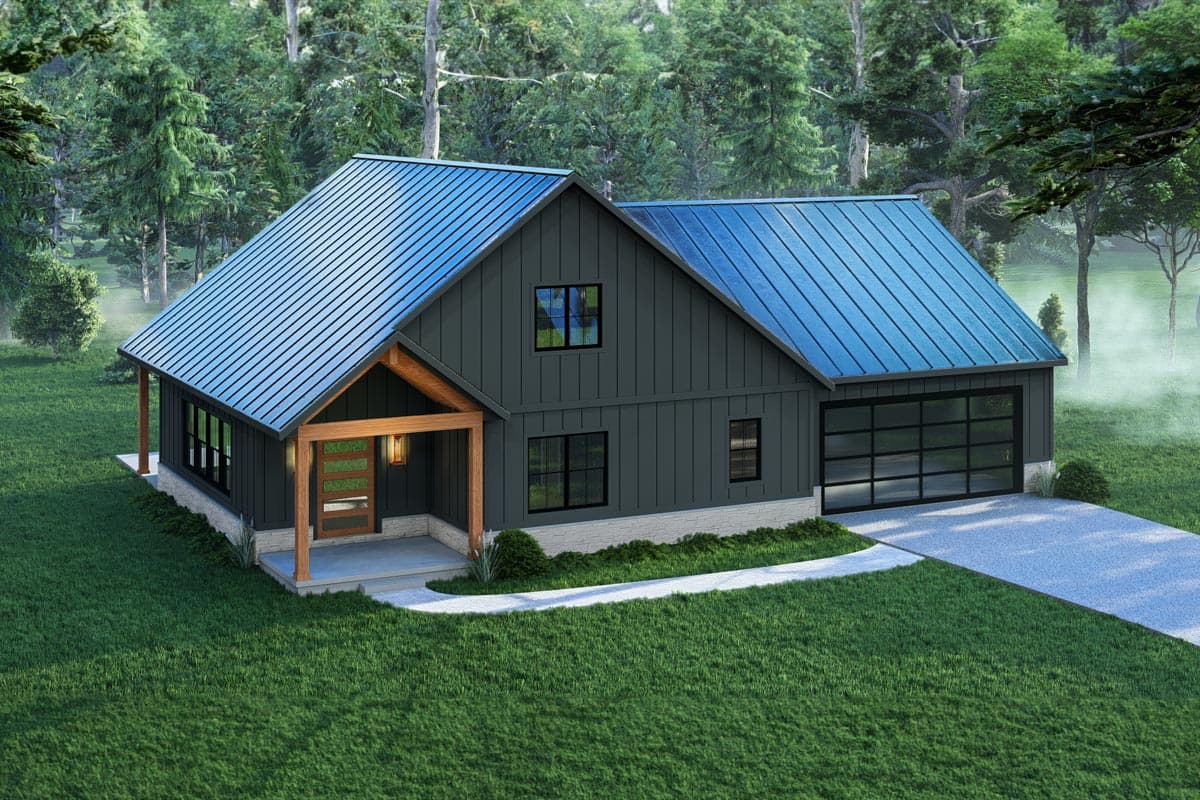

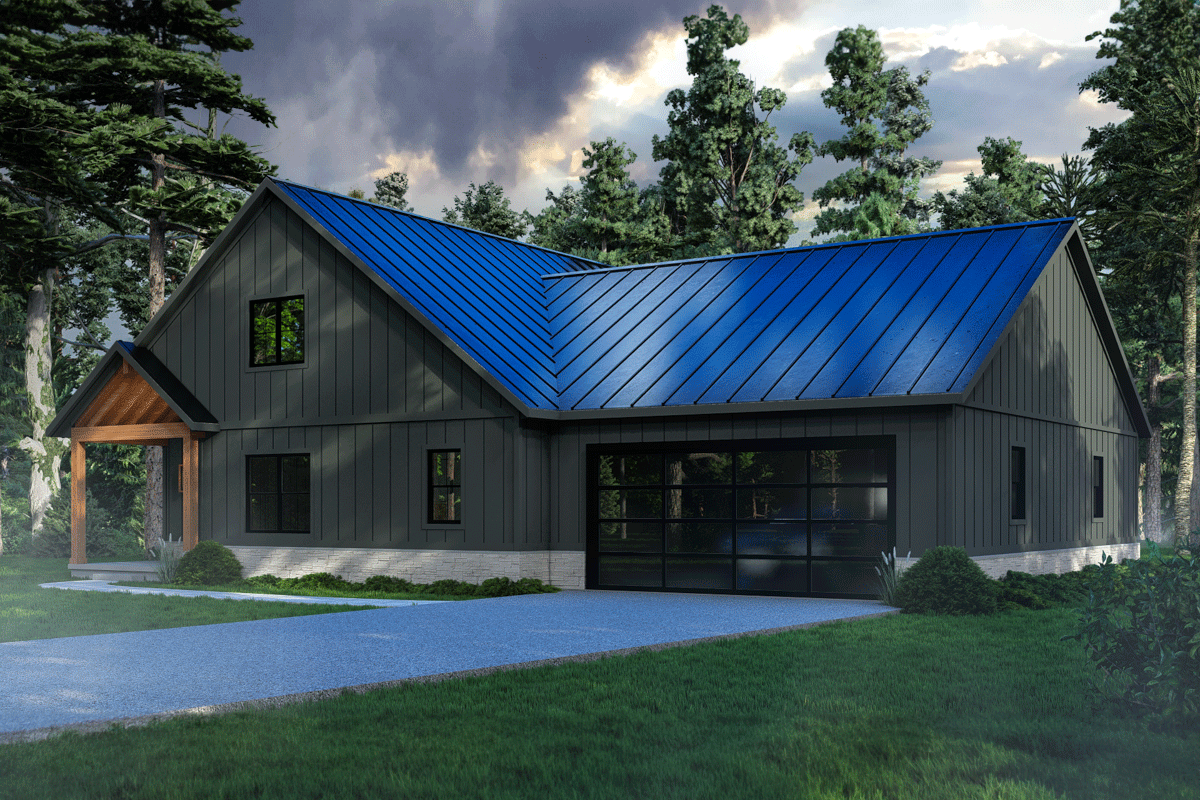

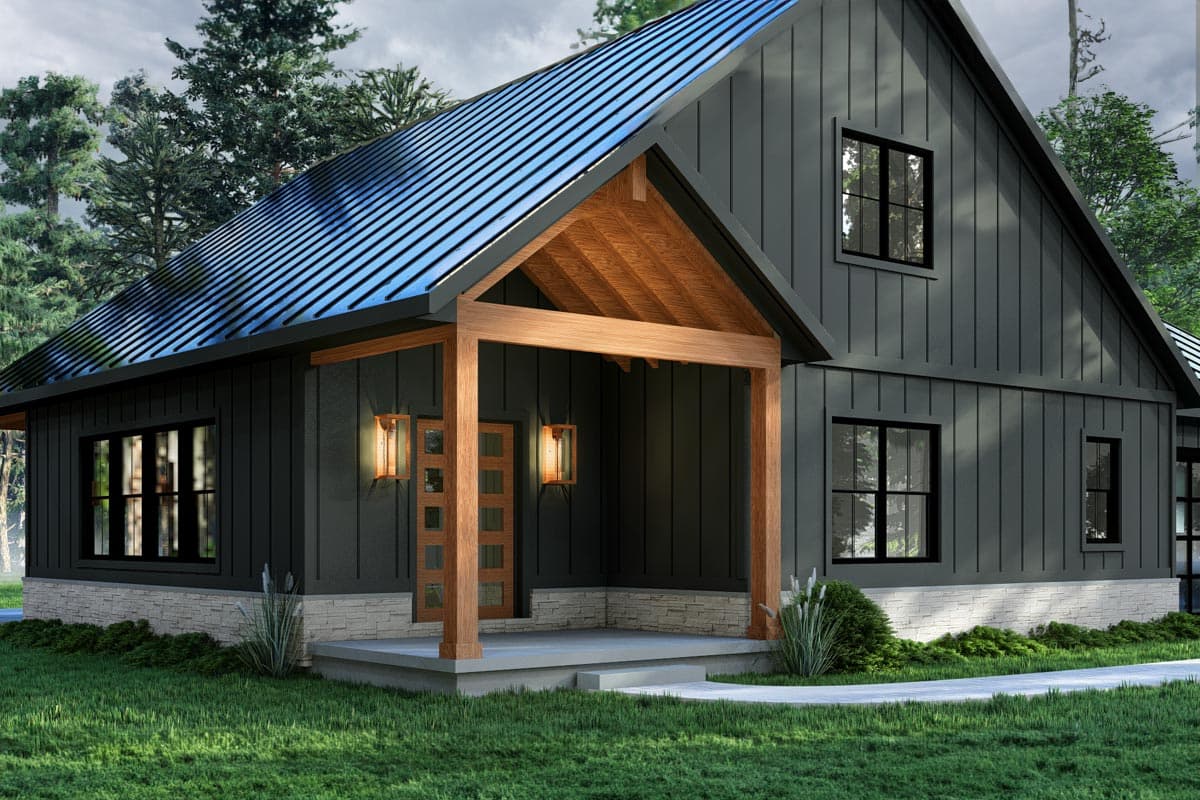

  • This 3 bed, 2 bath house plan gives you 2,010 square feet of heated living space with board and batten siding, a timbered covered entry porch and a metal roof over the main home and the 2-car attached garage (912 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,010 sq. ft.

1st Floor

1,394 sq. ft.

2nd Floor

616 sq. ft.

Porch, Combined

184 sq. ft.

Covered Patio

391 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

42' 4"

Max Ridge Height

23' 5"

Garage

Type

Attached

Area

912 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,010 sq. ft.

1st Floor

1,394 sq. ft.

2nd Floor

616 sq. ft.

Porch, Combined

184 sq. ft.

Covered Patio

391 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

42' 4"

Max Ridge Height

23' 5"

Garage

Type

Attached

Area

912 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
