Plan 28004J
3-Bed Northwest Home Plan with Open Floor Plan
Heated S.F.
1,472
Beds
3
Baths
2.5
Stories
2
Cars
1
Floor Plan

Plan 28004J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28004J

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

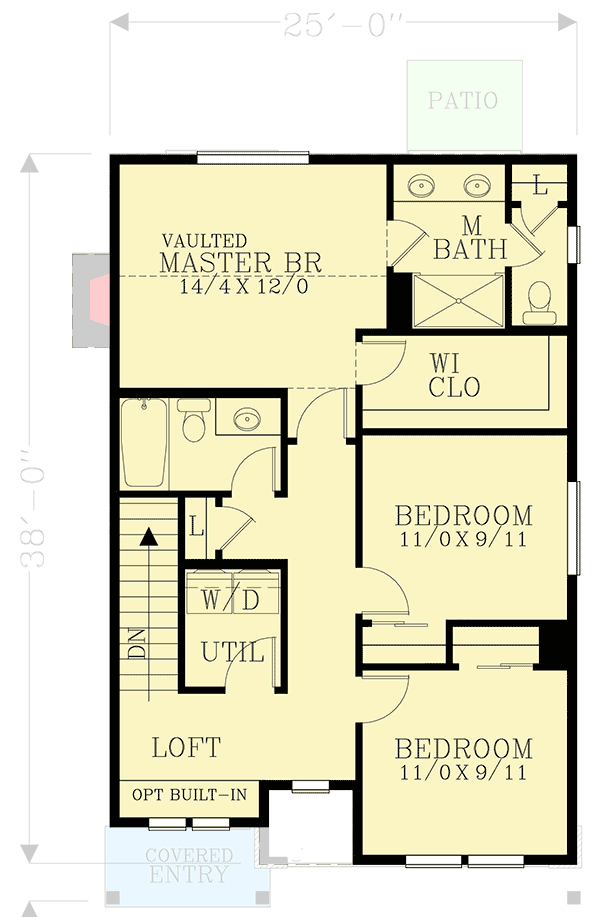

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Shake siding peeks out beneath gabled rooflines on the front elevation of this adorable Northwest home plan.
  • Inside, the main level is completely open to one another. Clean sightlines between the great room and eat-in kitchen provides the perfect place for families to spend quality time together.
  • The master bedroom occupies the rear portion of the second level, and includes a 4-fixture bath and walk-in closet.
  • Bedrooms 2 and 3 share the hall bath, and the laundry closet is conveniently located upstairs to reduce time spent on the chore.
  • The double garage faces forward and opens into the kitchen making unloading groceries a breeze.
  • Related Plans: Get an alternate exterior with house plan 28003J and more room with house plan 28086J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

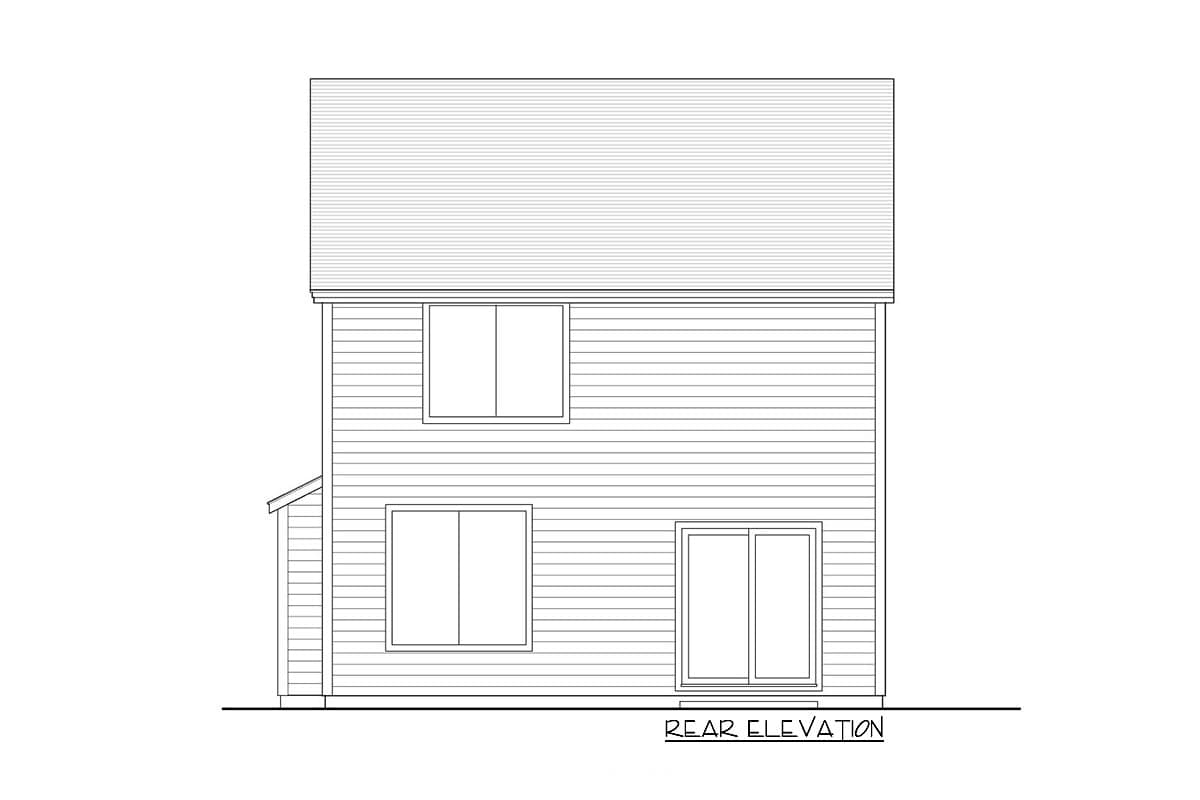

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,472 sq. ft.

1st Floor

595 sq. ft.

2nd Floor

877 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

38' 0"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

310 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Upstairs

Loft

Master Suite - 2nd Floor
