Plan 42562DB

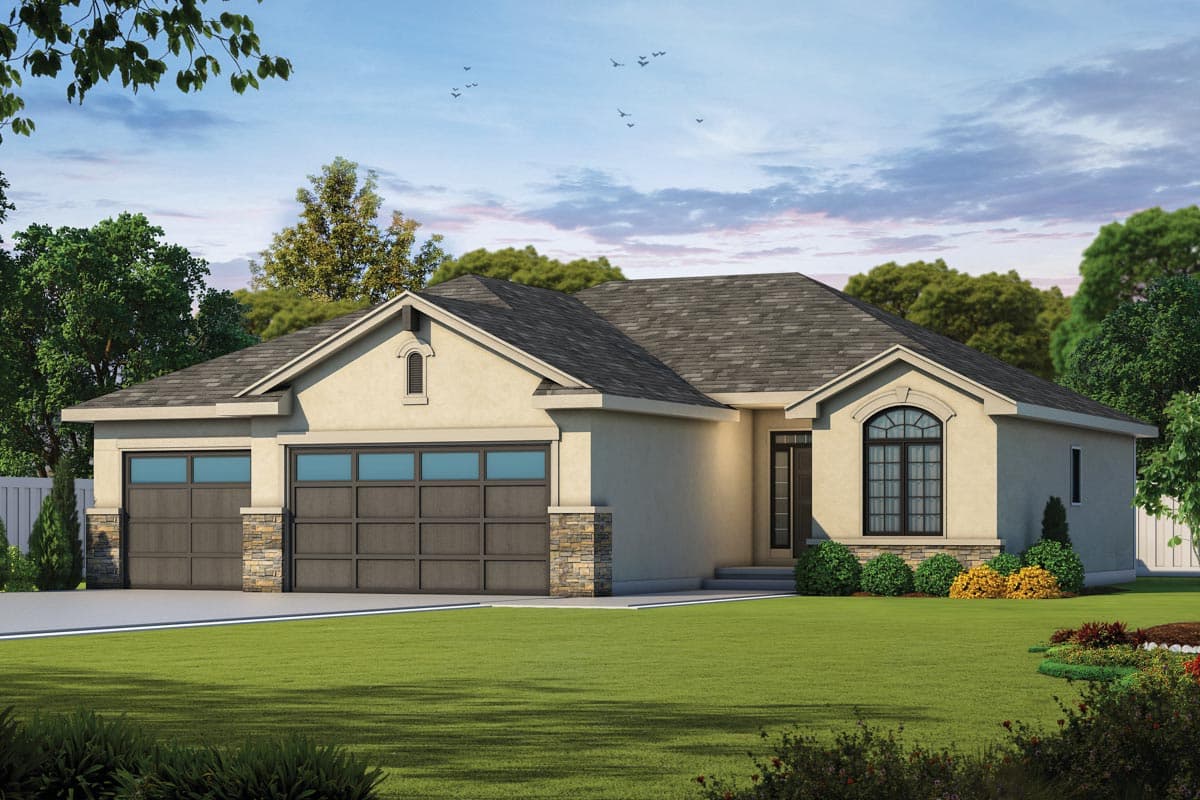

3-Bed One-Story House Plan with Optional Versions - 1676 Sq Ft
Heated S.F.
1,676
Beds
3
Baths
2
Stories
1
Cars
3
Floor Plan

Plan 42562DB

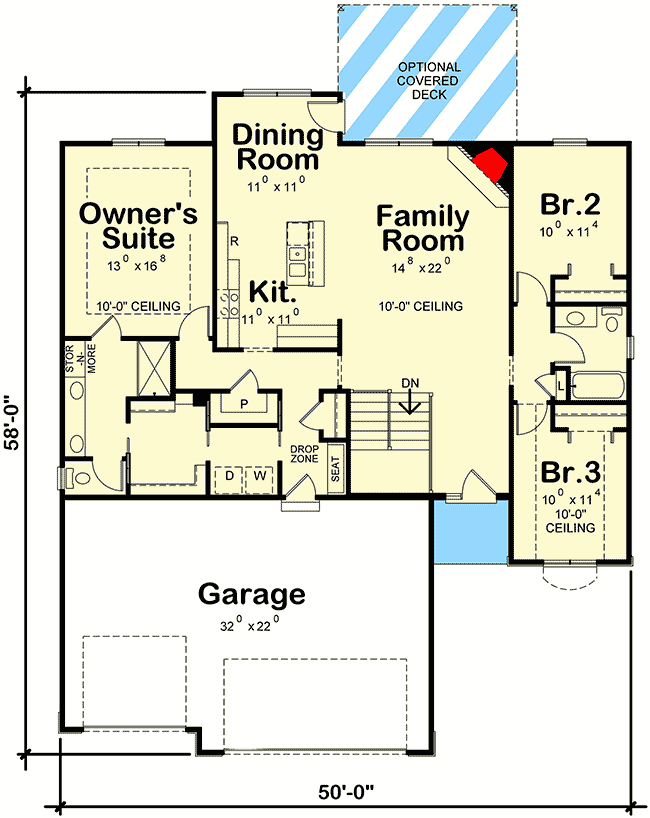

Main Level
slide image 0

Plan 42562DB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This comfortable one-story 3-bed home plan gives you 3 beds, 2 baths and 1,676 square feet of heated living space. There are multiple related plans giving you alternate elevations and sizes.
  • There’s a convenient seat as you come in from the 3-car garage, and wide pantry en route to the island kitchen.
  • At nearly 17-feet deep, the owner’s suite is deep enough for a sitting area by its double windows. In the bathroom, the store-n-more has a comfortable seat, and space for towel hanging that keeps the laundry basket out of the way while providing linen storage.
  • And, there’s the step-saving pocket door connection between the walk-in closet and laundry room!
  • Related Plans: Get alternate layout with house plans 40898DB and 40613DB. Get an alternate exterior with house plan 42563DB and 42564DB.
What's Included
  • General Notes

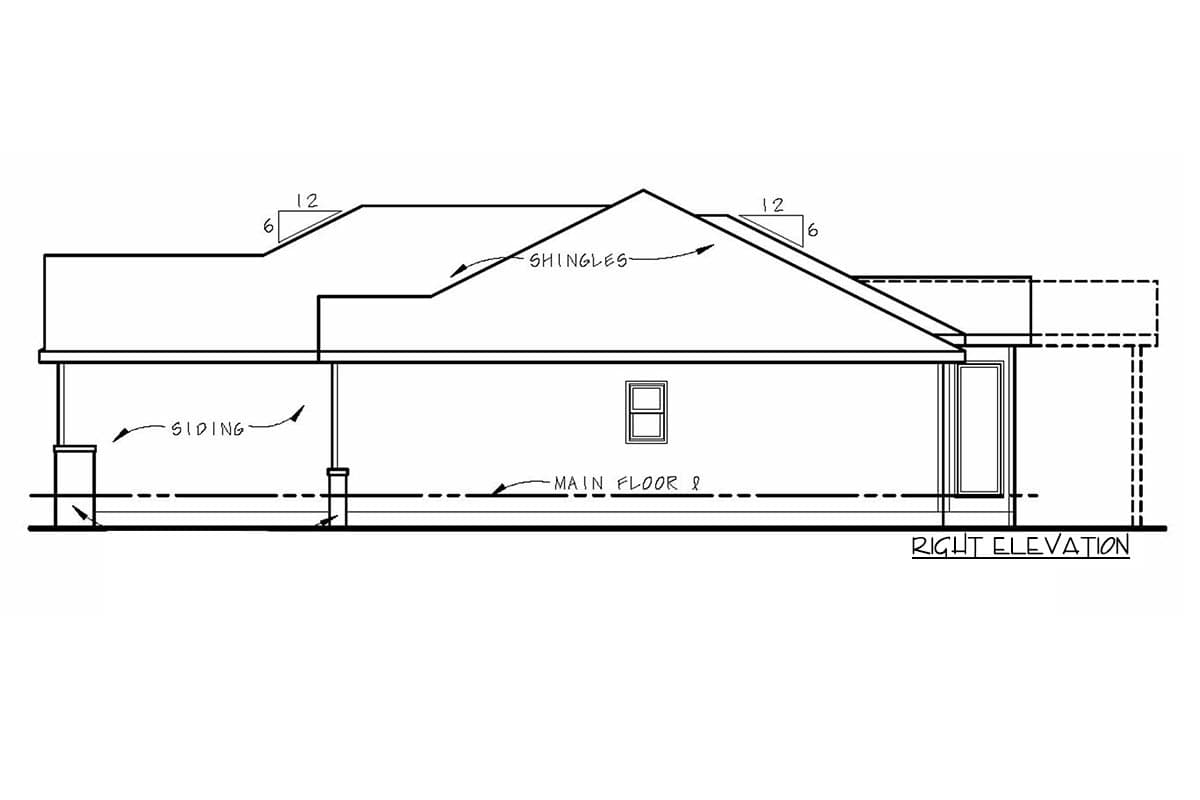

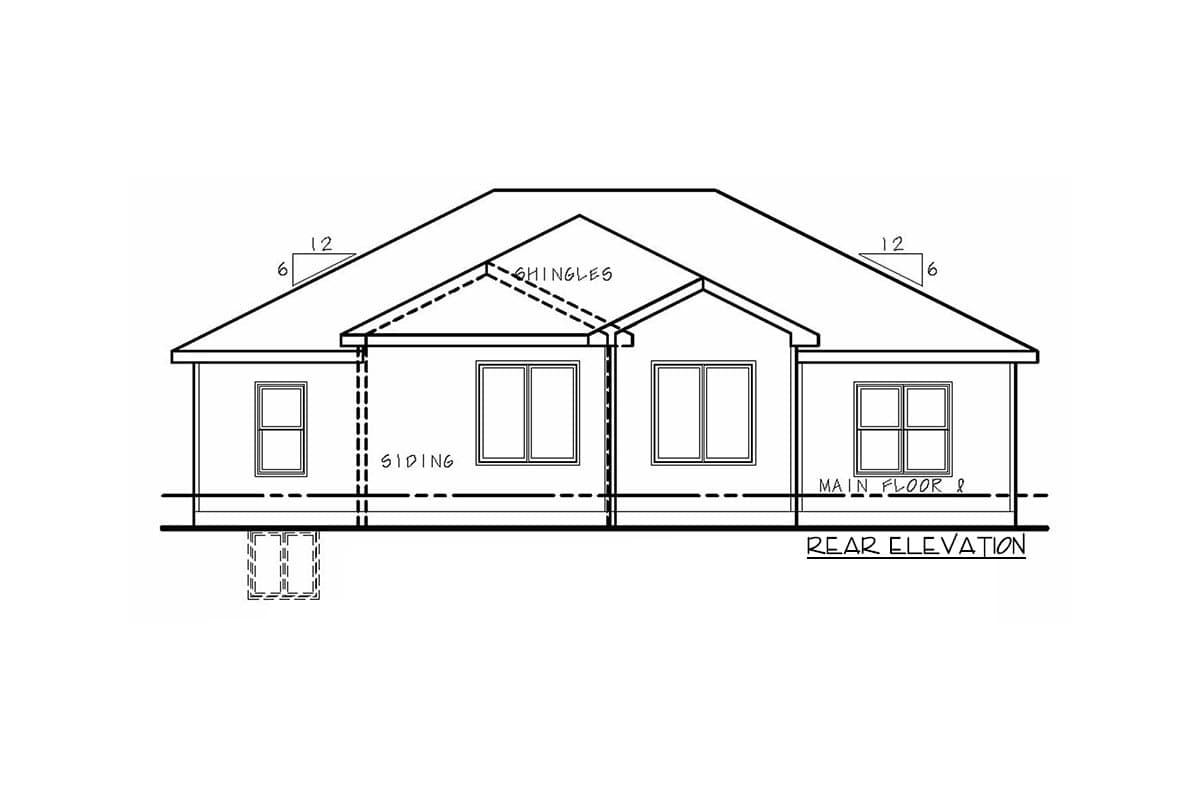

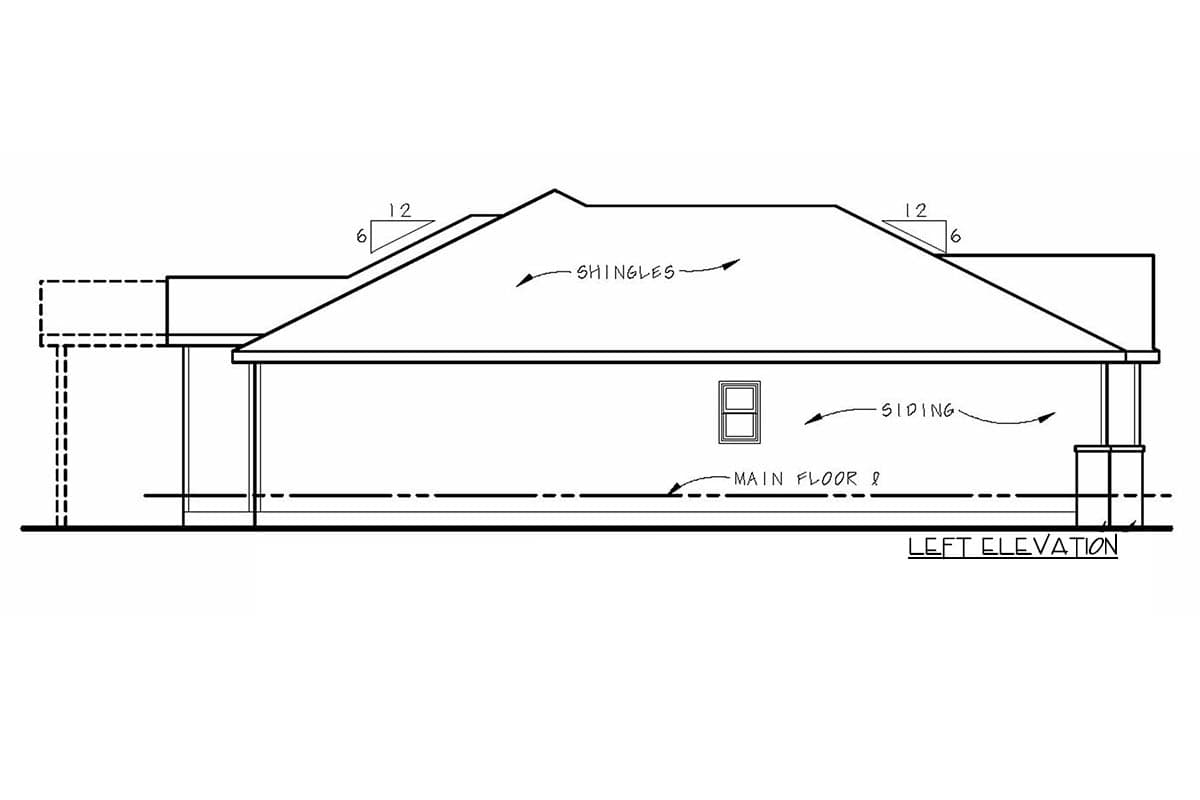

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,676 sq. ft.

1st Floor

1,676 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

58' 0"

Max Ridge Height

20' 7"

Garage

Type

Attached

Area

705 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

European

Mediterranean

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
