Plan 72791DA
3-Bed Ranch Home Plan for a Narrow Lot
Heated S.F.
2,192
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 72791DA

Main Level
slide image 0

Plan 72791DA

1-800-854-7852

1-262-521-4596

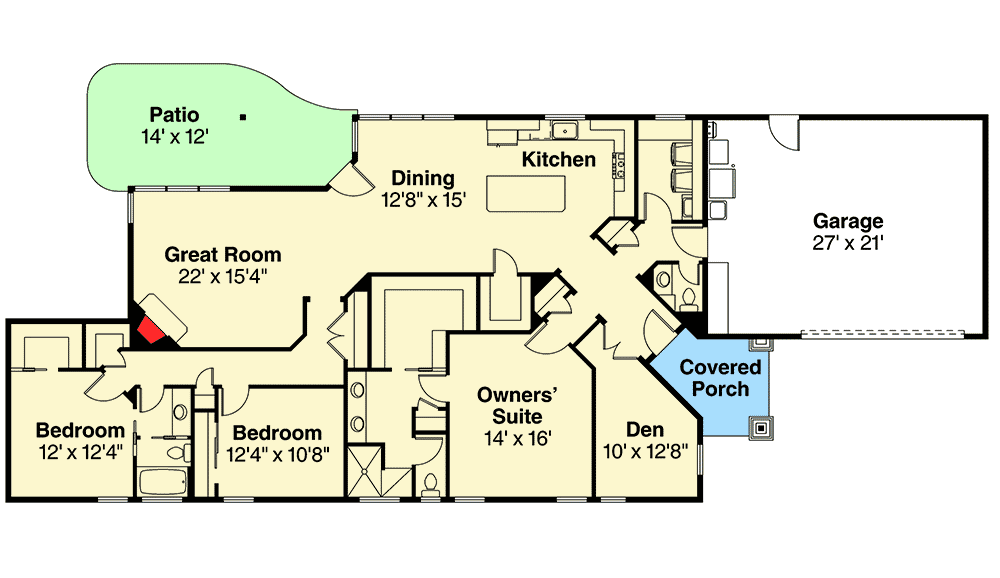

Main Level
floor plan image Main Level
Plan Details
  • This narrow-lot, ranch home plan gives you 3 bedrooms and an open floor plan.
  • French doors off the foyer grant access to a private den, while an angled hallway leads to the open kitchen, dining room, and great room space.
  • The master has a large walk-in closet and bath with dual vanities. Two more bedrooms share a compartmentalized bath.
  • A patio off the dining room and a corner fireplace are two nice touches.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

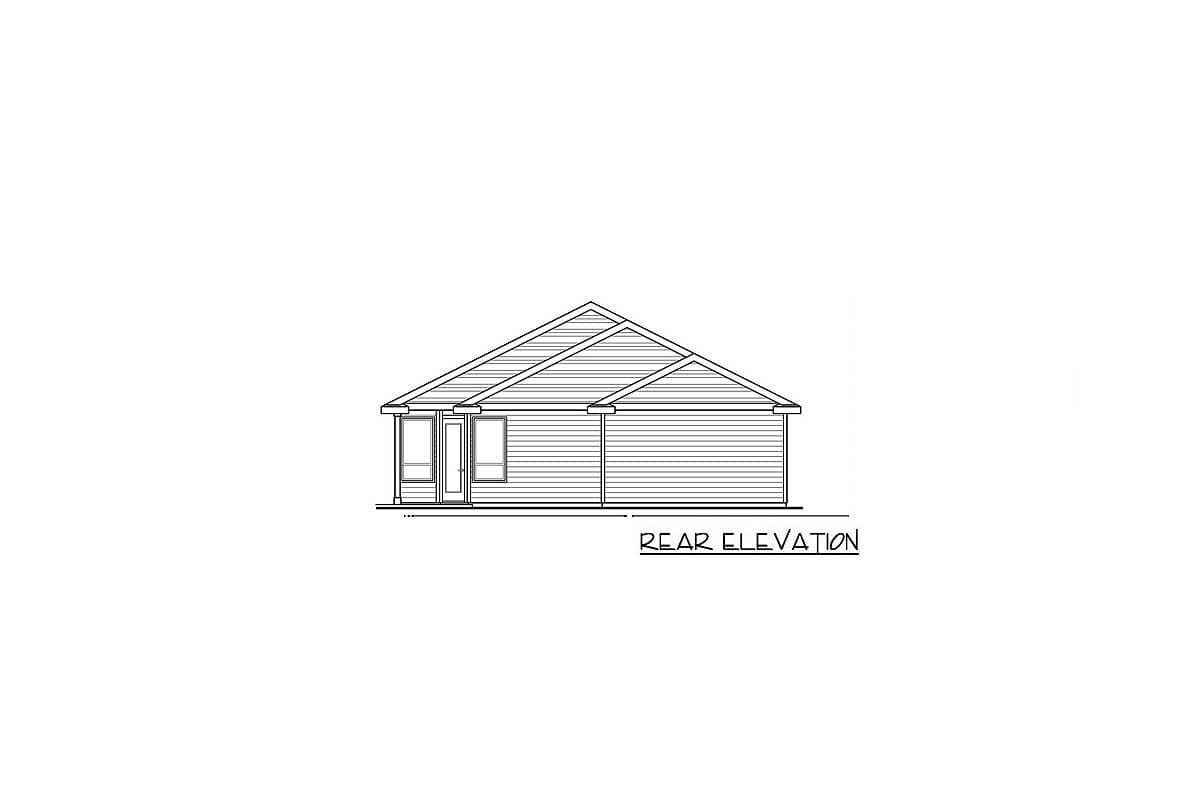

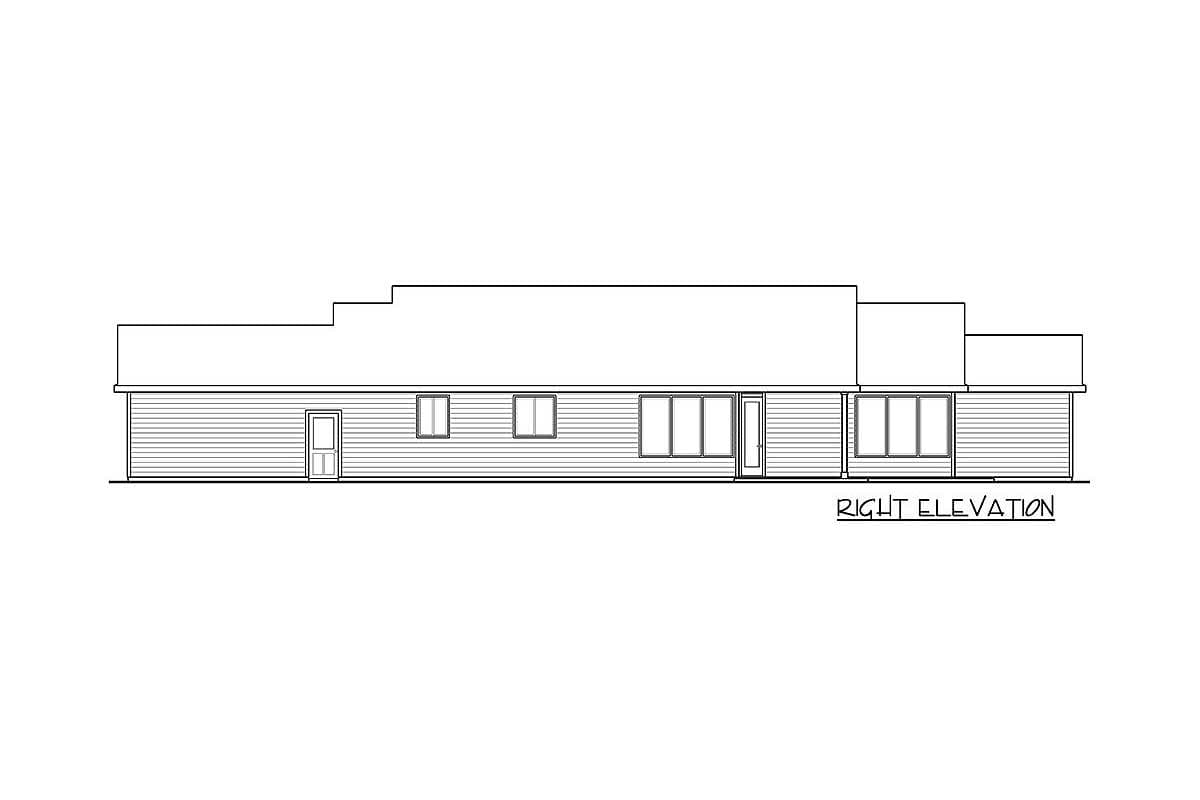

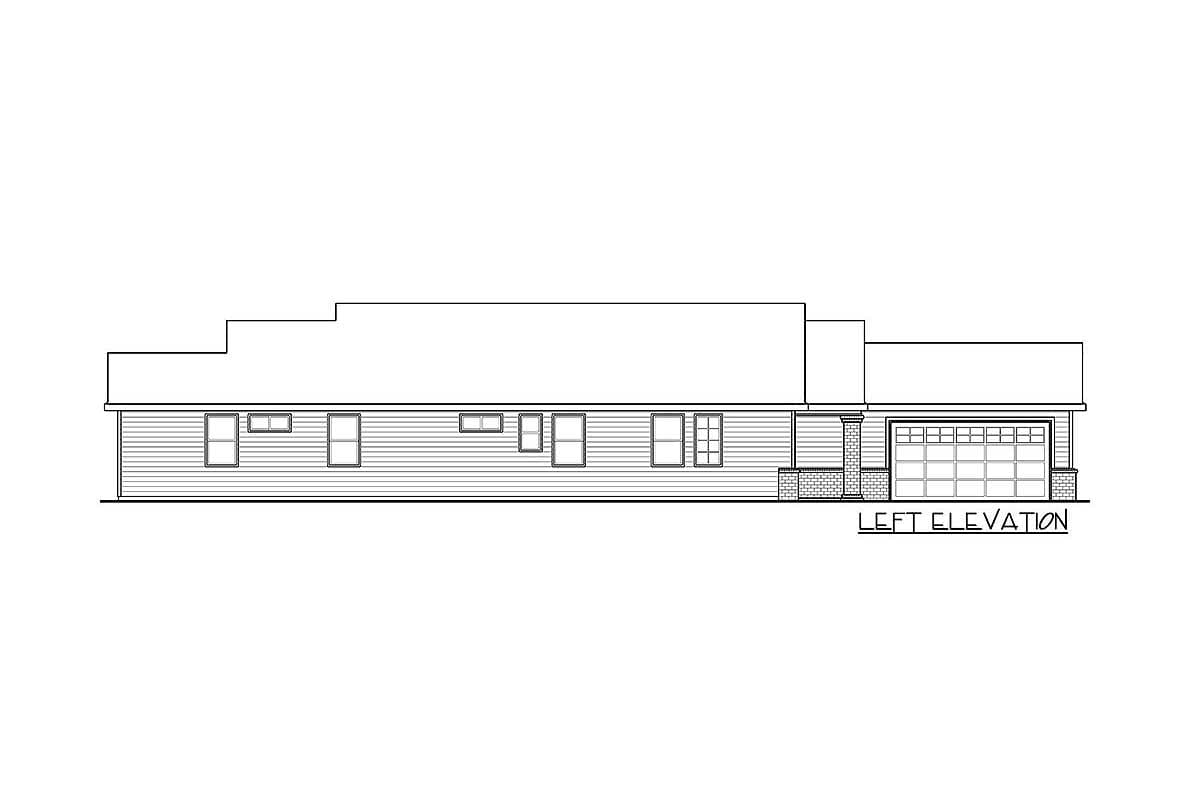

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,192 sq. ft.

1st Floor

2,192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

96' 4"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

605 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,192 sq. ft.

1st Floor

2,192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

96' 4"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

605 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Master Suite - 1st Floor
