Plan 89782AH

3-Bed Ranch Home Plan with Craftsman Detailing

Heated S.F.

2,171

Beds

3

Baths

2

Stories

1

Cars

3

Floor Plan

Main Level

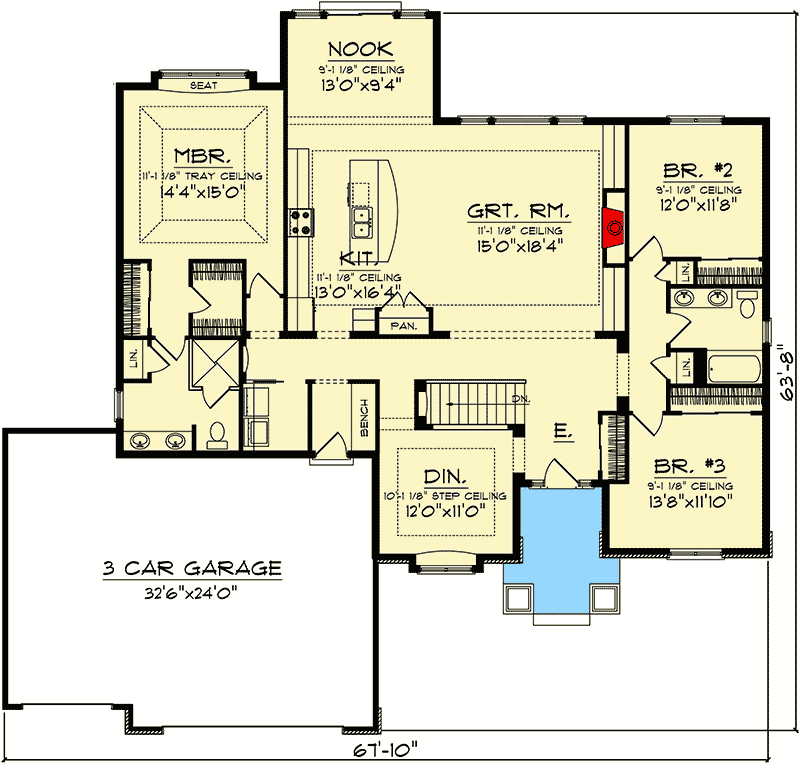

floor plan image Main Level

Plan Details

This three bedroom ranch embraces Craftsman details blending traditional design with modern flair.
An open floor plan features a spacious kitchen that overlooks the great room so mom can keep an eye on the kids while preparing dinner.
The master suite lies behind the kitchen and garage away from the other bedrooms for maximum privacy and it includes his and hers closets, dual sinks and a tray ceiling.
The remaining two bedrooms are off the entry to the left with a shared full bathroom off the hallway.
Other amenities include a bench with lockers off the back door, a gas fireplace in the great room, a formal dining room and a casual dinette area.
Related Plan: Get a finished lower level with family room, game room, fourth bedroom and home theater with house plan 890117AH.
ADDED BONUS: See this house plan from every angle in this YouTube video.

What's Included

General Notes
Rendering
Elevations
Fully dimensioned floor plans
Foundation
Typical wall section & stair section
Cross section
Cabinet elevations
Electrical Plan
Roof plan

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,171 sq. ft.

1st Floor

2,171 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 10"

Depth

63' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

806 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,171 sq. ft.

1st Floor

2,171 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 10"

Depth

63' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

806 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections
