Plan 82275KA
3-Bed Ranch House Plan with Split Bedrooms
Heated S.F.
1,993
Beds
3
Baths
2
Stories
1
Cars
2

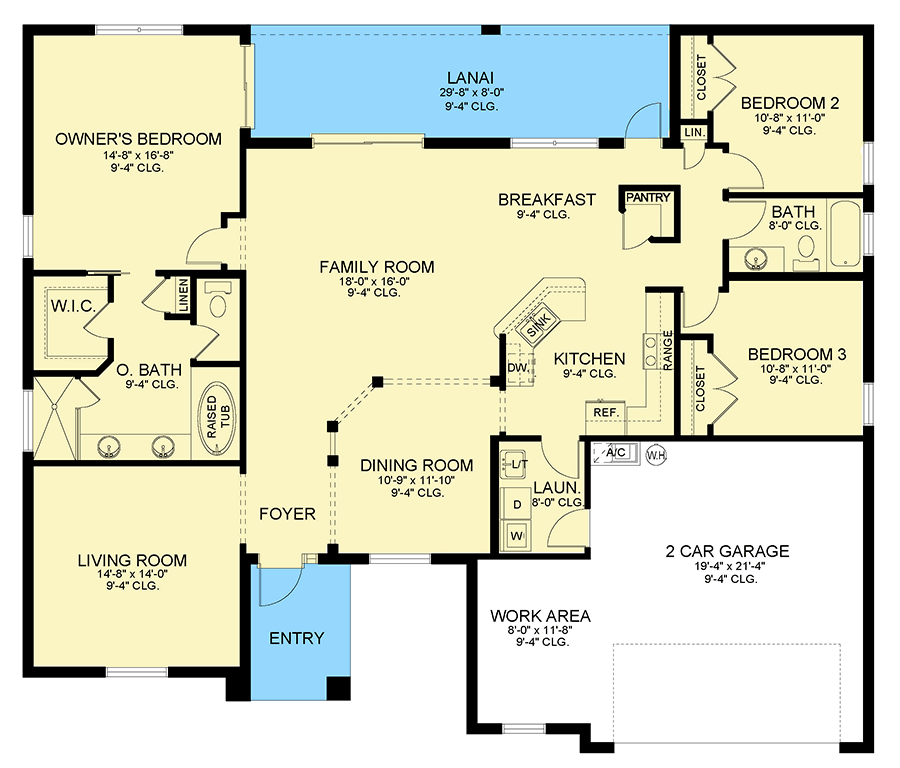

Floor Plan

Plan 82275KA

Main Level
slide image 0

Plan 82275KA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This one-level, house plan features a hip and valley roof, inviting front porch, and a forward-facing garage, complete with a work area for the hobbyist.
  • Once past the threshold, an open layout displays itself, with clean views between the dining room, family room, breakfast nook and kitchen. Sliding doors grant access to the back, covered lanai for outdoor enjoyment.
  • The 2-car garage opens into the laundry / mudroom, adjacent from the kitchen, making unloading groceries a breeze.
  • A quiet living room, located off the foyer, offers a private space to recharge. The owner's bedroom is separated from the others, and includes a spacious, 5-fixture bathroom.
  • Bedrooms 2 and 3, on the opposite side of the home, share the hall bath.
  • Related Plan: Find an alternate front elevation with plan 82273KA and 82274KA.
What's Included

This plan set includes the following:

  • Cover Sheet
  • Foundation
  • Floor Plan
  • Interior elevations
  • Front and rear elevations
  • Side elevations
  • Electrical Plans
  • Lintel Plan
  • Structural Details (3 Pages)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,993 sq. ft.

1st Floor

1,993 sq. ft.

Porch, Front

65 sq. ft.

Porch, Rear

237 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

60' 0"

Depth

51' 4"

Garage

Type

Attached

Area

546 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Bedrooms - Split

Square Footage Breakdown

Total Heated Area

1,993 sq. ft.

1st Floor

1,993 sq. ft.

Porch, Front

65 sq. ft.

Porch, Rear

237 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

60' 0"

Depth

51' 4"

Garage

Type

Attached

Area

546 sq. ft.

Count

2 Cars

Entry Location

Front
