Plan 51935HZ
3-Bed Rustic Craftsman with Wrap Around Porch - 2195 Sq Ft
Heated S.F.
2,195
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 51935HZ

Main Level
slide image 0
Main Level - Basement Stairs Location
slide image 1

Plan 51935HZ

1-800-854-7852

1-262-521-4596

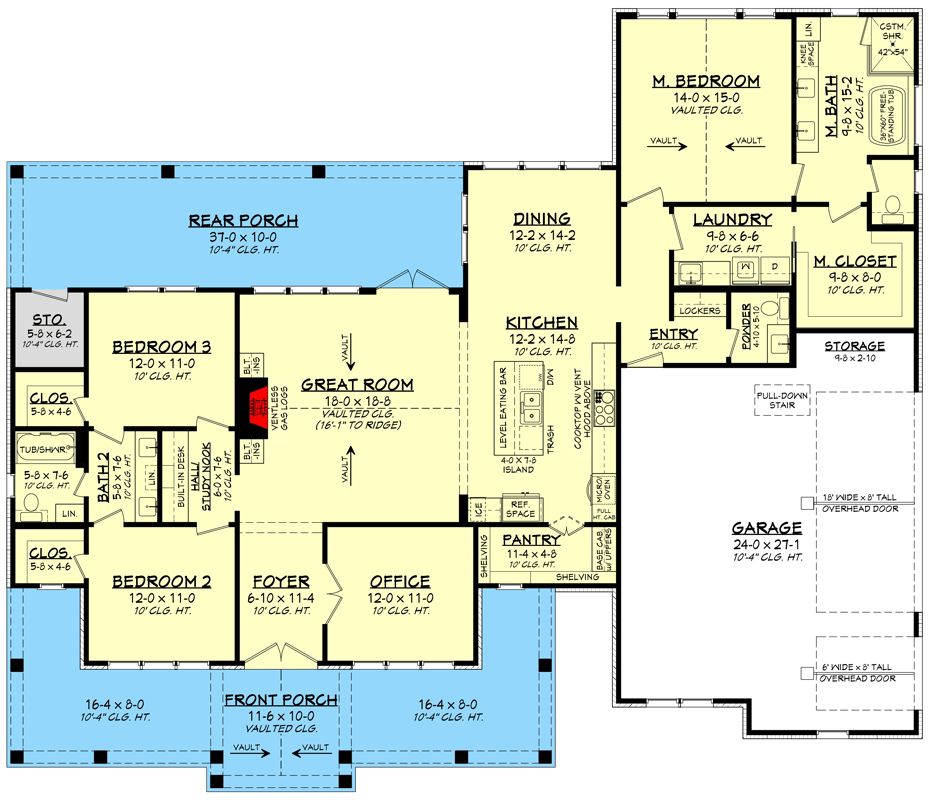

Main Level
floor plan image Main Level

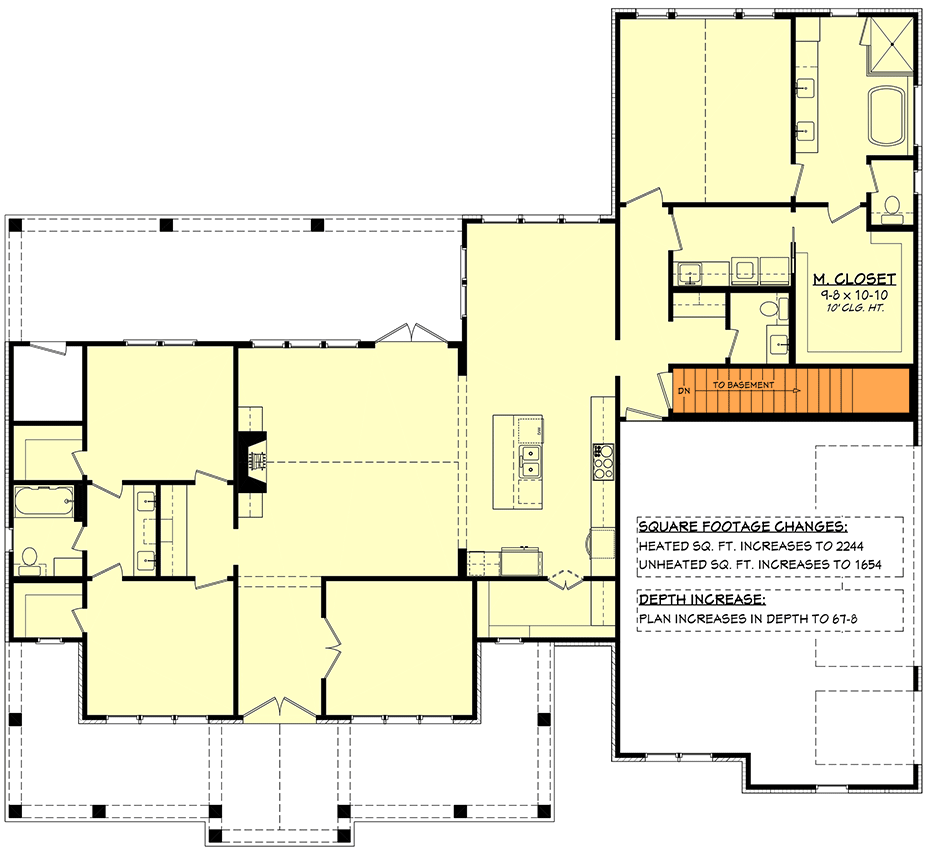

Main Level - Basement Stairs Location
floor plan image Main Level - Basement Stairs Location
Plan Details
  • This beautifully styled rustic home plan is perfect in a mountain setting or in the middle of a neighborhood at the edge of town.
  • Embrace the outdoors with a wrapped front porch and a large rear porch with windows open all around, the outdoors seep in and fill the spaces with natural light.
  • This home is equipped with 3 bedrooms and 2.5 baths in an open floorplan.
  • The vaulted great room is open to the kitchen which has a walk-in pantry.
  • The main bedroom is also vaulted and has an ensuite bath with double vanities and separate tub and glass enclosed shower.
  • Related Plan: Get an alternate version in reverse orientation with house plan 51838HZ (2,454 sq. ft)
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

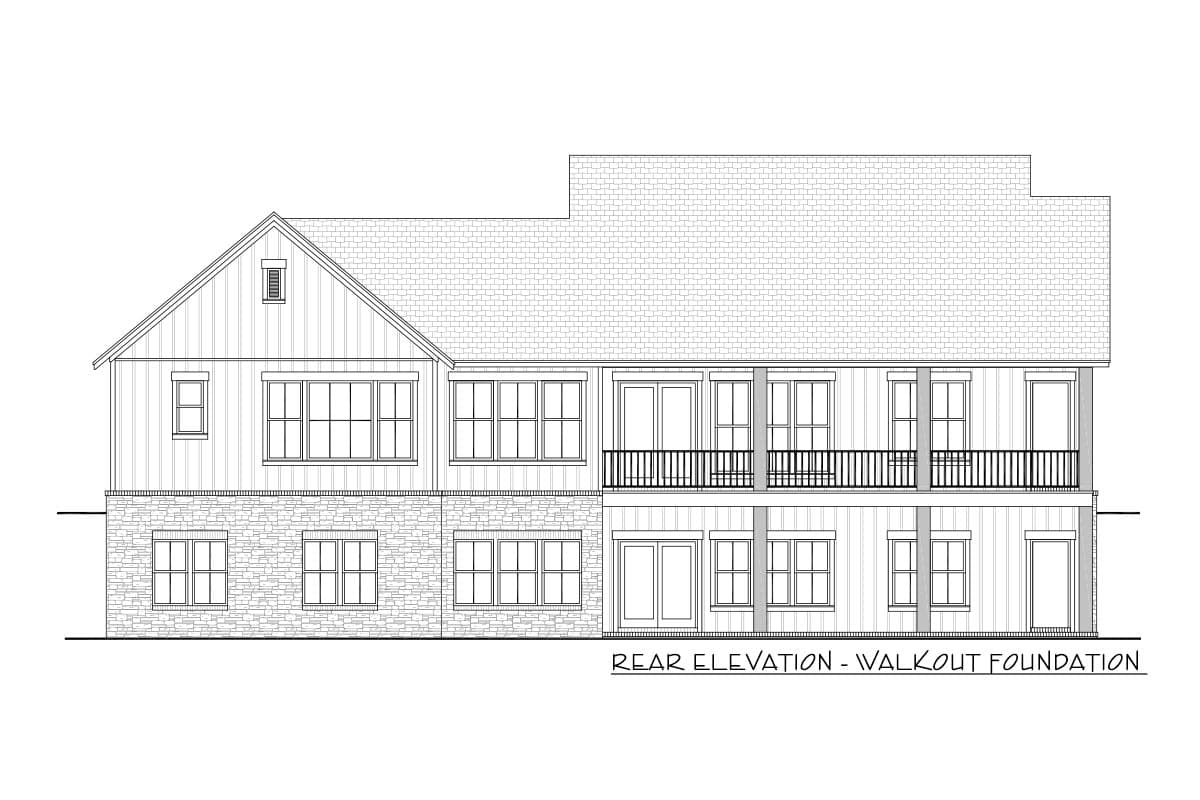

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional notes
Page 8  Electrical plan with notes and legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,195 sq. ft.

1st Floor

2,195 sq. ft.

Porch, Front

452 sq. ft.

Porch, Rear

370 sq. ft.

Storage

39 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 2"

Depth

63' 4"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

735 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Hill Country

Modern Farmhouse

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wrap Around Porch

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,195 sq. ft.

1st Floor

2,195 sq. ft.

Porch, Front

452 sq. ft.

Porch, Rear

370 sq. ft.

Storage

39 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 2"

Depth

63' 4"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

735 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Hill Country

Modern Farmhouse

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wrap Around Porch

Plan Collections

Home Office
