Name: Plan 70747MK: 3-Bed Shingle Cottage with Wraparound Porch - 2013 Sq Ft
SKU: 70747MK
Price: 1100.0 USD
Availability: InStock

Plan 70747MK

3-Bed Shingle Cottage with Wraparound Porch - 2013 Sq Ft

Heated S.F.

2,013

Beds

Baths

2.5

Stories

Floor Plan

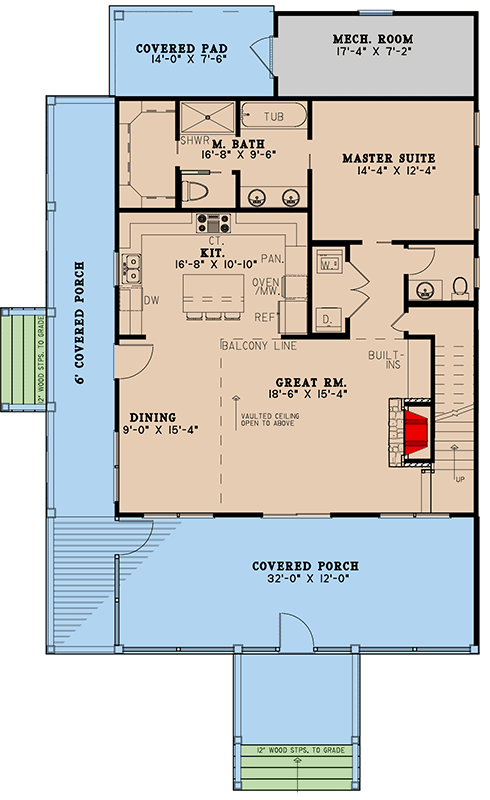

Main Level

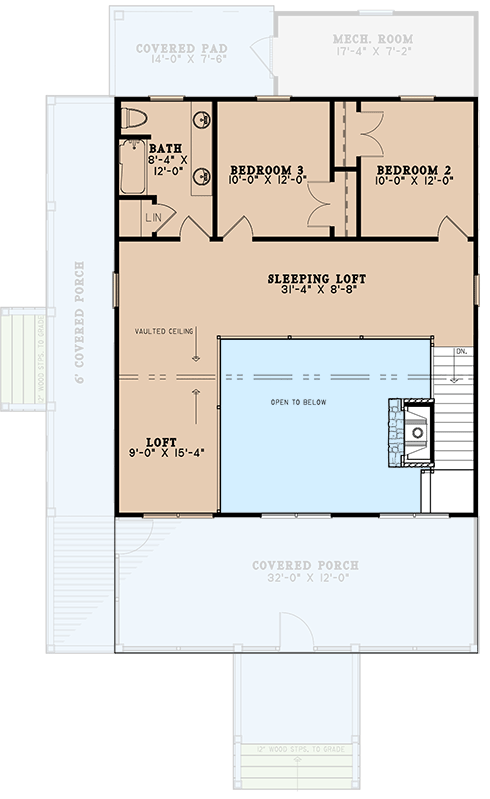

2nd Floor

Plan Details

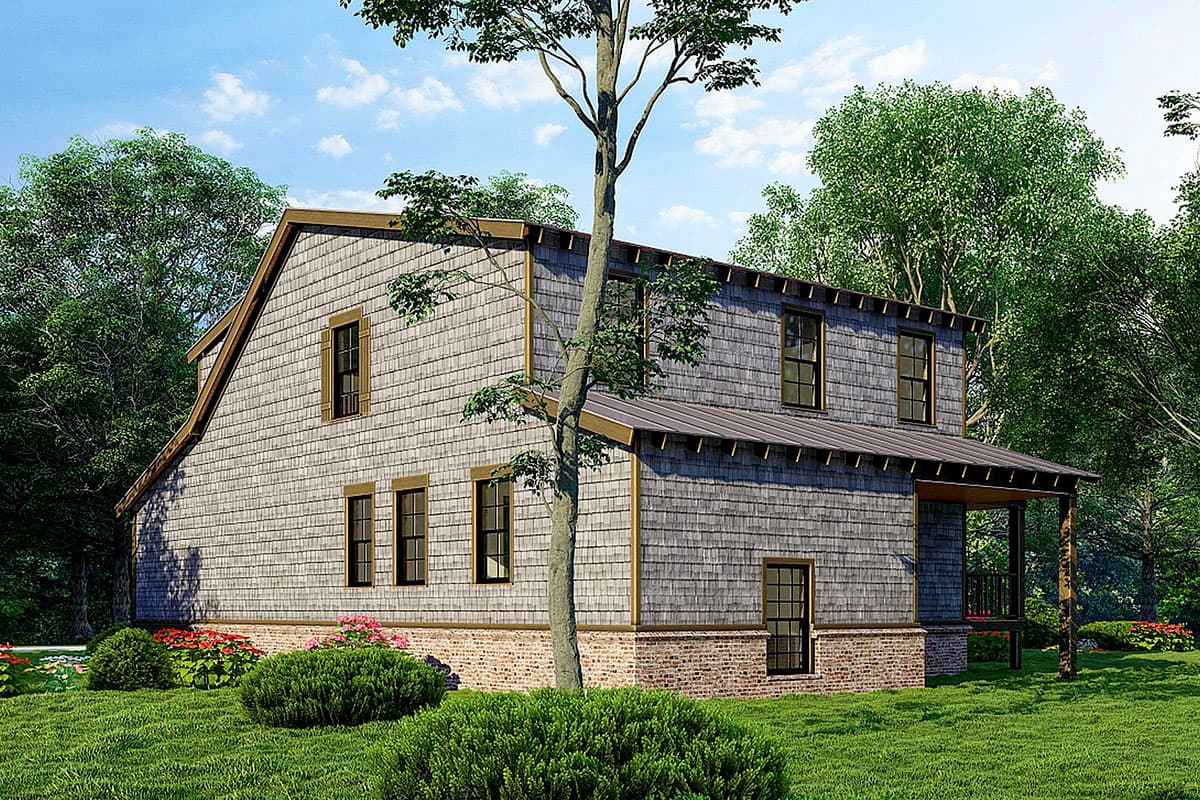

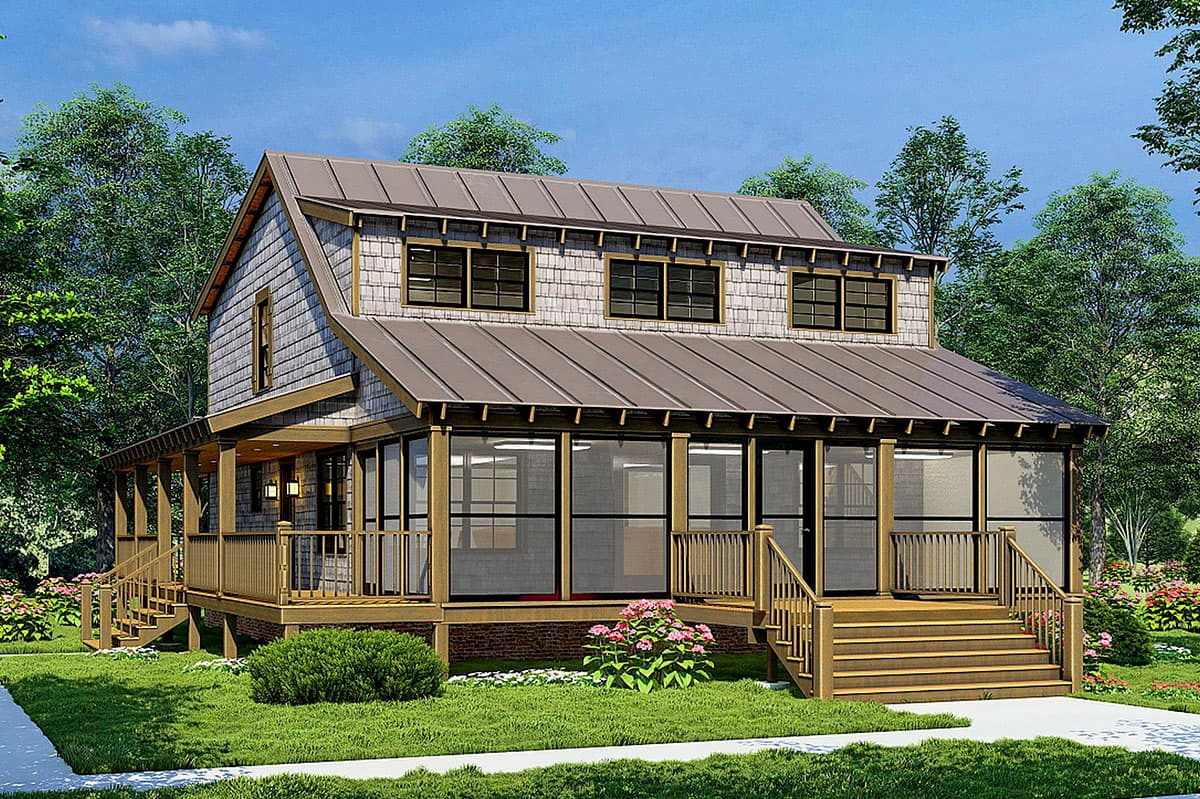

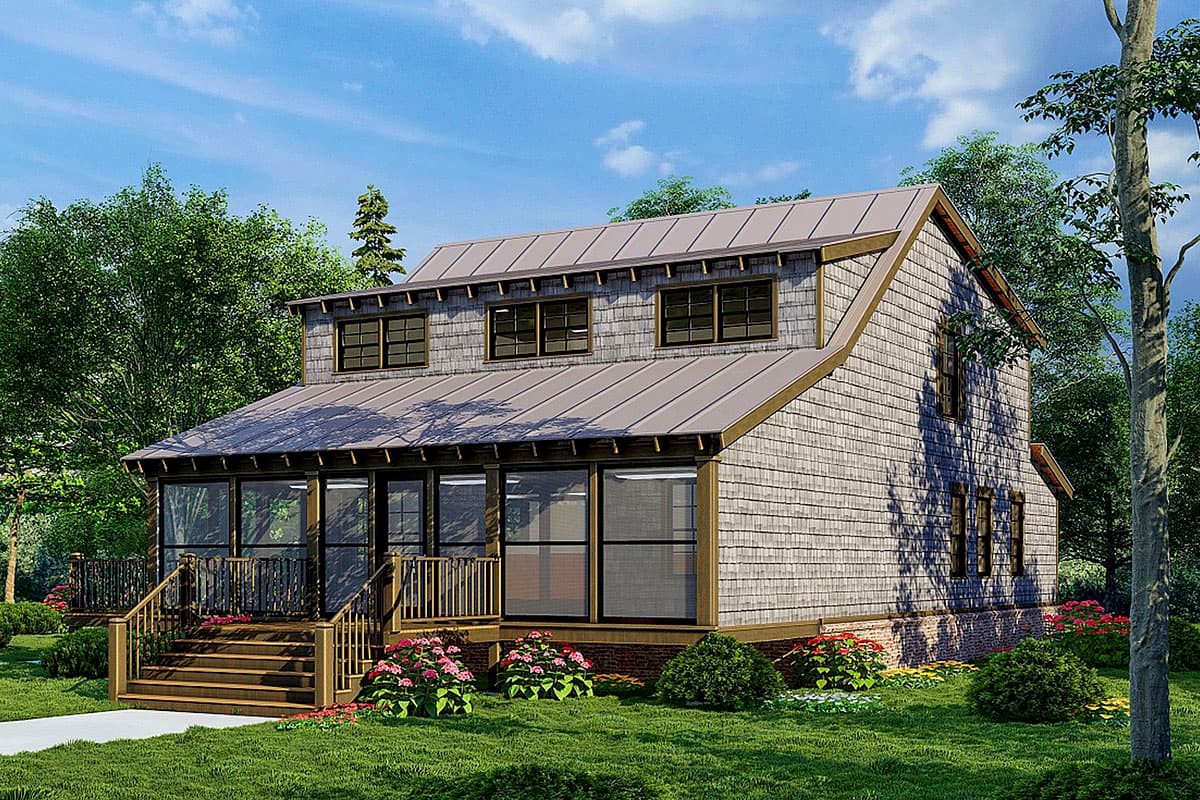

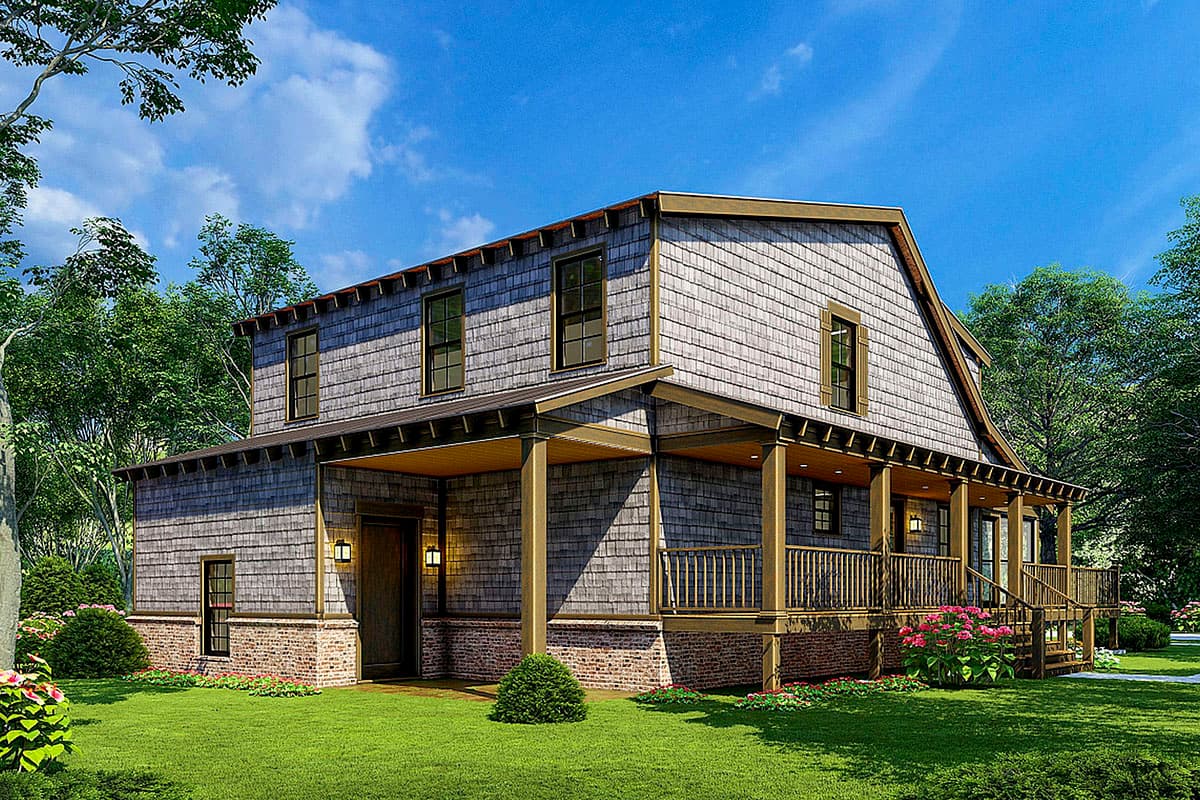

The cedar shake siding and ribbed metal roof façade lends texture and character to this 3-bedroom, Shingle Cottage house plan.
A 12'-deep, screened porch welcomes you inside, where an open great room, dining area, and kitchen allow family and friends to easily gather. The vaulted, two-story ceiling above the great room makes the space feel even bigger.
In the kitchen, a prep island provides seating for three and is surrounded by cabinets, counters, and appliances.
A pocket door reveals the main-level master suite that includes a dual-sink vanity and toilet room in the 5-fixture bath, along with a walk-in closet. The laundry room is conveniently located next door.
Two secondary bedrooms are located upstairs, along with a versatile loft that overlooks the great room below.
Related Plans: Get alternate versions with house plans 70818MK (1,425 sq. ft.) and 59156ND (1,400 sq. ft.).

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
Roof Overview Plan (1/4"=1")
An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
