Plan 135015GRA
3-Bed Single-Story House Plan with Split Bedrooms - 1651 Sq Ft
Heated S.F.
1,651
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 135015GRA

Main Level
slide image 0

Plan 135015GRA

1-800-854-7852

1-262-521-4596

Main Level

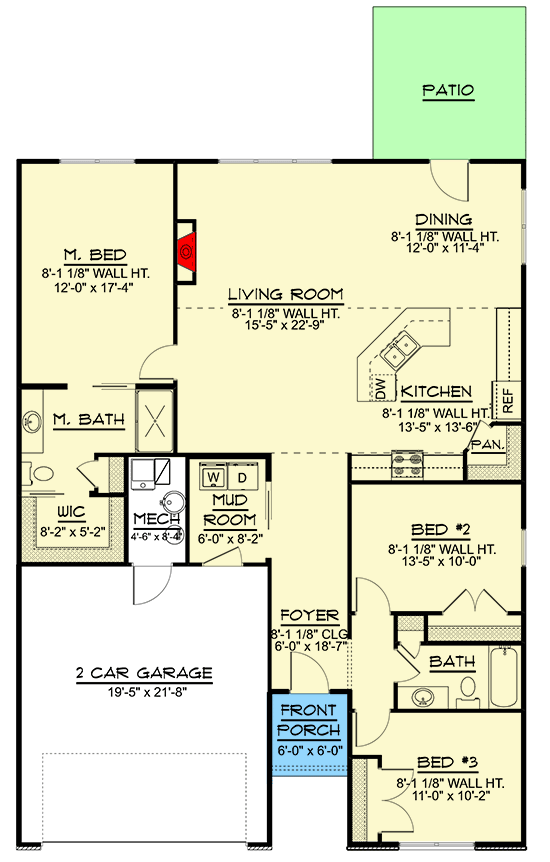

floor plan image Main Level
Plan Details
  • Stone accents add texture to the exterior of this one-level, 3-bedroom house plan.
  • Inside, a hallway to the right of the foyer leads to two family bedrooms, separated by a shared bath.
  • A few steps further, the combined mud / laundry room is concealed by a pocket door. The double garage is accessible from the mudroom.
  • Enjoy the company of friends and family with this open layout. A fireplace anchors the left wall of the living room, while an angled island in the kitchen hosts a double-bowl sink and serves as a natural conversation hub.
  • Set apart from the other bedrooms, discover the master bedroom, which includes a linen closet in the full bath, along with a walk-in closet.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,651 sq. ft.

1st Floor

1,651 sq. ft.

Porch, Combined

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

54' 0"

Max Ridge Height

18' 7"

Garage

Type

Attached

Area

439 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 2"

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
