Plan 55244BR
3-Bed Southern Cottage House Plan Jack and Jill Bathroom - 1892 Sq Ft
Heated S.F.
1,892
Beds
3
Baths
2.5
Stories
1
Cars
2

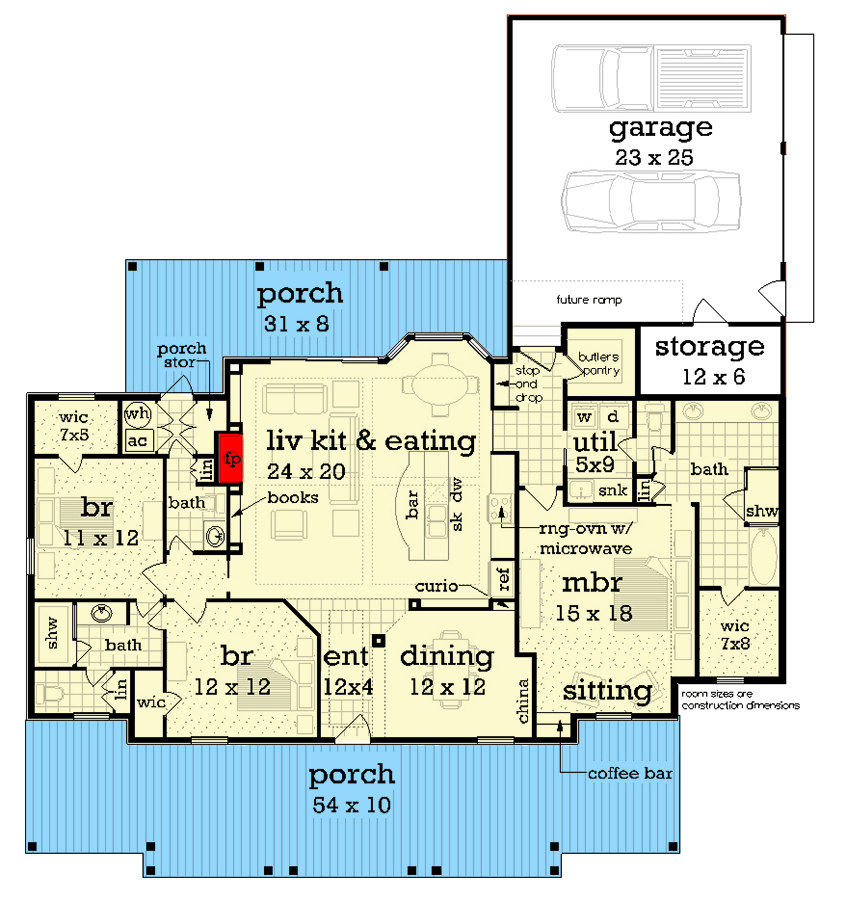

Floor Plan

Plan 55244BR

Main Level
slide image 0

Plan 55244BR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This raised cottage features front and rear wrap-around porches that extend the living space through oversized sliding glass doors.
  • The master suite includes a bathroom with twin vanities, spa tub, shower, private toilet, and two large walk-in closets.
  • Secondary bedrooms share a Jack and Jill bath with a private toilet and linen closet, while a half bath is accessible from the hall and rear porch.
  • An oversized 2-car garage offers space for an ADA ramp, and the garage entry includes a stop-n-drop area with storage. A large butler's pantry and a utility room with extra storage and direct access to the master bath add convenience.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,892 sq. ft.

1st Floor

1,892 sq. ft.

Porch, Front

588 sq. ft.

Porch, Rear

263 sq. ft.

Storage

72 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 0"

Depth

72' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

606 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Southern

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom
