Plan 70815MK
3-Bed Southern Cottage House Plan with Carport - 1174 Sq Ft
Heated S.F.
1,174
Beds
3
Baths
2
Stories
1
Cars
1

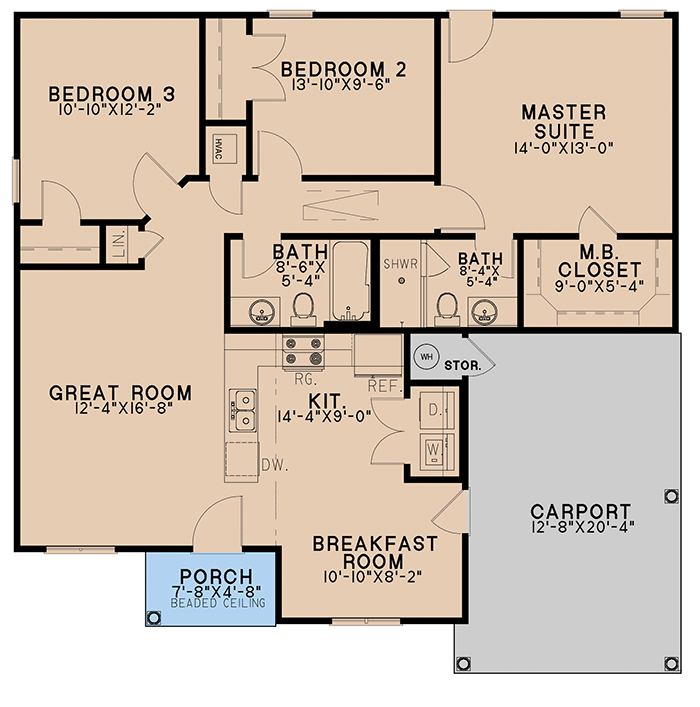

Floor Plan

Plan 70815MK

Main Level
slide image 0

Plan 70815MK

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

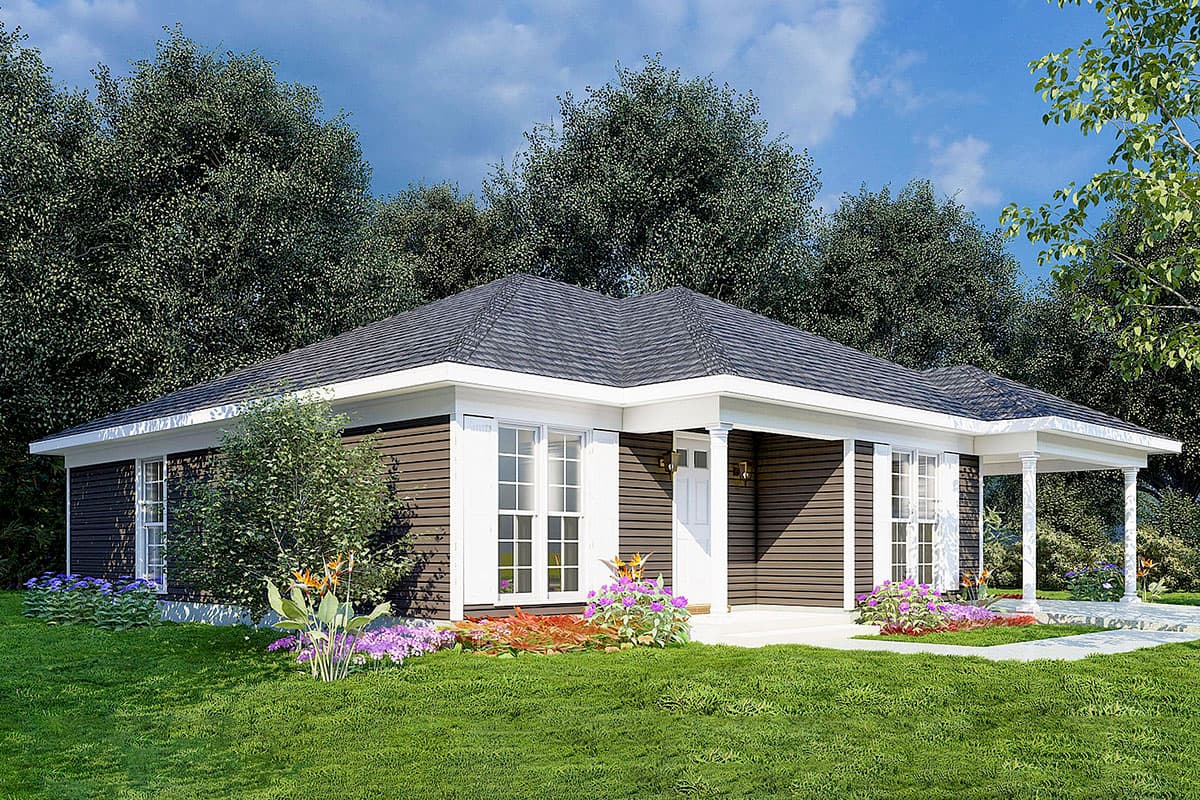

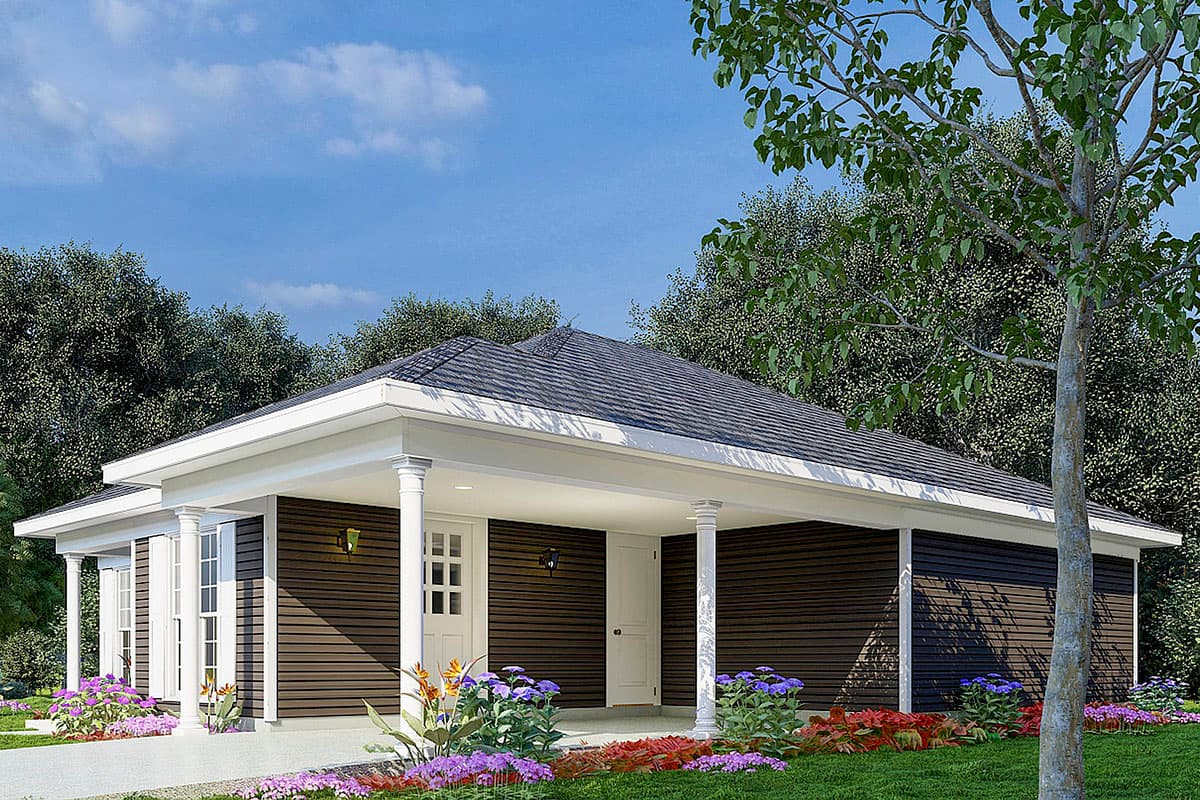

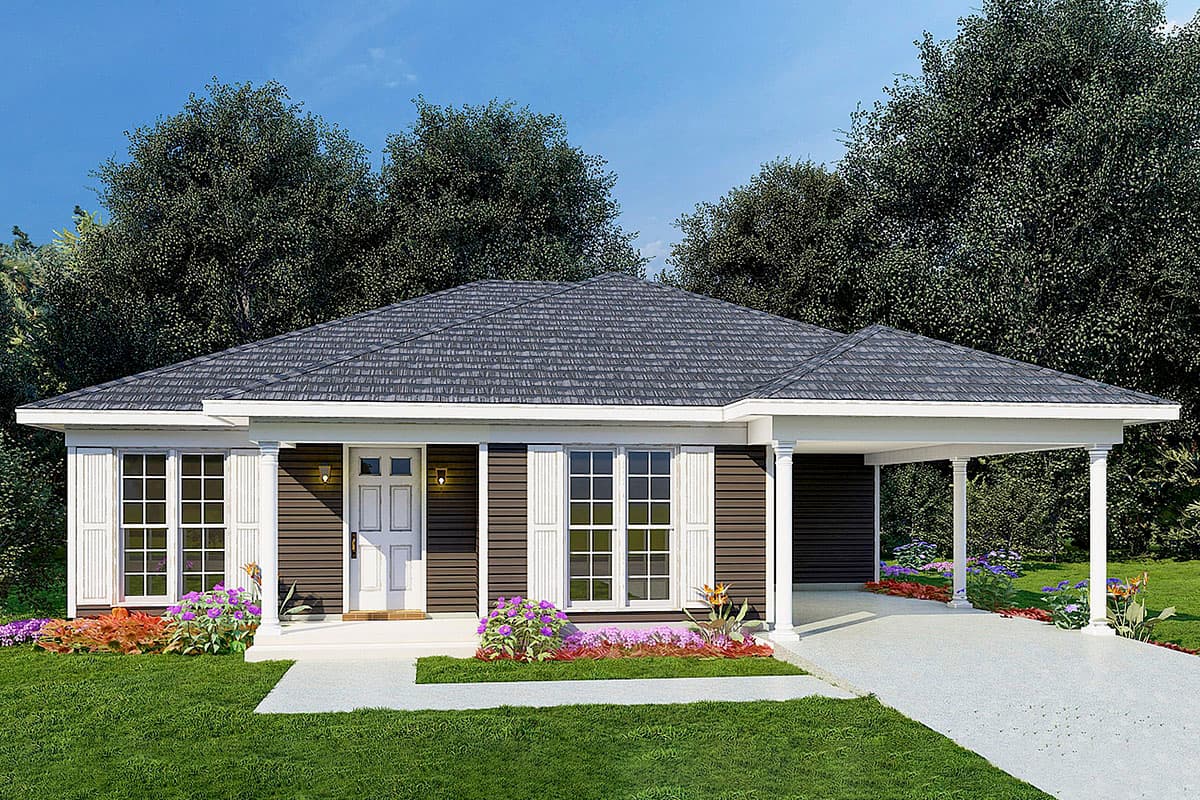

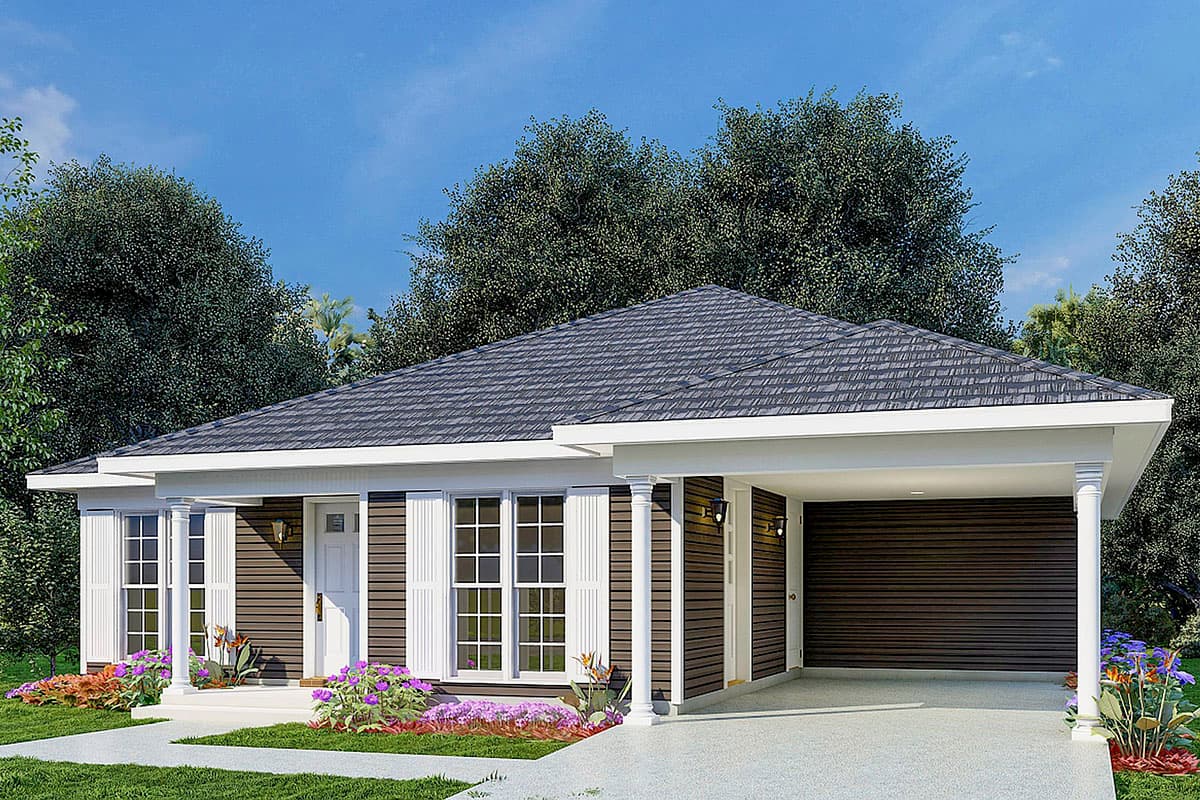

  • This 3-bedroom Southern Cottage house plan is wrapped in clapboard siding and topped by a hip and valley roof.
  • A front porch welcomes you into the heart of the home, where a combined great room, kitchen, and dining area greet you. L-shaped cabinets help to define the kitchen, while a side door leads to the single carport.
  • The masters suite is the largest of the 3 bedrooms and includes a walk-in closet and a full bath.
  • Bedrooms 2 and 3 are down the hall, across from a shared full bath.
  • The laundry closet is accessible from the kitchen, making multi-tasking that much easier.
  • Related Plan: Get an alternate version with house plan 70817MK (1,025 sq. ft.).
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,174 sq. ft.

1st Floor

1,174 sq. ft.

Porch, Combined

33 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

39' 8"

Max Ridge Height

16' 8"

Garage

Type

Carport

Area

269 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Vacation

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
