Name: Plan 25749GE: 3-Bed Storybook Craftsman House Plan with Optionally Finished Walkout
SKU: 25749GE
Price: 2717.6 USD
Availability: InStock

Plan 25749GE

3-Bed Storybook Craftsman House Plan with Optionally Finished Walkout

Heated S.F.

3,603

Beds

3 - 5

Baths

2.5 - 4.5

Stories

Cars

Floor Plan

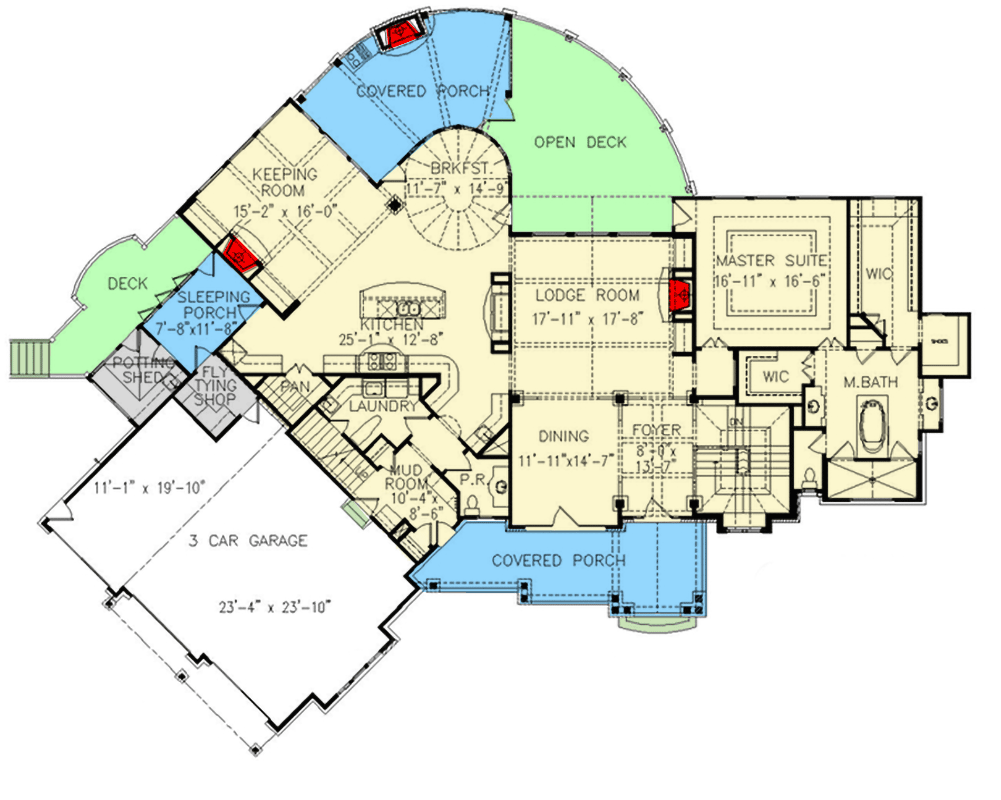

Main Level

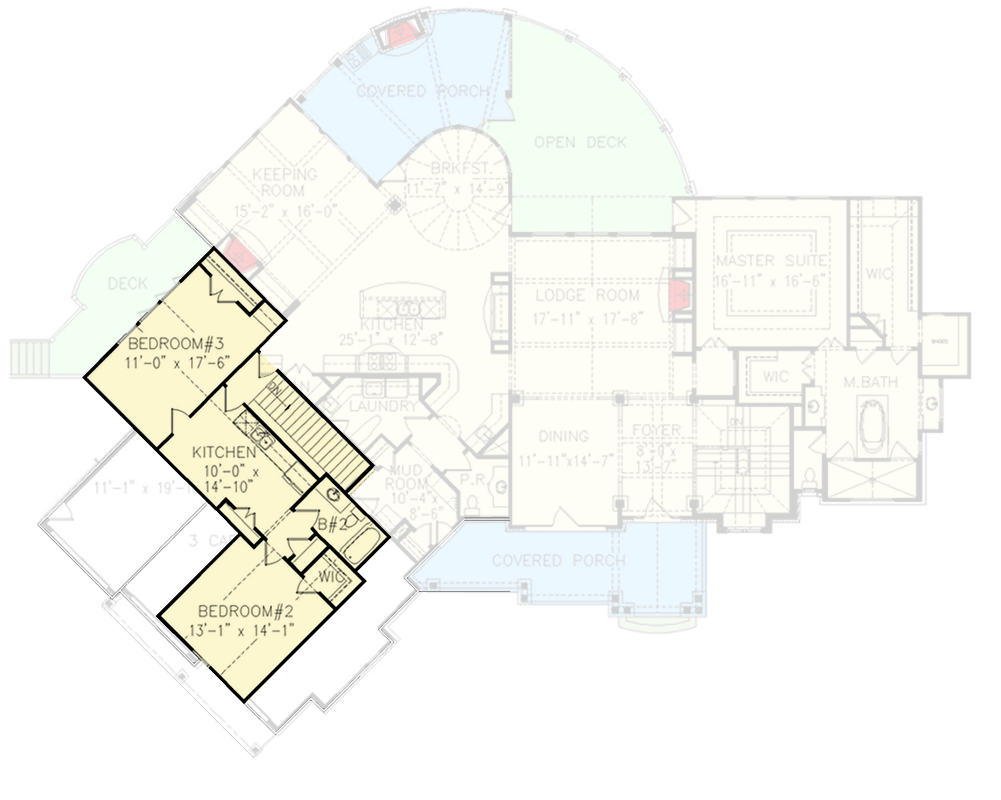

2nd Floor

Lower Level

Plan Details

With generous open living spaces, this floor plan provides abundant areas to enjoy the views and elegantly blends outdoor and indoor living spaces. With a front and rear sweeping porch with grilling area and fireplace, this house plan captures the essence of what it means to embrace the great outdoors.

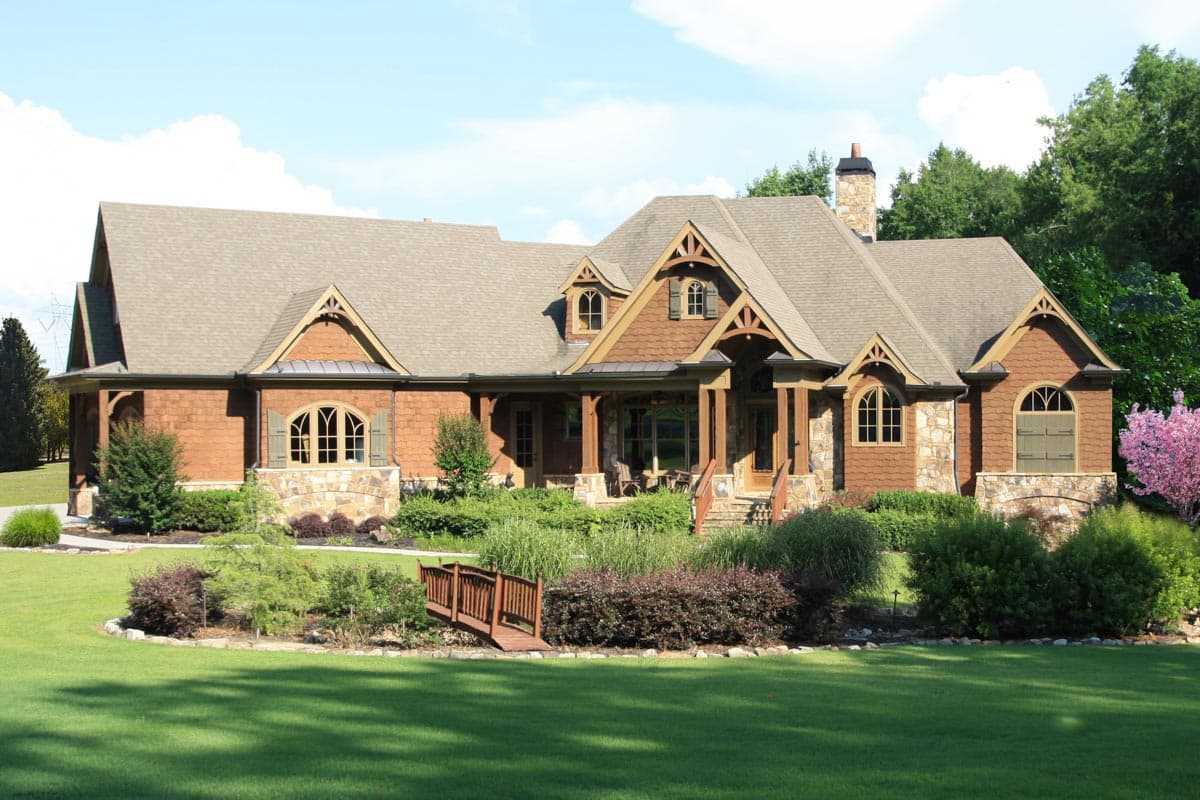

Approaching the front porch entry, you are drawn into rustic elegance beneath soaring timber trusses framing 8'-high glass doors and a true mountain craftsman facade.
Upon entry into the home, a vaulted foyer and adjacent dining room immediately greet guests. With a built-in fireplace and a vaulted ceiling, the lodge room features a wall of windows and boasts grandeur all around.
The breakfast room and kitchen are centrally-located and adjacent to several larger rooms promoting easy flow throughout the home. Generous mud and laundry rooms are near the kitchen, creating ample storage space.
The master suite accesses the rear porch. Two more bedrooms are located across the home and share a bath.

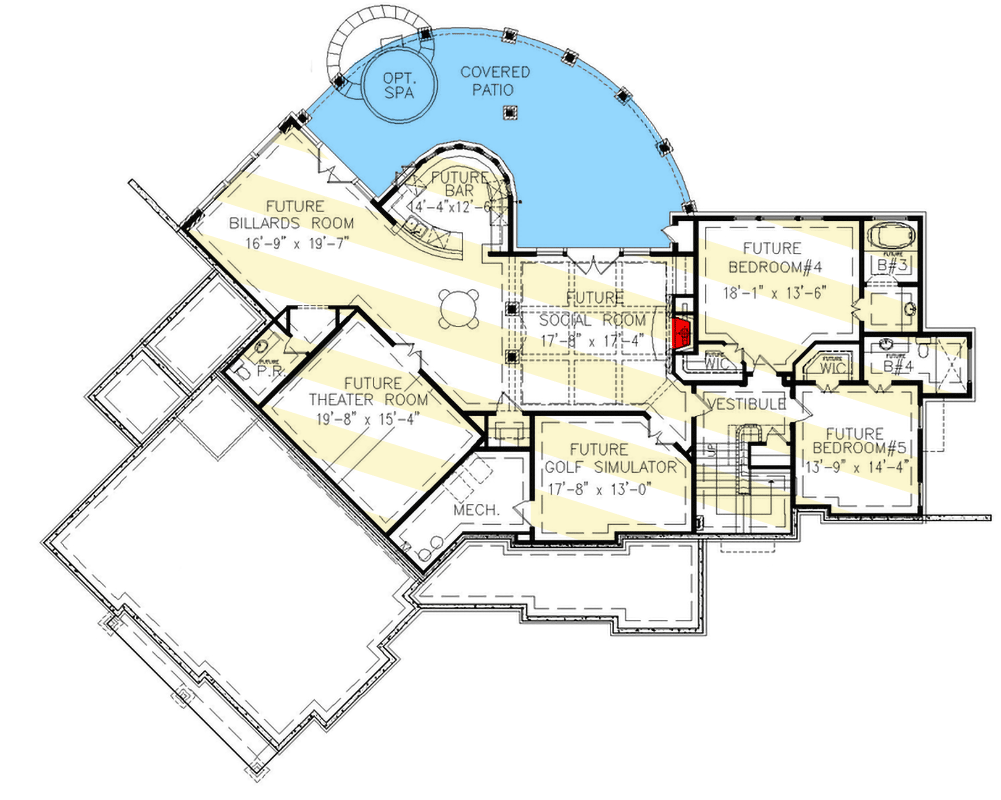

The optional lower level adds two additional bedrooms, with a home theater, a flex space, and a large open living area adding a total of 2768 square feet if finished.
Related Plans: Get a larger lower level with house plan 15697GE and get a 2,168 sq. ft. upper level with house plan 15688GE. Save money by straightening the curved features with house plan 15689GE (upper loft) and 15793GE. Save money with these versions with unfinished lower levels you can complete later - 15662GE (2 beds on main, 2 up); 15623GE (3,126 sq. ft.), 15617GE (hip) and 15651GE (gable; both 2,611 sq. ft) and 15626GE (2,587 sq. ft; 3-car garage).

What's Included

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
