Plan 51855HZ

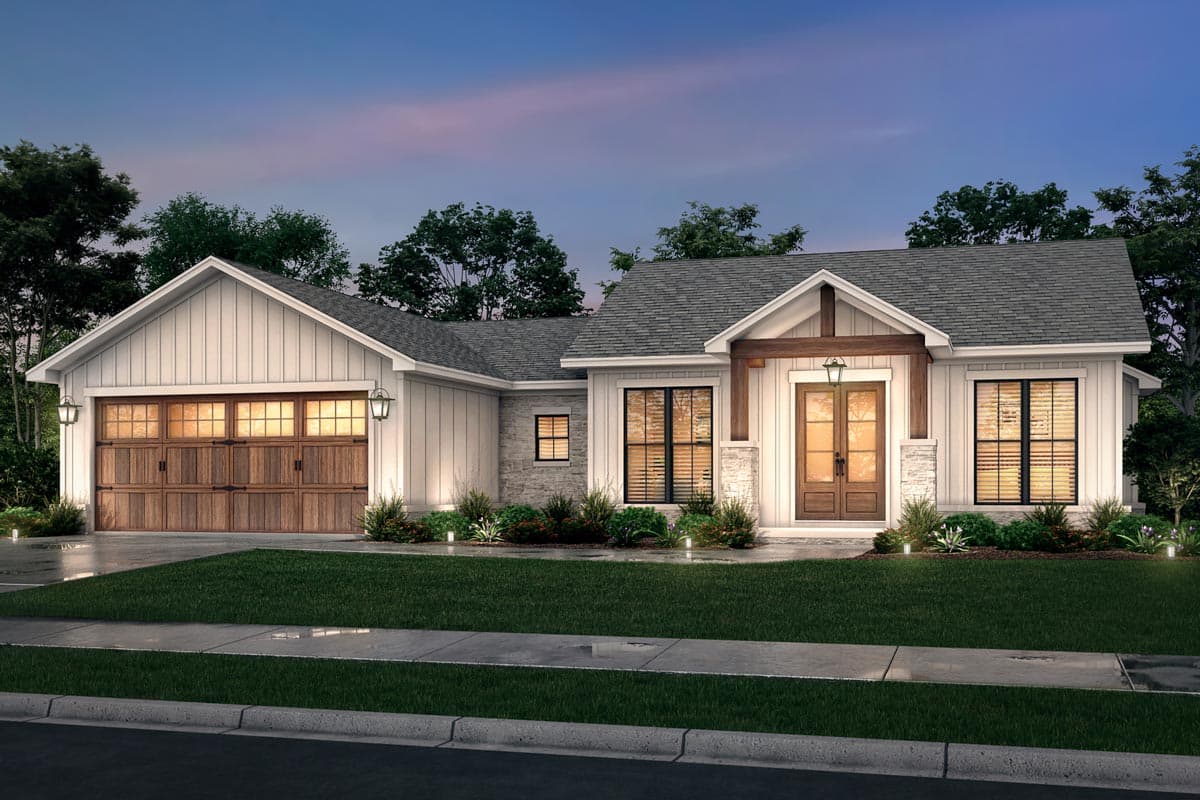

3 Bed Texas Farmhouse Plan with Large Walk-in Pantry - 1599 Sq Ft
Heated S.F.
1,599
Beds
3
Baths
2.5
Stories
1
Cars
2
Photos
Floor Plan

Plan 51855HZ

Main Level
slide image 0
Main Level - Basement Stairs Location
slide image 1
Unfinished Basement
slide image 2

Plan 51855HZ

1-800-854-7852

1-262-521-4596

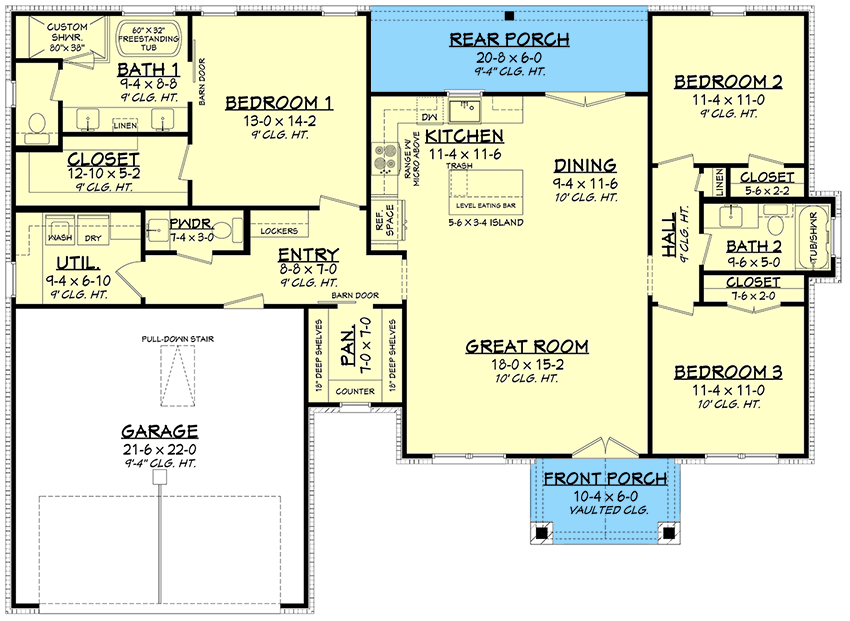

Main Level
floor plan image Main Level

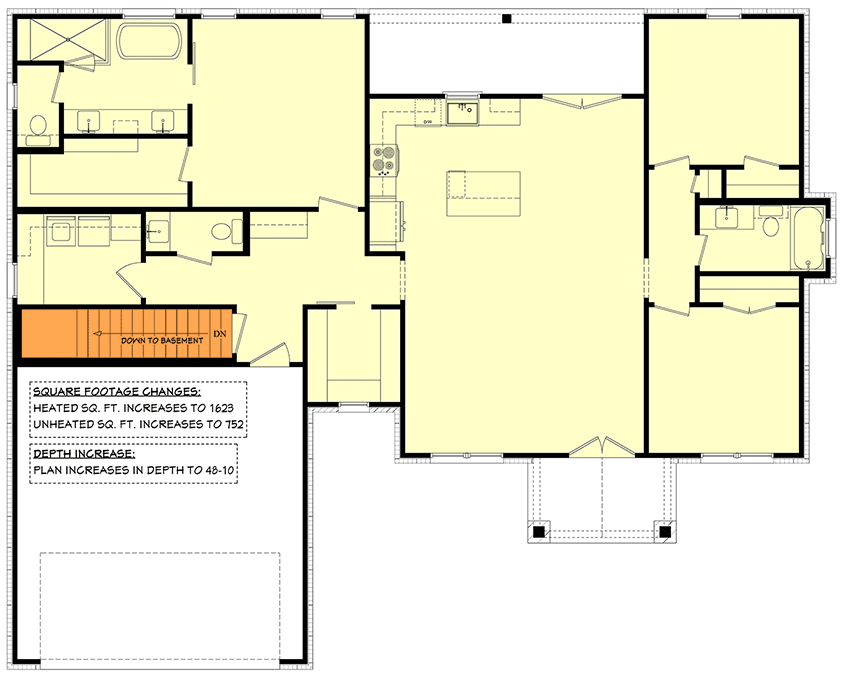

Main Level - Basement Stairs Location
floor plan image Main Level - Basement Stairs Location

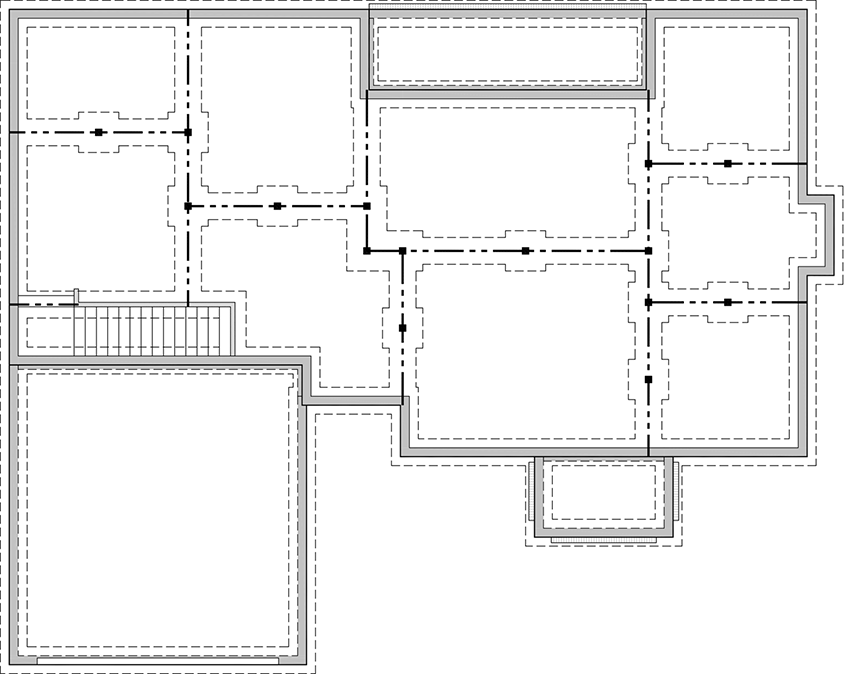

Unfinished Basement
floor plan image Unfinished Basement
Plan Details
  • This beautiful Texas Farmhouse plan offers 3 bedrooms, 2.5 baths along with an open design and large walk-in pantry.
  • The kitchen has a large island and is open to the rest of the home for easy entertaining.
  • Bedroom 1 offers a large bath along with oversized closet. The rear entry has lockers for organization and a powder room that is  conveniently located.
  • The utility room offers cabinets and much needed counterspace for all your laundry needs.
  • The guest bedrooms are adequately sized and offers a bath along with a linen closet for storage.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

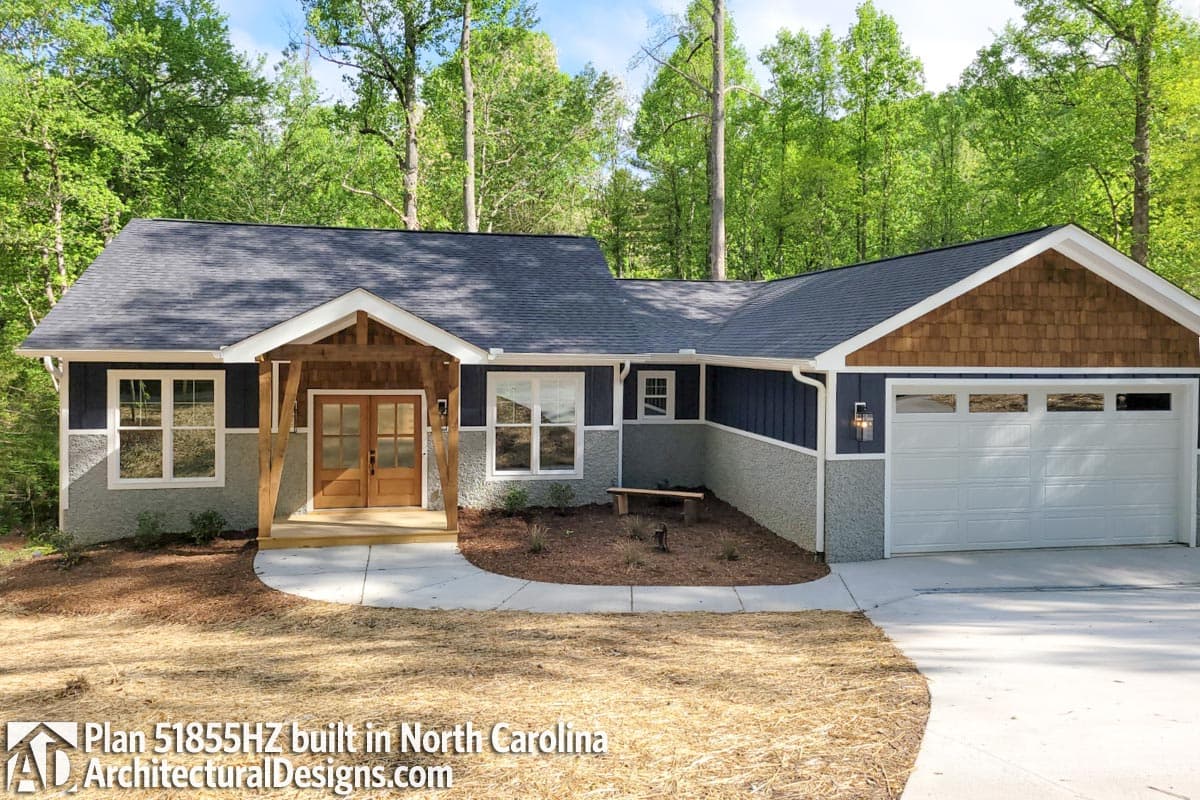

build gallery item - House Plan 51855HZ comes to life in North Carolina!

House Plan 51855HZ comes to life in North Carolina!

14

Photos

What's Included
This house plan has 11 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

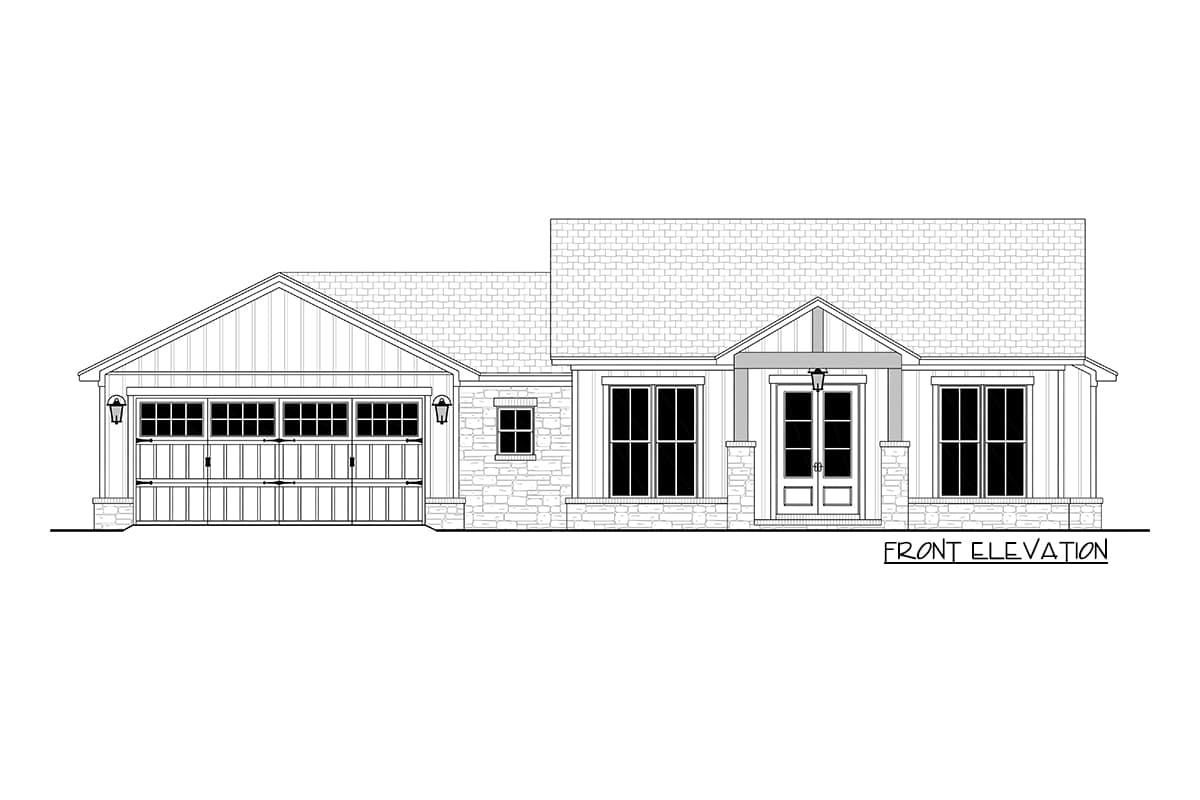

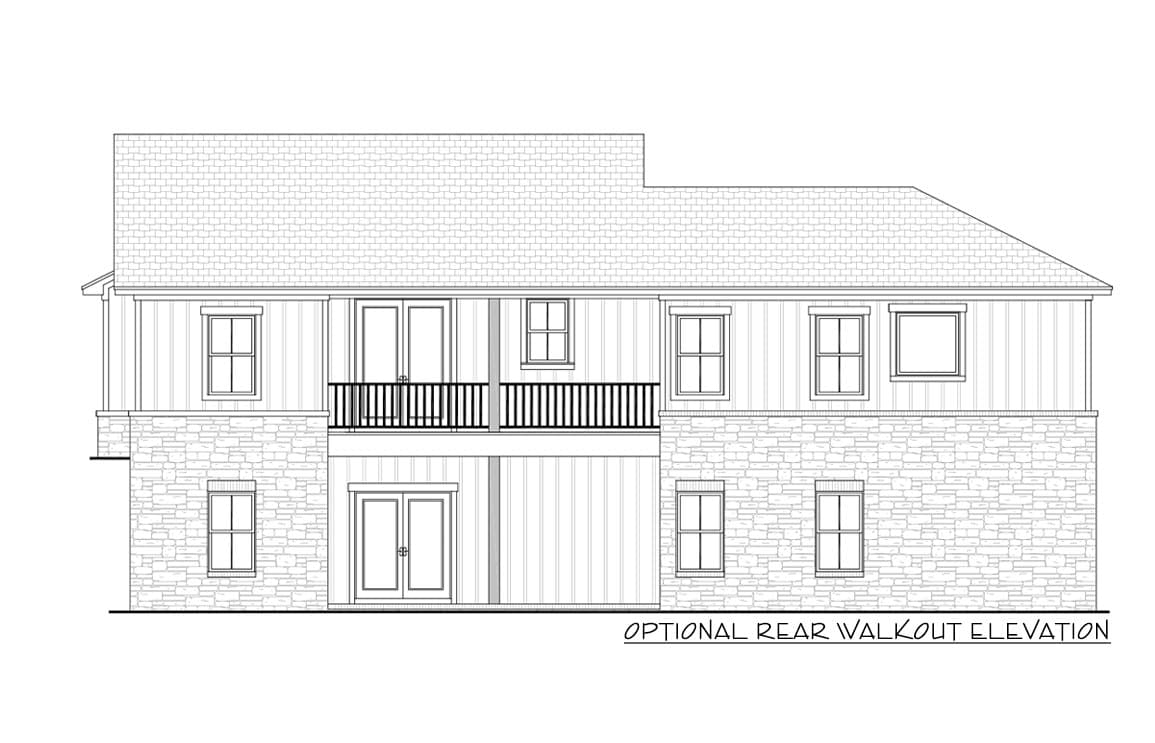

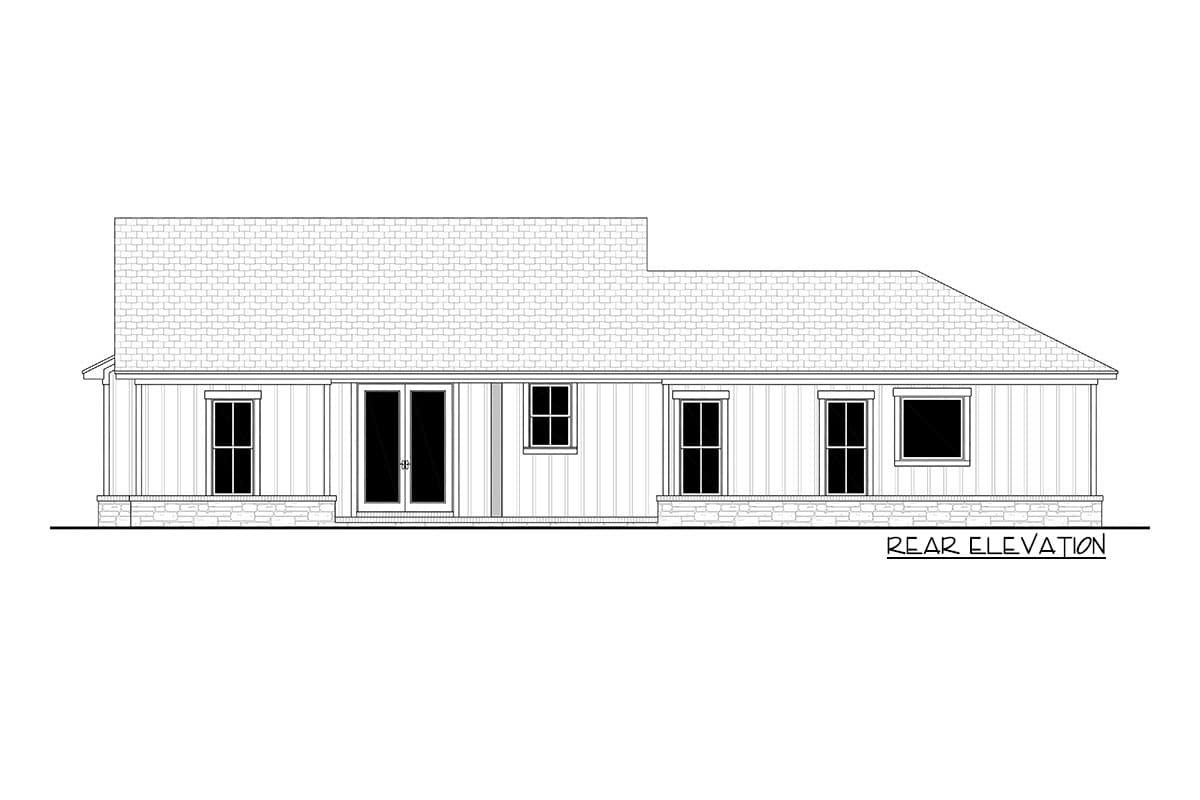

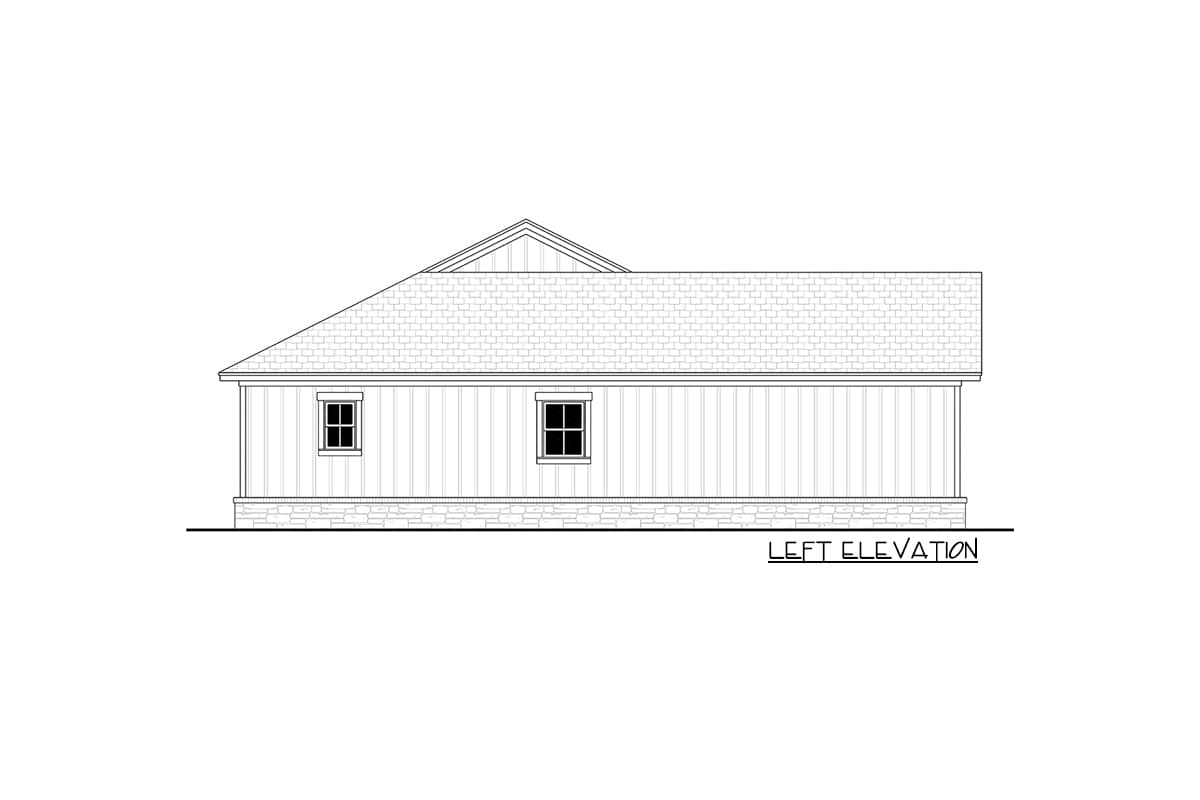

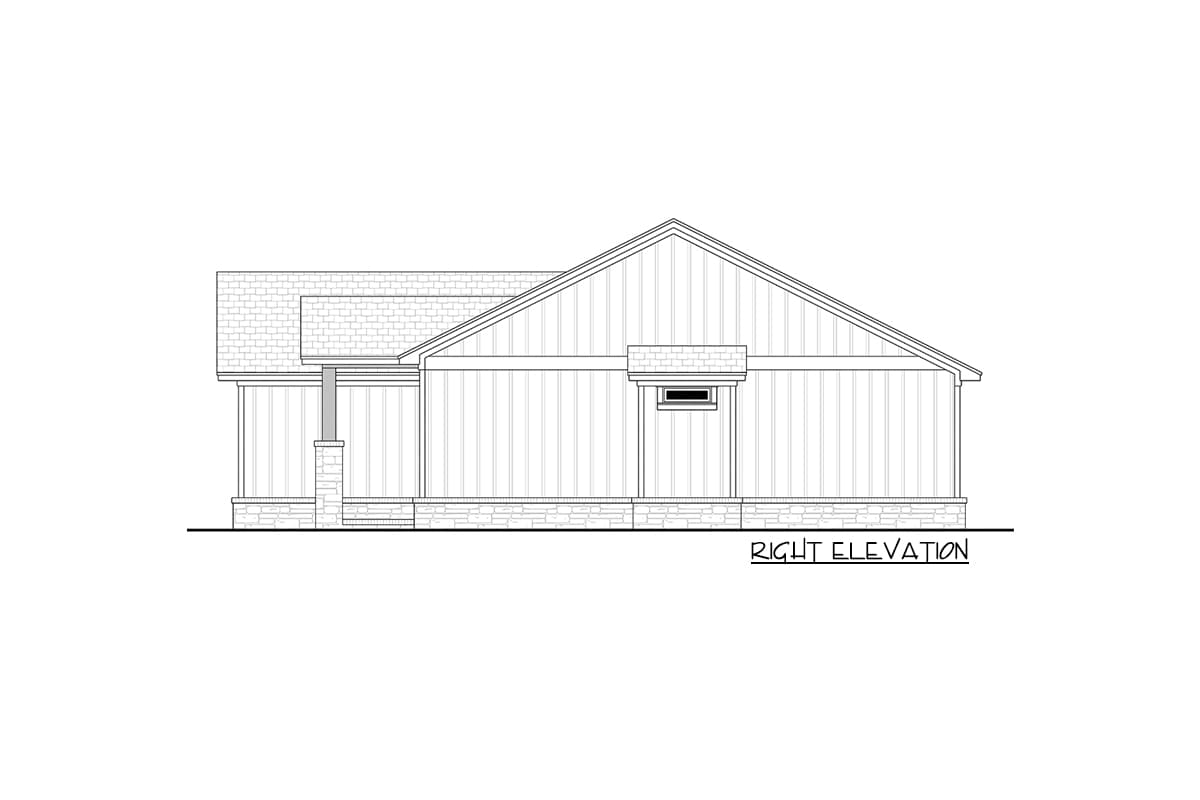

Page 4  Exterior views with additional notes and details
Page 5  Cross Section & kitchen cabinet views
Page 6  Roof plan and span charts with additional details
Page 7  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,599 sq. ft.

1st Floor

1,599 sq. ft.

Porch, Front

62 sq. ft.

Porch, Rear

124 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 6"

Depth

44' 6"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

493 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Room

Ceiling Type

Height

Great Room

10' 0''

Dining Room

10' 0''

Kitchen

10' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Hill Country

New American

Ranch

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
