Plan 421512CHD

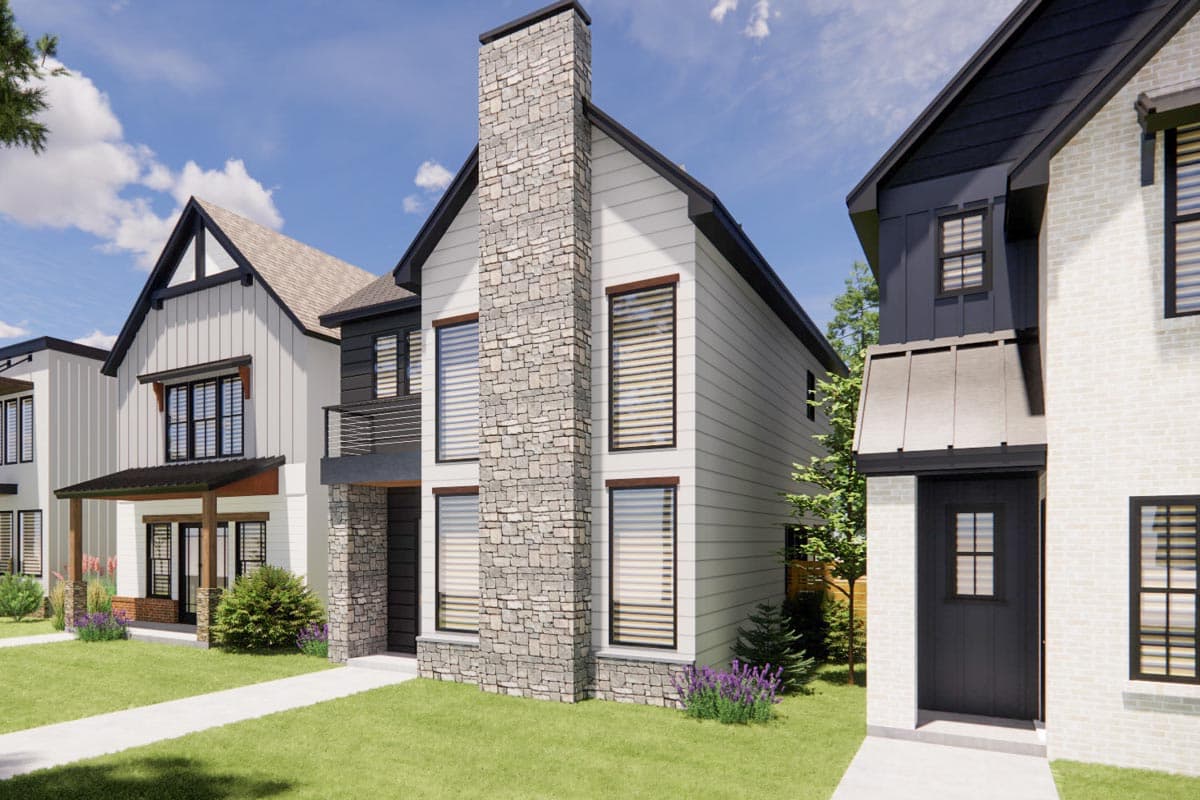

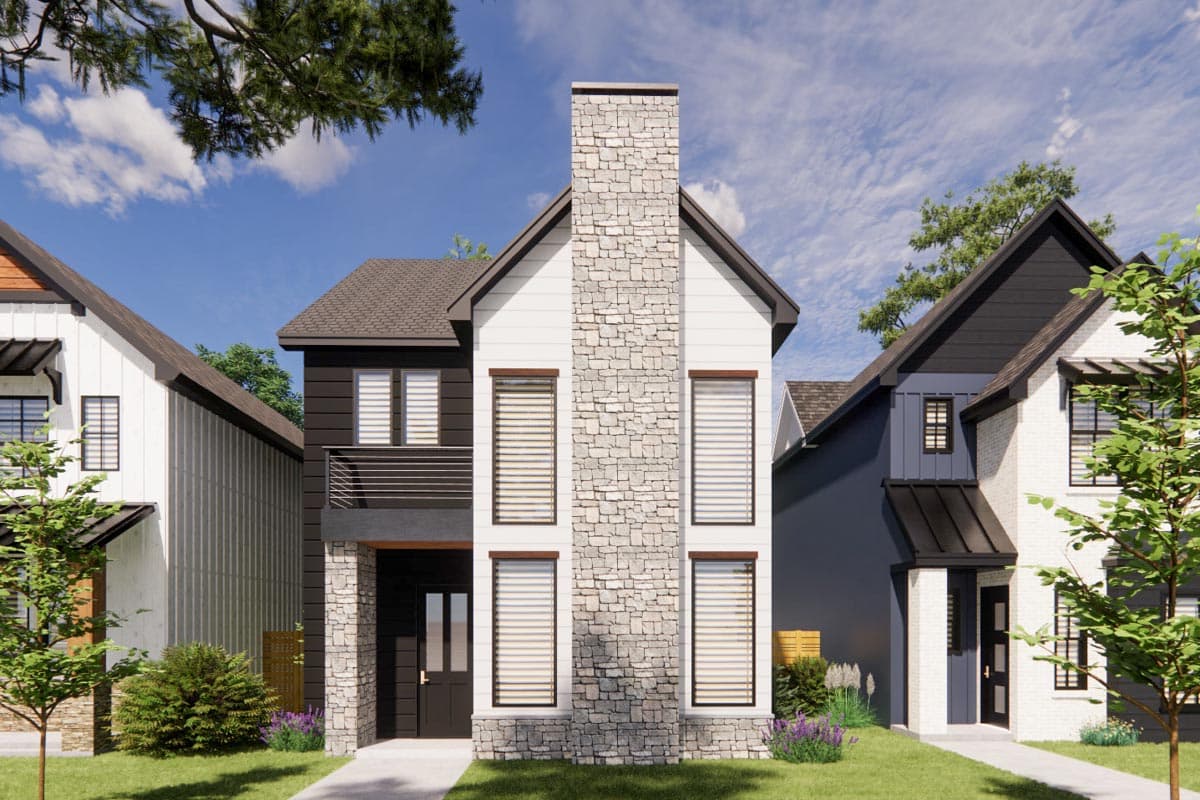

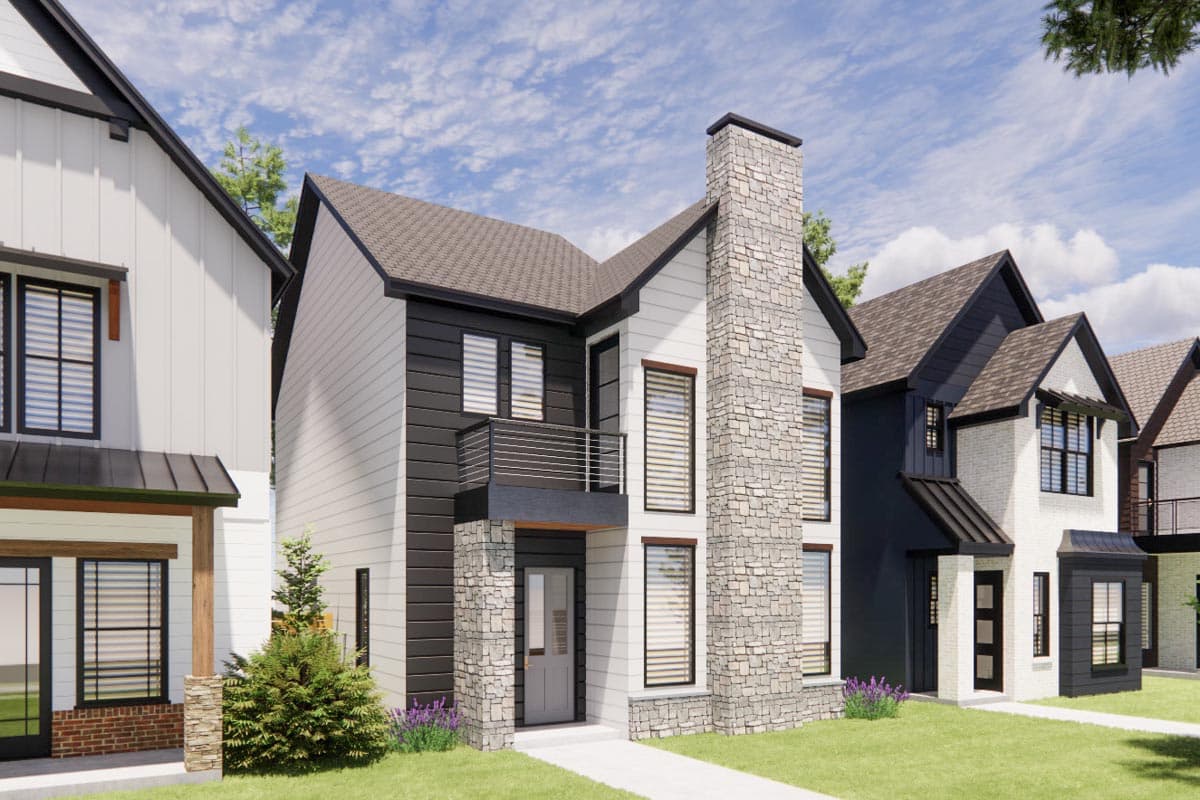

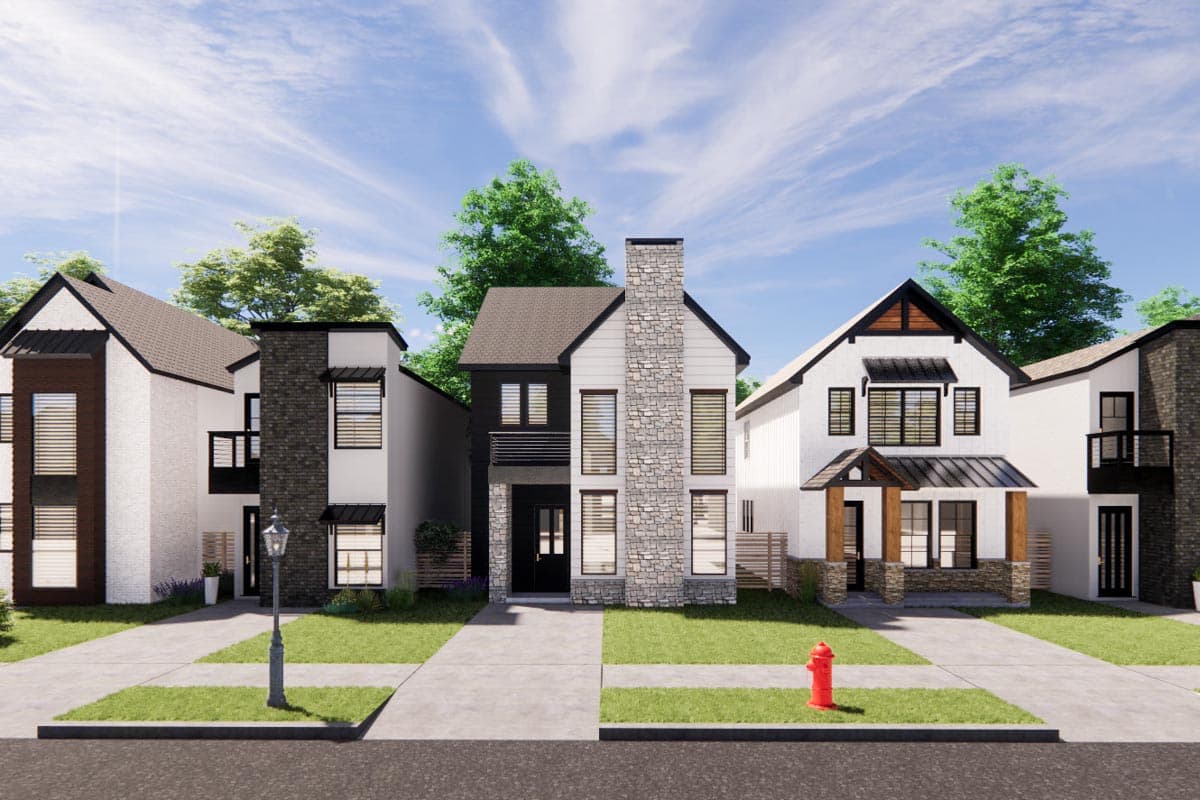

3-Bed Townhome Plan with 2-Bed Apartment Above Garage
Heated S.F.
1,607
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2
Floor Plan

Plan 421512CHD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 421512CHD

1-800-854-7852

1-262-521-4596

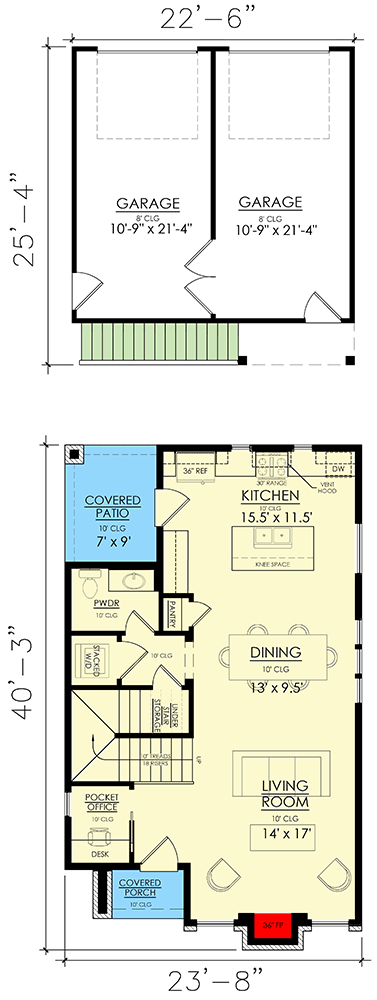

Main Level
floor plan image Main Level

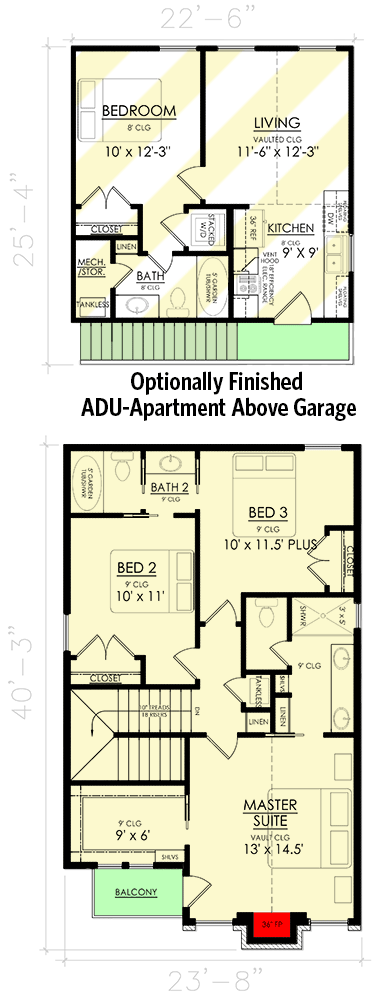

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 23'8"-wide house plan is great for your narrow lot. It gives you 3 beds and 2.5 baths in the main home and a separate 2-bed apartment above the detached garage in back.
  • The main floor is open concept with the living room flowing seamlessly to the kitchen in back with dining in-between. A pocket office, laundry and powder room are strategically placed on the left side of the home along with a 7' by 9' covered patio in back.
  • Upstairs, the vaulted master suite is in front and two bedrooms in back share a Jack and Jill bath.

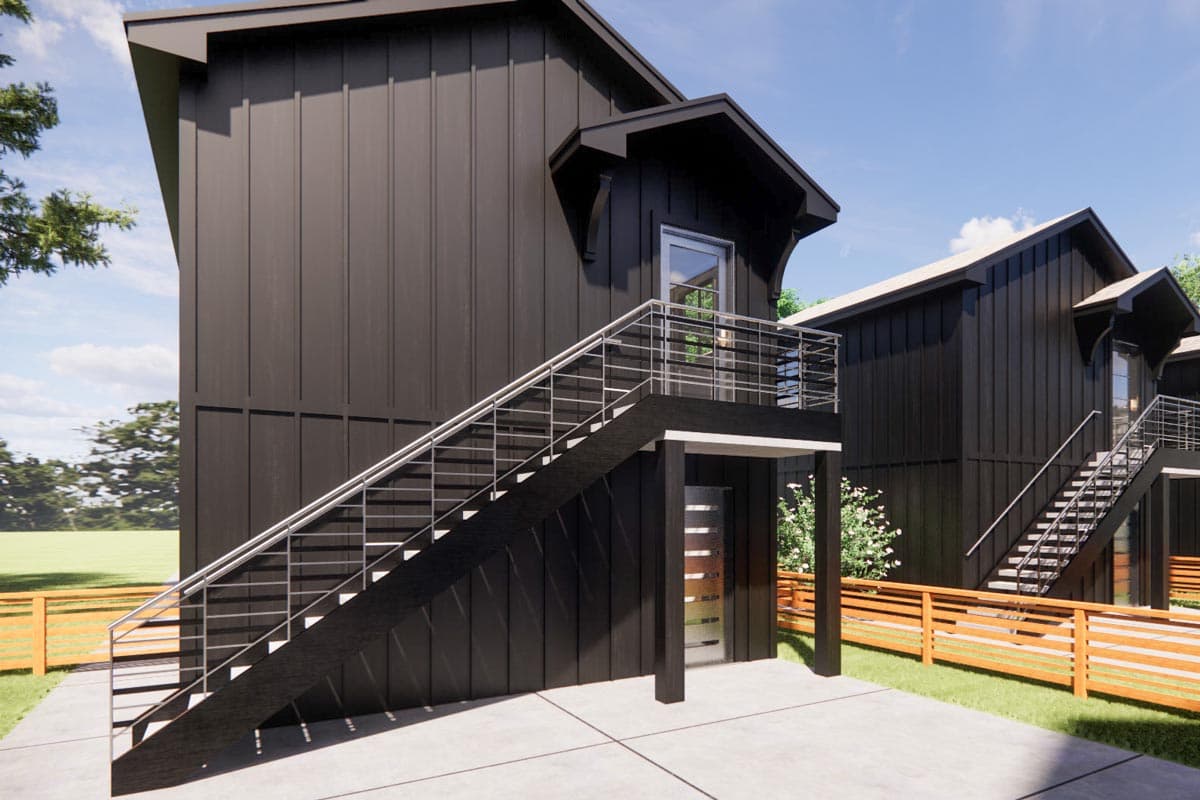

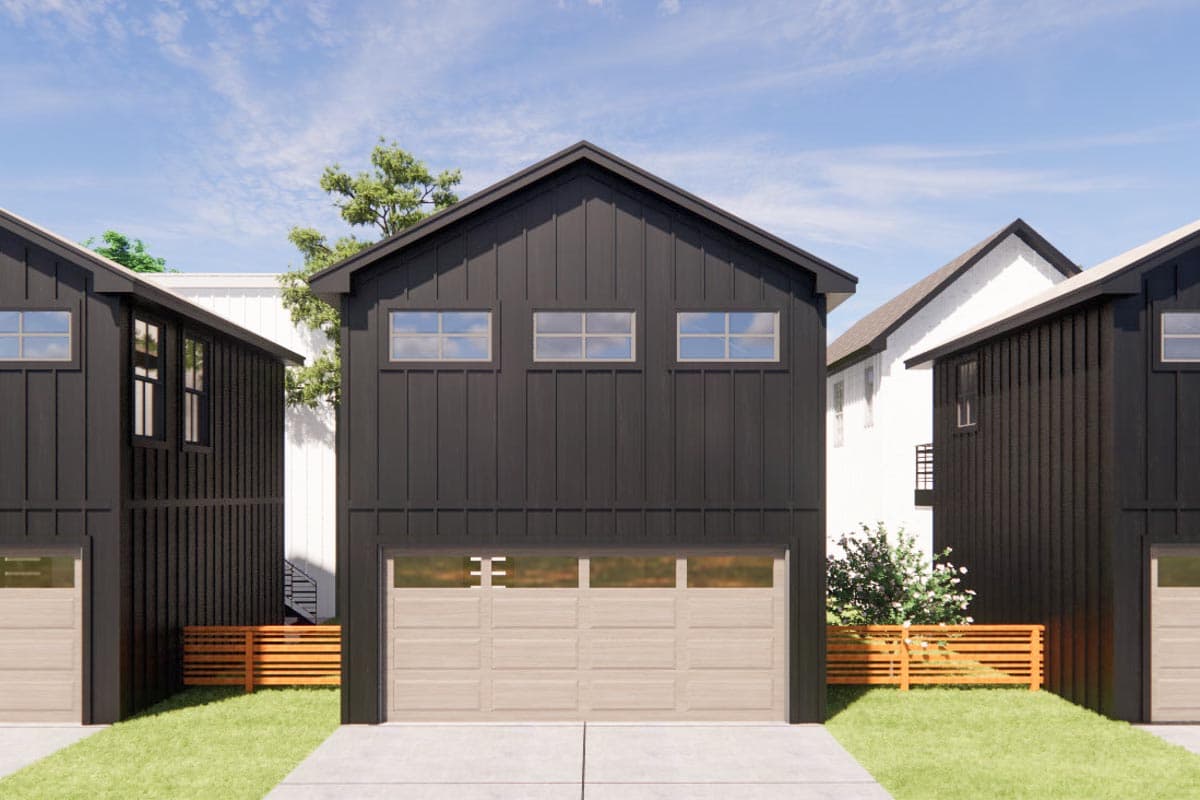

  • Behind the home, an external staircase runs in back of the rear-facing 2-car detached garage and takes you to the 2-bed apartment above, perfect for use as a rental, an ADU, in-law or nanny space.
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,607 sq. ft.

1st Floor

809 sq. ft.

2nd Floor

798 sq. ft.

Apartment

495 sq. ft.

Porch, Front

28 sq. ft.

Porch, Rear

68 sq. ft.

Balcony / Veranda

28 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

23' 8"

Depth

40' 3"

Garage

Type

Detached

Area

495 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

New American

Transitional

Special Features

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Plan Collections

Attached Apartments
