Plan 52349WM
3-Bed Traditional Home Plan Under 1900 Sq Ft with Great Room
Heated S.F.
1,844
Beds
3
Baths
2.5
Stories
2
Cars
1

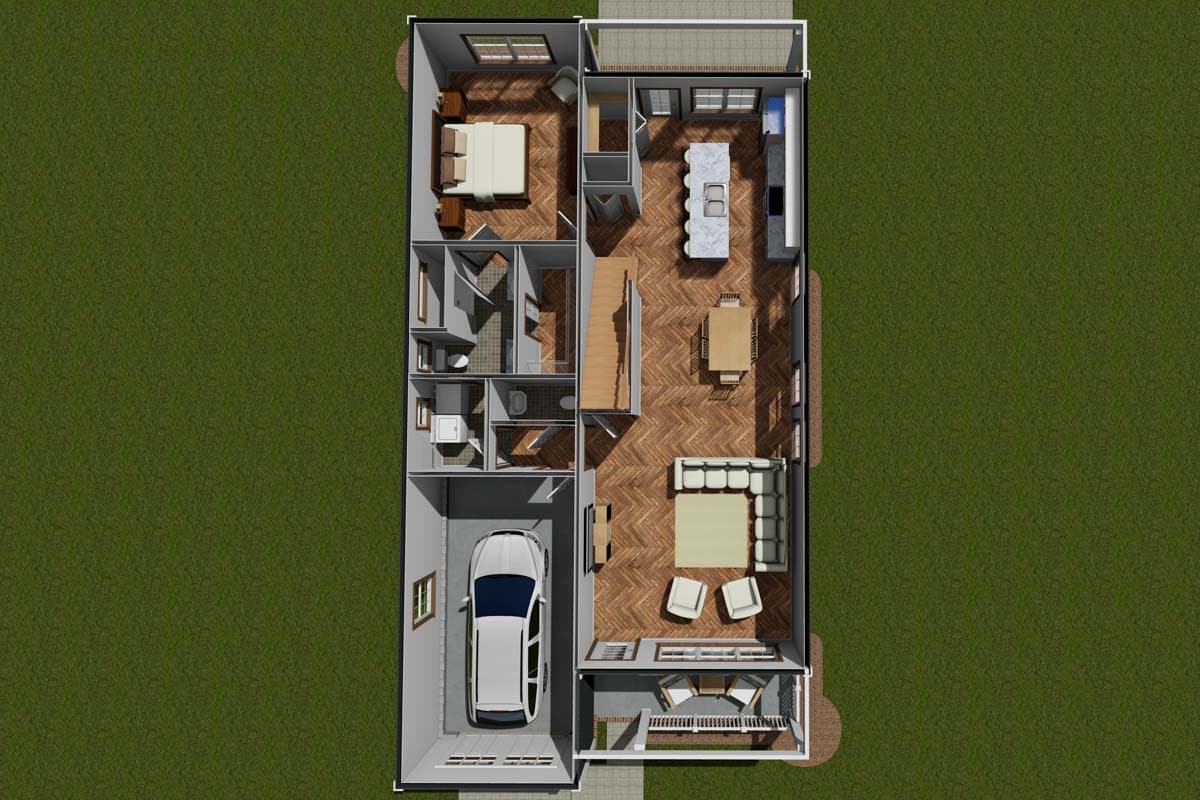

Floor Plan

Plan 52349WM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 52349WM

1-800-854-7852

1-262-521-4596

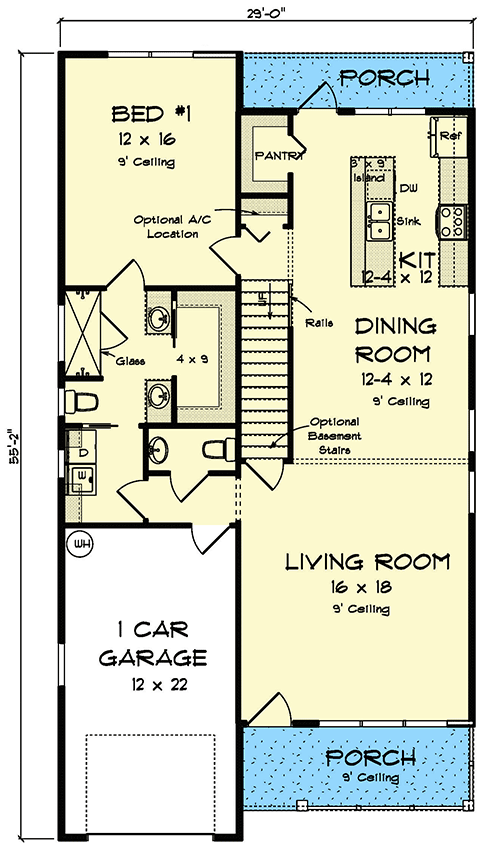

Main Level
floor plan image Main Level

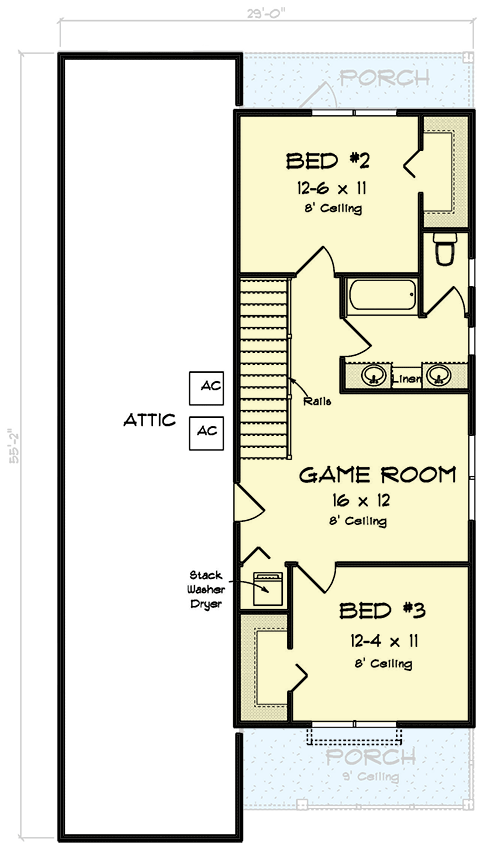

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3 bed, 2.5 bath traditional house plan gives you 1844 square feet of heated living and 1-car front load garage (278 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,844 sq. ft.

1st Floor

1,125 sq. ft.

2nd Floor

719 sq. ft.

Porch, Front

98 sq. ft.

Porch, Rear

65 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

29' 0"

Depth

55' 2"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

278 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor
