3-Bed Traditional House Plan for Narrow Lot with Rear Entry Garage - 1645 Sq Ft
Heated S.F.
1,645
Beds
3
Baths
2.5
Stories
2
Cars
1
Tour
Floor Plan

Plan 623399DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 623399DJ

1-800-854-7852

1-262-521-4596

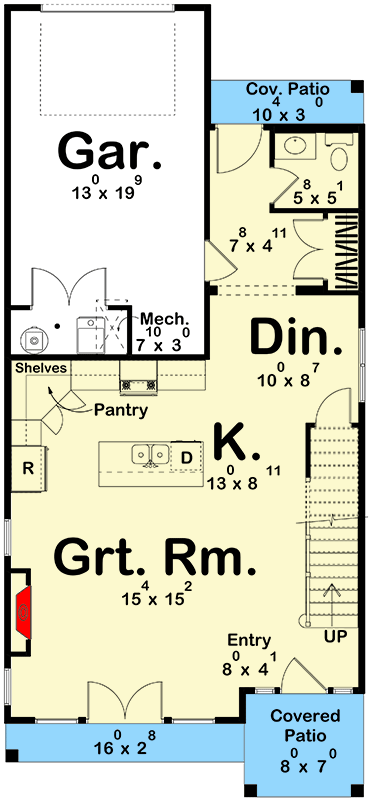

Main Level
floor plan image Main Level

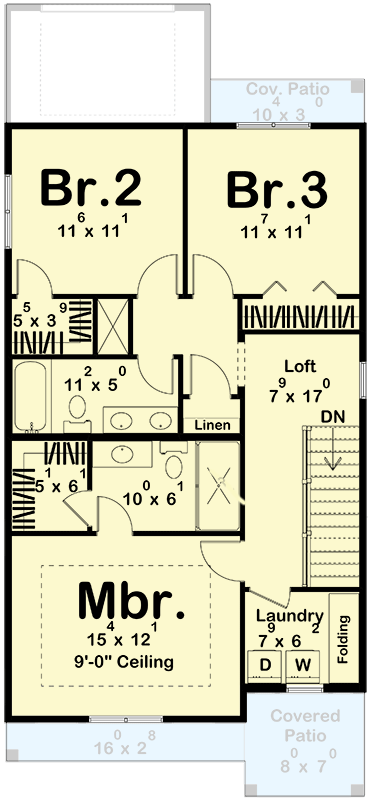

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This charming two-story home that seamlessly blends traditional style with modern amenities.
  • This thoughtfully designed residence offers three spacious bedrooms and three bathrooms, providing ample space and comfort for your family.
  • Step into the welcoming great room, where a fireplace creates a warm and inviting atmosphere, perfect for relaxing evenings and family gatherings.
  • The covered patio at the front of the house adds to the home's curb appeal and provides a lovely spot for enjoying morning coffee or evening sunsets.
  • Upstairs, convenience reigns with a dedicated laundry room strategically located near the bedrooms, making daily chores easier and more efficient. Each bedroom offers ample space and comfort, ensuring everyone in the family has their own private retreat.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,645 sq. ft.

1st Floor

739 sq. ft.

2nd Floor

906 sq. ft.

Porch, Combined

129 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

53' 0"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

290 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,645 sq. ft.

1st Floor

739 sq. ft.

2nd Floor

906 sq. ft.

Porch, Combined

129 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

53' 0"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

290 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
