Plan 62776DJ
3-Bed Traditional House Plan with 4-Car Garage - 1617 Sq Ft
Heated S.F.
1,617
Beds
3
Baths
2
Stories
1
Cars
4
Tour
Floor Plan

Plan 62776DJ

Main Level
slide image 0

Plan 62776DJ

1-800-854-7852

1-262-521-4596

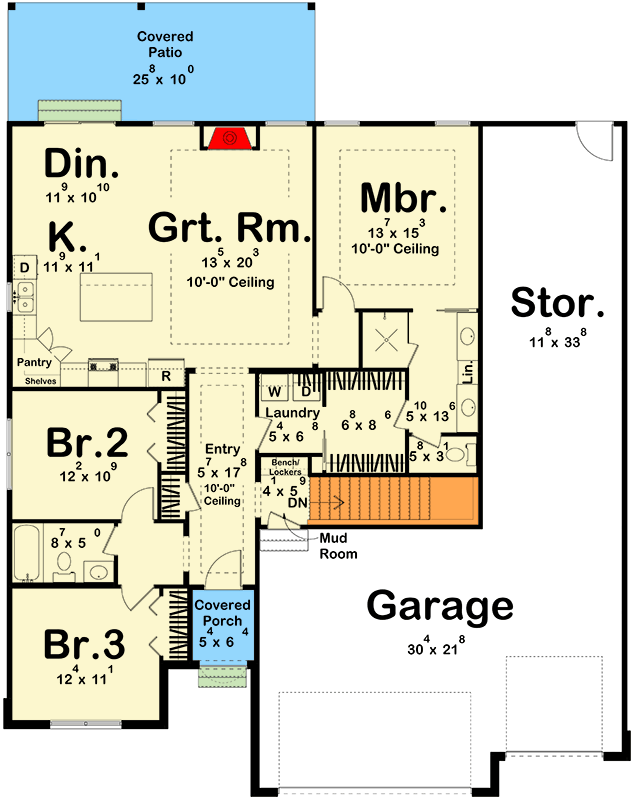

Main Level
floor plan image Main Level
Plan Details

  • A tasteful array of exterior textures complements the smart interior design of this 3-bed house plan.  A covered front stoop leads guests inside, where an alcove just off the entry hall reveals two secondary bedrooms and a central bath.  Further inside lies the kitchen, dining area, and great room, which share one large, open space.
  • The great room enjoys bright views to the rear through large windows, and it warms the atmosphere with its cozy fireplace. The kitchen boasts an island work area, ample counter space, and a roomy walk-in pantry.  The dining area accesses the rear through sliding glass doors.
  • The master suite is secluded from the main living areas and enjoys private separation from the secondary bedrooms.  The master bath features his-and-her vanities, separated by a linen closet, a compartmented toilet, shower and a walk-in closet with access to the laundry room.
  • The home's 4-car garage is accessed through a utility area which includes a mudroom, complete with bench, lockers.

What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,617 sq. ft.

1st Floor

1,617 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

66' 0"

Garage

Type

Attached

Area

1056 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,617 sq. ft.

1st Floor

1,617 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

66' 0"

Garage

Type

Attached

Area

1056 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
