Plan 710312BTZ
3-Bed Traditional House Plan with Bonus Room Upstairs
Heated S.F.
2,097
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 710312BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710312BTZ

1-800-854-7852

1-262-521-4596

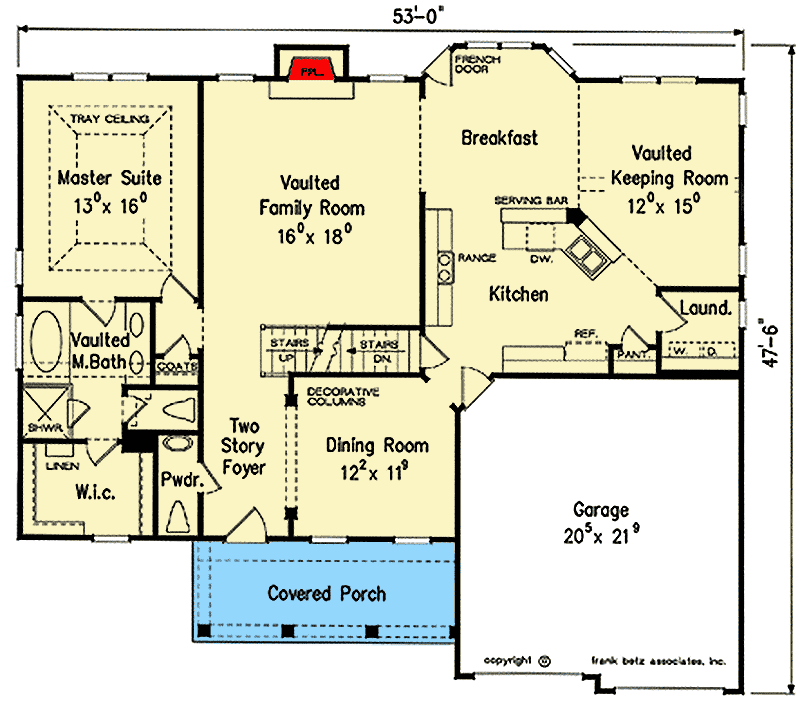

Main Level
floor plan image Main Level

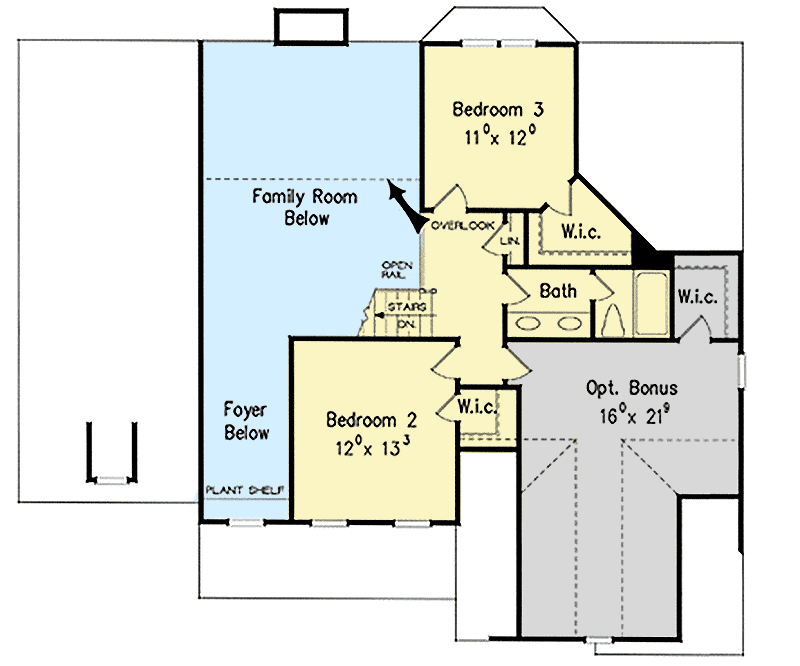

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A traditional exterior of clapboard siding and a covered front porch greets you to this 3-bed house plan. Inside, functionality pairs up with today's demands to create a wonderfully practical and beautiful home.
  • A casual and cozy keeping room is an extension of the kitchen area. This space, combined with a vaulted family room gives families plenty of gathering places to spend their time.
  • An optional bonus room on the upper floor can be personalized to the needs of each homeowner. A playroom, home office or gym would all be easily accommodated by this space.
What's Included

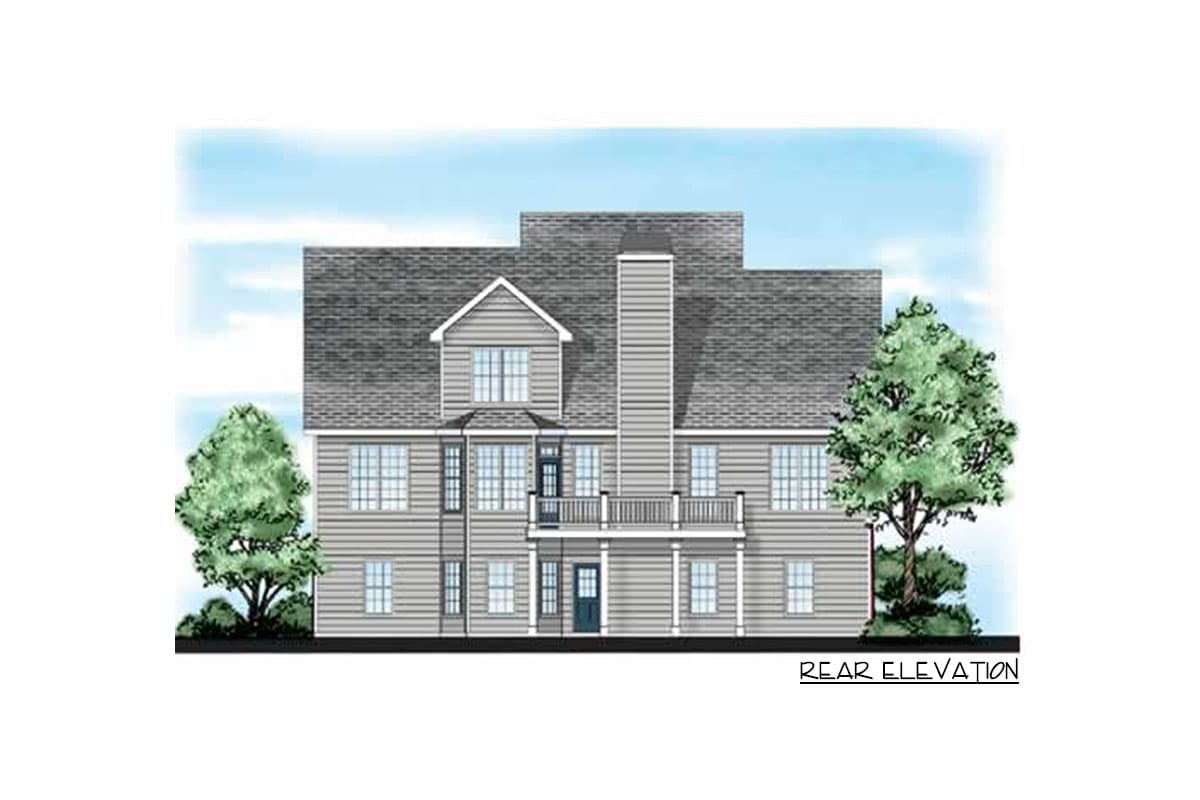

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,097 sq. ft.

1st Floor

1,579 sq. ft.

2nd Floor

518 sq. ft.

Basement Unfinished

1,579 sq. ft.

Bonus

360 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

47' 6"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

466 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Home Office

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,097 sq. ft.

1st Floor

1,579 sq. ft.

2nd Floor

518 sq. ft.

Basement Unfinished

1,579 sq. ft.

Bonus

360 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

47' 6"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

466 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Home Office

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Plan Collections

Home Office
