Plan 493013GNT
3-Bed Traditional House Plan with Oversized Master Walk-In Closet - 3021 Sq Ft
Heated S.F.
3,021
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 493013GNT

Main Level
slide image 0

Plan 493013GNT

1-800-854-7852

1-262-521-4596

Main Level

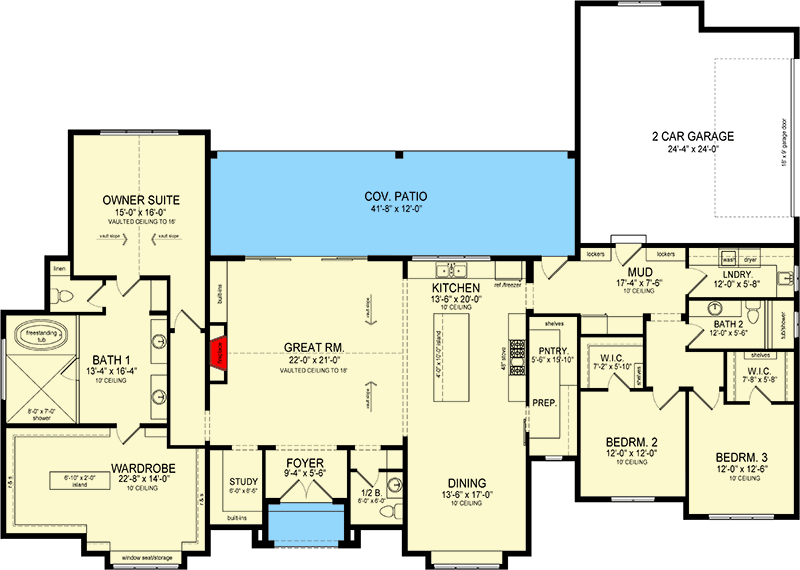

floor plan image Main Level
Plan Details
  • This traditional house plan offers you 3,021 square feet of heated living space, 3 beds, 2.5 full baths and a 664 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • General Notes
  • Foundation Plan
  • Main Level/Second Level (if applicable) door and window schedules
  • Fully Dimensioned Floor Plans
  • Elevations
  • Exterior Perspective Views
  • Building Section
  • Typical Construction Details
  • Bird's Eye Roof Plan
  • Suggested Electrical Layout (Outlets, Fixtures, Switches)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,021 sq. ft.

1st Floor

3,021 sq. ft.

Porch, Rear

500 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 8"

Depth

64' 6"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

664 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 14

Secondary Pitch

12 on 4

Framing Type

Stick And Truss

Architectural Style

European

French Country

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,021 sq. ft.

1st Floor

3,021 sq. ft.

Porch, Rear

500 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 8"

Depth

64' 6"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

664 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 14

Secondary Pitch

12 on 4

Framing Type

Stick And Truss

Architectural Style

European

French Country

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
