Plan 59887ND
3 Bed Traditional House Plan with Third Floor Bonus Expansion - 2760 Sq Ft
Heated S.F.
2,760
Beds
3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 59887ND

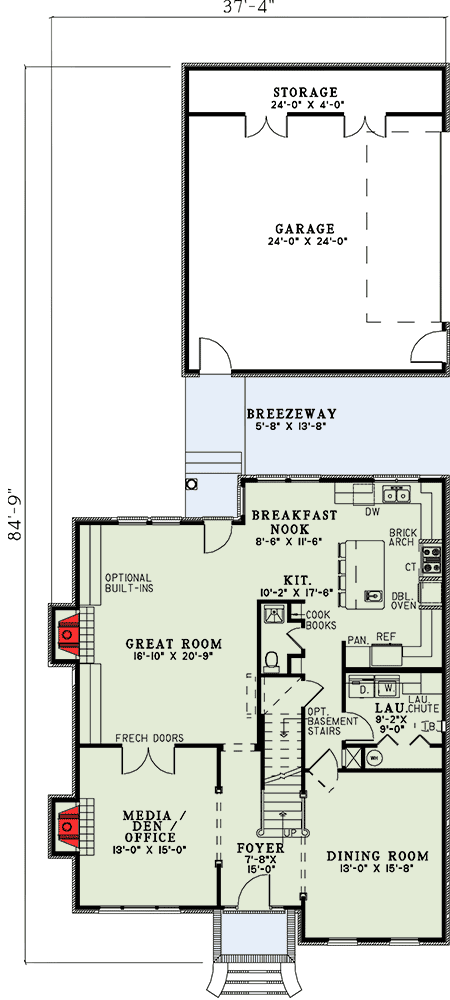

Main Level
slide image 0

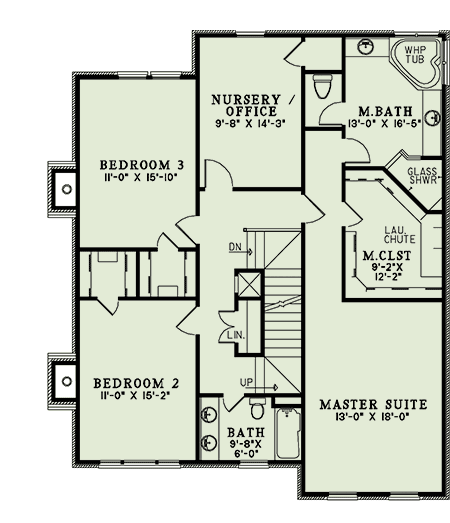

2nd Floor
slide image 1
Bonus Third Level
slide image 2

Plan 59887ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Bonus Third Level
floor plan image Bonus Third Level
Plan Details
  • This 3 bed, 3 bath house plan gives you 2,760 square feet of heated living and a third floor bonus room giving you 558 square feet of expansion space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,760 sq. ft.

1st Floor

1,404 sq. ft.

2nd Floor

1,356 sq. ft.

Bonus

558 sq. ft.

Entry

78 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 4"

Depth

84' 9"

Max Ridge Height

36' 6"

Garage

Type

Attached

Area

715 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

Colonial

Special Features

Bonus Room

Breakfast Nook

Den

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Media Room
