Plan 147028RML
3-Bed Traditional Ranch House Plan with Den or Office - 2439 Sq Ft
Heated S.F.
2,439
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 147028RML

Main Level
slide image 0

Plan 147028RML

1-800-854-7852

1-262-521-4596

Main Level

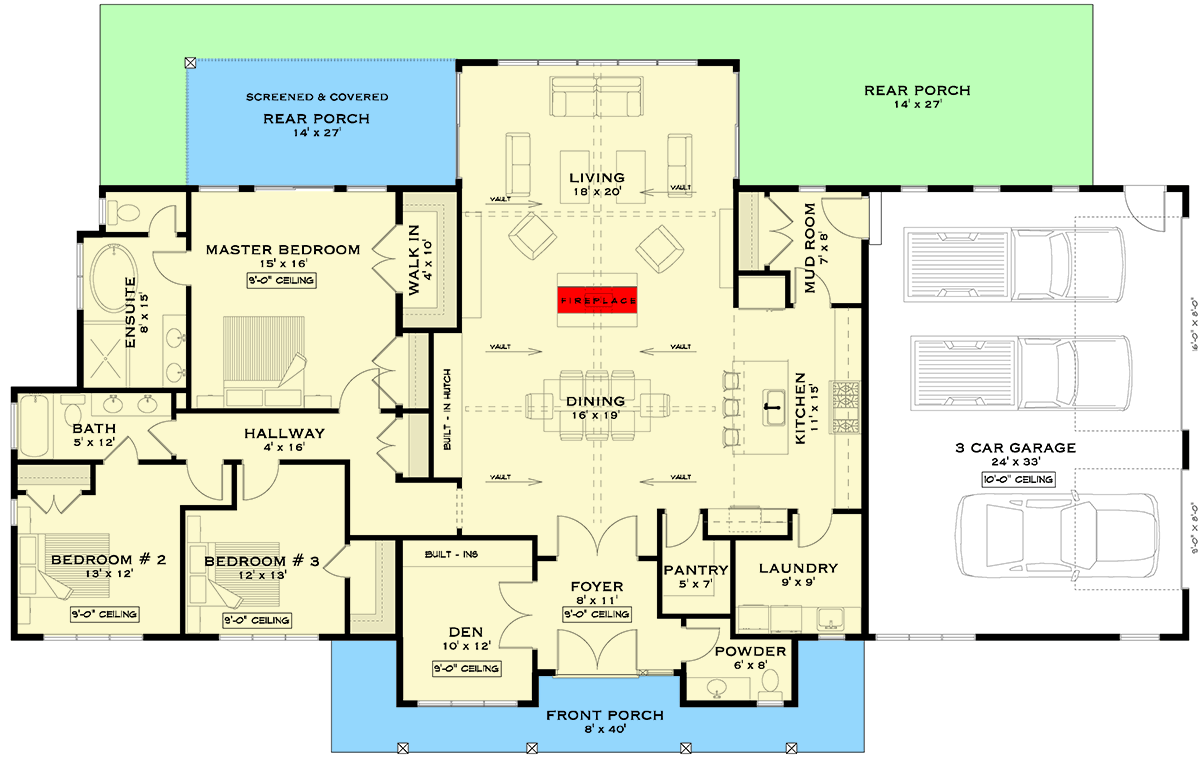

floor plan image Main Level
Plan Details
  • This traditional ranch house plan offers you 2,439 square feet of heated living space with 3 beds, 2.5 baths and a 838 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,439 sq. ft.

1st Floor

2,439 sq. ft.

Porch, Front

2,217 sq. ft.

Porch, Rear

835 sq. ft.

Porch, Combined

1,052 sq. ft.

Screened Porch

203 sq. ft.

Deck & Porch

1,052 sq. ft.

Entry

88 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 7"

Depth

52' 4"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

838 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

9 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,439 sq. ft.

1st Floor

2,439 sq. ft.

Porch, Front

2,217 sq. ft.

Porch, Rear

835 sq. ft.

Porch, Combined

1,052 sq. ft.

Screened Porch

203 sq. ft.

Deck & Porch

1,052 sq. ft.

Entry

88 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 7"

Depth

52' 4"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

838 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

9 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
