Plan 833021WAT

Exclusive

3-Bed Traditional Ranch House Plan with Formal Dining Area - 1857 Sq Ft
Heated S.F.
1,857
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 833021WAT

Main Level
slide image 0

Plan 833021WAT

1-800-854-7852

1-262-521-4596

Main Level

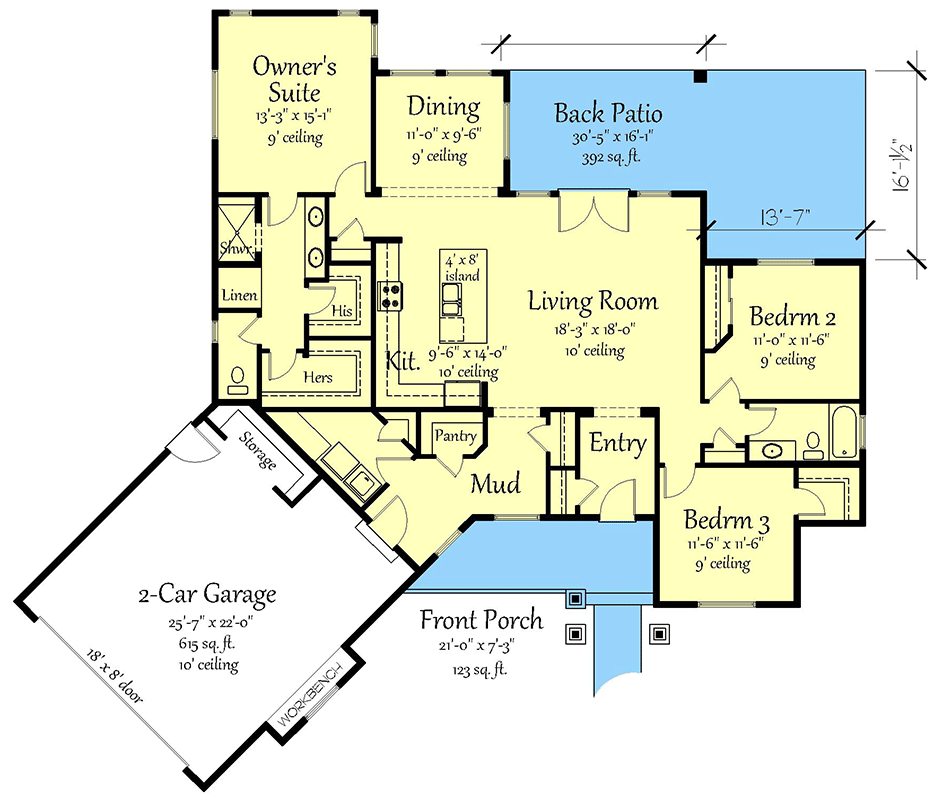

floor plan image Main Level
Plan Details
  • This 3-bedroom traditional ranch house plan offers a practical layout with thoughtful features for comfortable living. The grand living room, with high ceilings, clerestory windows, and French doors to a spacious back patio, provides a bright and inviting space for relaxation or entertaining.
  • The kitchen serves as the heart of the home, featuring ample counter space, a central island, and a large walk-in pantry for storage. Adjacent is a family dining room with windows that fill the space with natural light.
  • The master suite, set apart from the other bedrooms for privacy, includes dual walk-in closets and a luxurious bathroom with a walk-in shower and linen closet. Two additional bedrooms are located on the opposite side of the house, offering quiet spaces for children or guests.
  • A large laundry room, complete with counter space and a broom closet, enhances functionality, while the 2-car garage provides ample space for vehicles and hobbies. The covered front porch adds curb appeal and a welcoming spot for relaxation.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Floor Plan
  • Elevations
  • Roof Plan
  • Thermal Envelope Plan (General Prescriptive Energy Compliance)
  • Detail Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,857 sq. ft.

1st Floor

1,857 sq. ft.

Porch, Front

123 sq. ft.

Porch, Rear

392 sq. ft.

Porch, Combined

392 sq. ft.

Deck

392 sq. ft.

Covered Patio

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 8"

Depth

66' 8"

Max Ridge Height

17' 5"

Garage

Type

Attached

Area

615 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

10' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Workshop
