Plan 623417DJ
3-Bed Transitional House Plan with 3-Car Garage - 2529 Sq Ft
Heated S.F.
2,529
Beds
3
Baths
3.5
Stories
1
Cars
3
Tour
Floor Plan

Plan 623417DJ

Main Level
slide image 0

Plan 623417DJ

1-800-854-7852

1-262-521-4596

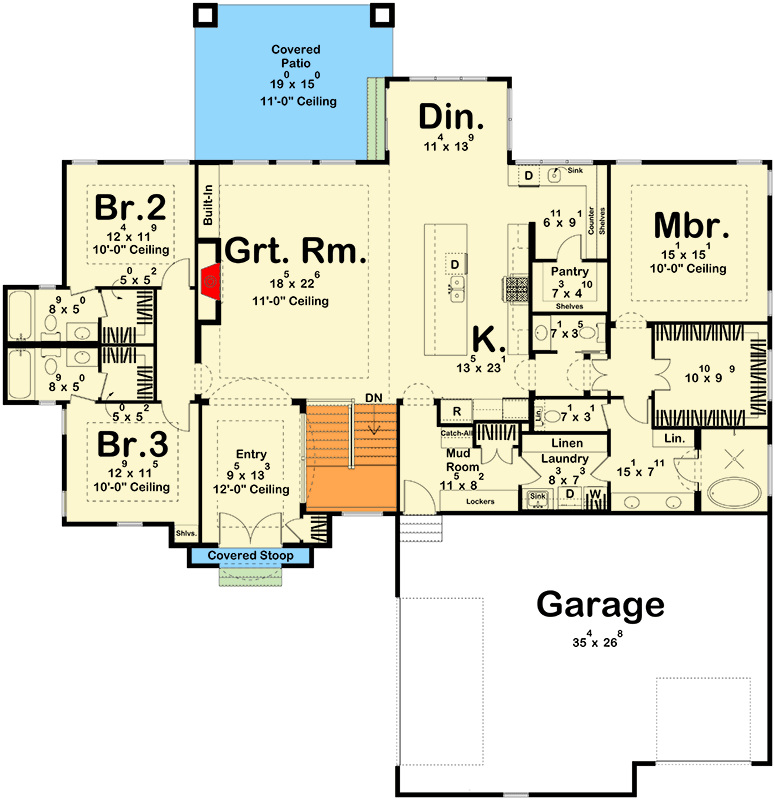

Main Level
floor plan image Main Level
Plan Details
  • This one-story transitional house plan offers you 2,529 square feet of heated living space, with 3 bedrooms, 3.5 bathrooms and a 933 square foot garage with space for 3 vehicles.

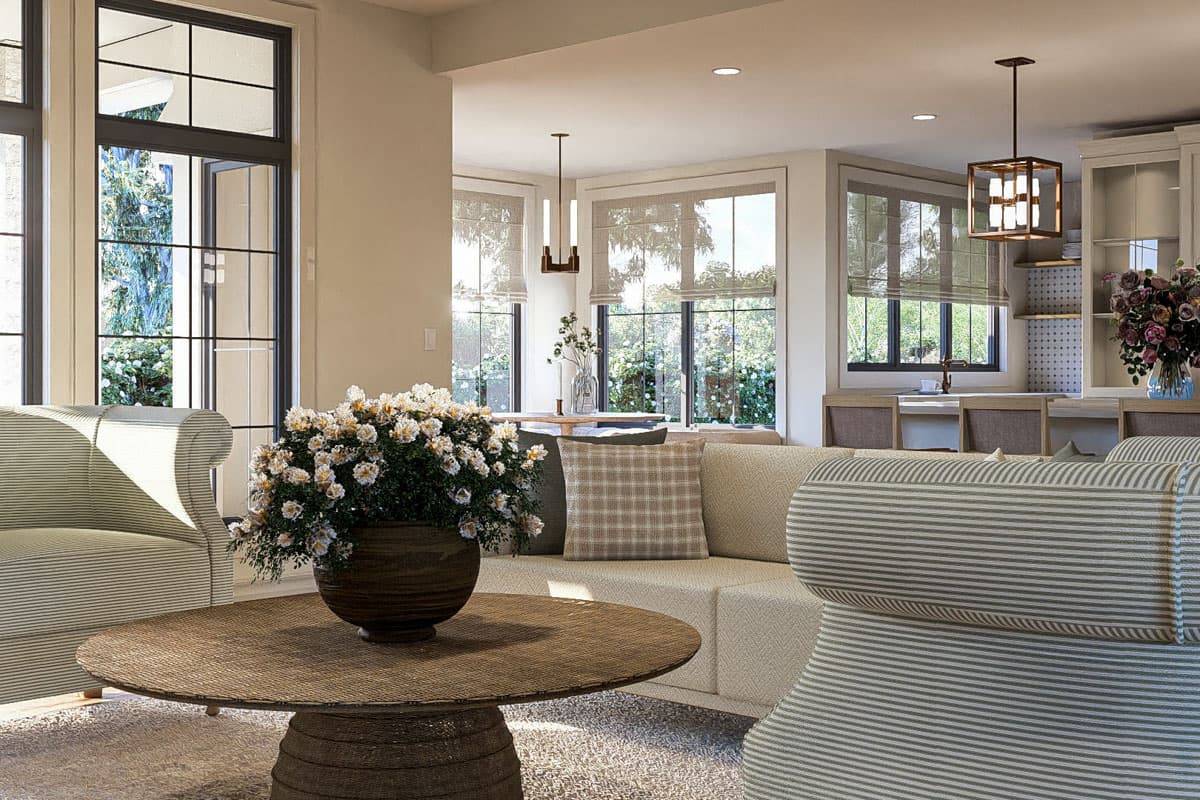

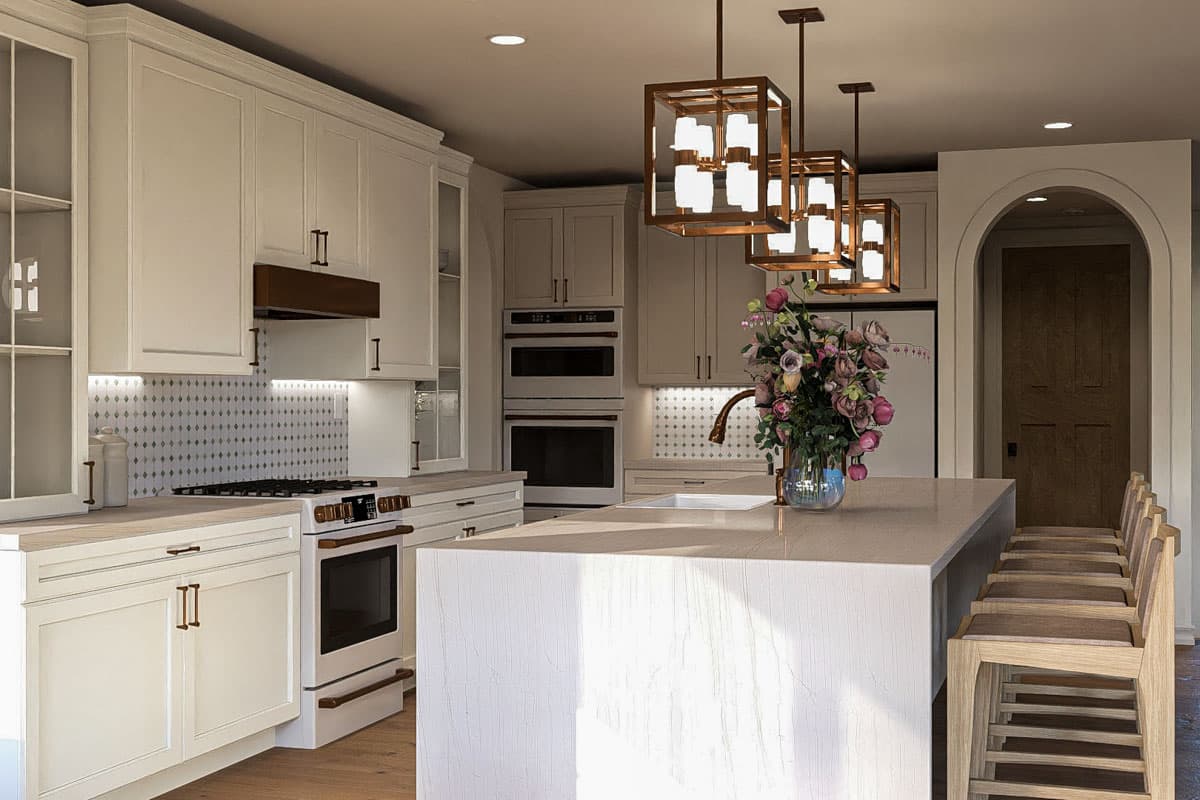

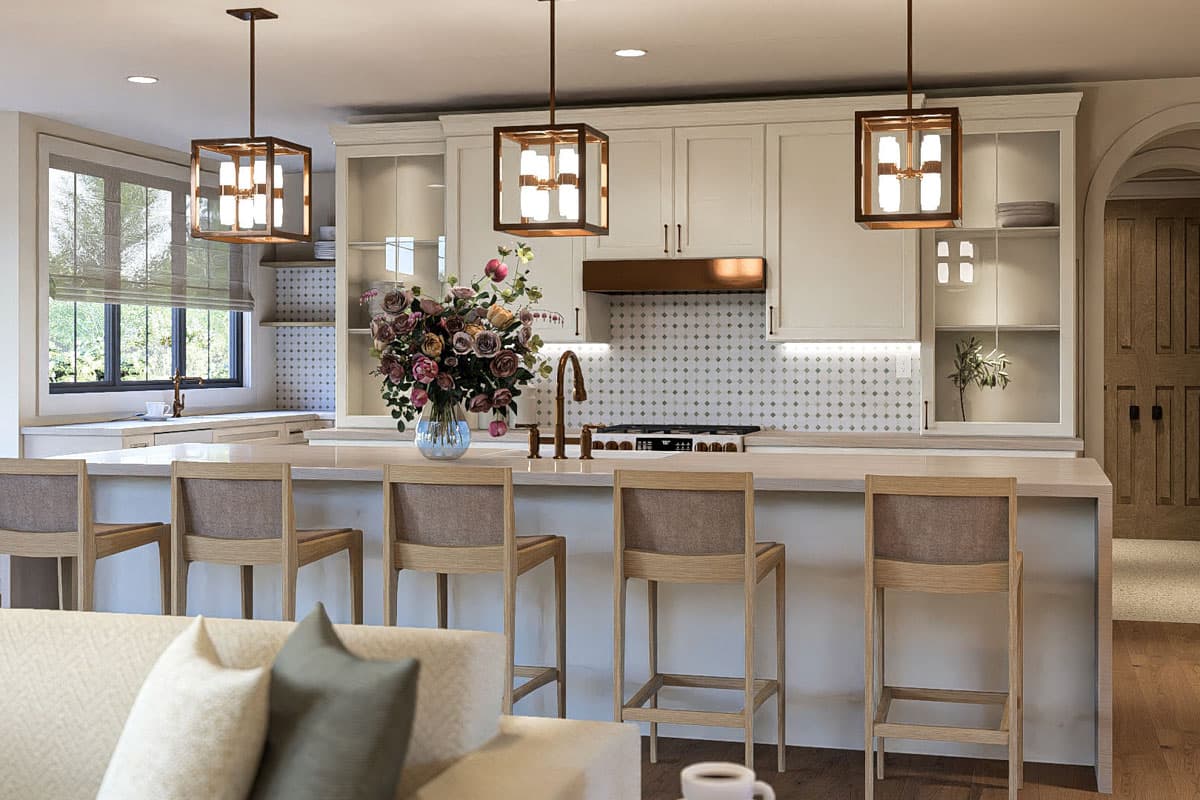

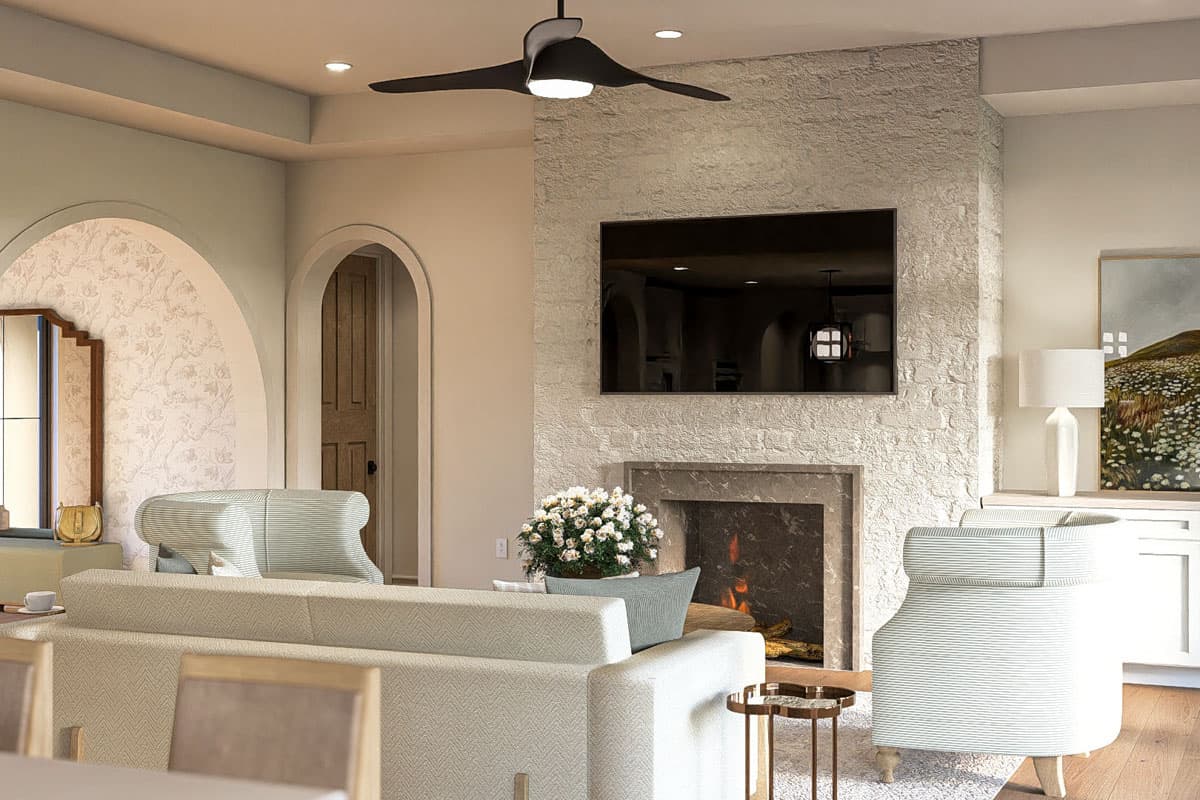

  • The great room features a fireplace and tray ceiling, along with large windows. The kitchen has a spacious island and ample counter space.

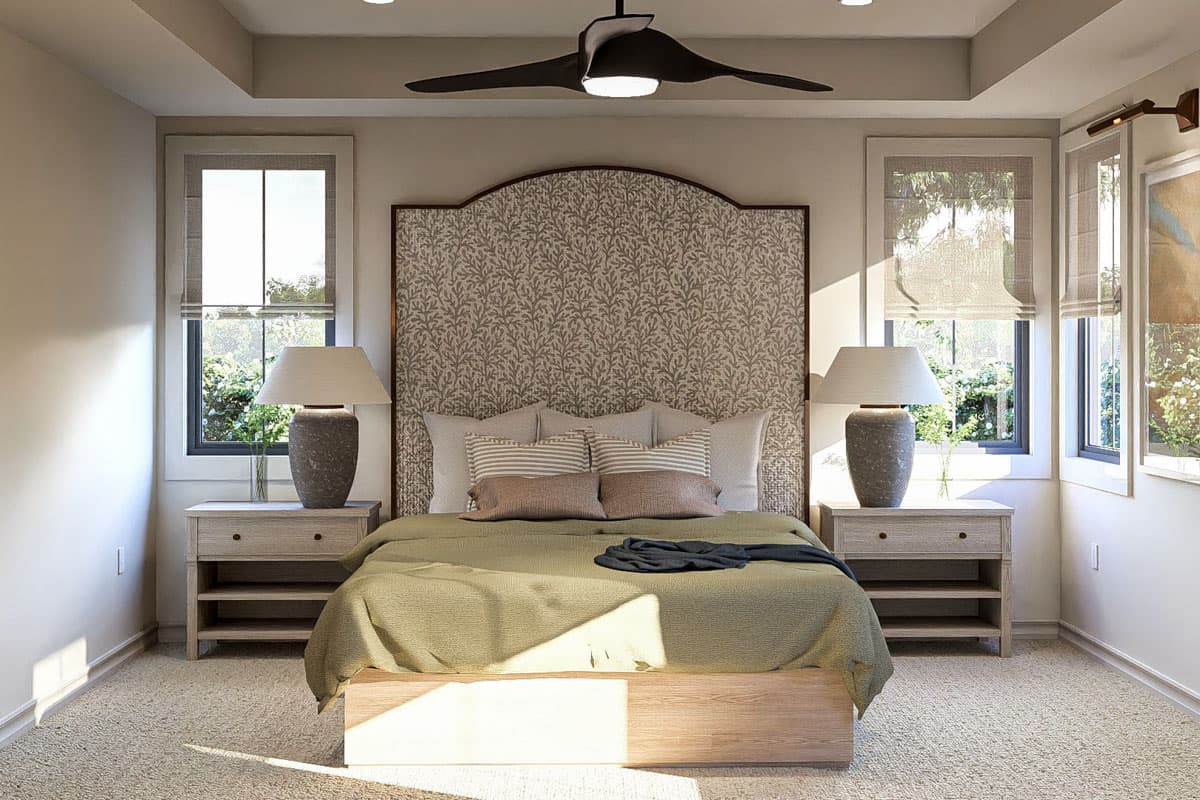

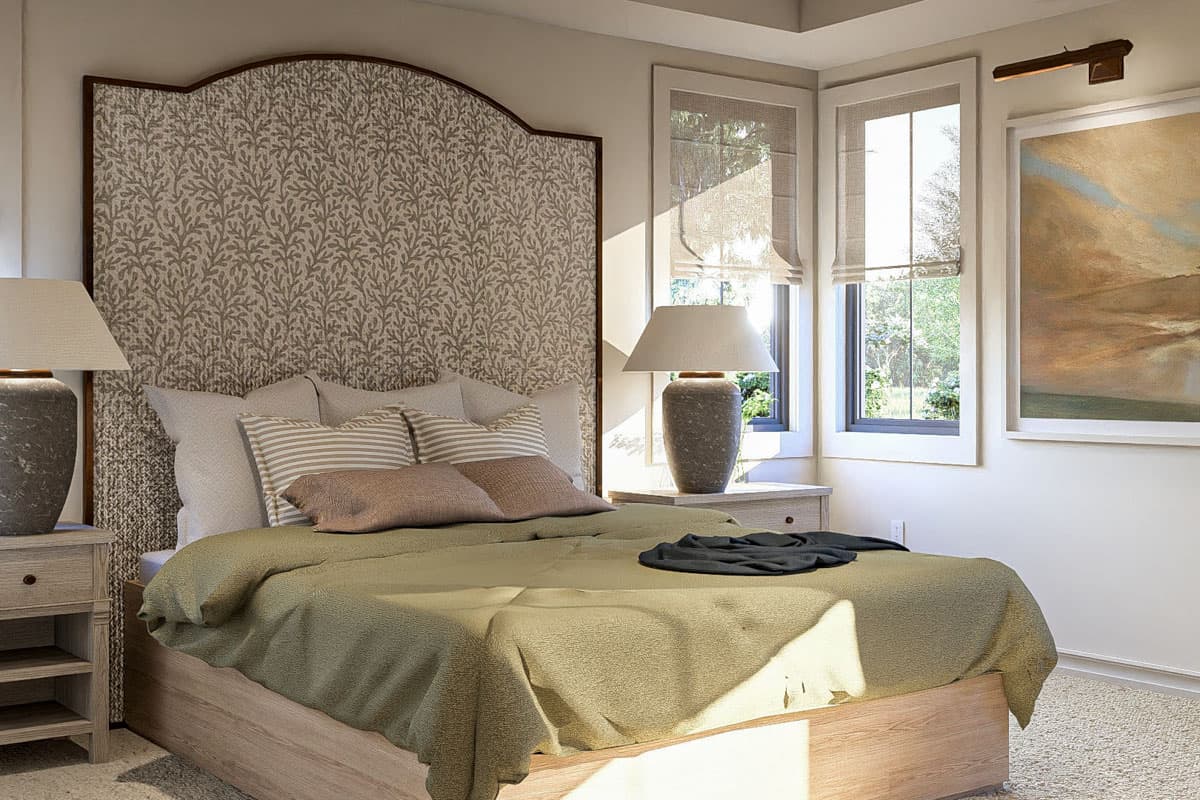

  • The master bedroom includes a large walk-in closet, and there's a designated laundry room.

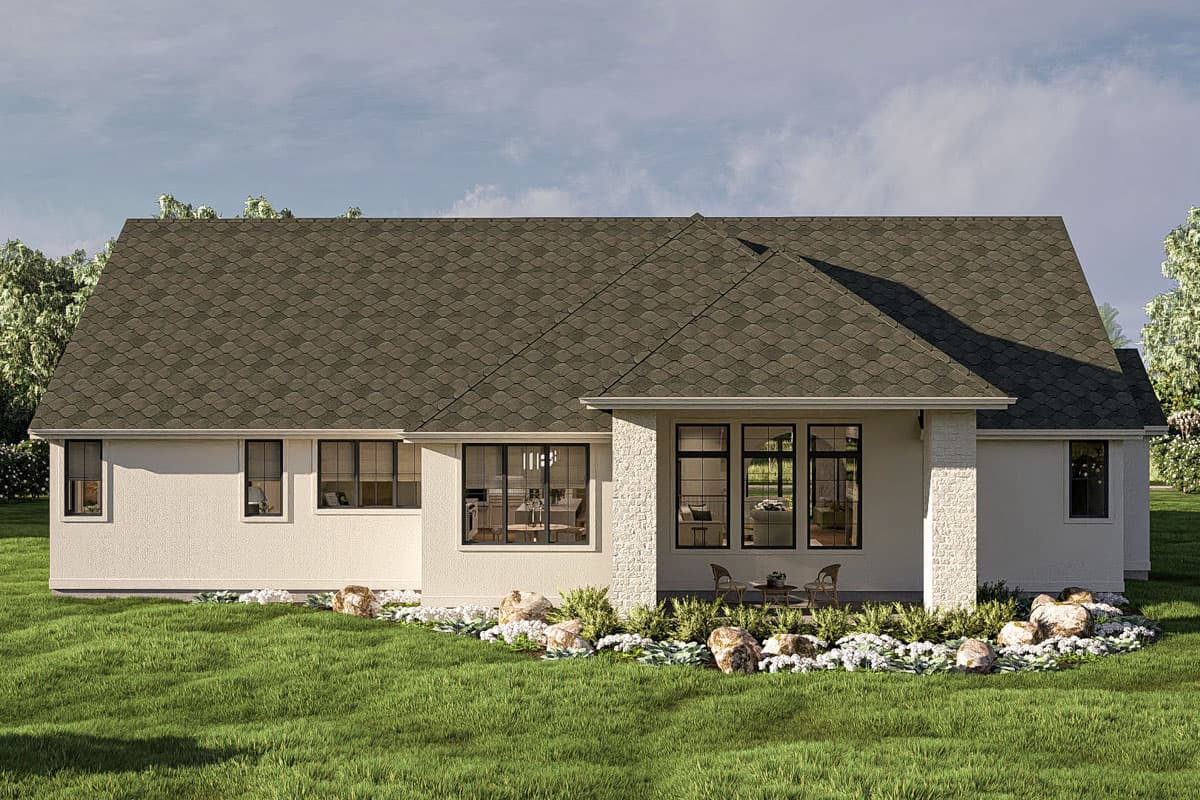

  • Outside, a covered patio offers a relaxing space. The three-car garage provides plenty of storage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,529 sq. ft.

1st Floor

2,529 sq. ft.

Porch, Combined

304 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 8"

Depth

76' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

933 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Architectural Style

Transitional

Special Features

Bedrooms - Split

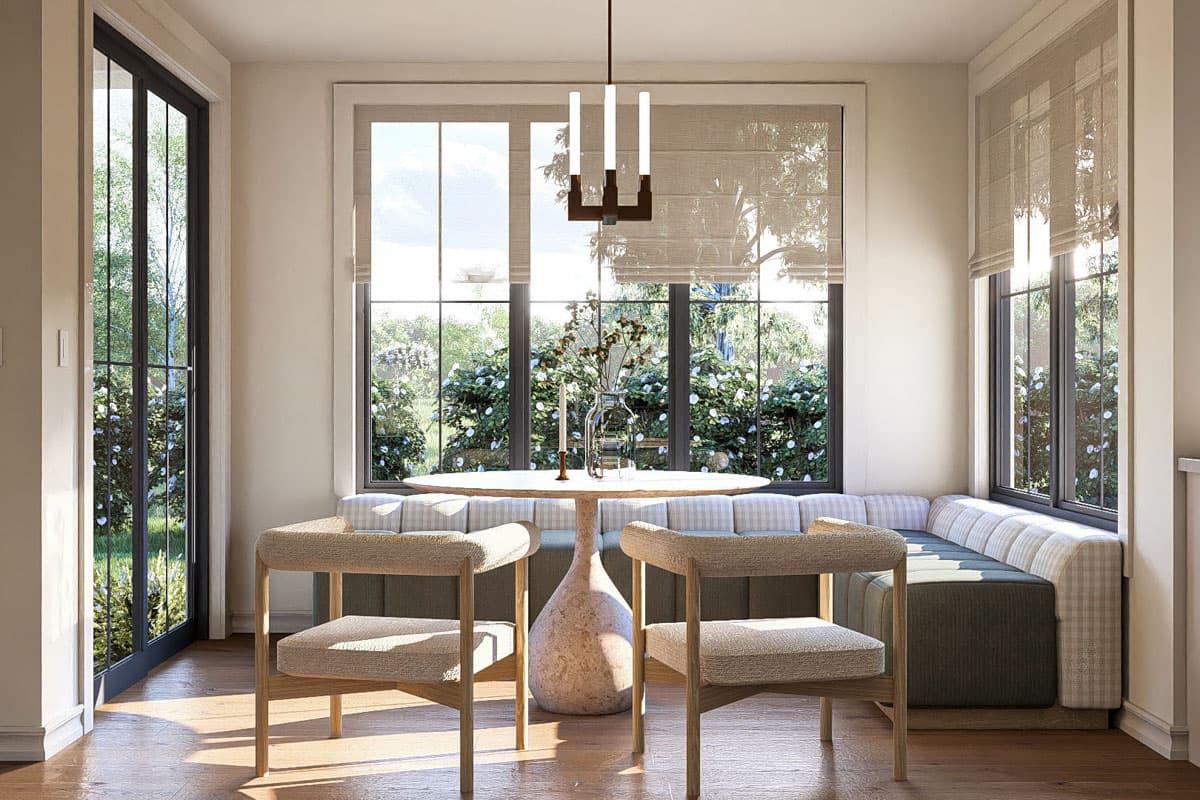

Breakfast Nook

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,529 sq. ft.

1st Floor

2,529 sq. ft.

Porch, Combined

304 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 8"

Depth

76' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

933 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Architectural Style

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
