Plan 818040JSS

3-Bed Transitional House Plan with Flex Room - 2867 Sq Ft

Heated S.F.

2,867

Beds

3 - 4

Baths

2

Stories

1

Cars

2

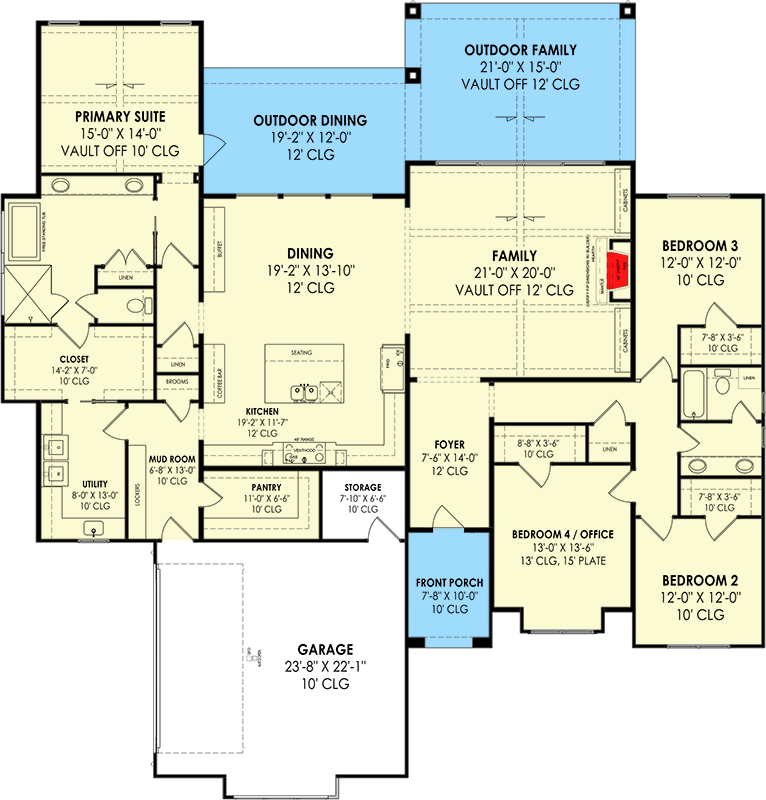

Floor Plan

Main Level

floor plan image Main Level

Plan Details

The sloped roofline above the arched entry adds a whimsical appeal to the exterior of this Transitional home plan.
A vaulted ceiling crowns the family room that extends onto a rear covered porch for outdoor enjoyment. Dinners around the table are easy in this island kitchen, and a built-in buffet is perfect when serving meals for friends and family.
The primary suite consumes the left side of the design and features a 5-fixture bathroom and access to the laundry room through the walk-in closet.
Take the hallway off the foyer to find three bedrooms, or convert one into a home office.
Dedicated storage space helps declutter the 2-car garage and a walk-in pantry just inside simplifies the process of unloading groceries.

What's Included

Foundation plan
Detailed floorplans
Roof plan
Four elevations
Electrical schematic
Cross section(s)
Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,867 sq. ft.

1st Floor

2,867 sq. ft.

Porch, Front

86 sq. ft.

Porch, Rear

559 sq. ft.

Porch, Combined

645 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 8"

Depth

75' 9"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

618 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,867 sq. ft.

1st Floor

2,867 sq. ft.

Porch, Front

86 sq. ft.

Porch, Rear

559 sq. ft.

Porch, Combined

645 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 8"

Depth

75' 9"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

618 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
