Plan 48621FM

Exclusive

3-Bed Transitional House Plan with Main Level Master and Flex Room Upstairs - 2239 Sq Ft

Heated S.F.

2,239

Beds

3 - 4

Baths

2.5

Stories

2

Cars

3

Floor Plan

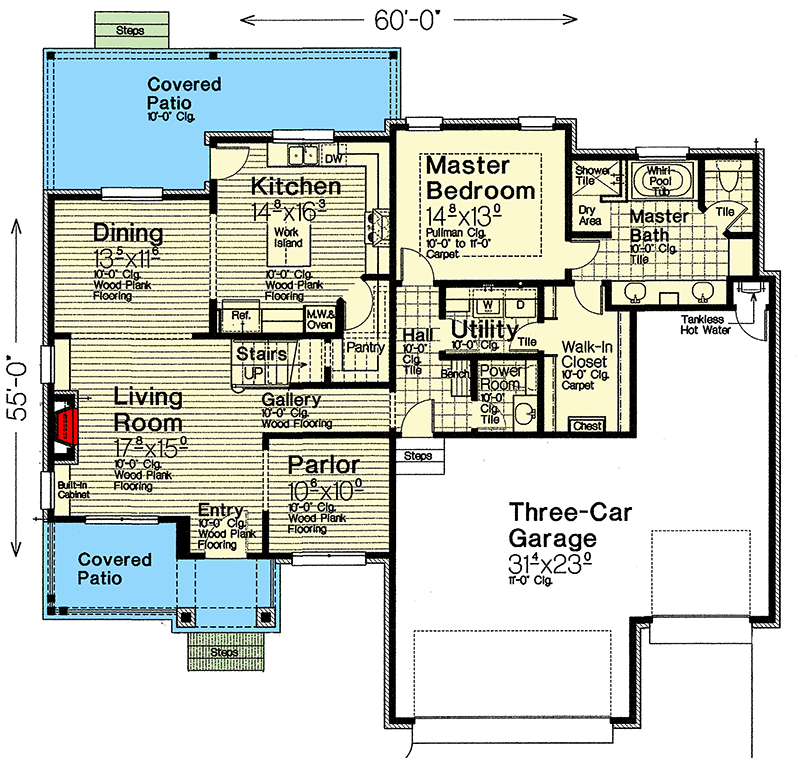

Main Level

floor plan image Main Level

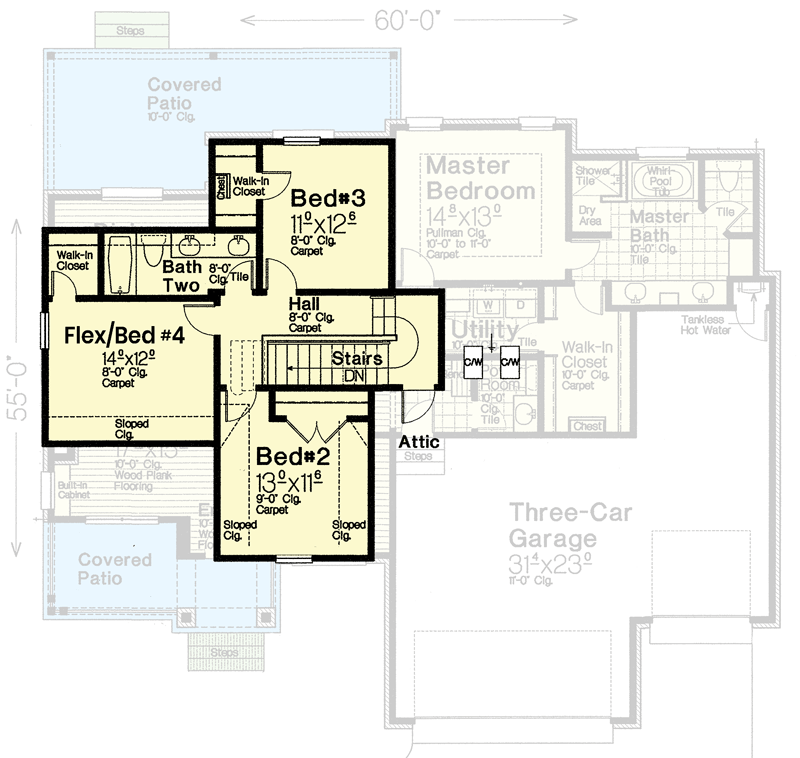

2nd Floor

floor plan image 2nd Floor

Plan Details

This 2,239 square foot house plan draws inspiration from a blend of contemporary and classic elements and with its flex room gives you 3 or 4 bedrooms. The exterior facade has a mixture of painted brick and siding and has a covered entry with an adjacent front porch.
On the main level, an inviting open-concept floor plan integrates the living room, dining area, and a kitchen complete with an oversized island ideal for both casual family meals and gatherings. A versatile parlor space to the right can double as a home office or formal sitting area.
The master suite has a tray ceiling, five fixture bath and a walk-in closet with direct laundry access.
Upstairs, you get 687 square feet of living space with two bedrooms with a shared bathroom and a flex room.
A 3-car garage has 751 square feet of storage space.

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,239 sq. ft.

1st Floor

1,552 sq. ft.

2nd Floor

687 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

254 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

751 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

18 on 12

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
