Plan 430118LY

Exclusive

3-Bed Transitional Ranch with Open-Concept Living Space - 2540 Sq Ft
Heated S.F.
2,540
Beds
3
Baths
3
Stories
1
Cars
3

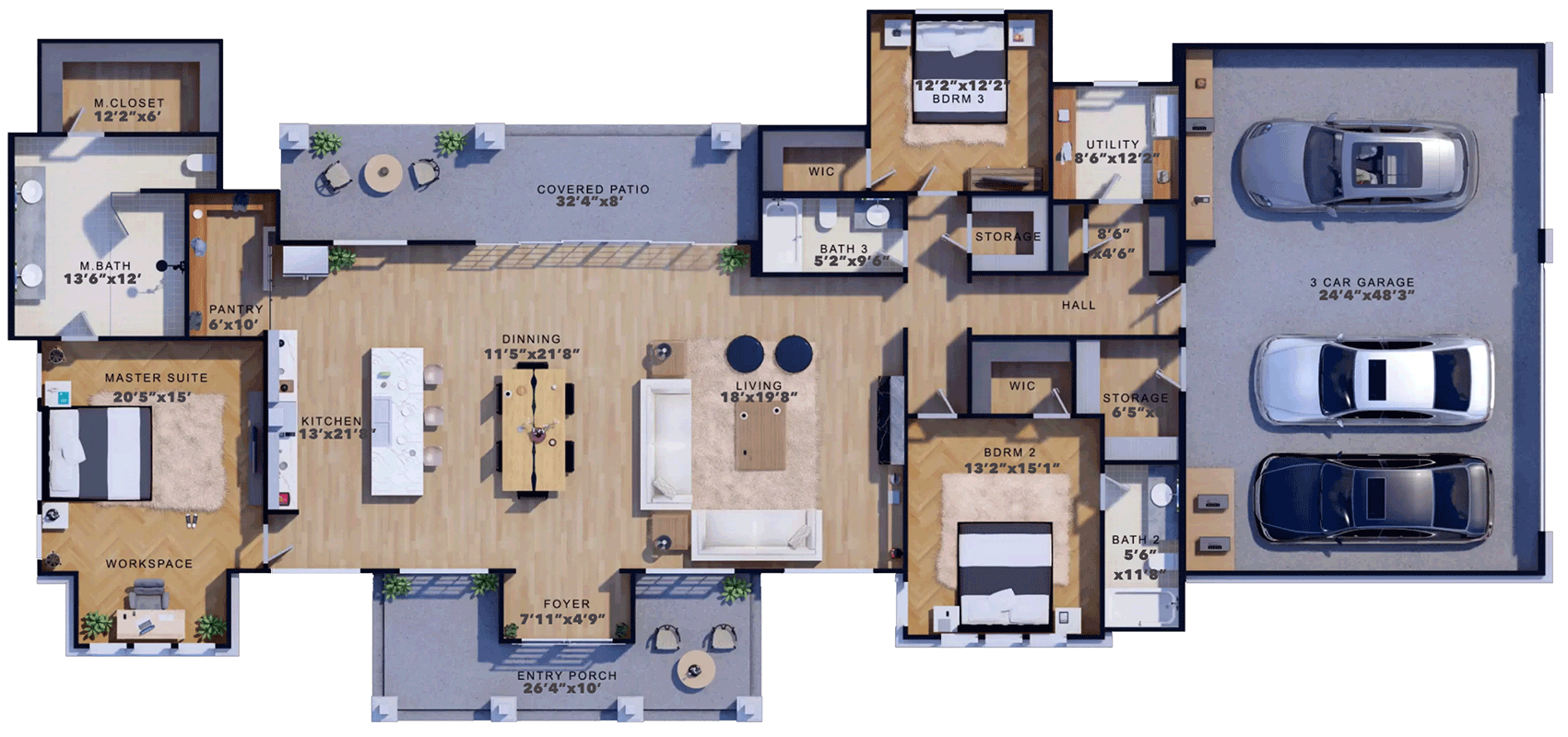

Floor Plan

Plan 430118LY

Main Level
slide image 0

Plan 430118LY

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This transitional ranch house plan offers you 2,540 square feet of heated living space with 3 beds, 3 baths and a 910 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,540 sq. ft.

1st Floor

2,540 sq. ft.

Porch, Front

220 sq. ft.

Covered Patio

253 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 0"

Depth

48' 4"

Max Ridge Height

22' 5"

Garage

Type

Attached

Area

910 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Family Room

Vaulted

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Two Story Great Room

Plan Collections
