Plan 135336GRA
3-Bedroom Barndominium House Plan with Vaulted Great Room - 2222 Sq Ft
Heated S.F.
2,222
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 135336GRA

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 135336GRA

1-800-854-7852

1-262-521-4596

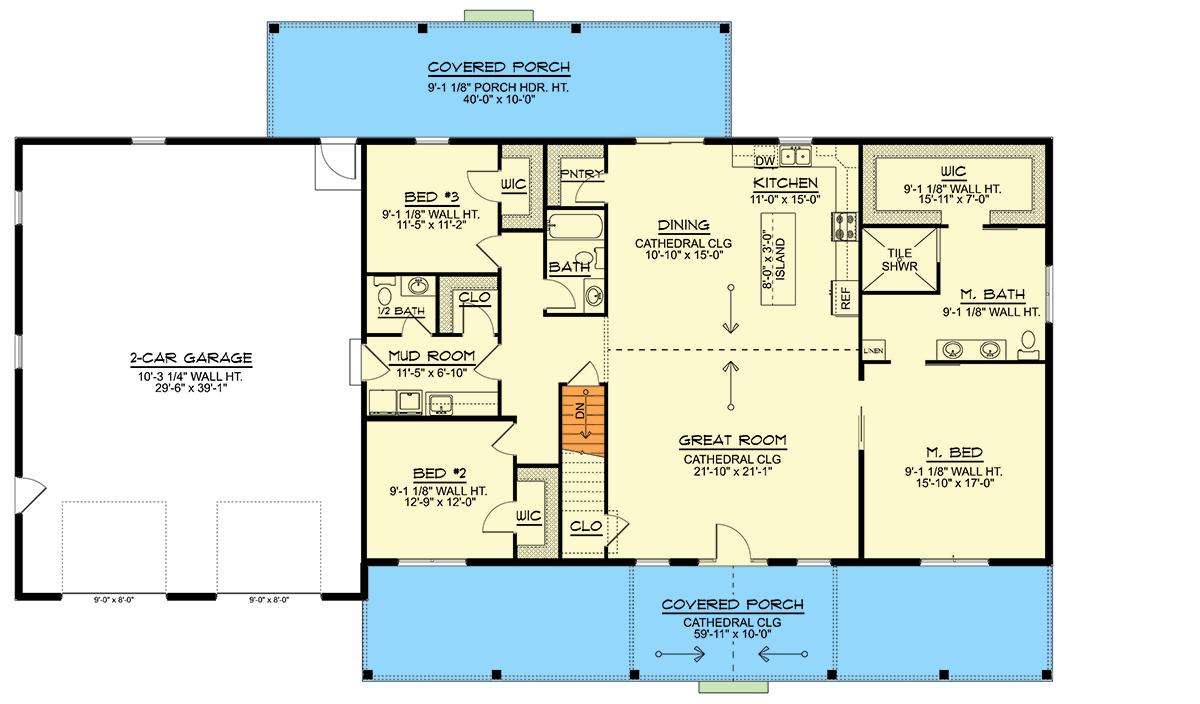

Main Level
floor plan image Main Level

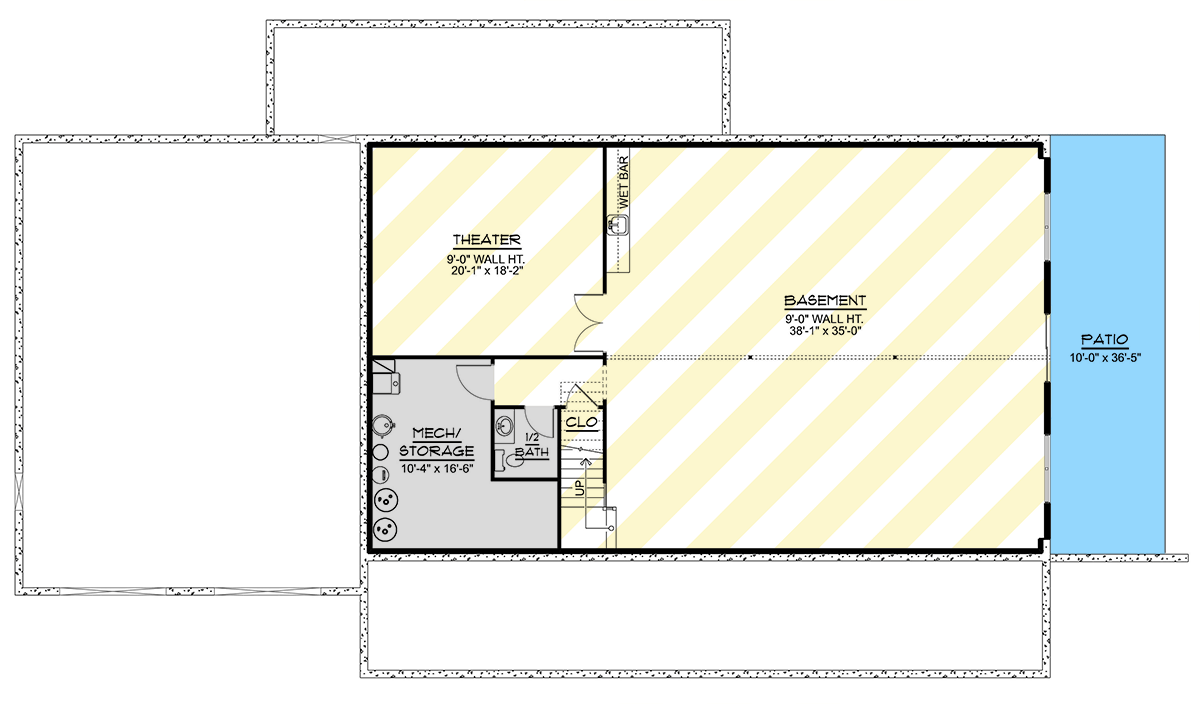

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This barndominium house plan offers you 2,222 square feet of heated living space with 3 beds, 2.5 baths and a 1,198 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,222 sq. ft.

1st Floor

2,222 sq. ft.

Basement Unfinished

2,220 sq. ft.

Porch, Combined

1,048 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

47' 0"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

1198 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,222 sq. ft.

1st Floor

2,222 sq. ft.

Basement Unfinished

2,220 sq. ft.

Porch, Combined

1,048 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

47' 0"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

1198 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
