Plan 11781HZ

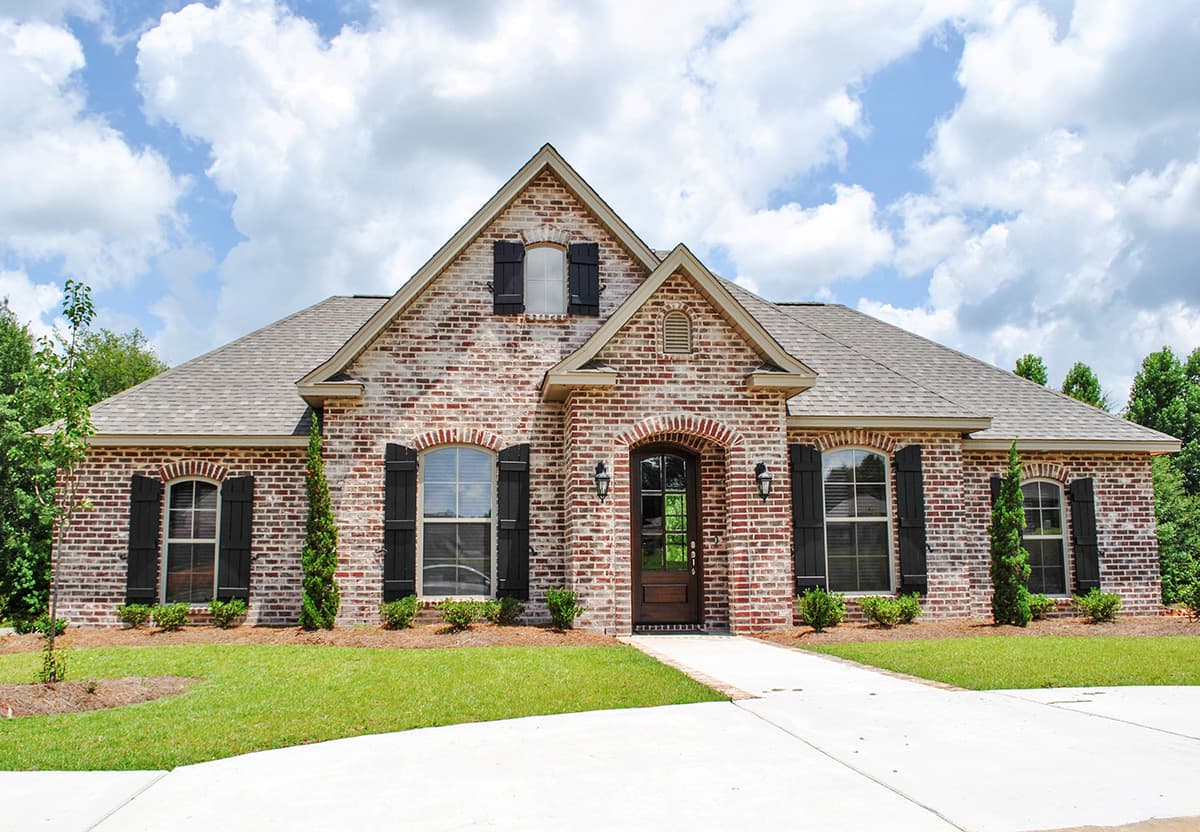

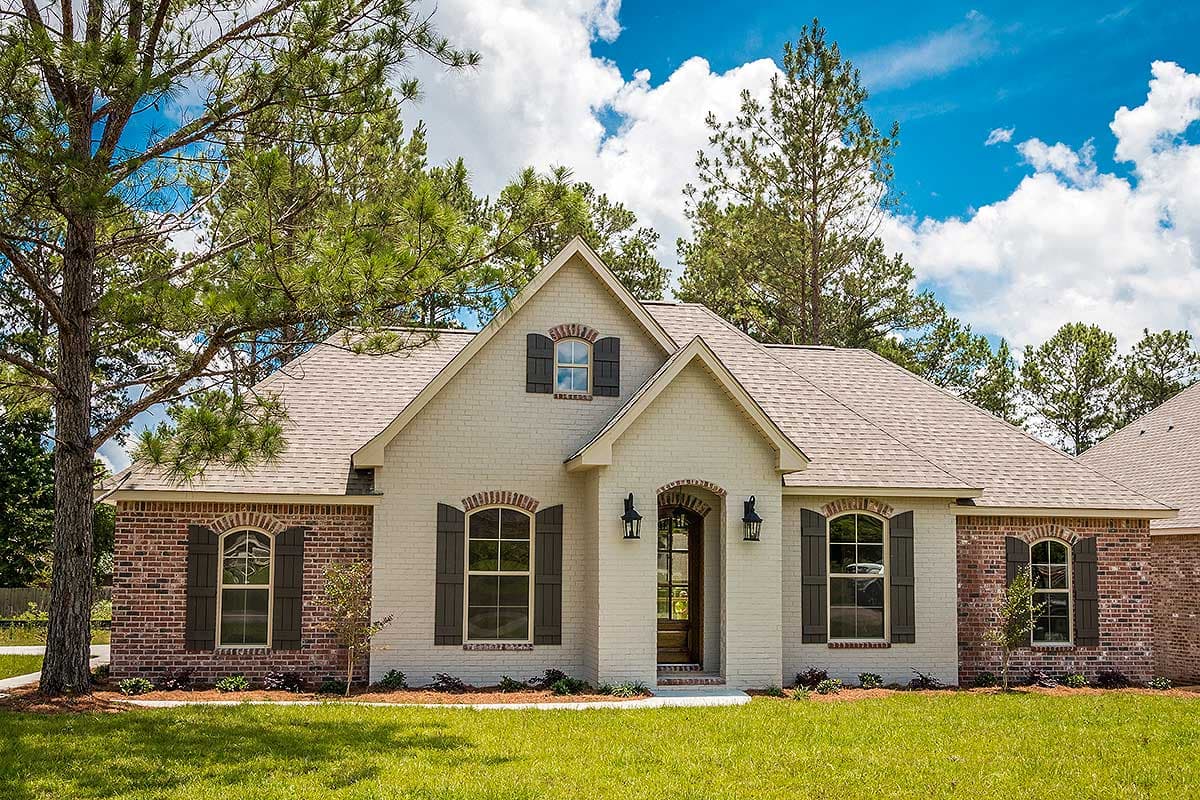

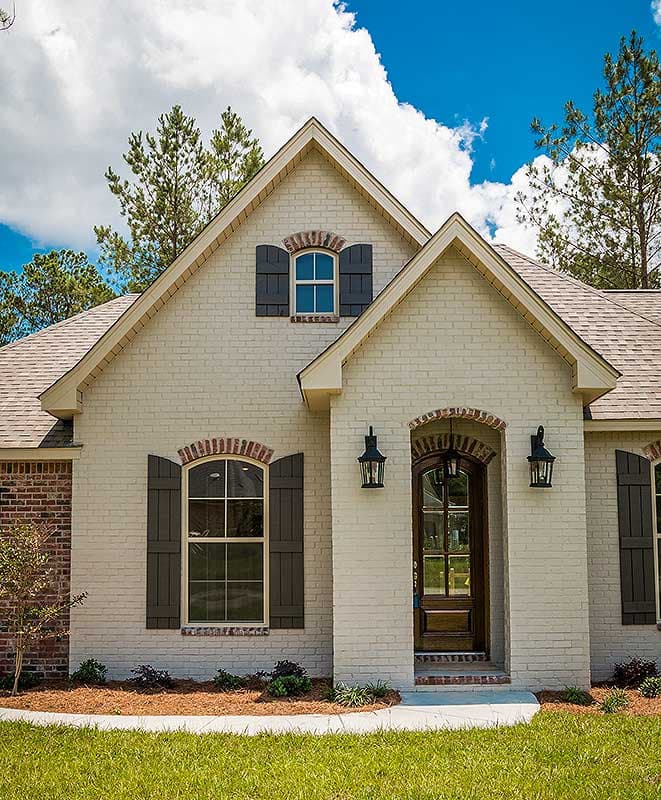

3 Bedroom Beauty Brick House Plan - 1715 Square Feet
Heated S.F.
1,715
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 11781HZ

Main Level
slide image 0
Optional
slide image 1

Plan 11781HZ

1-800-854-7852

1-262-521-4596

Main Level

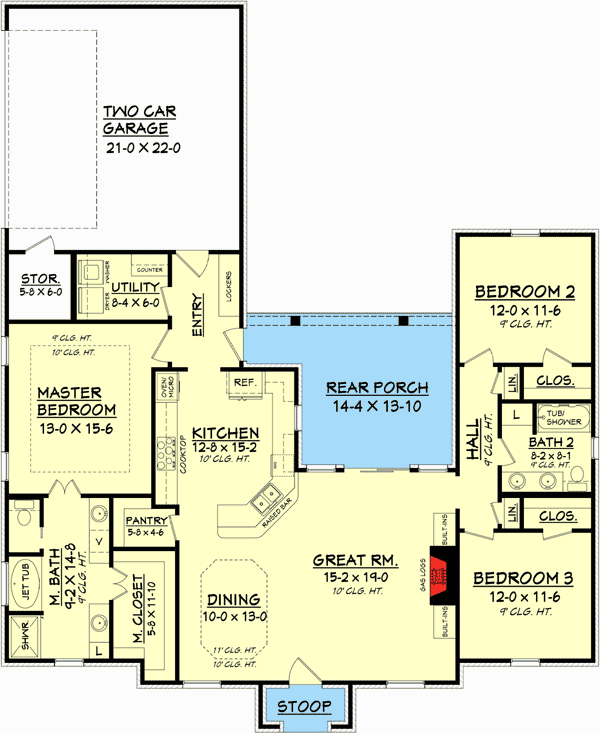

floor plan image Main Level
Optional

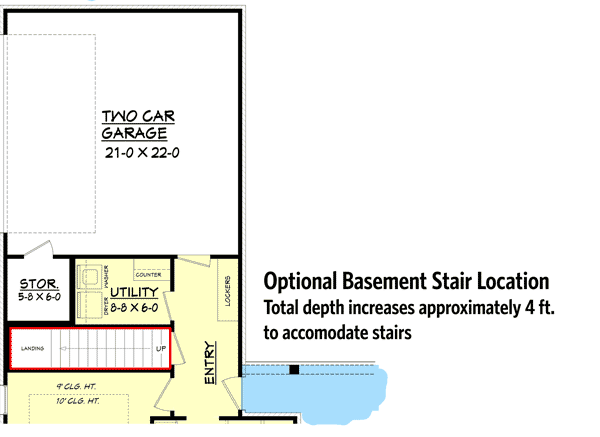

floor plan image Optional
Plan Details
  • This beautifully designed home plan has 3 large bedrooms, an open living area, formal dining, and a large rear porch.
  • The great room has a gas fireplace, and views into the kitchen and dining area.

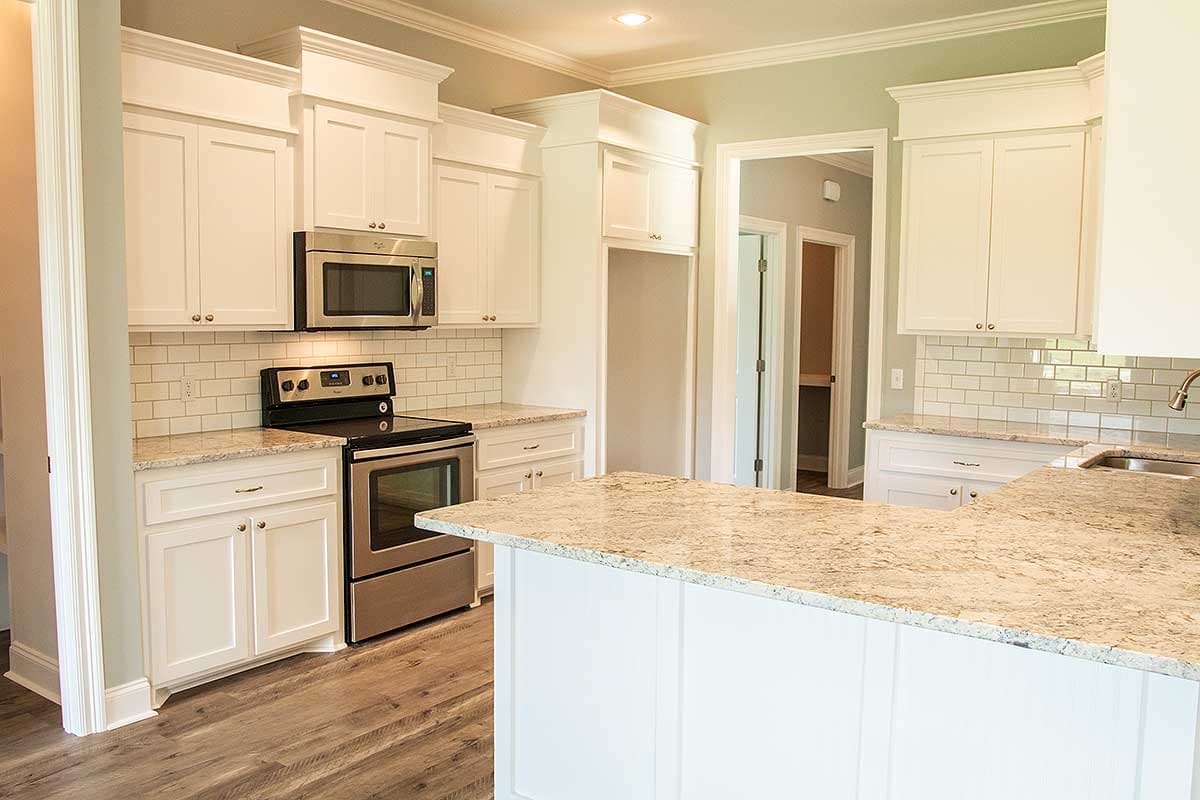

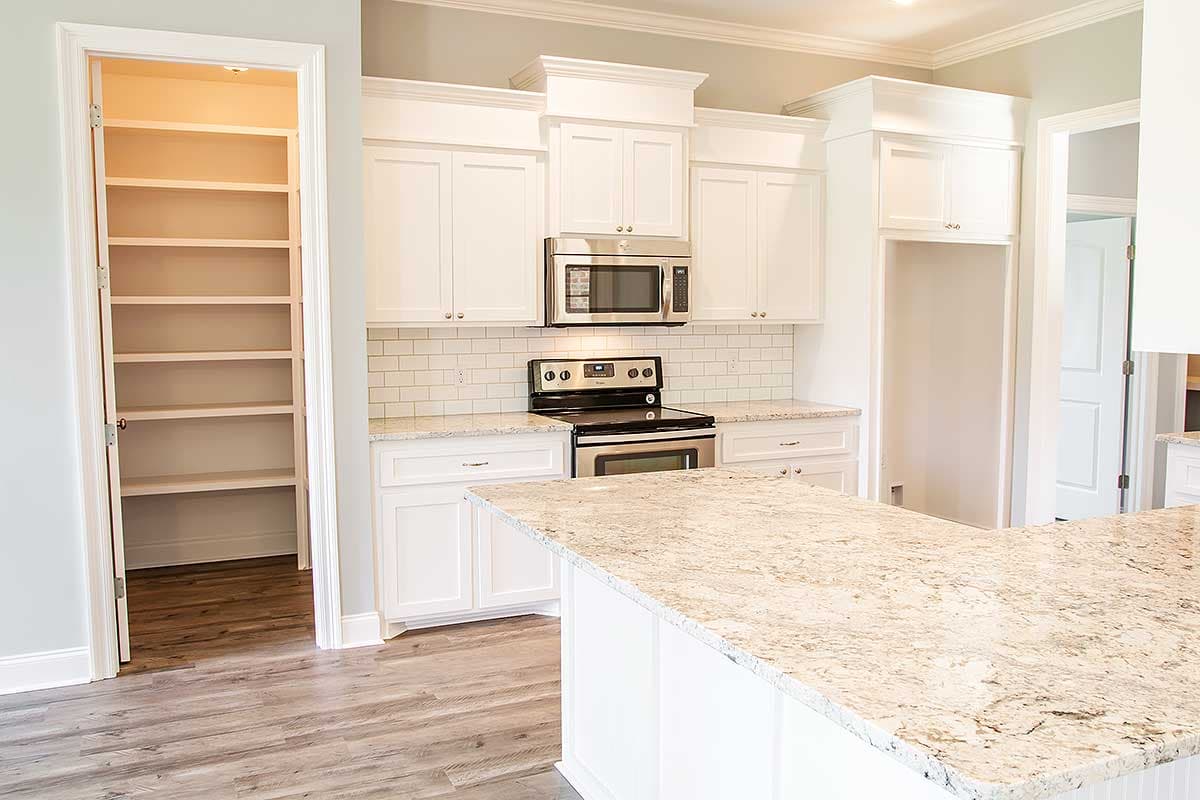

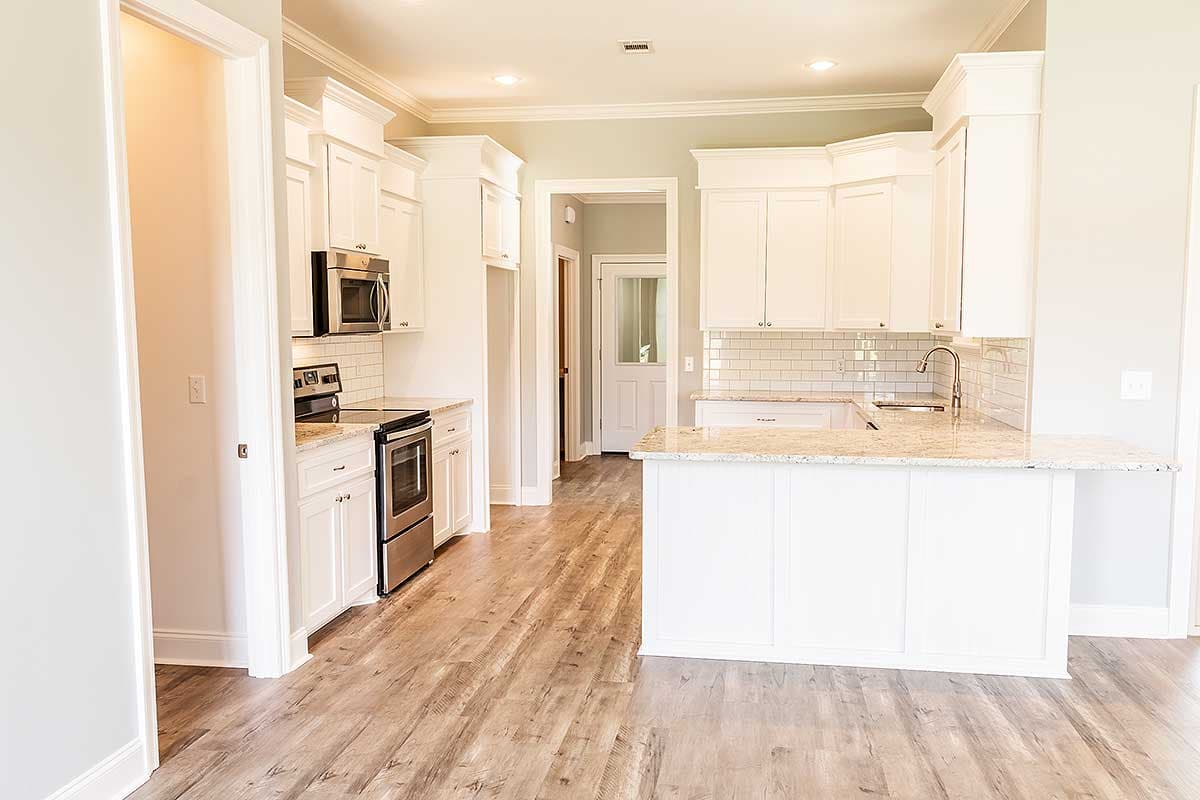

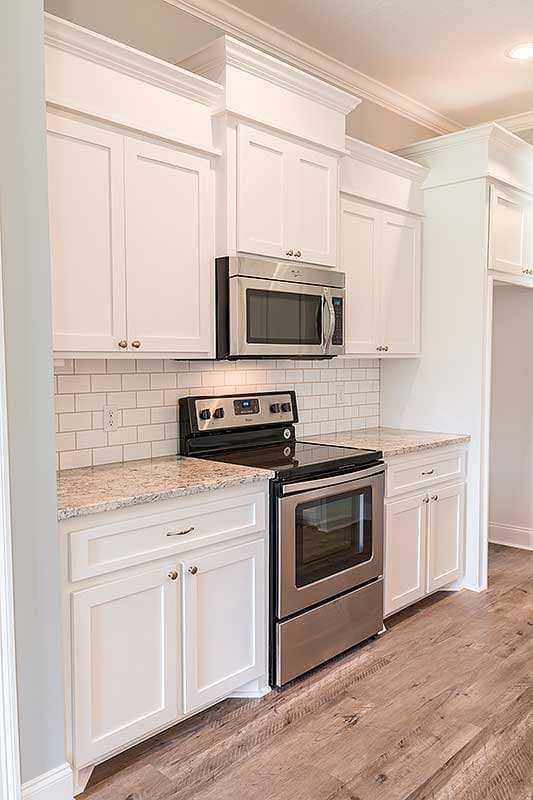

  • The kitchen is large and inviting with a large walk-in pantry, lots of counter space and cabinets for storage, and a sitting area off the raised bar area.

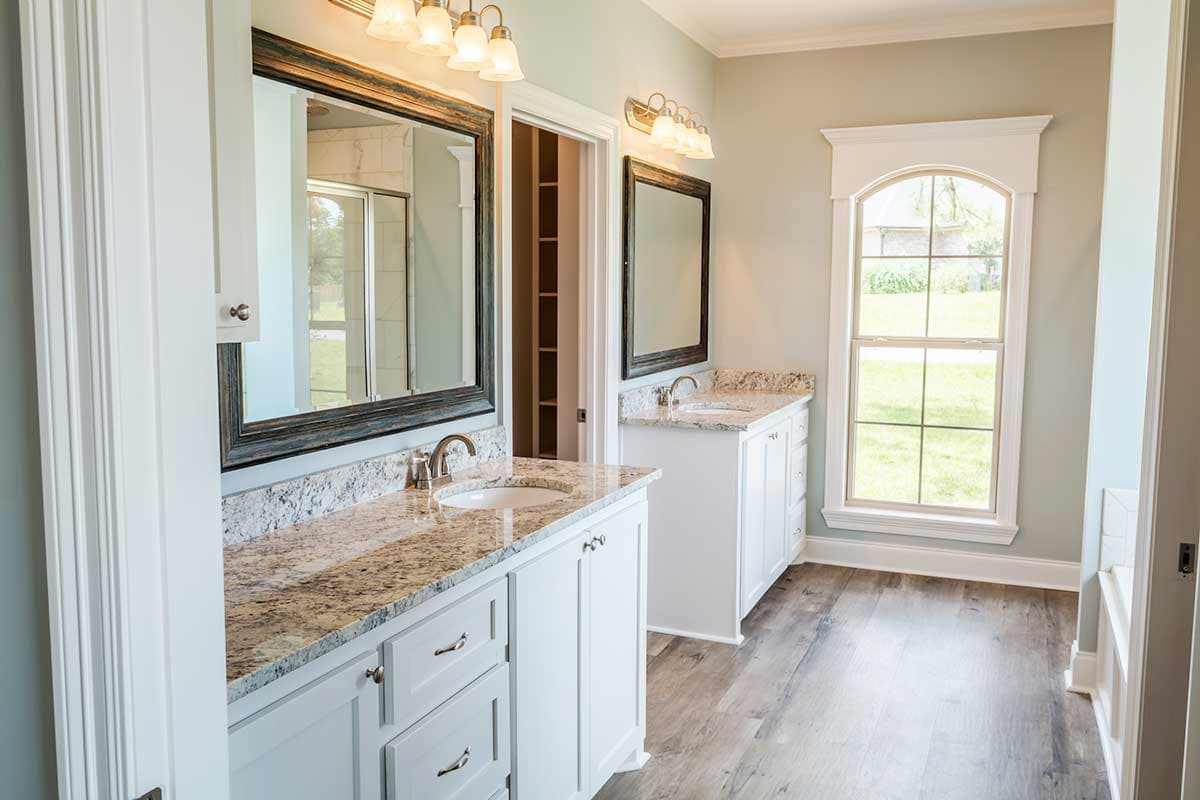

  • The master suite offers dual sinks, enclosed toilet room, large jet tub, separate shower, and a large walk-in closet.
  • The hip roof has a 12:12 pitch with secondary pitches of 8:12 and 13:12.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

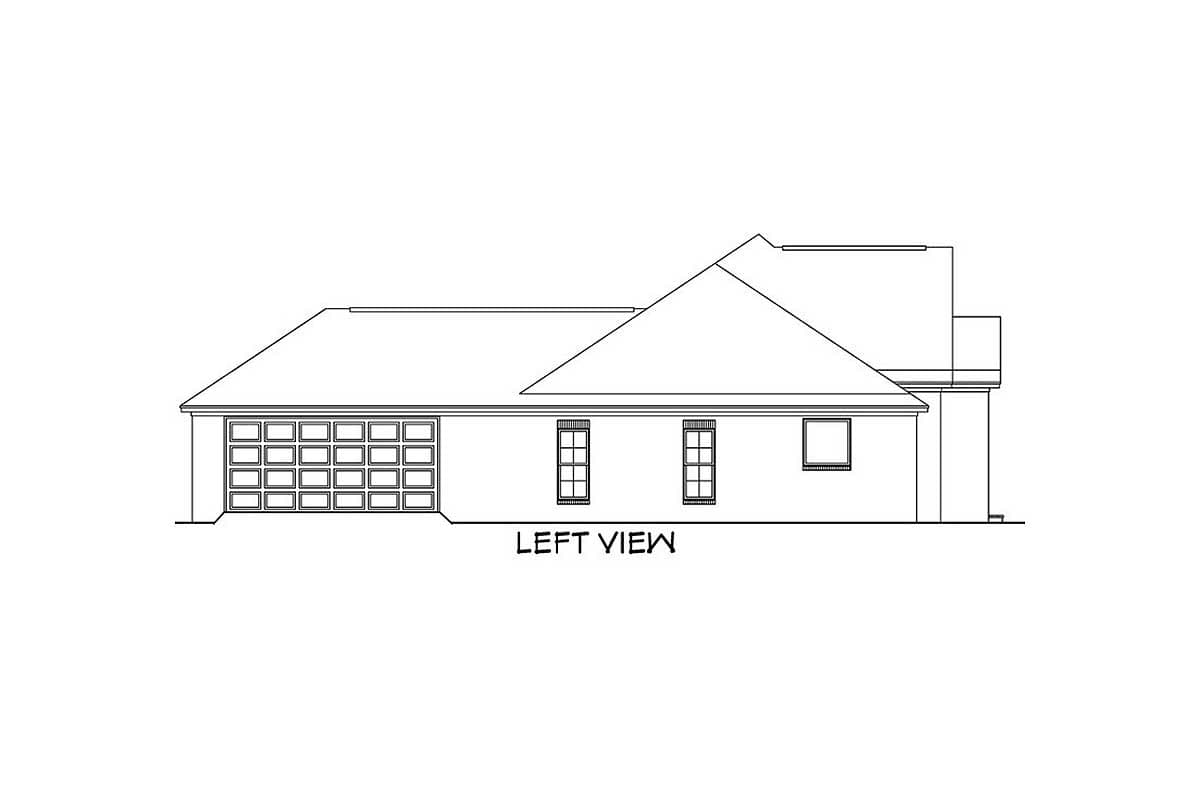

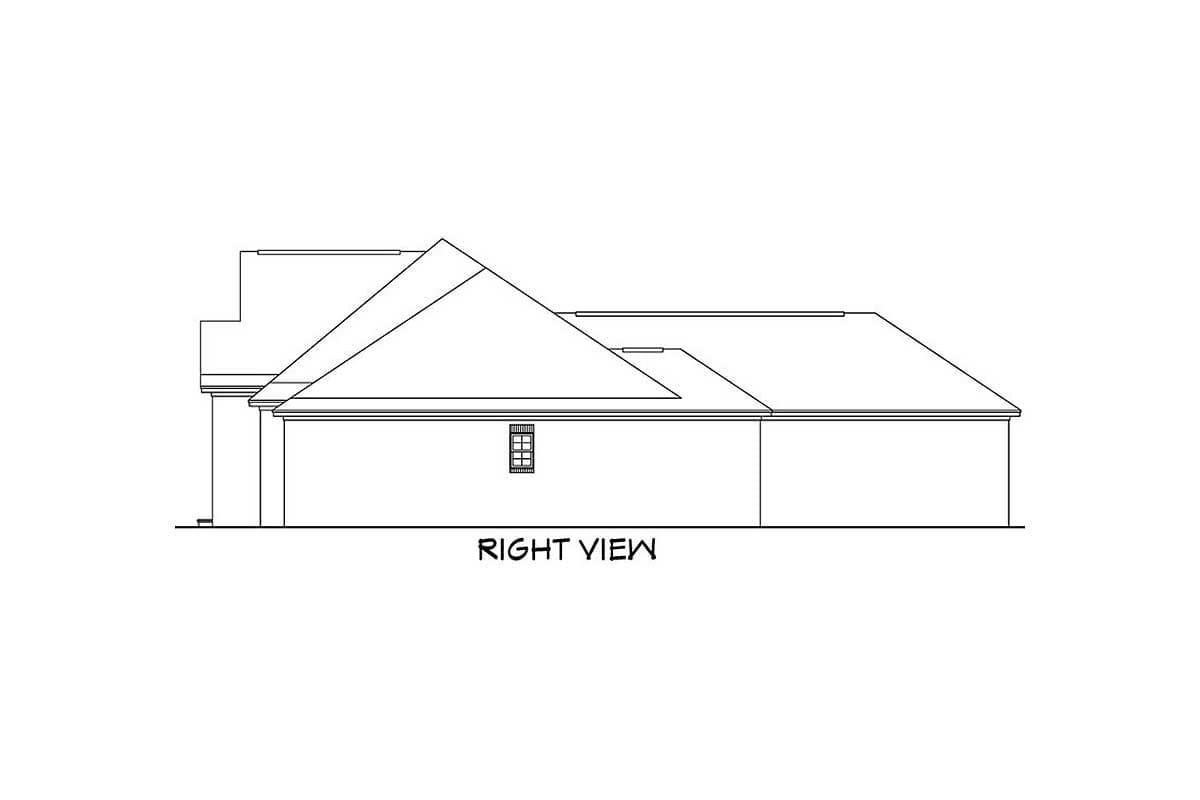

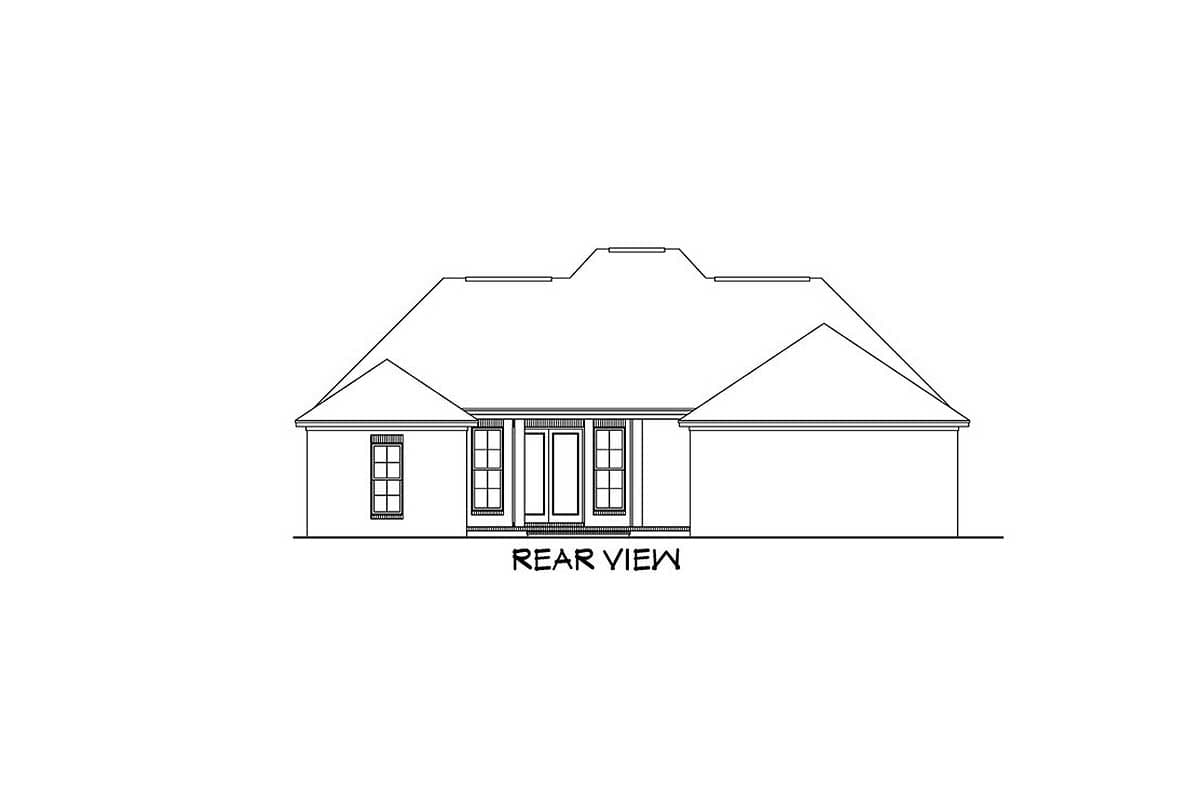

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
