Plan 72429DA

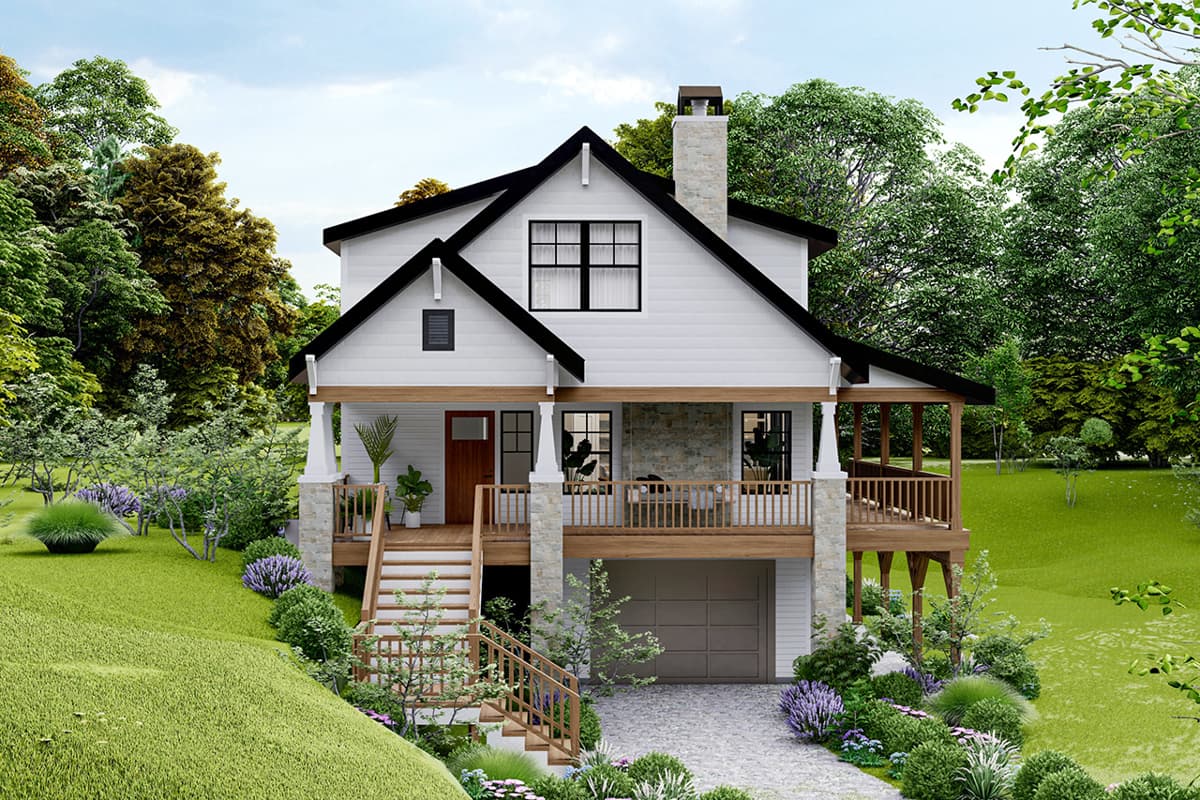

3 Bedroom Cabin House Plan for the Up-Sloping Lot with Wrap Around Porch - 1633 Sq Ft
Heated S.F.
1,633
Beds
3
Baths
2.5
Stories
2
Cars
1
Floor Plan

Plan 72429DA

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 72429DA

1-800-854-7852

1-262-521-4596

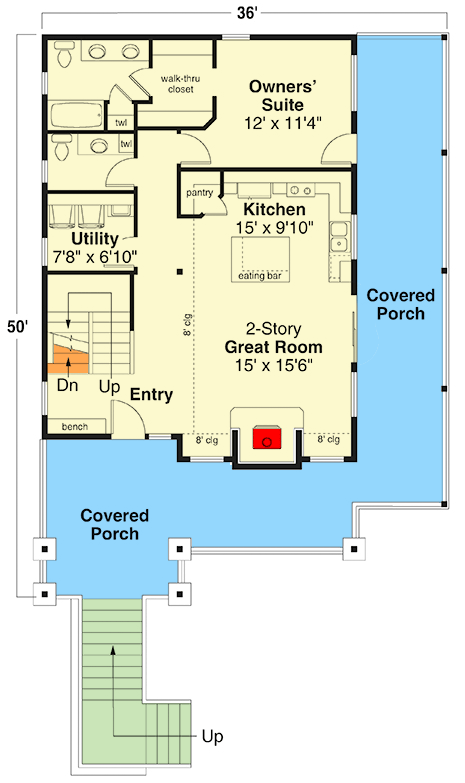

Main Level
floor plan image Main Level

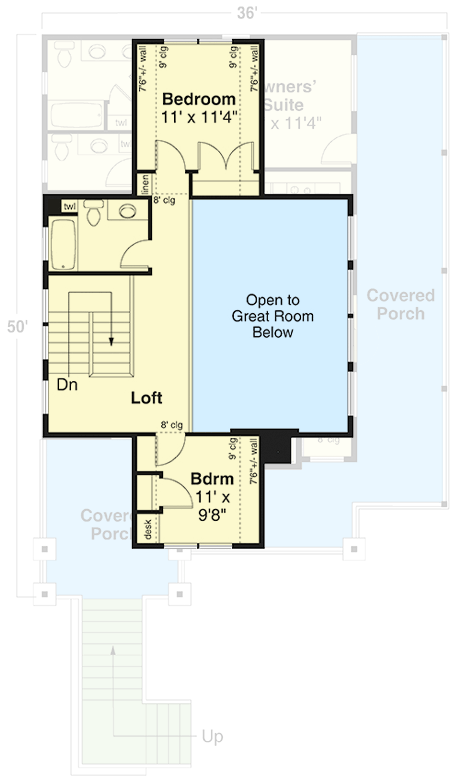

2nd Floor
floor plan image 2nd Floor

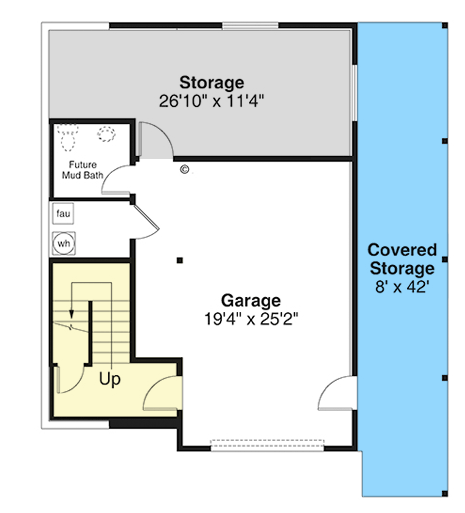

Lower Level
floor plan image Lower Level
Plan Details

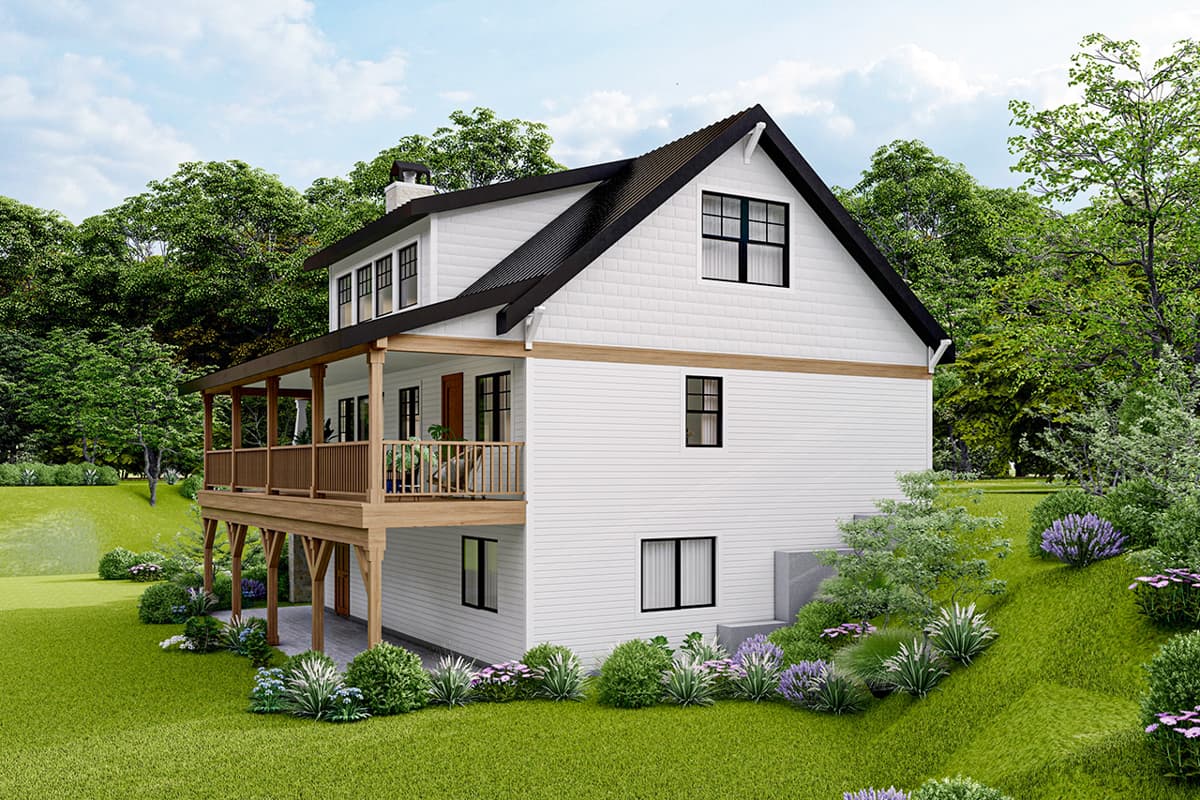

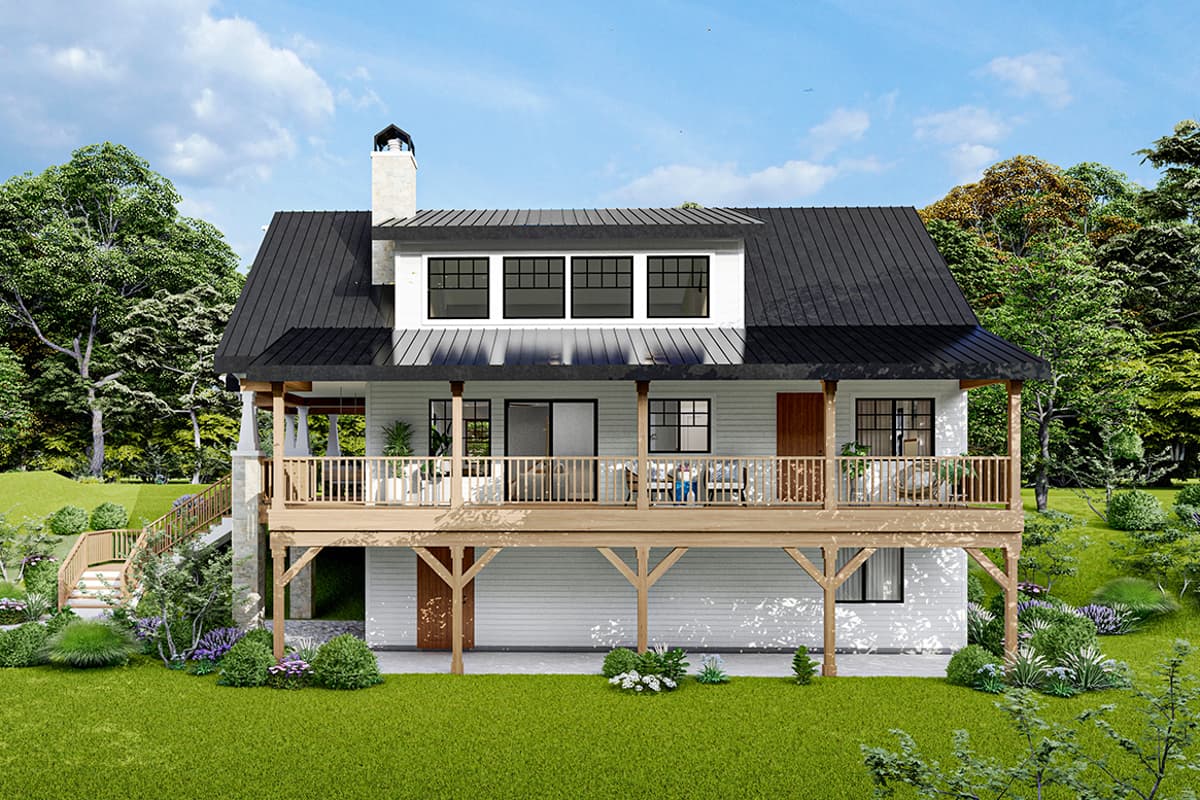

  • This 3 bed, 2.5 bath house plan - designed for a lot that slopes up from the front - gives you 1,633 square feet of heated living space and a 880 square foot drive-under garage. A porch wraps three sides of the home giving you loads of fresh air space to enjoy.

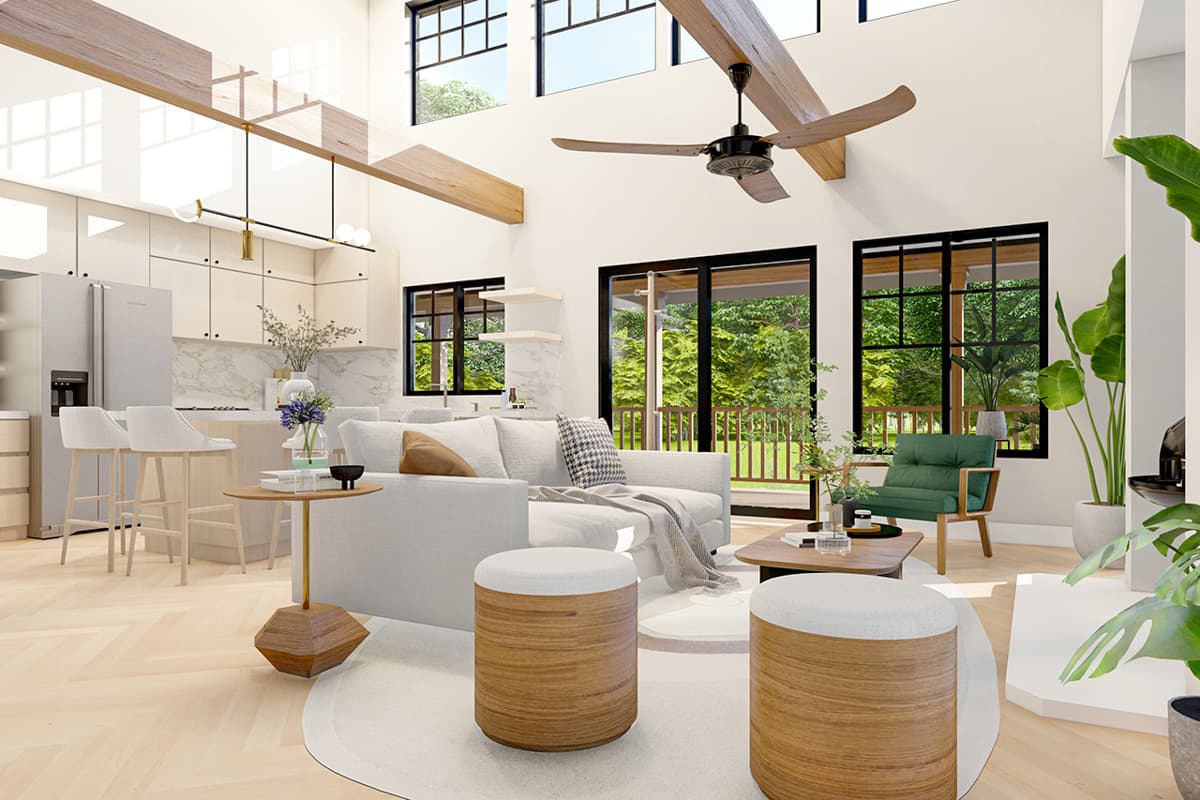

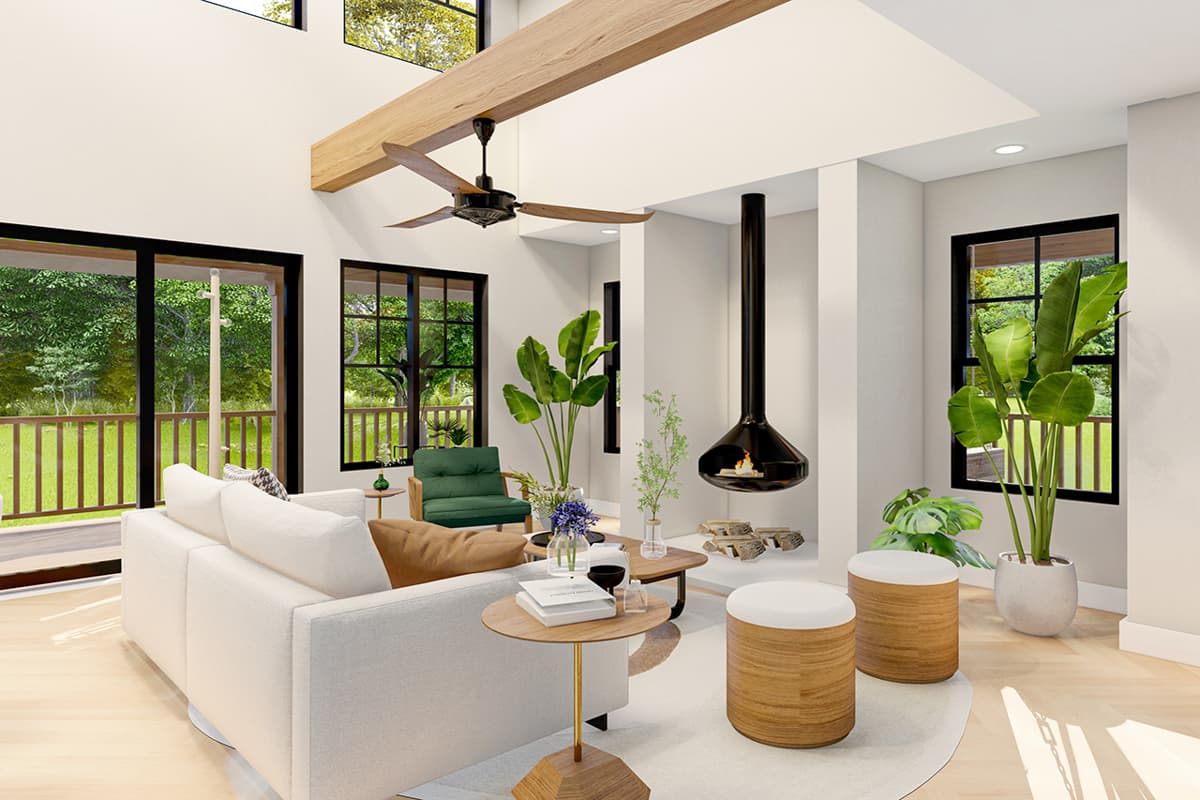

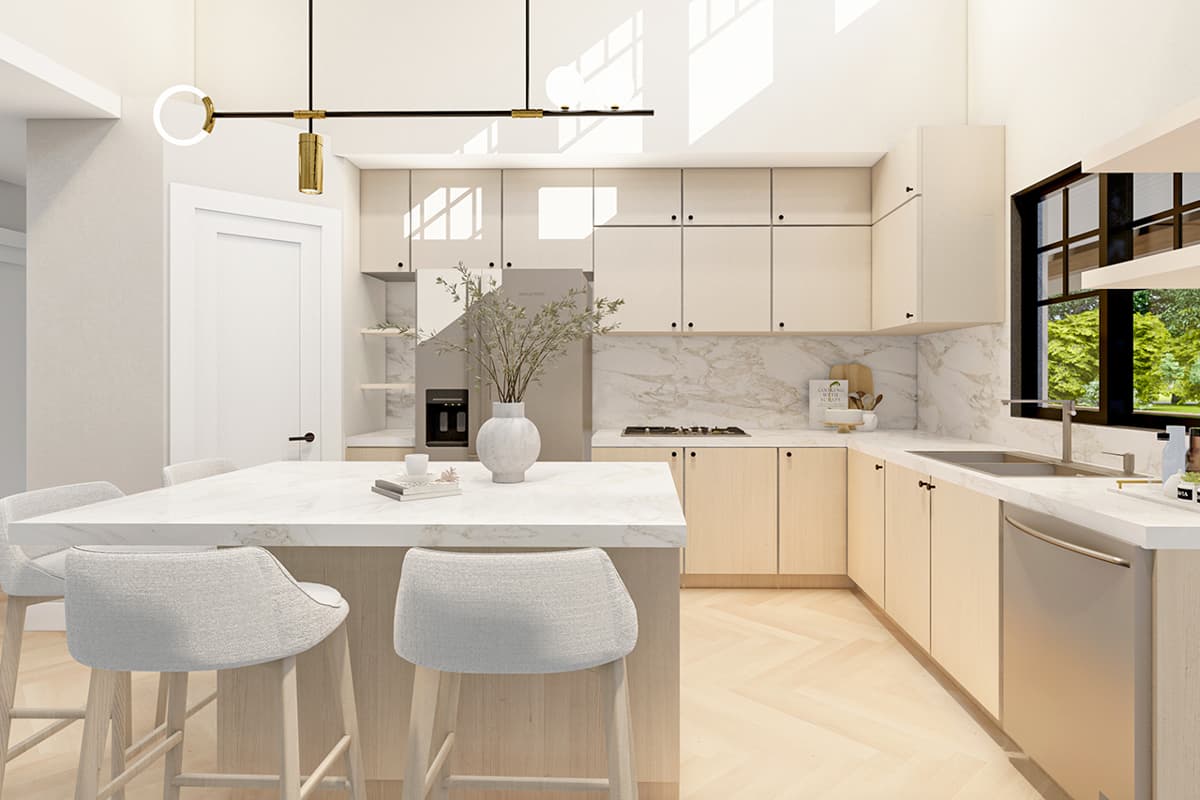

  • Upon entering the cabin, you're greeted by a spacious 2-story split entry that is open to the the great room with soaring ceilings and large windows that flood the space with natural light. This space is open to the L-shaped kitchen with double sink beneath a window and a large eating bar.
  • The main floor owners’ suite includes a walk-through closet leading to an ensuite bathroom with two vanities. The upper level gives you two additional bedrooms, each with ample closet space and shared access to a well-appointed full bathroom. The loft area, overlooking the great room below, offers a flexible space that can be used as a home office, play area, or additional lounge space, making it a versatile addition to the home.
  • The lower level garage not only provides for vehicles but also includes an area designated for future expansion, possibly as a mud bath or extra storage. The covered storage area adjacent to the garage is an excellent addition for storing outdoor equipment or seasonal decorations.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

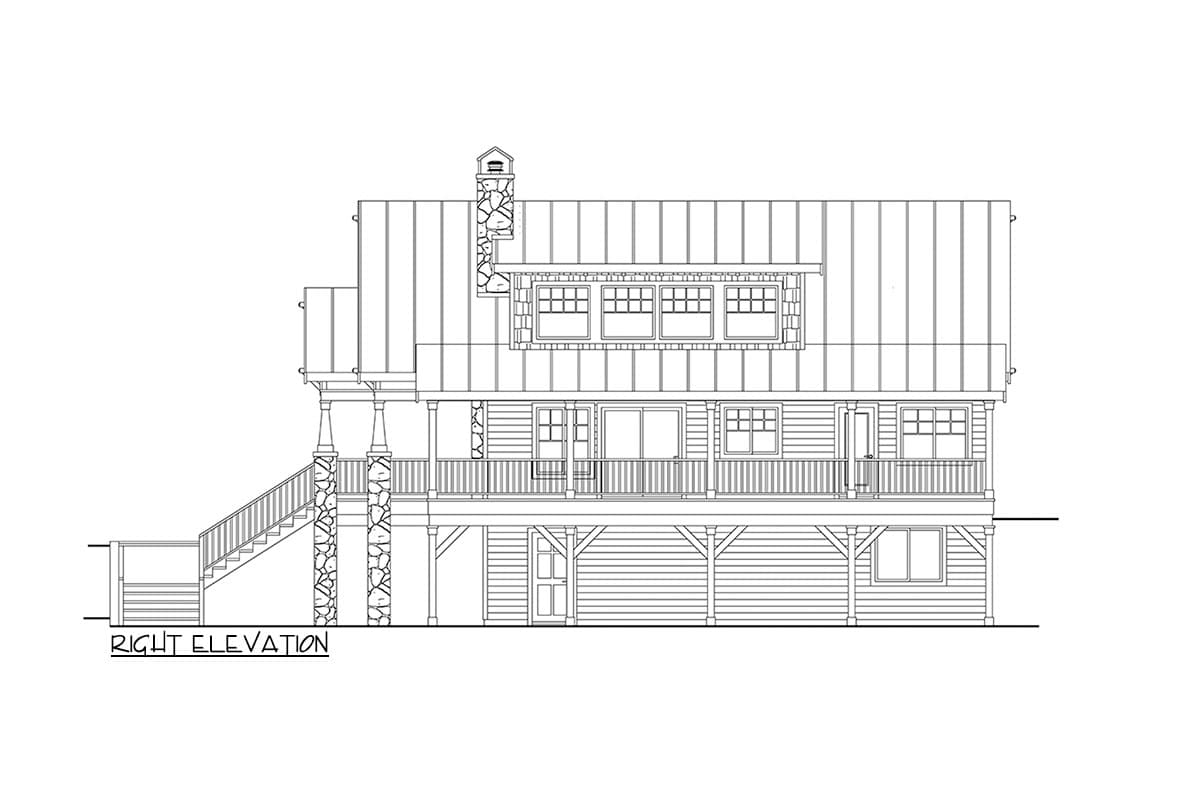

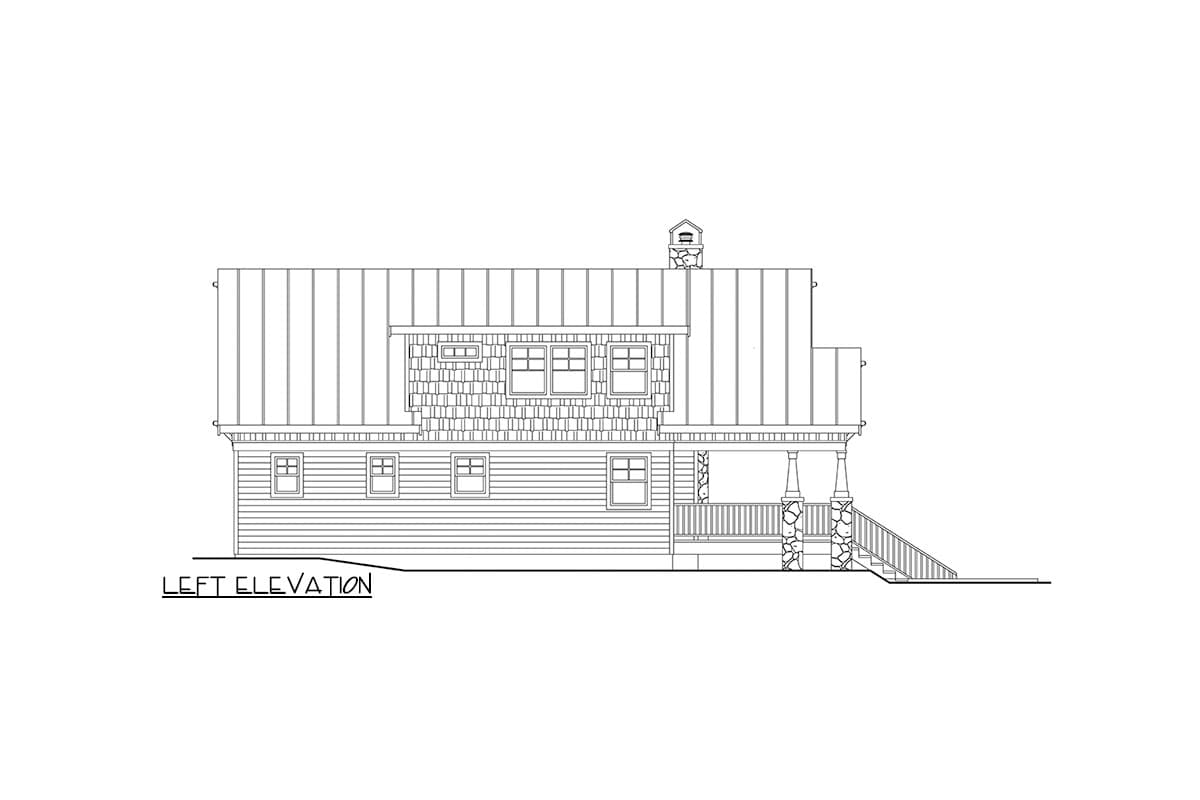

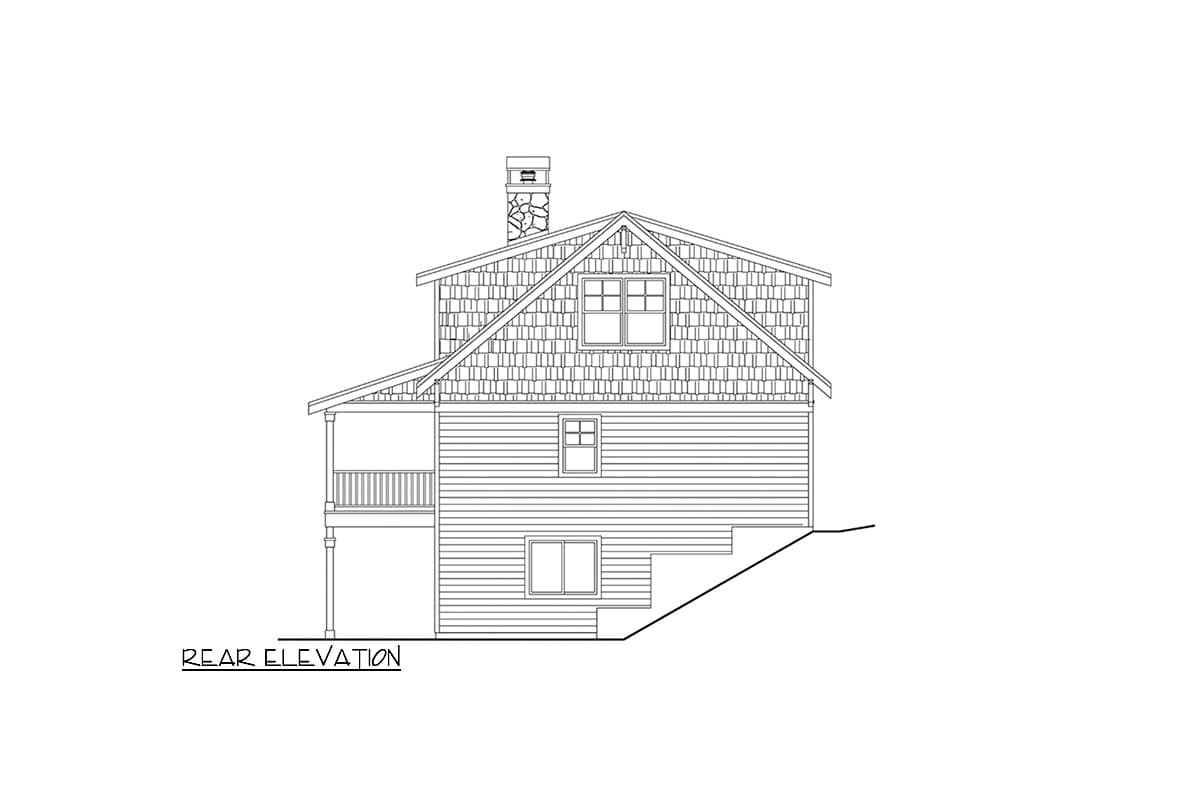

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,633 sq. ft.

Lower Level

67 sq. ft.

1st Floor

1,044 sq. ft.

2nd Floor

522 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 0"

Max Ridge Height

31' 9"

Garage

Type

Drive Under

Area

880 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Mountain

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

1,633 sq. ft.

Lower Level

67 sq. ft.

1st Floor

1,044 sq. ft.

2nd Floor

522 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 0"

Max Ridge Height

31' 9"

Garage

Type

Drive Under

Area

880 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Mountain

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Lake House Plans
