Name: Plan 69554AM: 3 Bedroom Craftsman Ranch Home Plan - 1529 Sq Ft
SKU: 69554AM
Price: 1327.0 USD
Availability: InStock

Plan 69554AM

3 Bedroom Craftsman Ranch Home Plan - 1529 Sq Ft

Heated S.F.

1,529

Beds

Baths

Stories

Cars

Photos

Floor Plan

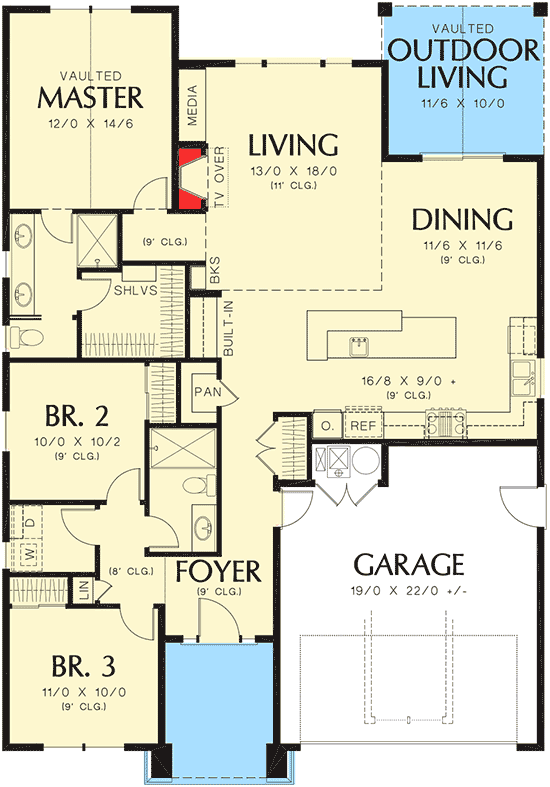

Main Level

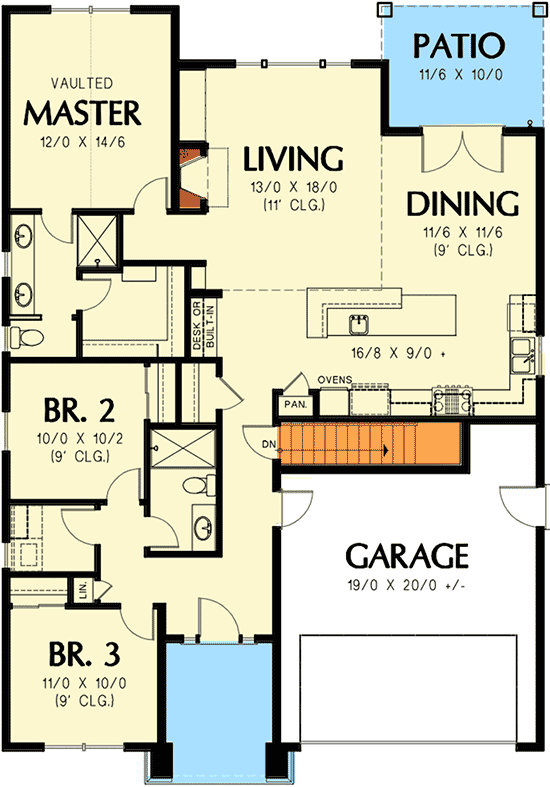

Basement Stair Location

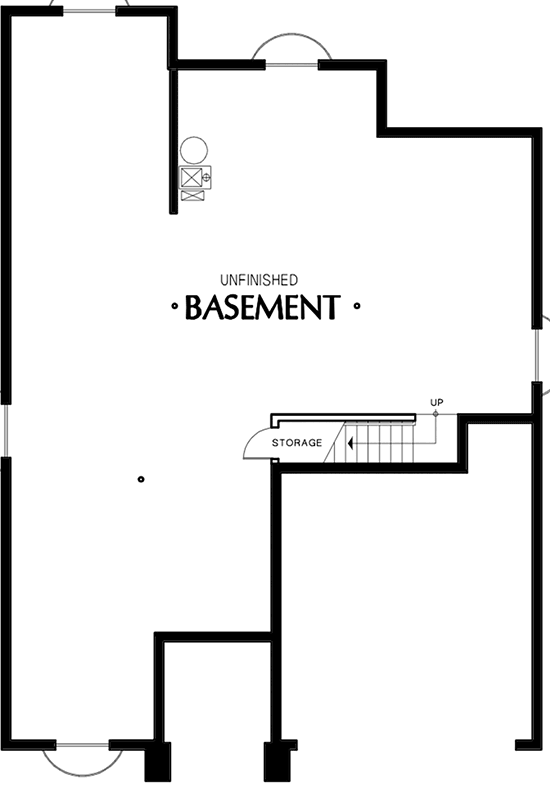

Optional Basement

Plan Details

This 3 bedroom house plan combines Craftsman and ranch detailing and is perfect for those wanting a traditional yet relaxed living space.
Upon entering, you are welcomed by the foyer which gives you views all the way to the back of the home. Two bedrooms, each equipped with their own closet, are off to the left and share a bathroom. A laundry room armed with both a dryer and washer is located in this bedroom alcove as well.
The great room which is an open floor plan composed of the kitchen, living room, and dining room. This area is great for entertaining a group guests or having small, cozy meals.
The kitchen section of this space has a walk-in pantry, a large kitchen island and is perfect for those who love to cook but want to feel connected to the rest of the house.
The master bedroom is located right off of the living room space and has its own bathroom and spacious walk-in closet.
The dining room opens out to a vaulted outdoor living room which is a fantastic space for outdoor gatherings or just to relax and enjoy your backyard and being outside.
There is also a two-car garage that has plenty of storage space, which is great for avoiding massive amounts of clutter in these compact house plans.
Related Plans: Get an extra garage and bedroom with house plans 69727AM (2,130 sq. ft.), 69728AM (2,498 sq. ft.) and 69729AM (1,834 sq. ft.).

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

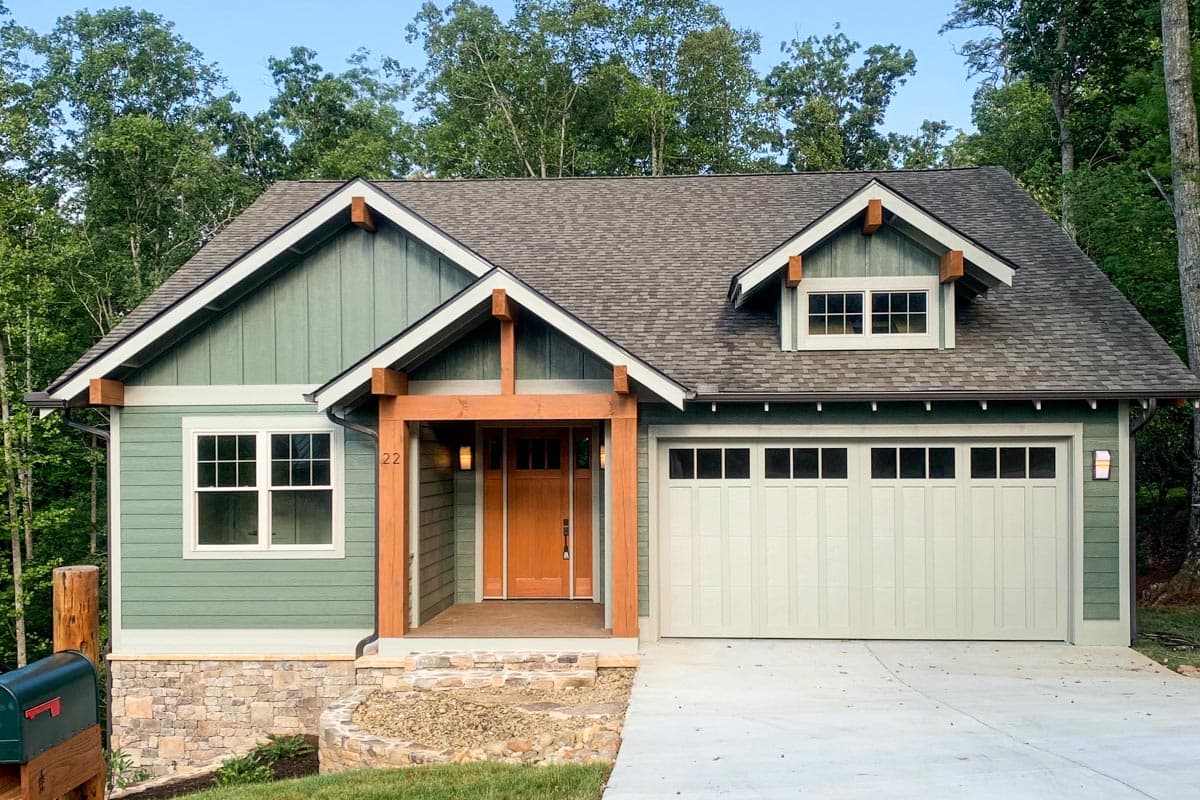

House Plan 69554AM comes to life in North Carolina

Photos

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
