3 Bedroom Craftsman with Exterior Options
Heated S.F.
1,787
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 86208HH

Main Level
slide image 0

Plan 86208HH

1-800-854-7852

1-262-521-4596

Main Level

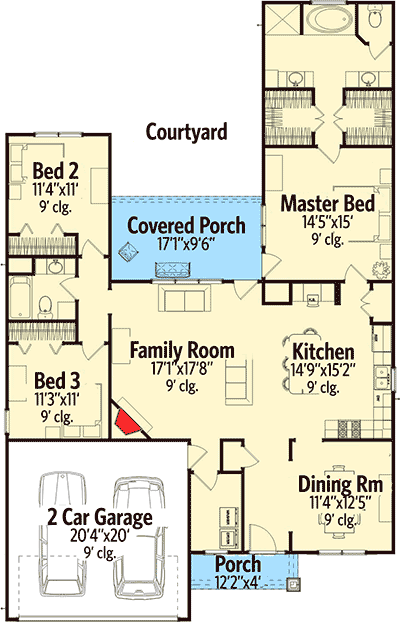

floor plan image Main Level
Plan Details
  • Attractive gables, a single dormer and a cozy entry porch greet you to this three bedroom Craftsman ranch home plan.
  • The foyer takes you past the dining room and a coat closet to the open floor plan beyond with the family room and kitchen creating one large open space.
  • A door takes you to the covered porch which at 9'6" deep has room for furniture and can be used as an outdoor living room.
  • The master also has porch access. You pass his and her large walk-in closets on the way to your five fixture bath. Two more bedrooms share a bath across the home.
  • Laundry is tucked away from the activity near the two car garage.
  • The stick-framed roof has a 8:12 pitch.
  • Related Plan: Get an alternate exterior with house plan 86209HH.
