Plan 72432DA
3-Bedroom Hillside Lake House Plan with Full Wraparound Porch - 2039 Sq Ft
Heated S.F.
2,039
Beds
3
Baths
2
Stories
2
Cars
1
Floor Plan

Plan 72432DA

Main Level
slide image 0
2nd Floor
slide image 1
Unfinished Lower Level
slide image 2

Plan 72432DA

1-800-854-7852

1-262-521-4596

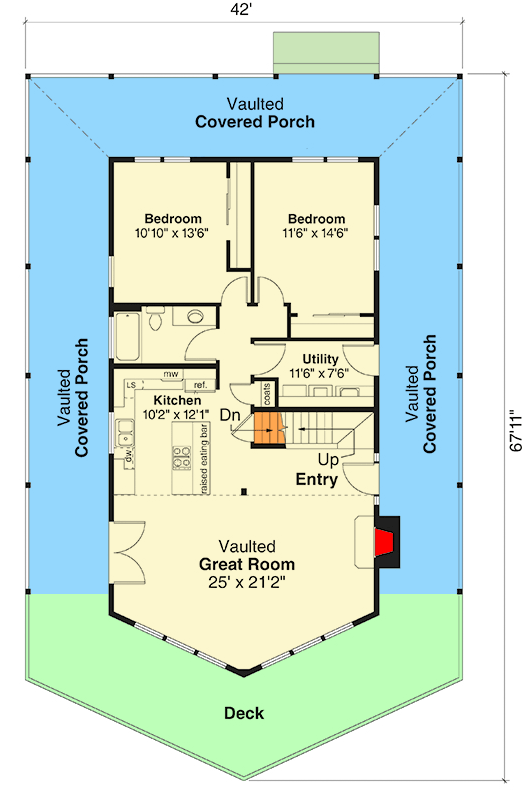

Main Level
floor plan image Main Level

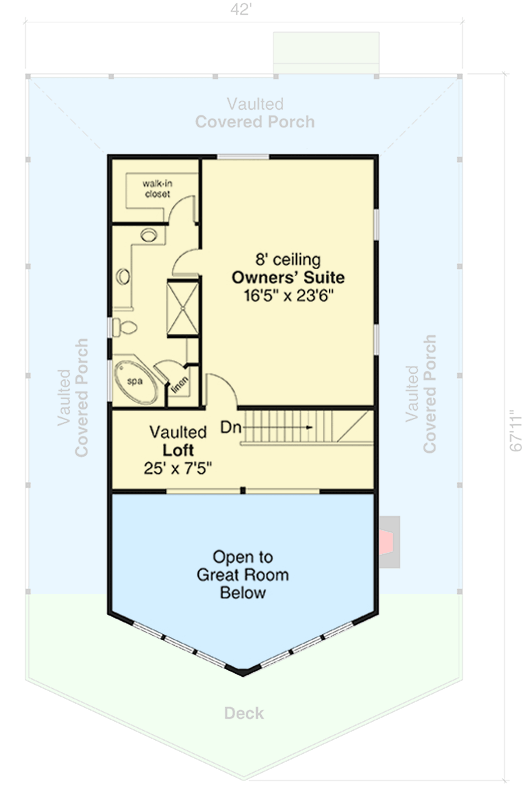

2nd Floor
floor plan image 2nd Floor

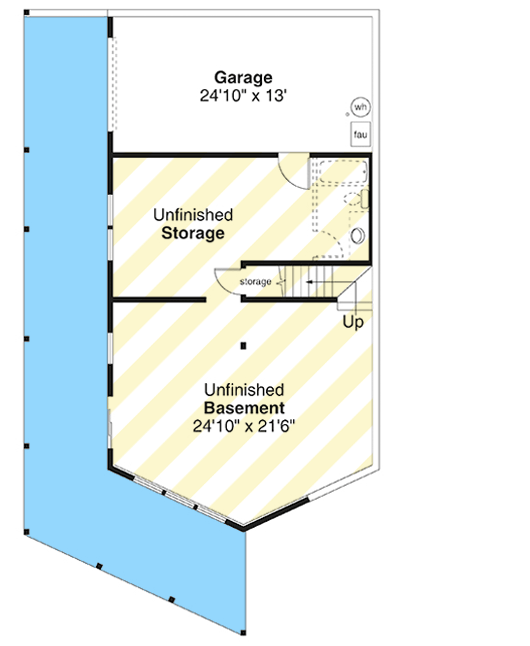

Unfinished Lower Level
floor plan image Unfinished Lower Level
Plan Details
  • This 3-bedroom lake house plan is designed from a hillside lot with great views and would make a great lake house, mountain retreat or your own special getaway. A wraparound porch ensures you'll enjoy the views from all sides of the home.
  • The entry is tucked away on the side and you are immediately brought to the great room where views out the back are captured in a richly windowed A-frame.
  • On the main level, the utility room has exterior access and can serve as a mudroom. Two bedrooms in back share a full bathroom.
  • Upstairs, a vaulted loft over looks the great room and a  large owners' suite off the loft features a bathroom with twin sinks, a spa tub, walk-in shower and generous walk-in closet.
  • Also comes with an unfinished lower level perfect to make it your own.
  • Related Plan: Get an unfinished lower level with house plan 720048DA (2,906 sq ft).
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

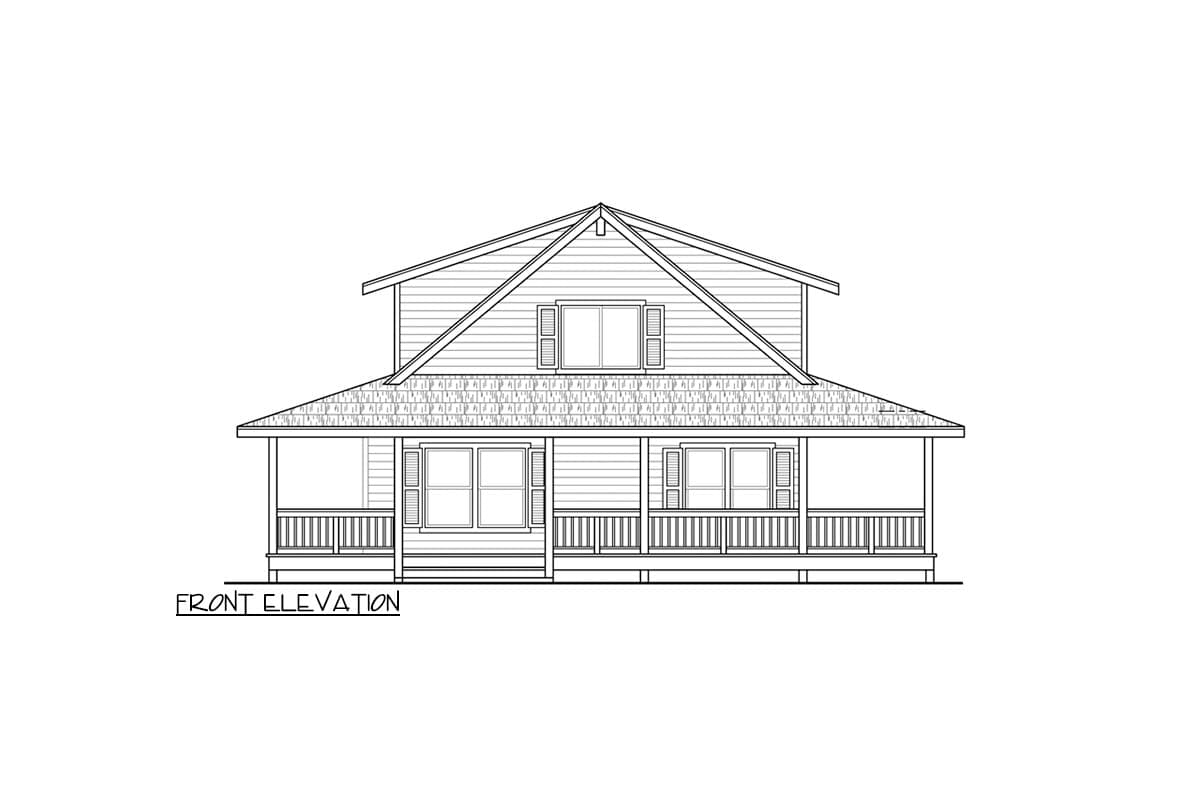

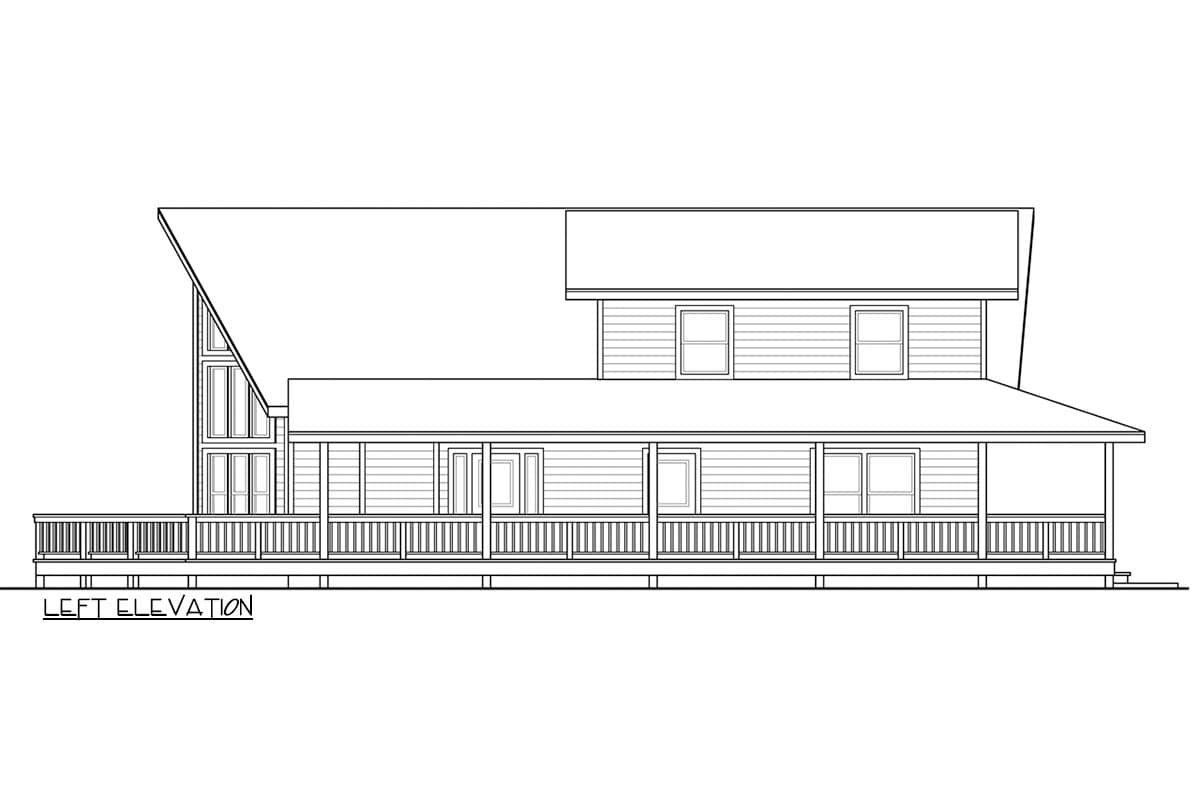

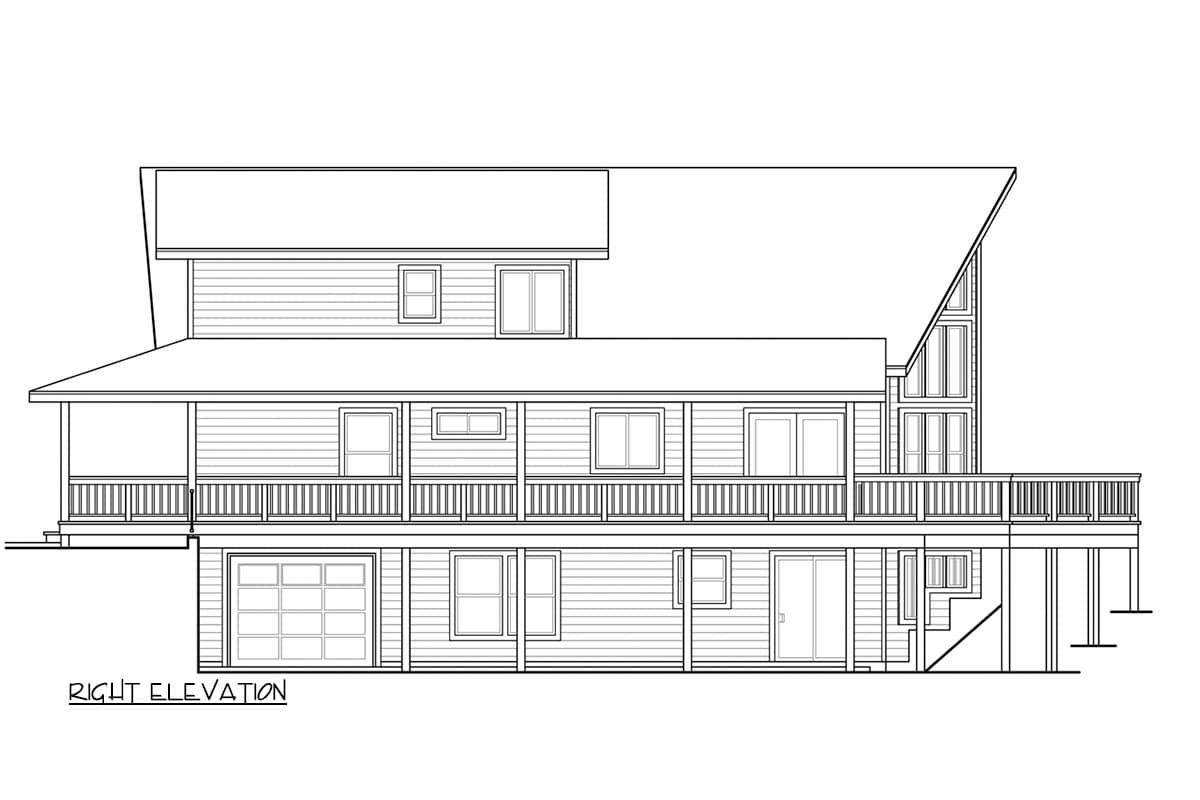

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,039 sq. ft.

1st Floor

1,232 sq. ft.

2nd Floor

807 sq. ft.

Basement Unfinished

867 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

67' 11"

Max Ridge Height

24' 0"

Garage

Type

Attached, Drive Under

Area

355 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Cabin

Country

Lake House

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

2,039 sq. ft.

1st Floor

1,232 sq. ft.

2nd Floor

807 sq. ft.

Basement Unfinished

867 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

67' 11"

Max Ridge Height

24' 0"

Garage

Type

Attached, Drive Under

Area

355 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Cabin

Country

Lake House

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Lake House Plans
