Plan 89821AH
3 Bedroom Rambling Ranch
Heated S.F.
2,016
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
3
Floor Plan

Plan 89821AH

Main Level
slide image 0
Bonus Level
slide image 1

Plan 89821AH

1-800-854-7852

1-262-521-4596

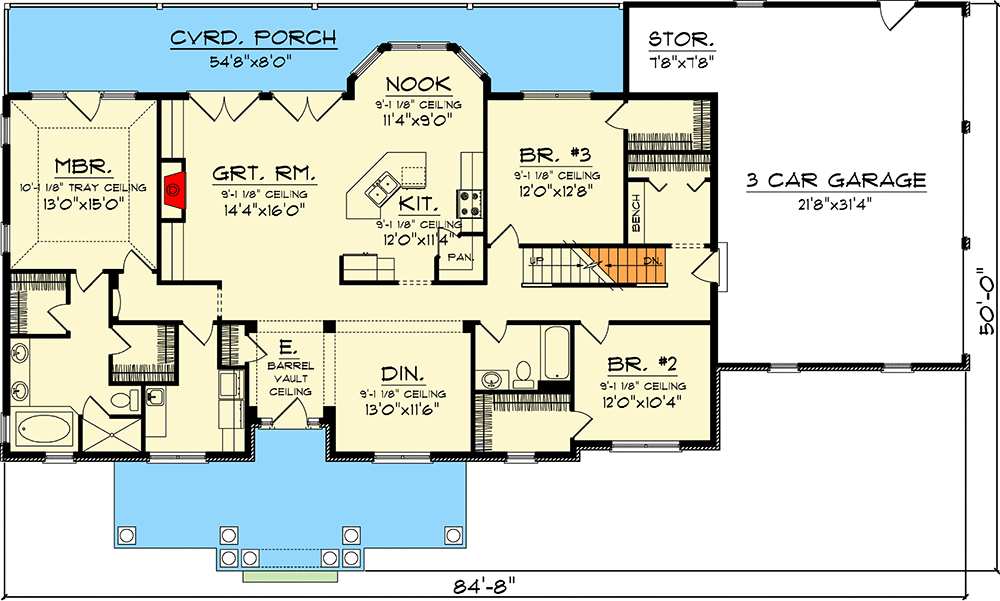

Main Level
floor plan image Main Level

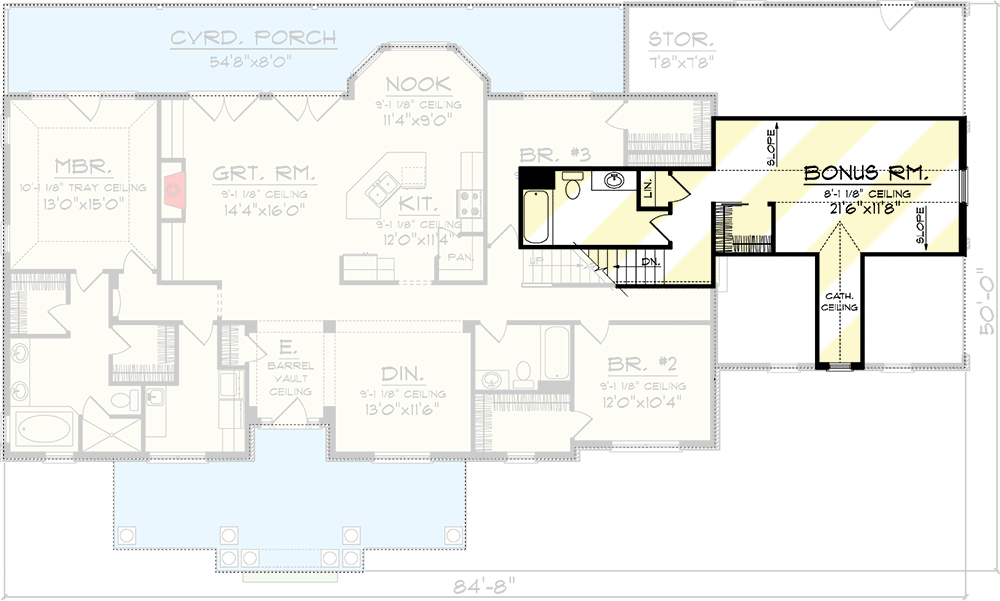

Bonus Level
floor plan image Bonus Level
Plan Details

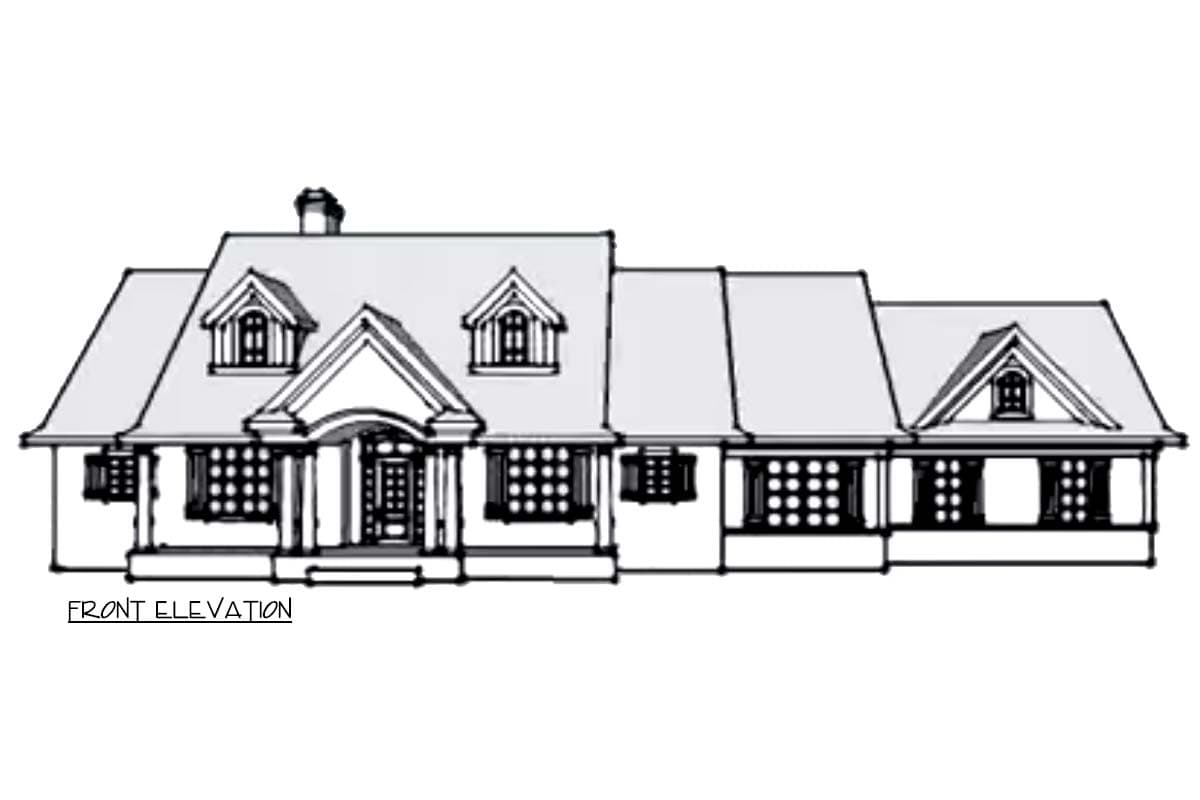

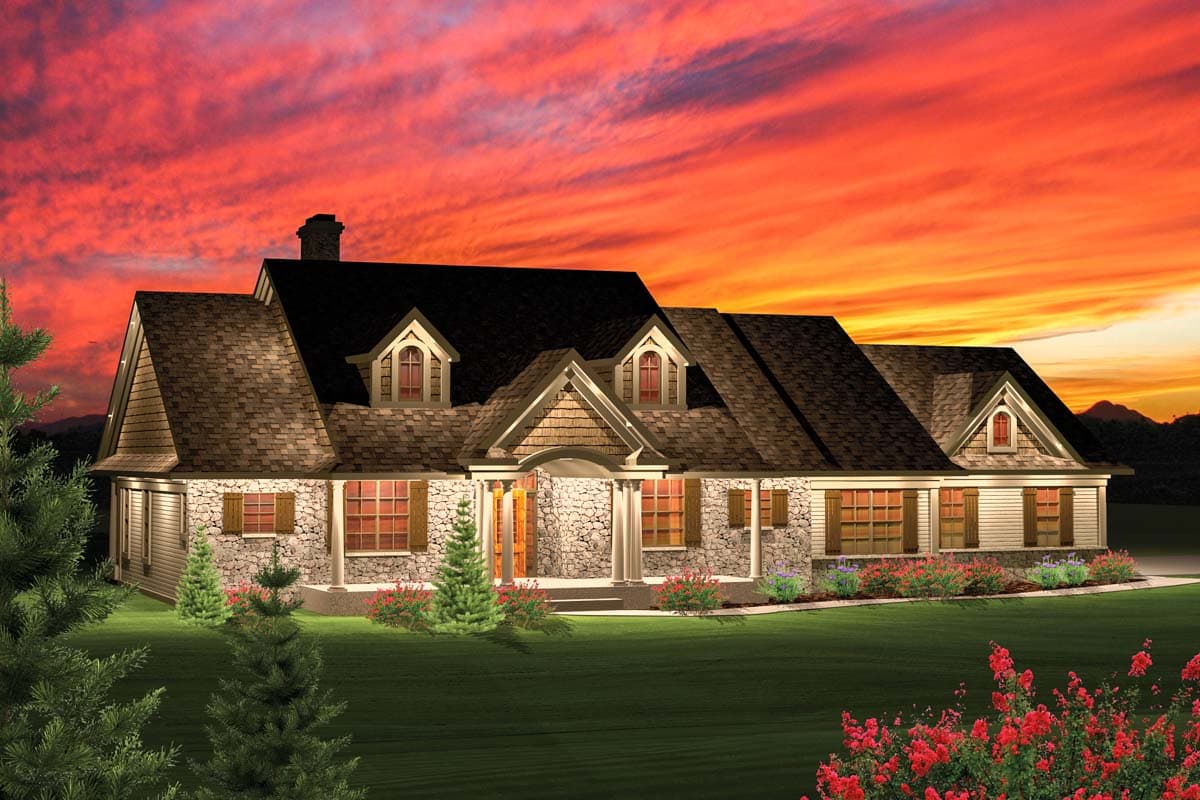

  • This rambling ranch home plan mixing in a flash of Craftsman style with its gable roof line and large porch graced with columns from end to end.
  • Inside, you'll find a barrel vault in the entry with columns that define the formal dining room to your right. The main living area lies directly ahead and beckons you forward with dual doors out the great room, a bay window in the nook, and fireplace with built-in bookshelves on either side.
  • The well-appointed kitchen includes a breakfast bar that overlooks both the nook and great room to create the open plan.
  • The master suite impresses with a tray ceiling, his and hers walk-in closets and a Jacuzzi tub. Two additional bedrooms lie on the opposite side of the home, each with walk-in closet and access to the full bath off the hall.

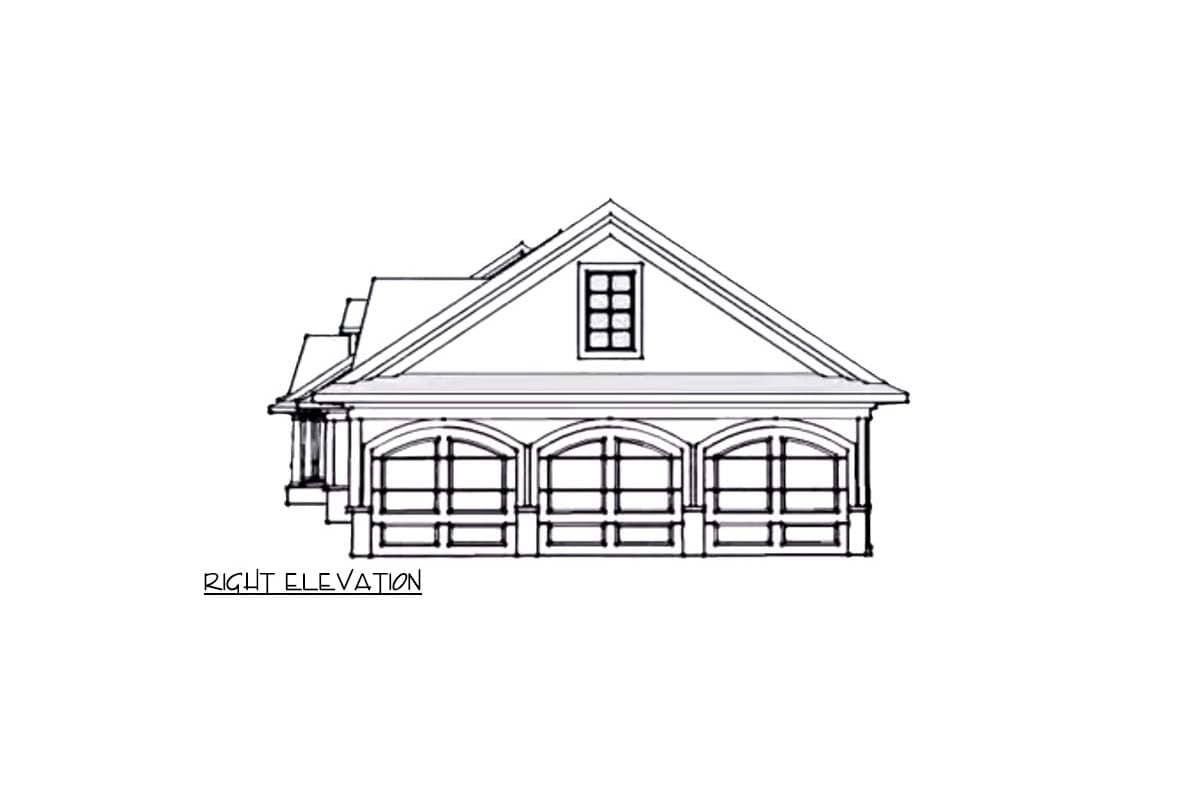

  • A 3-stall, side-load garage with extra storage completes the home.
What's Included
This plan has 9 pages as follows:
  1. General notes
  2. Cover sheet
  3. Elevations
  4. Main floor plan
  5. Bonus floor plan
  6. Foundation plan
  7. Typical wall section and Stair section
  8. Cross section and kitchen elevations (2)
  9. Roof and electrical plans
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,016 sq. ft.

1st Floor

2,016 sq. ft.

Bonus

453 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 8"

Depth

50' 0"

Max Ridge Height

25' 10"

Garage

Type

Attached

Area

768 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8' 9"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
